• Powered by a 4.5-amp electric motor
• Permanently lubricated oversized head bearings for unmatched durability
• Hose can be extended to 45 feet (13.5 meters)
• Waterproof control box
• Optional 50- and 100-foot (15, 30 meters) extension cords available
• Requires high-cycle generator GDP5H

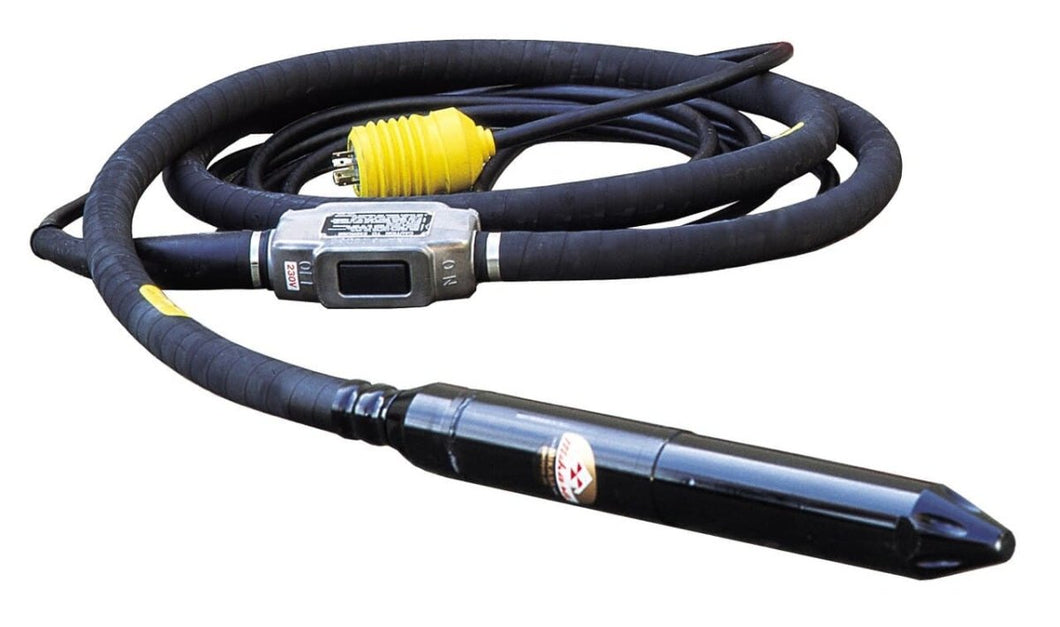

The FXA60A6 High-Cycle Concrete Vibrator from Multiquip is an elite, high-frequency vibration solution for construction professionals tackling demanding low-slump and high-strength concrete projects. Designed with industrial-grade components and advanced engineering, the FXA60A6 stands at the forefront of jobsite productivity and mix consolidation, especially when challenging mixes and extended reach are required.

FXA60A6 High-Cycle Concrete Vibrator: Product Overview

The Multiquip FXA60A6 is a premium high-cycle internal vibrator, purpose-built for commercial slabs, bridge decks, precast concrete, heavy marine work, or any pour demanding deep and uniform consolidation. Taking its power from a 180 Hz, 230V three-phase power supply (usually a compatible high-cycle generator), the FXA60A6 delivers high-amplitude, quick-penetration vibration—breaking through stiff, low-slump mixes, around dense rebar, and into hard-to-reach forms while retaining nearly all of its output power under load.

Key Features and Industrial Benefits

• High-Frequency Performance: Delivers 10,800 vibrations per minute (VPM) at 180 Hz for superior penetration in low-slump or high-strength mixes, maximizing productivity and finish quality.

• Large 2-3/8" (60 mm) Vibrator Head: With a 19.25" (49 cm) length and a 20-foot (6 m) long abrasion-resistant hose, it achieves a substantial area of influence for even the deepest or widest forms.

• Oversized, Permanently Lubricated Bearings: Engineered for unmatched durability and smooth continuous operation—minimizing downtime for maintenance or service.

• Robust, Waterproof Control Box: Allows for confident use in rainy, splash-prone, or damp jobsite environments.

• Extensible Reach: Hose can be extended up to 45 feet (13.5 m) for remote or challenging placements, and is supported by optional 50- and 100-foot rated extension cords.

• High-Cycle Generator Compatibility: Specifically designed for use with a GDP5HA or equivalent high cycle generator, providing consistent three-phase power for unfaltering work in difficult jobsite locations.

• Power Retention: Retains at least 95% of output power under heavy load, eliminating performance dips common to conventional electrical vibrators.

Technical Specifications

Performance for Heavy-Duty Applications

The FXA60A6 is ideal for:

• Bridge decks and civil infrastructure

• Commercial, industrial, or precast slabs

• Marine or heavy mass-concrete placements

• Large tilt-up panels and architectural forms

• Projects with dense rebar or limited access

Because the high-cycle vibrator uses a motor-in-head design, it maintains strength and vibration speed without losses associated with long flex-shaft or cable drives. This results in superior consolidation, fewer lift defects, and uniform surface finishes.

Jobsite Durability and Operator Confidence

• Oversized, Permanently Lubricated Bearings: Extend component life, provide whisper-smooth vibration, and massively reduce required service intervals.

• Tough Outer Casing and Hose: Abrasion-resistant, kink-proof design holds up under rough handling, scaffold drops, and heavy site use.

• Waterproof Controls: Ensure continued operation and safety, even in foul weather or exposed placements.

Maintenance, Upkeep, and Expandability

• Minimal Routine Service: With permanently lubricated, oversized head bearings and pre-sealed electronics, the FXA60A6 can run hours on end with just periodic visual inspection.

• Optional Accessories: Factory extension cords (50 or 100 ft) for long runs, replacement hoses and heads, storage bags, or generator systems extend service value and utility.

FXA60A6 vs. Standard and Flex-Shaft Electric Vibrators

High-Cycle Power: The Key to Superior Concrete

• Consistency Across Large Pours: No drop in vibration even as hose length increases—crucial for hard-to-pour mixes, precast panels, and deep columns.

• Ultra-Efficient Consolidation: Targets tough, heavily reinforced placements and allows crews to pour stiffer mixes, improving slab strength and reducing bug holes.

• Reduced Operator Fatigue: The high-frequency, low-amplitude vibration transmits less harsh feedback to the operator, supporting long, demanding placements.

Why Contractors Rely on the FXA60A6

The Multiquip FXA60A6 High-Cycle Concrete Vibrator is the industry’s standard for serious civil, commercial, and high-strength jobs—where every second counts and every lift must meet specifications. With superior durability, consistent power, waterproof controls, and vast reach, it guarantees fast, flawless consolidation—pour after pour.
