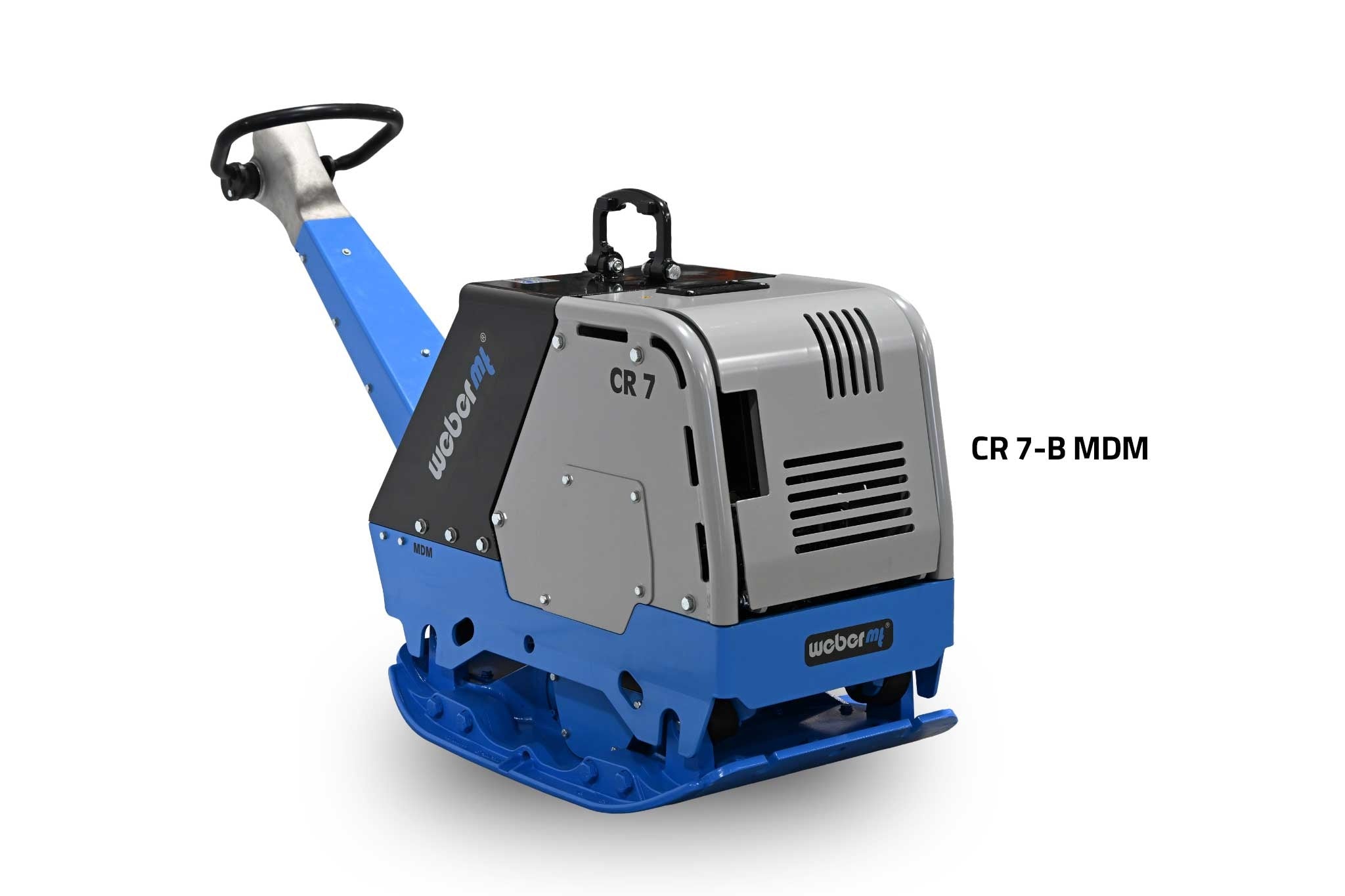

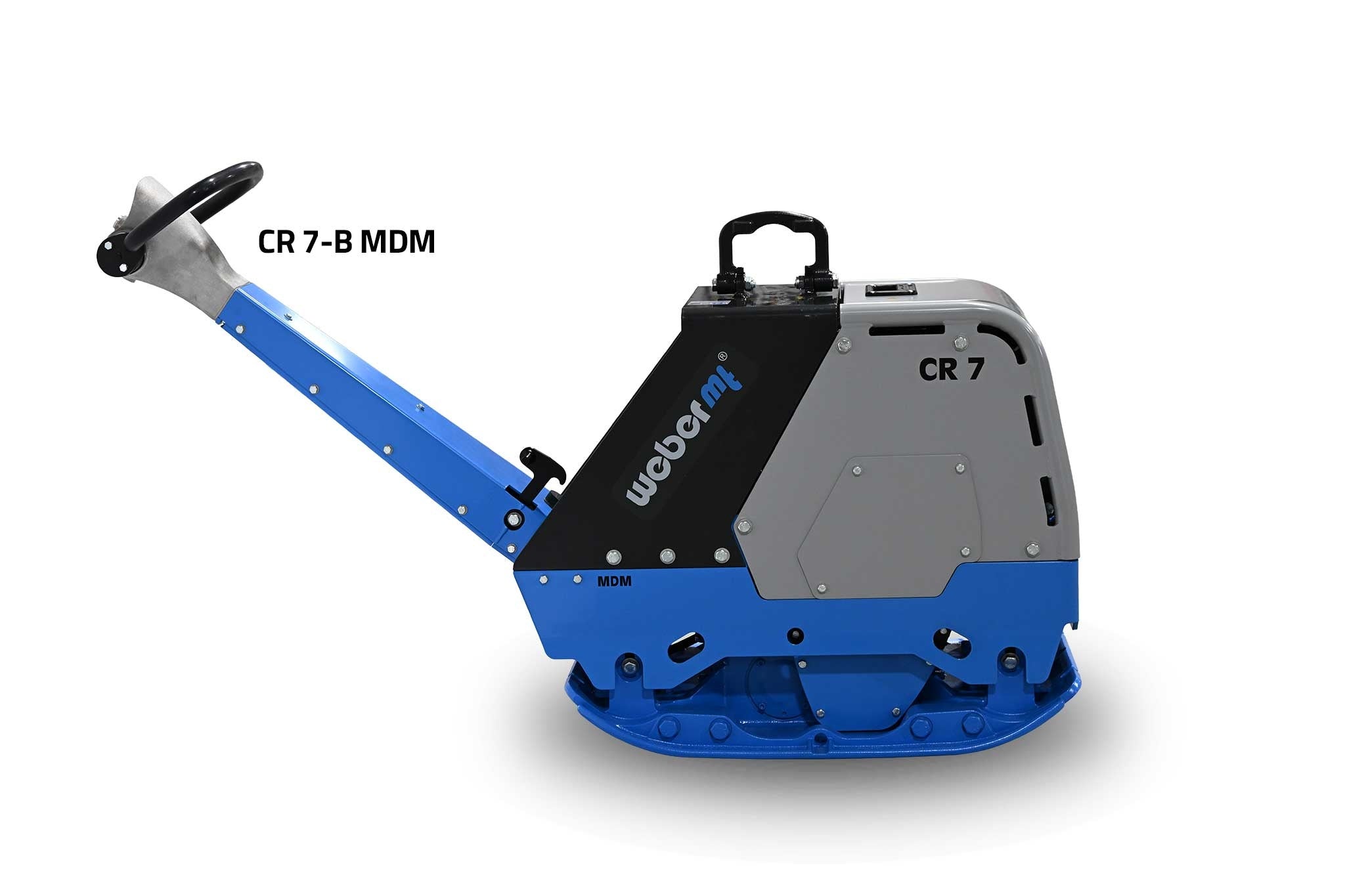

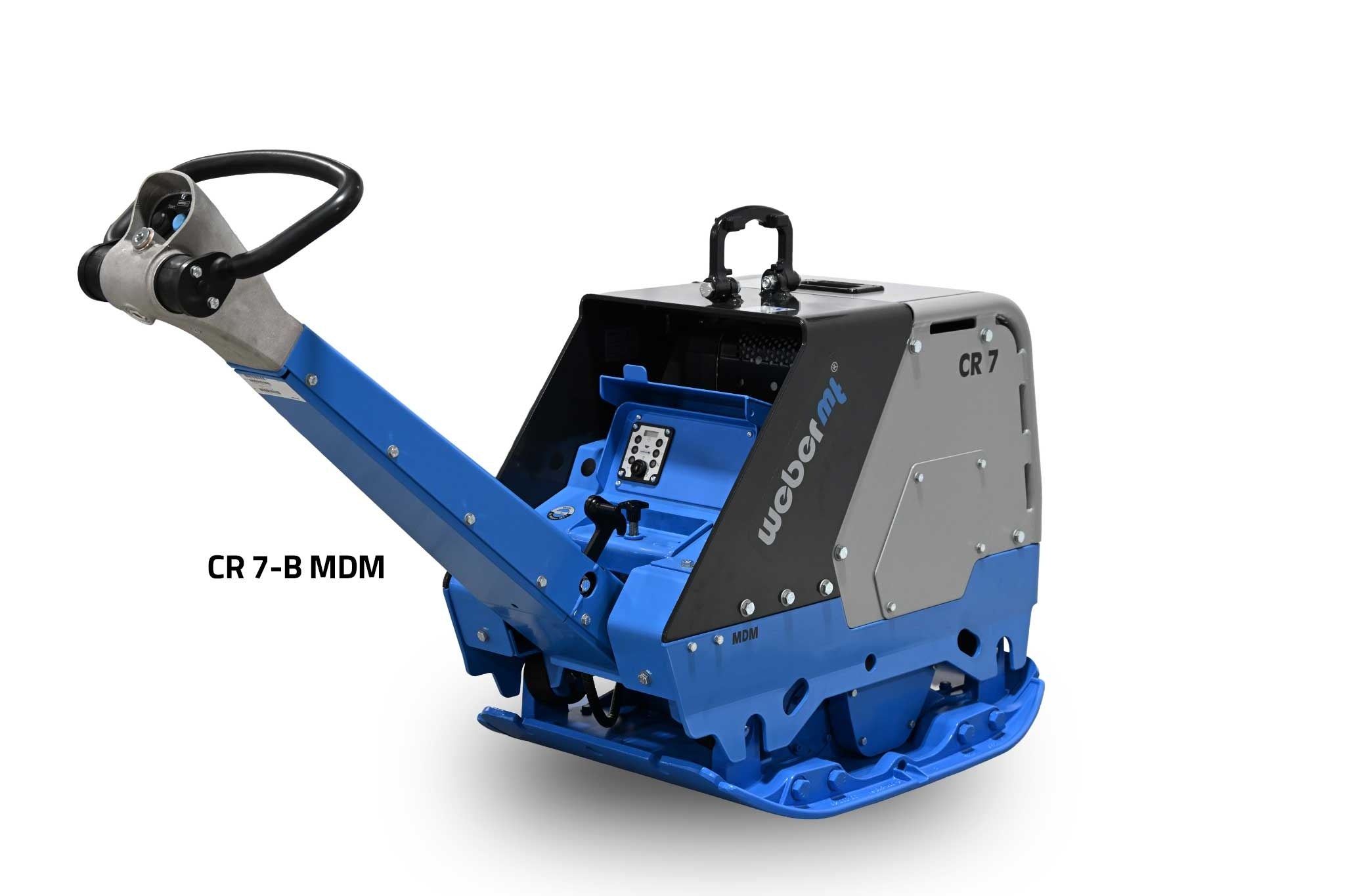

CR 7 Honda GX 390 reversible plate compactor - superior impact power and economical
Engine: Honda GX 390 / Hatz 1B40
The CR 7 Honda and CR 7 MDM* are economical machines that deliver powerful compacting performance. They are available with a Hatz diesel engine or Honda gasoline engine.
For a wide variety of applications ranging from road construction and civil engineering to paving the CR 7 is the machine of choice.
Its balanced running characteristics and exceptionally smooth operation as well as its low hand-arm vibrations provide for superb ease of use.
The standard CR 7 includes:
- low vibration guide bar
- height-adjustable guide bar
- hydraulic shift / infinitely variable forward and reverse travel
- fully protected engine thanks to protection frame and engine enclosure
- unobstructed access to all maintenance points
- self-adjusting centrifugal clutch
- E-start*
Looking to Finance this Compactor? It's quick and easy. Click here to apply.
TECHNICAL DATA |
CR 7-B |
CR 7-B MDM |
CR 7-B CCD 2.0 |
CR 7-B WSA 2.0 |
Operating weight: |
475 kg |
475 kg |
476 kg |
475 kg |
Working width: |
65 (80) cm |
65 (80) cm |
65 (80) cm |
65 (80) cm |
Centrifugal force: |
65 kN |
65 kN |
65 kN |
65 kN |
Frequency: |
74 Hz |
74 Hz |
74 Hz |
74 Hz |
Engine: |
Hatz 1B40 |
Hatz 1B40 |
Hatz 1B40 |
Hatz 1B40 |
Power output, max.: |
7.3 kW (10.0 HP) |
7.3 kW (10.0 HP) |
7.3 kW (10.0 HP) |
7.3 kW (10.0 HP) |
