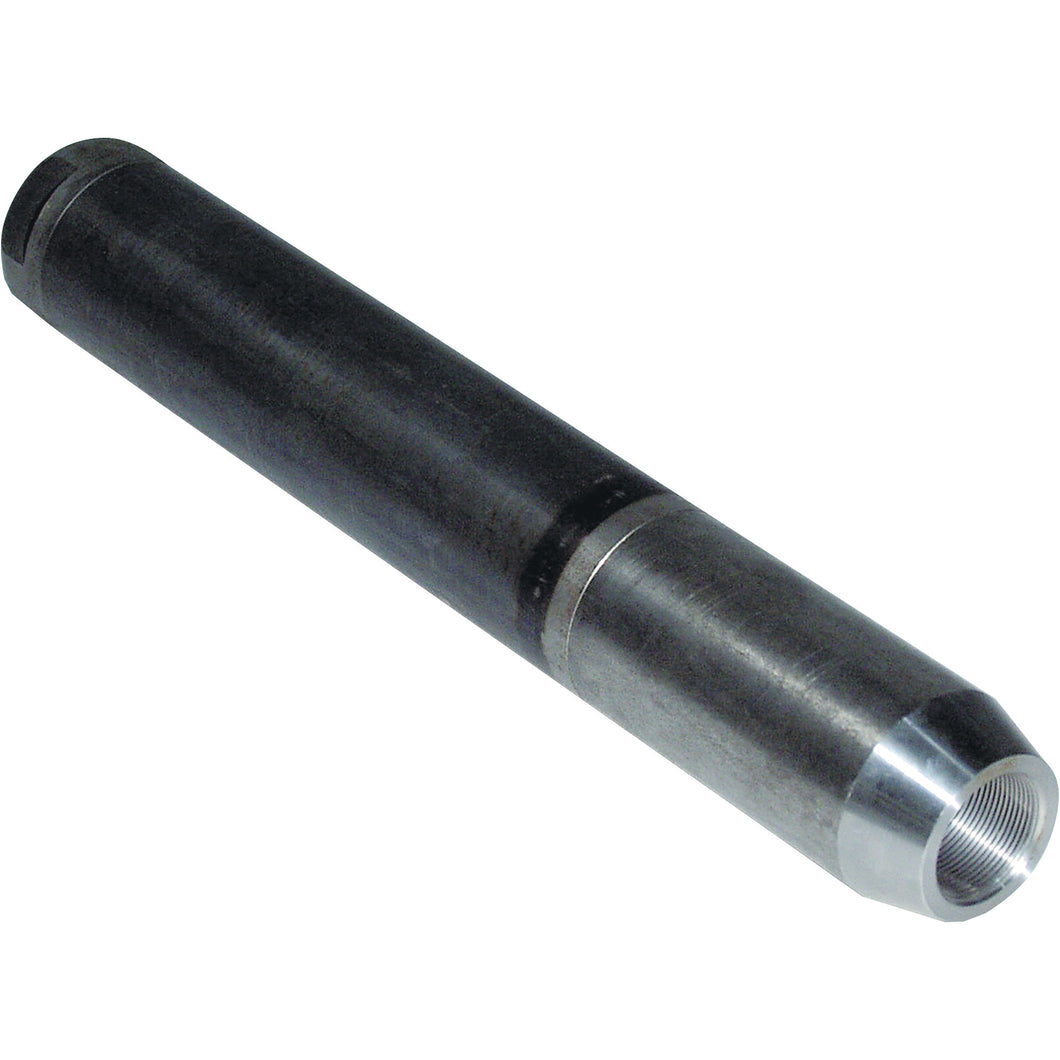

Wacker Neuson - Vibrator Head H 25 S - 5000006566
The H25S Hybrid Vibrator Head is a 1 inch head 11.6in. long. It is compatible with SM1E, SM2E, SM3E, SM4E, SM5E, SM7E Wacker Neuson concrete vibrator shafts. It is compatible with the Wacker Neuson electric motors concrete vibrator motors models M1500 and M2500. Not compatible with gas powered concrete vibrator motor.
Specs
- H 25S (5000006566), Short vibrator head, 1", 25 mm diameter, length = 11.7", 295 mm
- H 35S (5000006592), Short vibrator head, 1-3/8" in, 45 mm diameter, length = 12", 305 mm
- H 45S (5000006593), Short vibrator head, 1-3/4", 35 mm diameter, length = 12.3", 310 mm
Hardened vibrator head for the modular internal vibrator HMS. Short design.
H 25S SKU# 0006566
Short vibrator head, 1 in, 25 mm diameter. length = 11.7 in. 295 mm.
Technical specifications
| H25S | |
|---|---|
| Diameter in | 1 |
| Length in | 11.6 |
| Weight lb | 1.8 |
Possible combinations
Drives, internal vibrators and flexible shafts
H= Vibrator head (Number = Vibrator head diameter, HA = Large amplitude, S = Short vibrator head)
SM = Flexible shafts (Number = Length in meters, E= Economy, S = Standard) BV 50A-H = backpack vibrator compatible with heads and shafts
(green) = M 1500
(red) = M 2500
