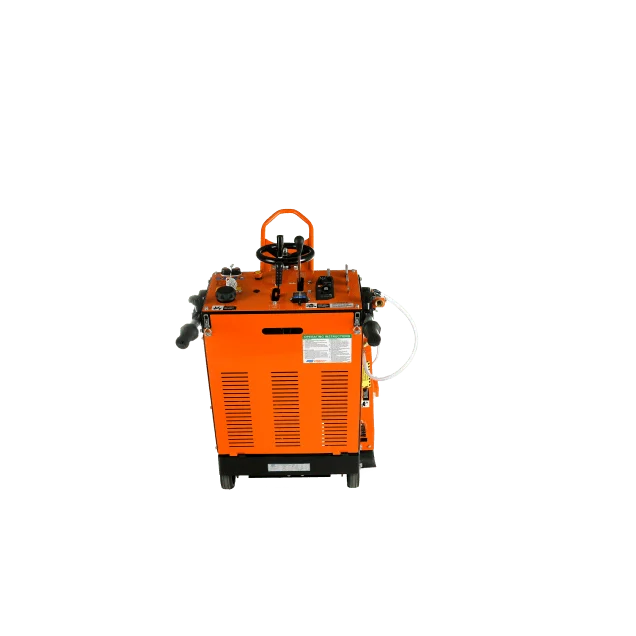

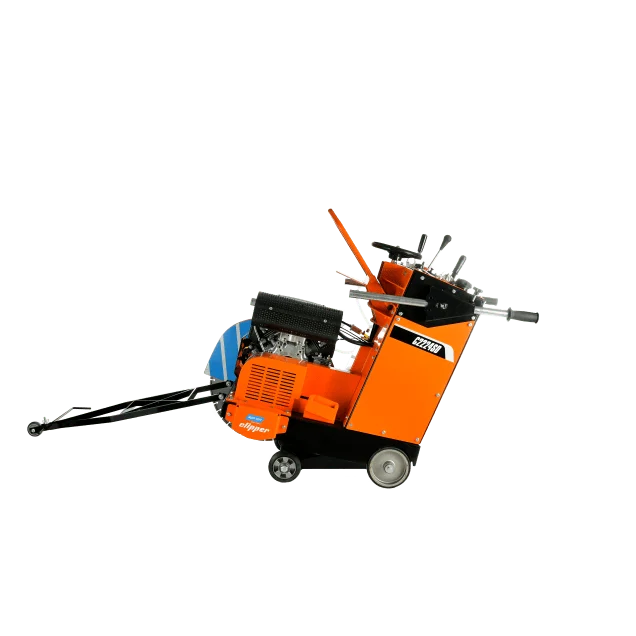

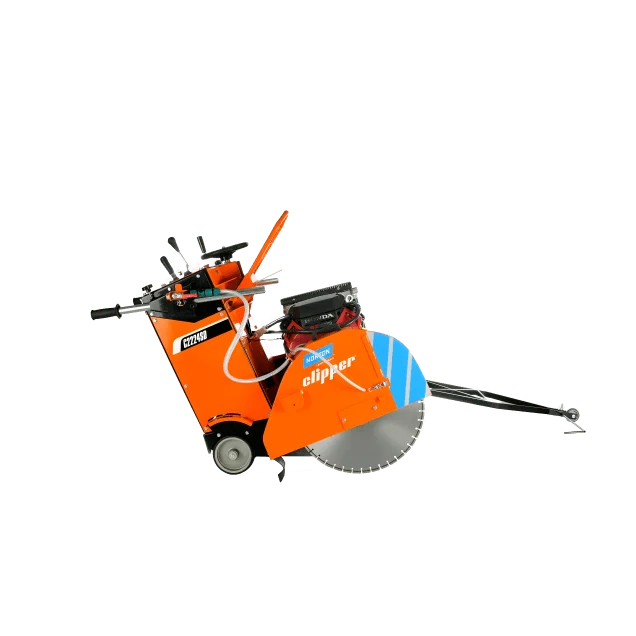

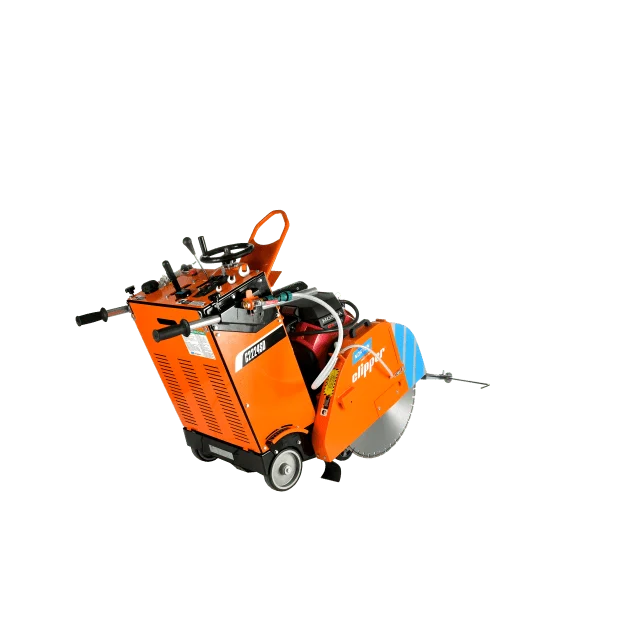

Norton Clipper C2224SD Walk-Behind Saw
NOTE: BLADE ON SAWS IN PICTURE ARE NOT INCLUDED : BLADES MUST BE PURCHASED SEPARATELY
22HP GAS MID-RANGE
SELF PROPELLED SAW
• Adjustable handlebars provide ergonomic working conditions for any operator
• Direct drive self-propelling system brings increased reliability, lower maintenance,
and increased cutting speed control over competitive models
• Manual hand wheel for raising/lowering of the blade for a precise depth control
• Cutting depth indicator allowing easy monitoring of the cut
• Blade can easily be mounted on the left or right side for increased cutting flexibility
• Optional 6 gallon (25 l) water tank provides additional dust control when a
pressurized water supply is not available
• Easy to change all steel blade guard with lifting handle and hinged nose
• Console design with the operator in mind by providing an unobstructed view and places
all the machine controls at the operator’s finger tips
Norton Clipper C2224SD Walk-Behind Saw
The Norton Clipper C2224SD is a 22HP gas-powered, mid-range, self-propelled walk-behind saw built for contractors who need reliable cutting performance, precise depth control, and jobsite durability.
Key Features
- 22.1 HP Honda GX690 engine
- Self-propelled direct drive system for reliable cutting control
- 24" blade guard capacity
- Maximum cutting depth of 9-5/8"
- Manual hand wheel for precise blade raising and lowering
- Cutting depth indicator for easy monitoring
- Blade can be mounted on the left or right side
- Adjustable handlebars for improved operator comfort
- Easy-to-change all-steel blade guard with lifting handle and hinged nose
- Optional 6-gallon water tank for added dust control
Technical Specifications
| Model | C2224SD |
| UPC | 70184633329 |
| Blade Guard Capacity | 24" |
| Maximum Depth of Cut | 9-5/8" |
| Arbor Size | 1" |
| Blade Shaft RPM | 2,520 RPM |
| Engine Type | Honda GX690 |
| Maximum Horsepower | 22.1 HP |
| Starter | Electric |
| Weight Uncrated | 530 lbs |
| Weight Crated | 570 lbs |
Saw Dimensions
| Height | 41-7/8" |
| Minimum Saw Length - Transport | 34-1/2" |
| Maximum Saw Length - Working | 96-3/4" |
| Maximum Pointer Length | 39-7/8" |
| Frame Width | 23-7/8" |
| Saw Width | 30-11/16" |
| Blade to Wall | 3-1/4" |
| Wheel Base Length | 18-3/8" |
Built for Jobsite Cutting Performance
With its self-propelled drive system, electric start, adjustable handlebars, and easy-to-access controls, the C2224SD is designed to help contractors cut faster, work more comfortably, and maintain better control on demanding concrete and asphalt cutting jobs.
