Tech Specs

Norton Reinforced Cut-Off Wheels are offered with patented universal arbor that accommodates both 20mm and all other machines with 1" arbor.

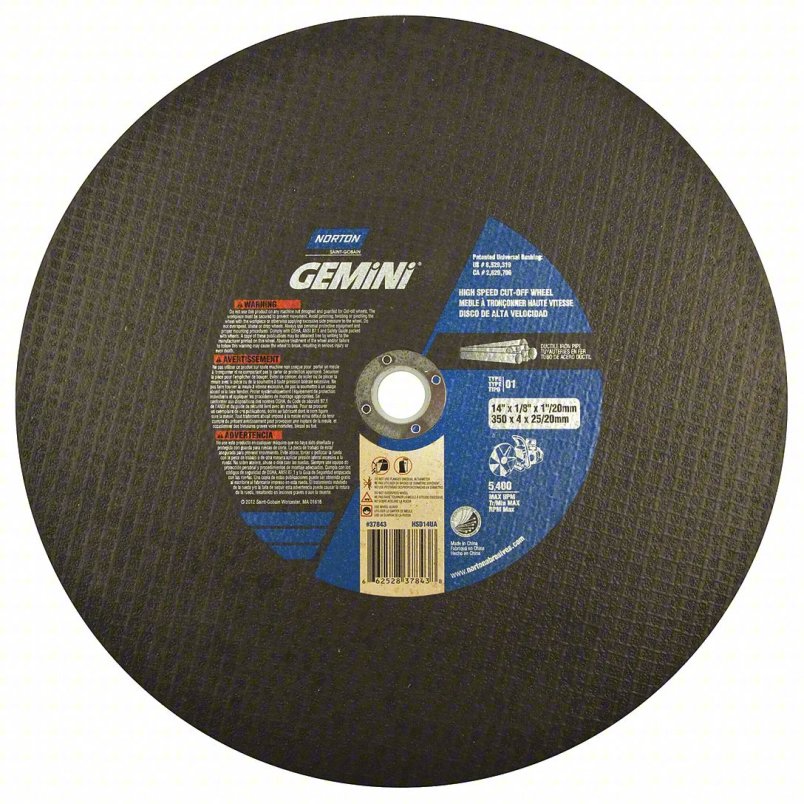

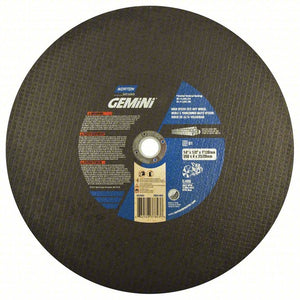

The NORTON Abrasive Cut-Off Wheel: Type 1, 14" x 1/8", 20 mm/1" Arbor, SC/AO, 24 Grit, Gemini Ductile is a high-performance, professional-grade cutting solution designed specifically for contractors, pipe fitters, municipal workers, and utility crews who regularly tackle ductile iron, cast iron pipe, concrete-lined water mains, PVC, and structural steel. Featuring a carefully engineered silicon carbide/aluminum oxide (SC/AO) abrasive blend, this Gemini Ductile wheel delivers ultra-fast, straight, and burr-free cuts even through the toughest materials—outperforming standard cut-off wheels in both speed and longevity. With a patented universal arbor (20mm/1") and a resilient, reinforced Type 1 flat profile, this Norton wheel is the go-to choice for precision, safety, and cost-effective cutting on today’s jobsites.

Product Overview: Optimized for Ductile and Heavy-Duty Cutting

Norton’s Gemini Ductile abrasive cut-off wheel is formulated explicitly for high-speed gas saws and chop saws. The unique combination of a 14" diameter, 1/8" thickness, and universal arbor means you only need one wheel for virtually any commercial saw—no bushing, no guesswork. Whether slicing through cement-lined ductile iron pipe on municipal water projects or facing stubborn cast iron for sewer repairs, this wheel stands up to real-world abuse with exceptional abrasive performance and jobsite safety.

Technical Specifications

Advanced Features & Professional Benefits

SC/AO 24-Grit Abrasive Blend

• The wheel combines the fast material removal of silicon carbide with the toughness of aluminum oxide, specifically tuned for cutting ductile and cast iron. This blend enables rapid, free-cutting action and lasts longer than wheels made with either abrasive alone.

Universal Arbor Design (20mm/1”)

• Norton’s patented universal arbor ensures perfect fit and stability on both 20mm and 1" spindles—a unique solution that eliminates the need for extra bushings and streamlines inventory management for fleet operators, contractors, and rental businesses.

High-Speed, Durable Construction

• Designed for high-cycle, high-torque saws up to 5,400 RPM. The wheel is reinforced to reduce breakage during tough jobs, withstand side-loading, and maintain a straight cutting path under aggressive use.

Gemini Ductile: Built for Pipe, Iron, and Utility Work

• Delivers clean, efficient cuts in:

  • Ductile and cast iron pipe (cement or concrete-lined)

  • Water mains, sewer lines, heavy-duty PVC and plastic

  • Structural steel, angle iron, and more

• Perfect for city utilities, emergency repairs, and industrial fabrication

• Provides extended life and lower cost per cut compared to competitor wheels and even outperforms many diamond blades in cost-sensitive applications.

Application Scenarios

• Water Main and Sewer Projects: Far exceeds standard blades for both initial and finishing cuts on cement-lined ductile iron and heavy-duty mains.

• Municipal Utility Work: Fast setup and reliable, consistent performance for pipe repairs, road openings, or infrastructure tie-ins.

• General Metal Fabrication: Versatile enough for structural work, angle iron, fencing, and steel sectioning in shops or on-site.

• Rental Fleets and Emergency Kits: Universal arbor and durability make this wheel a staple for public works, rental, and first-response equipment.

Industry Comparison Table

Hands-On Performance & User Testimonials

• “Most of our crew won’t use anything else for ductile mains—fast, fewer wheel swaps, and it cuts even concrete linings cleanly.”

• “Universal arbor is a game-changer for the city team—no more tracking bushings for our mix of saws.”

• “Diamond is nice, but when cost matters, Gemini Ductile gets the work done, lasts longer than generic blades, and never splinters or kicks back when scoring.”.

Best Practices and Safety

• Always check for wheel cracks or damage before mounting.

• Match wheel to correct RPM of your saw—never exceed manufacturer speed specs.

• Wear proper PPE (face shield, gloves, and sleeves); cut in a well-ventilated area.

• Store wheels on edge or flat, away from moisture, sun, and excessive heat.

Why Choose the Norton Gemini Ductile Cut-Off Wheel?

• Precision-engineered for the toughest pipe and utility cuts: Cuts ductile and cast iron pipe, concrete-lined pipe, and PVC with confidence.

• Universal arbor saves time and eliminates fitment headaches: One wheel fits all major gas and electric saws.

• Longer blade life and faster cuts: 24-grit SC/AO blend grinds fast and stays sharp, boosting operator efficiency.

• Contractor and municipality preferred: Lower cost per cut, high safety margin, and trusted Norton quality.
