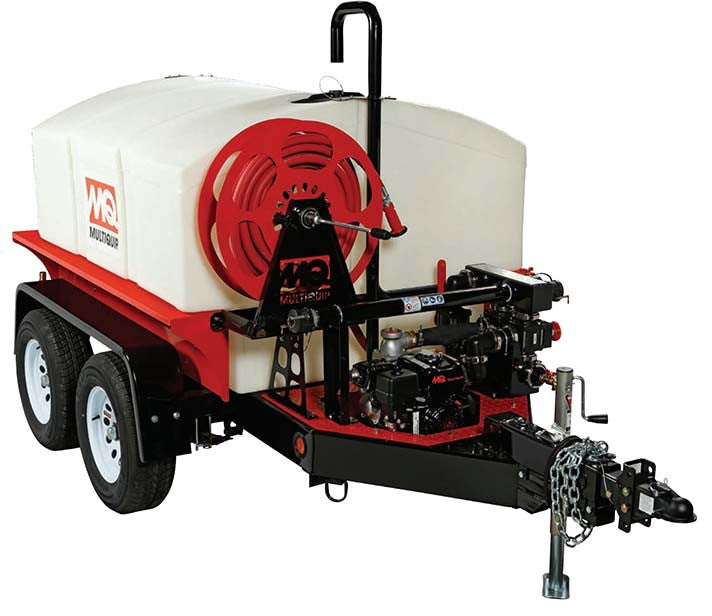

MultiQuip WT5HP2 Series - Up to 525 Gallons - Water Trailer
The WTE5HP with Electric Brakes will need need trailer break controller in truck
Mobile Water Trailers with powerful MQ 2” High Pressure Centrifugal Pumps
The Multiquip WT5HP2 Series Water Trailer is ready to tackle a host of assignments to include: Dust Control, Emergency Fire Fighting Response, Construction, Agricultural Support and Equipment Wash Down. This mobile unit features: DOT/NHSTA approved Double-Axle Trailer, powerful high psi MQ QP205SH Centrifugal Pump, flexible Suction/Discharge manifold system with simple valve operations, hose reel assembly, and a rugged 525 GAL polyethylene Water Tank. The model WTE5HP provides electric brakes.
- Store up to 525 gallons of water in a durable polyethylene water tank with integrated baffles to support water movement during transportation
- Dependable high pressure performance with Multiquip QP205SH 2 inch centrifugal pump
- QP205SH delivers 106 GPM/230 Ft HEAD/100 psi
- Components protected from damage by low profile manifold assembly
- Attached industrial Hose Reel assembly (1” x 50’ contractor hose and fog spray nozzle)
- Switch easily from suction to discharge mode by turning a single manifold lever
- Rear spray bar operates under pressurized or gravity feed settings
- Quickly fill tank through 2" diameter steel pipe with QD coupler or vented 12" diameter fill port
- Rapid hose setup with standard Quick Disconnect (cam & groove) fittings
- Transport hoses and accessories in convenient steel storage bin
- Safe towing and braking assured by a dual axle trailer and rugged hydraulic brake system
- Convenient Hose Kit provided (2" x 20' Suction)
| Capacity | 525 Gal. | |
| Water Tank Material | 525 Gal. Polyethylene | |
| Fill Port | 12" vented port | |
| Fill Rate | Five minutes full fill @ full throttle | |
| Fill Methods | Municipal fire hydrant — QD 1.5" and 2" Q/D cam and groove Two standard garden hose adapters |
|
| Delivery Methods | 1.5" & 2" Left/Rt. (QD Couplers), three garden hose valves, rear spray bar | |
| Pump Model | MQ QP205SH 2 in. | |
| Pump Type | High Pressure Centrifugal | |
| Flow / Head | 106 GPM / 230 Ft. | |
| Overall Length | 146 in | 3708.4 mm |
| Overall Width | 68 in | 1727.2 mm |
| Overall Height | 80 in | 2032 mm |
| Operating Weight | 1,428 lb | 647.73 kg |
