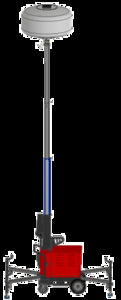

MultiQuip Light Balloon LED 800W 4Whl Crt 48V Battery - GBBAT8BM

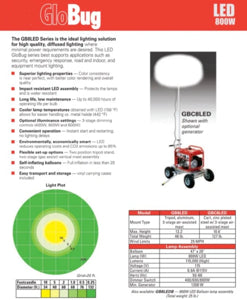

Multiquip offers exceptional LED technology to our line of GloBugs. LED lighting is safer, producing significantly less heat than Metal Halide bulbs while offering quality color consistency, immediate strike/re-strike operations, and a long operational life. The GB8LED comes standard with an air-assisted, telescopic 3-stage pentapod stand. With its powerful 800W LED system, and 3-position dimmer design, this unit provides optimum glare-free lighting to a host of construction, quick response, and special event applications.

• Superior Lighting Properties - Color consistency is near perfect, with crisp color rendering and overall high-quality light projection
• Shock and weather resistant LED assembly - Protects the LED chips and electrical surroundings.
• Long life hours, low maintenance - Up to 40,000 hours of operating life per bulb
• Safer; LED holds less heat - LED Lamps (158°) vs. Metal Halide (422°)
• Optional illuminance settings - 8-stage dimming controls (400W, 600W, 800W)
• 110,000 lumens (800W), 68,000 lumens (600W), 53,000 lumens (400W)
• Safe, convenient operating process - Instant start and restarting
• Environmentally, economically smart - LED reduces operating costs and CO2 emissions up to 85%
• Flexible set-up options - Three position Pentapod stand, 3 Stage vertical mast assembly

Lighting equipment is critical in construction zones, events, emergency work, night-time road crews, and indoor/outdoor projects where visibility and portability matter. The Multiquip GBBAT8BM is an 800-watt LED balloon light mounted on a four-wheel cart and powered by a 48 V lithium-ion battery system. It offers high output, true mobility, silent operation, and zero emissions—features increasingly demanded across jobsites.
This model stands out because it blends heavy-duty illumination (110,000 lumens at full power) with a clean, electric-only power platform. In contexts where diesel light towers are noisy and emissions-heavy, this model offers a modern alternative.

Key Specifications & Features

Here are the specifications you should know:

• Power: 800 W LED output, using a balloon light diffuser.

• Lumens: At full 800 W output, approximately 110,000 lumens. At reduced settings (600 W), about 90,000 lumens; at 400 W, around 67,000 lumens.

• Battery powered: 48 V lithium-ion battery system (emission-free).

• Runtime: Depending on output setting: up to ~13 hours at 800 W, ~16.5 hours at 600 W, and ~23.5 hours at 400 W.

• Recharge: One charger takes ~11 hours; two chargers reduce to ~5.5 hours.

• Mounting: Four-wheel cart design for mobility; includes a telescopic 4-stage mast — up to ~21 ft height.

• Wind resistance: Rated to withstand wind speeds up to ~45 mph when in raised position.

• Operating temperature range: As low as –23°F up to ~104°F (or higher per spec).

• Emission and noise advantages: Emission-free, ultra-quiet operation compared to traditional generator-powered towers.

These features position the GBBAT8BM as a premium, high-end lighting cart built for demanding environments and modern jobsite/green-lighting requirements.

Why This Model Matters for Job Sites & Events

Mobility and zero emissions
Traditional light towers use diesel or gasoline generators; they emit fumes, require fuel, and generate noise and maintenance burdens. The GBBAT8BM’s battery-powered platform eliminates those issues — no fuel hauling, no generator maintenance, no exhaust, and significantly lower noise. For indoor work or noise-sensitive zones (events, filming, hospital sites, urban repairs), this is a major advantage.

High output and flexibility
With 110,000 lumens at full power, the balloon light illuminates large areas effectively. The dimming capability (800W/600W/400W) adds flexibility depending on job requirements or runtime constraints. For example, reducing output to 400W allows nearly double the runtime (~23.5 hours) for extended night shifts or remote jobs.

Ease of transport and deployment
The cart-mounted design with four wheels makes the unit easy to move across uneven terrain or into tight jobsite positions. The mast system extends to ~21 ft, giving elevated coverage, while the four-wheel platform keeps the system stable and mobile. Setup is straightforward — roll into position, extend the mast, and illuminate.

Weather and site resilience
Wind rating up to ~45 mph means the mast and balloon system are engineered for real job-site conditions, not just ideal weather. Battery technology ensures the unit can operate even in cold or remote conditions (specs down to –23 °F). For rental fleets, urban repairs, or emergency response, these specs matter.

Lower operating cost and simpler maintenance
Because there’s no engine or fuel system, ongoing maintenance is greatly reduced. LED technology offers long life (tens of thousands of hours) and lower energy consumption versus metal halide systems. This means less downtime, lower total cost of ownership, and reduced logistic overhead. The spec sheet notes “low energy and maintenance costs.”

Applications: Where the GBBAT8BM Excels

• Roadwork and municipal repair crews: Urban street repairs often require lighting during night shifts; battery-powered means minimal interference with adjacent buildings or residents.

• Events and filming: For outdoor concerts, film sets, or night events, glare-free balloon lighting ensures uniform illumination without the typical noise of generator towers.

• Emergency response and disaster relief: Rapid deployment, silent operation, battery powered—ideal for disaster zones, EMS staging areas, or police/forensic work.

• Indoor construction or renovation: Because the unit is emission-free and quiet, it is suitable for indoor use in warehouses, large halls, or gymnasiums where generator fumes would be unacceptable.

• Rental equipment fleets: Rental houses serving contractors, events, or municipalities can offer a modern lighting cart that stands out for its features and cleaner operation.

Selection & Buying Considerations

When evaluating this model for purchase or rental inventory, keep the following in mind:

Runtime vs output needs
Decide how long you need the unit to run and at what output. If you often do 12-hour overnight jobs, you may run at full 800W for ~13 hours. If you have longer shifts or want extended runtime, you may reduce to 400W and run up to ~23.5 hours. Match output to job duration.

Battery recharge logistics
With one charger you’ll need ~11 hours to recharge; with two chargers you can recharge in ~5.5 hours. If your schedule demands quick turnaround between jobs, verify you have adequate charging infrastructure.

Mobility and footprint
Although the unit is cart-mounted and designed for portability, ensure jobsite access (doorway clearance, terrain, mast height). When stowed, the unit fits standard doors per spec.

Budget and ROI
Up-front cost is higher than basic generator-tower units, but lower operating cost and modern features (battery, LED, zero emissions) provide strong value over time. For rental businesses especially, offering clean, quiet, high-tech lighting may justify premium pricing.

Maintenance and parts support
Even though the system is simpler (no engine), ensure you have access to replacement batteries, LED modules, and cart components. Multiquip’s documentation indicates parts and service support.

Site conditions and environmental factors
Because this unit’s mast is rated for up to ~45 mph wind, ensure jobsite environments (open plains, high winds) still fall within safe operating range. For extreme conditions, consider anchoring or choosing alternative equipment.

Setup & Operation Best Practices

Here are recommended best practices for using the model effectively:

• Transport the light cart to the jobsite with mast lowered. Set it up on firm, level ground. Engage wheel chocks or stabilizers if available.

• Raise the mast to desired height (up to ~21 ft) and secure mast lock.

• Select output level (400W/600W/800W) depending on job needs and runtime. Lower output gives longer runtime.

• Monitor battery level and plan recharge or battery swap accordingly. For back-to-back jobs, ensure second charger or extra battery bank is ready.

• For night operations, ensure mast is anchored or stabilized to reduce movement from wind or vibrations.

• After use, lower mast and transport cart carefully. Perform minimal maintenance: clean balloon diffuser and inspect for damage.

• Log runtime, usage environment, and output level to track battery health and maintenance scheduling.

Final Thoughts

For worksite lighting needs where portability, quiet operation, zero emissions, and high output matter, the Multiquip GBBAT8BM LED balloon light cart is a top-tier choice. Its 800 W LED system delivering up to 110,000 lumens, along with battery power and full cart mobility, position it as a future-proof solution for construction, rental, events and emergency sectors.

If you’re spec’ing lighting equipment for your rental fleet or purchasing for your crew, integrating a model like the GBBAT8BM can enhance your service offering, reduce noise and fuel logistics, and deliver modern performance where legacy systems fall short.
Ultimately, when visibility, uptime and performance matter—it’s worth investing in the right lighting tool.
