MPC-100 is a 2-component, 100% solids, self-leveling and high-build epoxy floor coating.

It is designed to be used as a protective floor coating on concrete, over an existing epoxy coating or to create metallic/decorative flooring systems. It can also be used as the binder component for resurfacing
or patching surfaces exposed to severe and aggressive industrial environments. MPC-100 is a specifically formulated cycloaliphatic coating that reduces water spotting and amine blushing while providing excellent adhesion, abrasion, impact and chemical resistance.

This seamless coating from Master Protective Coatings is offered in a wide number of colors and can be top coated with a variety of MPC products to achieve different gloss finishes and textures. This coating contains no solvent, is complaint with the CFIA regulations for indirect food contact and meets the VOC regulations limit of under 100 g/L for architectural floor coatings.


Areas of application

• Industrial Use - Garages; Warehouses; Airports and hangars; Processing and manufacturing plants
• Commercial Use - shopping malls and boutiques; Hotels; Offices; Showrooms; Restaurants. Hospitals; Schools; Community centers

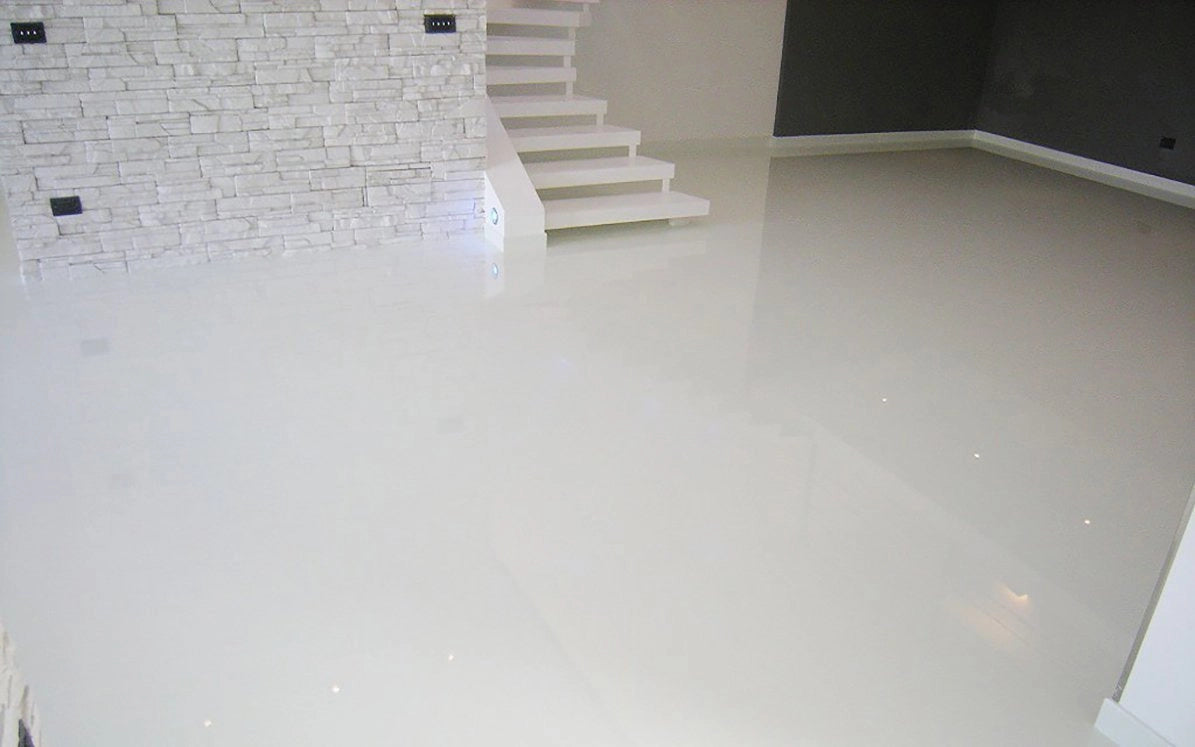

• Residential Use – Entrances and hallways; basements; entertainment rooms; bathrooms. kitchens and living rooms; outdoors spaces and pool outlines


Packaging and Recommended Thickness

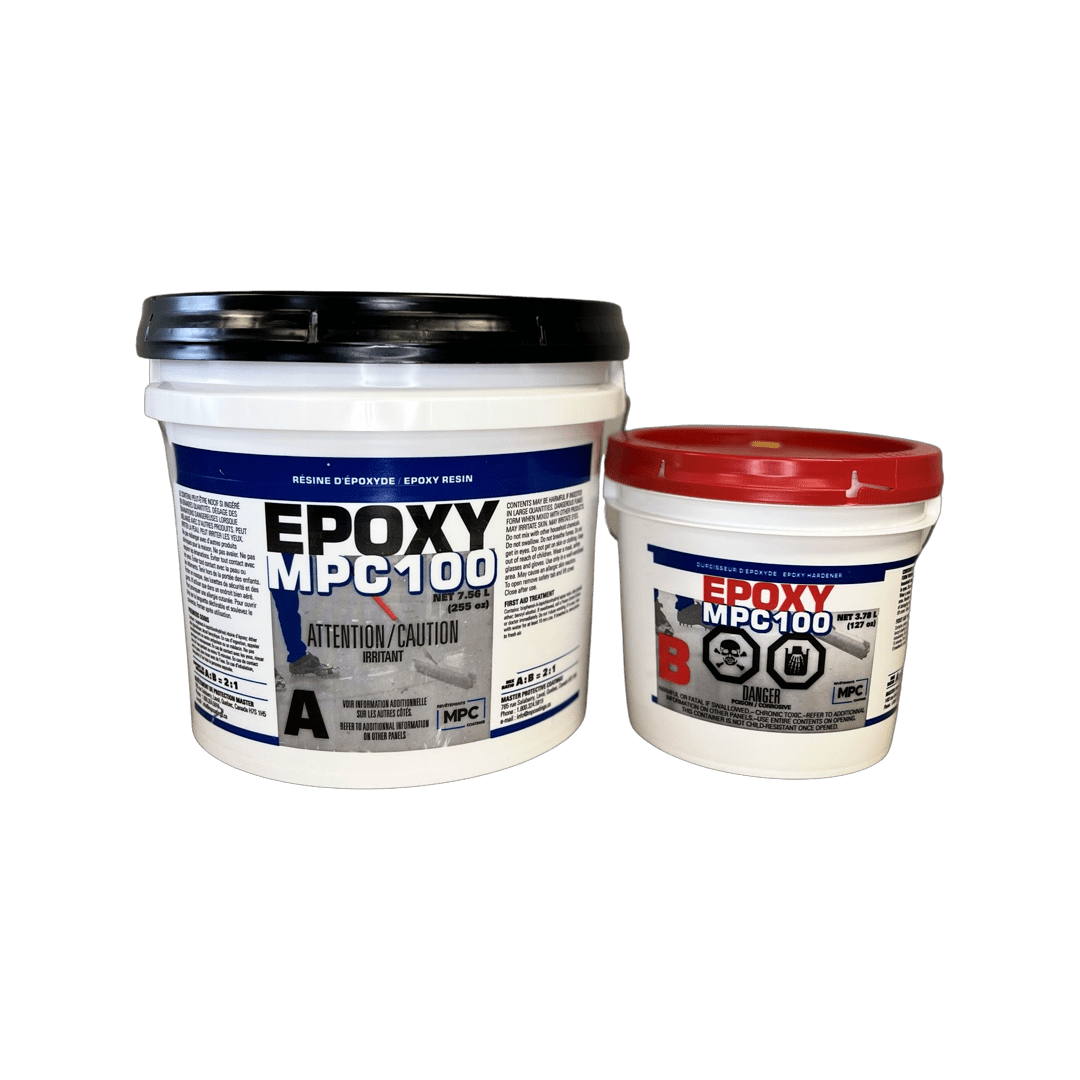

MPC- 100 is offered in the following kit sizes:
o 3-gallon kit (7.56L resin (A) and 3.78L hardener (B))
o Bulk packaging also available upon request

Metallic pigments are offered in 6 oz containers (1 pigment pod per 3-gallon kit)

Recommended Film Thickness: Clear Coat: 5-8 mils
                                              Metallic Coat: 32-40 mils

Product Coverage:
1st Clear Coat:  200-300 sq. ft. / 3.78L (1 US gal.) @ 5-8 mils dft
2nd Clear Coat: 133-200 sq. ft. / 3.78 L (1 US gal.) @ 8-12 mils dft
Metallic Coat: 50 sq. ft. / 3.78 L (1 US gal.) @ 32 mils dft

Surface Preparation

Remove dust, dirt, grease, oil and all other contaminants with proper cleaner/degreaser. Prepare the surface mechanically as per ICRI-CSP2 profile by diamond grinding to ensure removal of laitance, curing agents and sealers. The compressive strength of a newly poured concrete substrate must be at least 25 MPA (3635 psi) after 28 days cure and at least 1.5 MPA (218 psi) tensile strength. Be careful with condensation (within 10 degrees of the dew point). All cracks, holes and irregularities must be repaired with our epoxy crack filler (MPC-125) prior to applying the coating.

Mixing Instructions

The products must be conditioned between for 18°C (65°F) and 30°C (86°F) prior to application.

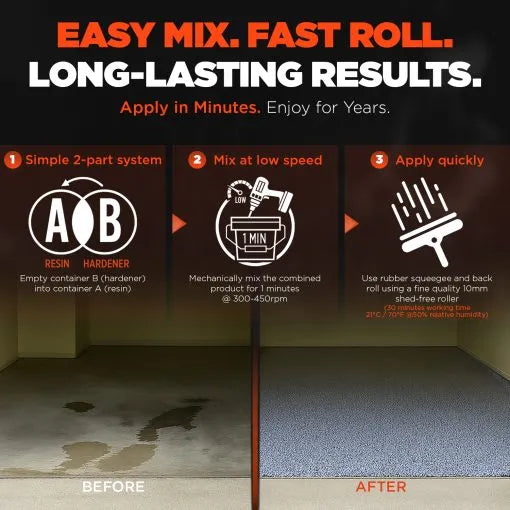

Clear/Colored version: Pre-mix each component separately for 2-3 minutes each. Open container with 2 parts of component A in it, then add the 1part of component B to it (mixing ratio 2:1). Mix the components for at least 2-3 minutes using a low-speed drill (300-450 rpm) to reduce air entrapment and to obtain a homogeneous mixture.

Metallic version: Pre-mix each component separately for 2-3 minutes each. Open container with 2 parts of component A in it, then add 6 ounces of metallic pigment and mix approximately 1 minute using a low-speed drill (150-200 rpm). Let the colored resin sit for at least 30 minutes to ensure proper pigment wetting. Then add 1 part of component B (mixing ratio 2:1). Mix the components for at least 2-3 minutes using a low-speed drill (300)

MPC-100 Epoxy Coating (3 Gallon Kit): Complete Guide to High-Performance Epoxy Floor Coatings

The MPC-100 Epoxy Coating (3 Gallon Kit) is a professional-grade epoxy floor coating system designed to protect, seal, and enhance concrete surfaces. Widely used in residential, commercial, and industrial environments, epoxy coatings provide durable protection against abrasion, chemicals, moisture, and heavy traffic. The MPC-100 epoxy system is engineered to deliver long-lasting performance while improving the appearance of concrete floors.

Epoxy floor coatings have become one of the most popular flooring solutions for garages, warehouses, showrooms, retail spaces, and industrial facilities. By creating a strong protective layer over concrete, epoxy coatings extend the lifespan of the floor while providing a smooth and attractive finish.

The MPC-100 Epoxy Coating (3 Gallon Kit) typically includes both the epoxy resin and hardener required to create the final coating system. When mixed together and applied to properly prepared concrete surfaces, the coating chemically cures into a durable and resistant surface.

Understanding how epoxy coatings work, how they are installed, and where they are used helps property owners and contractors achieve the best results when applying epoxy flooring systems.

What Is MPC-100 Epoxy Coating?

The MPC-100 epoxy coating is a two-component epoxy floor coating system designed for concrete protection and decorative flooring applications. Epoxy coatings consist of an epoxy resin and a hardener that react together through a chemical process known as curing.

When the two components are mixed, the chemical reaction forms a hardened polymer structure that bonds strongly to the concrete surface. This bond creates a durable coating layer that protects the concrete from wear, impact, and environmental damage.

The 3 gallon kit typically contains enough material to cover a substantial floor area, depending on the thickness of the application and the condition of the surface.

Epoxy coatings such as MPC-100 are commonly used as base coats or intermediate coats in multi-layer flooring systems.

Key Components of the MPC-100 Epoxy System

The MPC-100 Epoxy Coating (3 Gallon Kit) typically includes two primary components.

Epoxy Resin

The epoxy resin is the base material that forms the coating structure. It provides the strength and adhesive properties required for bonding to concrete surfaces.

Epoxy Hardener

The hardener activates the chemical curing process. When mixed with the resin, it triggers a reaction that transforms the liquid mixture into a solid coating.

The combination of resin and hardener produces a tough and durable floor coating that can withstand heavy use.

How Epoxy Coatings Work

Epoxy coatings work through a chemical reaction between the resin and the hardener. Once mixed, the material begins to cure and harden.

The curing process creates a strong polymer network that bonds tightly to the concrete surface. This bond provides several benefits:

• Surface protection
• Improved durability
• Chemical resistance
• Moisture resistance

Because epoxy coatings form a continuous protective layer, they help prevent damage caused by foot traffic, machinery, and environmental exposure.

Features of MPC-100 Epoxy Coating (3 Gallon Kit)

The MPC-100 epoxy system includes several features that make it suitable for professional flooring installations.

High Durability

Epoxy coatings are known for their strength and ability to withstand heavy traffic.

Strong Adhesion

Properly prepared concrete surfaces allow epoxy coatings to bond securely, creating a long-lasting floor system.

Chemical Resistance

Epoxy coatings resist many chemicals, oils, and solvents commonly found in industrial environments.

Smooth Surface Finish

Epoxy coatings create a smooth, seamless finish that enhances the appearance of concrete floors.

Versatility

Epoxy coatings can be used in various flooring systems, including decorative and protective applications.

Common Applications for MPC-100 Epoxy Coating

The MPC-100 Epoxy Coating (3 Gallon Kit) can be used in a wide variety of environments.

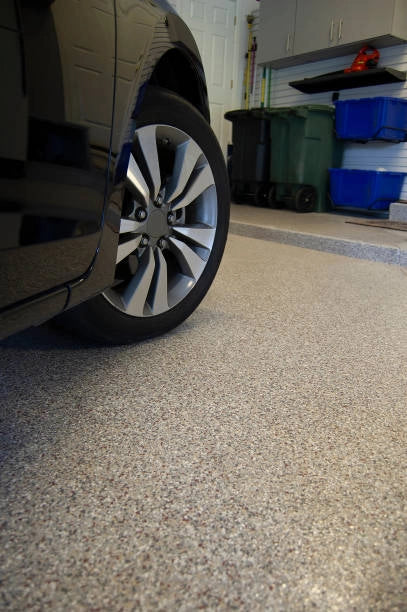

Garage Floors

Residential garage floors are one of the most common applications for epoxy coatings. Epoxy provides protection against oil stains, tire marks, and heavy vehicle traffic.

Commercial Flooring

Retail stores, showrooms, and office spaces often use epoxy coatings to create attractive and durable flooring surfaces.

Industrial Facilities

Factories and warehouses require flooring systems capable of withstanding heavy equipment and constant traffic.

Epoxy coatings provide durable surfaces for these demanding environments.

Decorative Flooring Systems

Epoxy coatings are frequently used as base layers for decorative flooring systems such as:

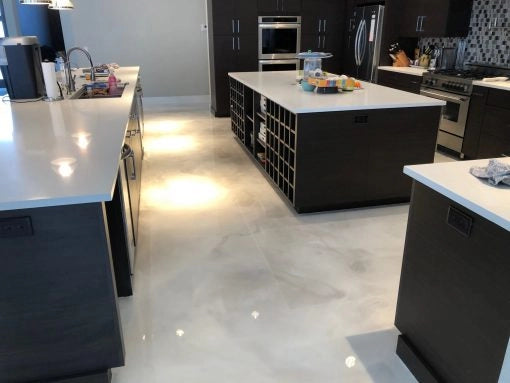

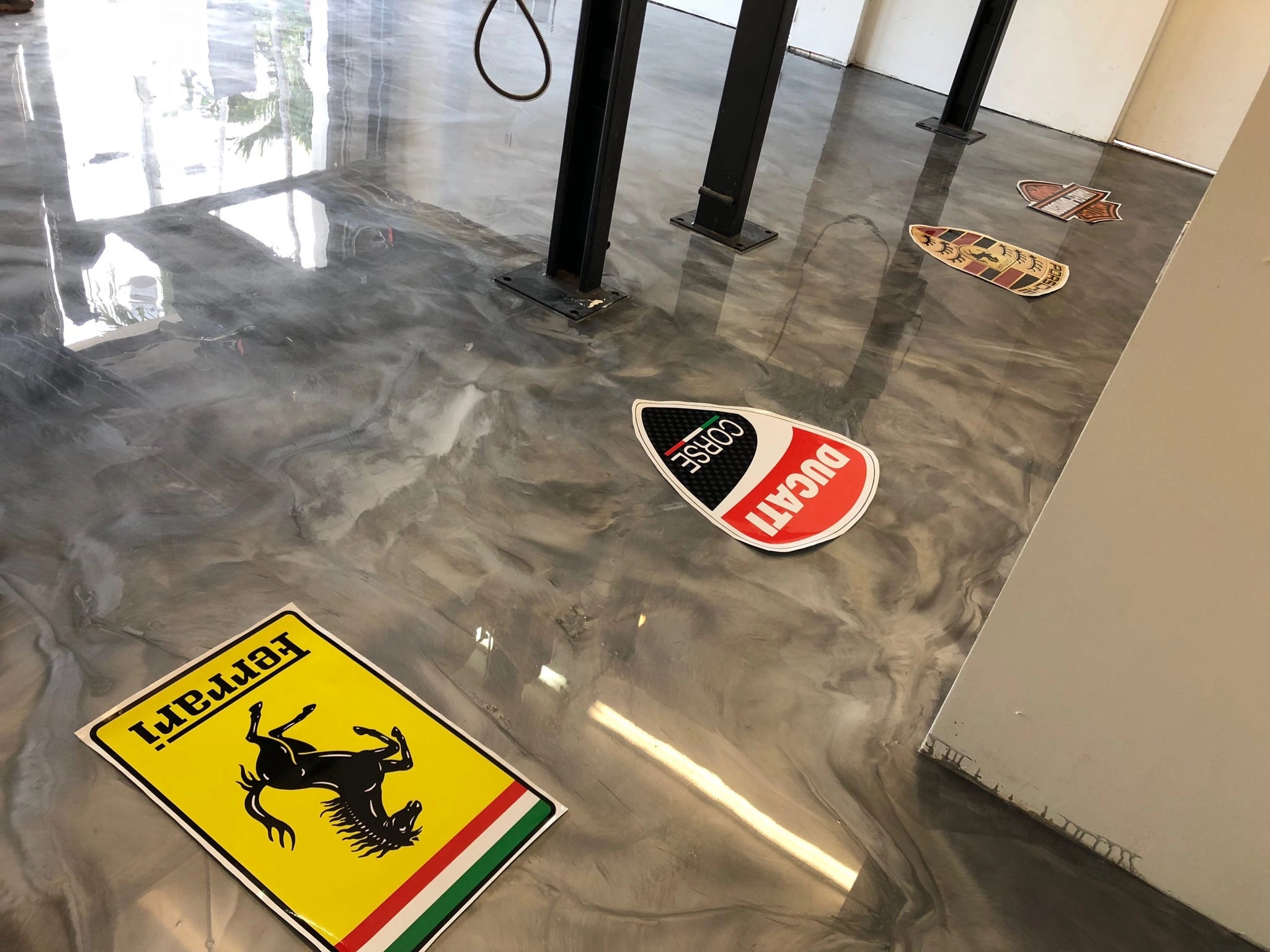

• Metallic epoxy floors
• Decorative flake systems
• Quartz flooring systems

These systems combine durability with aesthetic appeal.

Benefits of Using MPC-100 Epoxy Coating

Using MPC-100 Epoxy Coating (3 Gallon Kit) offers several important advantages.

Long-Term Protection

Epoxy coatings create a protective barrier that shields concrete from damage.

Improved Floor Appearance

Epoxy coatings enhance the visual appearance of concrete surfaces by creating a smooth and glossy finish.

Easy Maintenance

Epoxy floors are easier to clean because the seamless surface prevents dirt from becoming trapped.

Increased Durability

The hardened epoxy layer improves the strength and wear resistance of concrete floors.

Moisture Resistance

Epoxy coatings help reduce moisture penetration into the concrete substrate.

These benefits make epoxy coatings a reliable flooring solution for many environments.

Installing MPC-100 Epoxy Floor Coating

Proper installation is critical for achieving the best results with epoxy flooring systems.

Surface Preparation

Concrete surfaces must be properly prepared before applying epoxy coatings.

Preparation steps may include:

• Cleaning the surface
• Grinding or profiling the concrete
• Repairing cracks and imperfections

Proper preparation ensures strong adhesion between the epoxy and the floor.

Mixing the Epoxy Components

The resin and hardener must be mixed according to the manufacturer’s instructions.

Accurate mixing ensures the chemical curing process occurs correctly.

Applying the Coating

The epoxy mixture is applied to the concrete surface using tools such as rollers or squeegees.

Installers spread the material evenly to achieve consistent coverage.

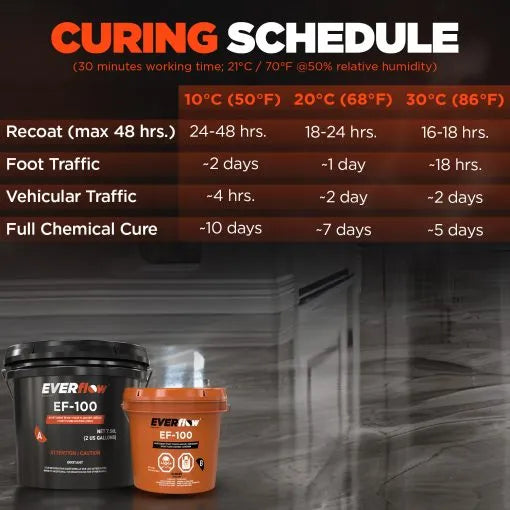

Curing the Epoxy

After application, the coating must cure to form the final hardened surface.

Curing time may vary depending on temperature and environmental conditions.

Maintaining Epoxy-Coated Floors

Proper maintenance helps extend the lifespan of epoxy flooring systems.

Regular Cleaning

Sweeping and mopping help remove dust and debris from the floor surface.

Avoid Abrasive Cleaners

Certain harsh cleaning chemicals may damage epoxy coatings.

Protect High-Traffic Areas

Floor mats can help reduce wear in heavily used areas.

Inspect the Surface Periodically

Routine inspections help identify any areas requiring maintenance or repair.

With proper care, epoxy floors can maintain their appearance and durability for many years.

Frequently Asked Questions About MPC-100 Epoxy Coating

What is MPC-100 Epoxy Coating?

MPC-100 is a two-component epoxy floor coating system designed to protect and enhance concrete surfaces.

What is included in the 3 gallon kit?

The kit typically includes epoxy resin and hardener components required to create the final coating.

Where can epoxy coatings be used?

Epoxy coatings are commonly used in garages, warehouses, retail spaces, and industrial facilities.

Are epoxy floors durable?

Yes. Epoxy coatings create strong protective surfaces that resist abrasion and chemical damage.

Is surface preparation necessary before applying epoxy?

Yes. Proper surface preparation ensures strong adhesion and long-lasting performance.

Can epoxy coatings improve the appearance of concrete floors?

Yes. Epoxy coatings create smooth and glossy finishes that enhance the visual appearance of floors.

How long does epoxy take to cure?

Curing times vary depending on environmental conditions and product specifications.

Are epoxy floors easy to maintain?

Yes. Epoxy floors are relatively easy to clean because they have seamless surfaces.

Why MPC-100 Epoxy Coating Is a Popular Flooring Solution

The MPC-100 Epoxy Coating (3 Gallon Kit) is widely used because it provides reliable protection and enhanced durability for concrete flooring surfaces. By forming a strong bond with the concrete substrate, epoxy coatings help prevent damage from heavy traffic, chemical exposure, and moisture.

Whether used in residential garages, commercial facilities, or industrial environments, epoxy floor coatings provide long-lasting performance while improving the appearance of concrete floors. With proper installation and maintenance, the MPC-100 epoxy system can transform ordinary concrete surfaces into durable and attractive flooring systems.
