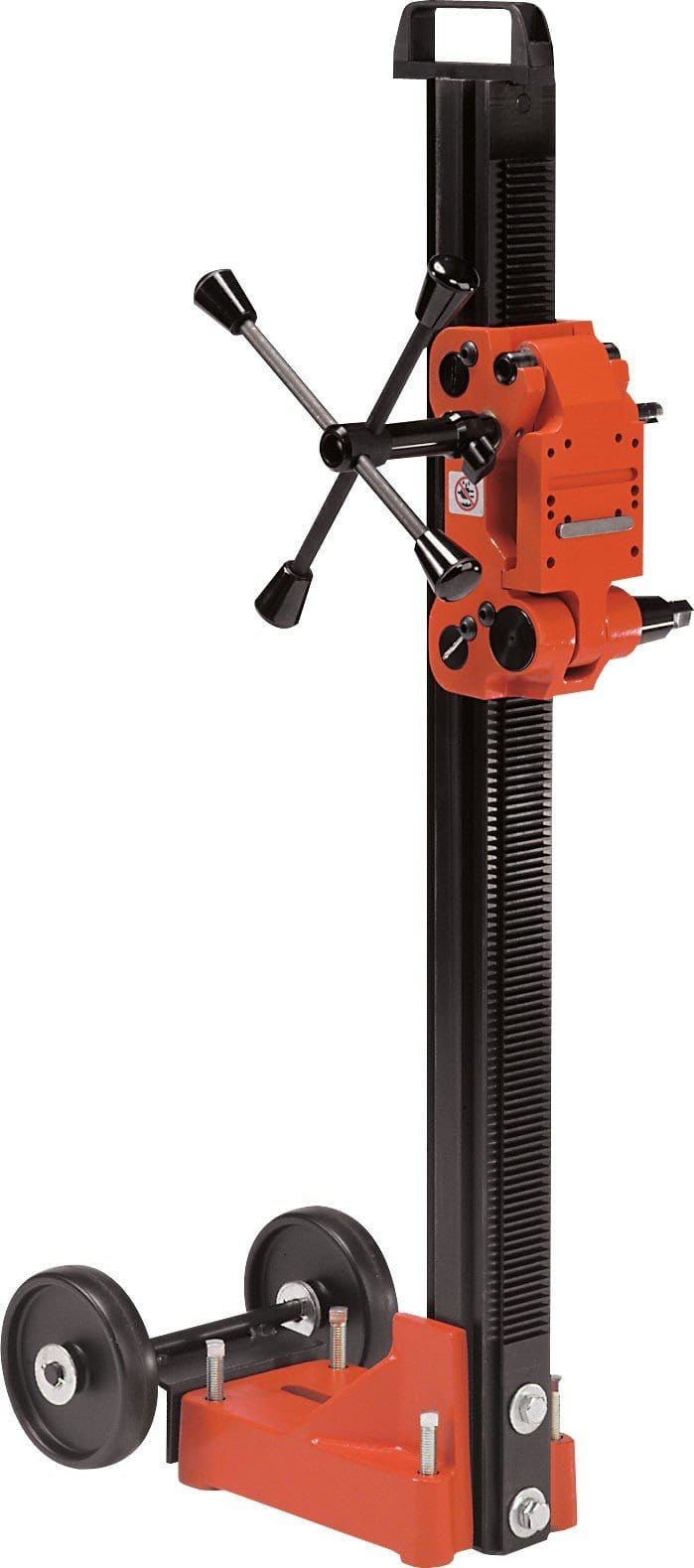

M5 COMPLETE ANCHOR CORE DRILL RIG
- Quick release motor mount
- 4-spoke sliding handle (can be used on right or left)
- Positive carriage lock
- 2-1/2” x 3” extruded aluminum light weight column (mast) that is hard anodized to prevent wear
- Top carrying handle (ceiling jack available)
- Large bit capacity in a smaller rig system
- Allows for mounting hydraulic motors
- Angle stand to drill up to 45°
- Double column support for increased stability
- Easily adjustable slide bearings

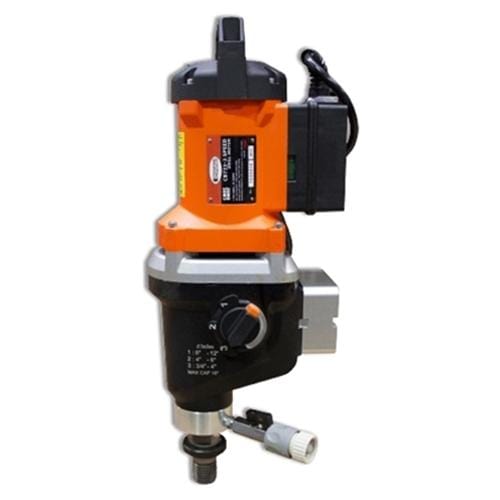

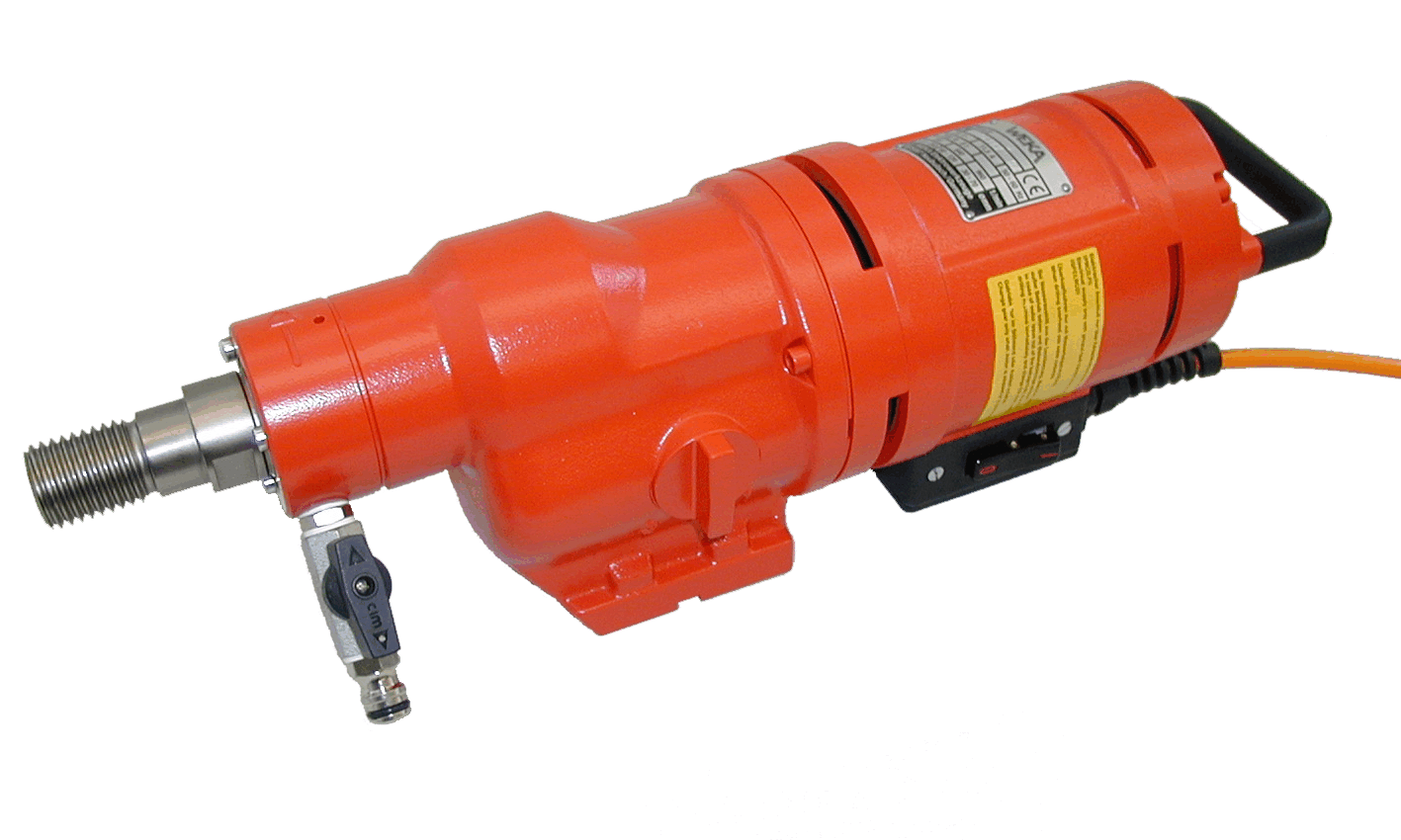

The M-5 Core Drill Rigs offer the quick connect (motor to stand) as a standard feature. Ability to mount and set the drill stand without added weight of motor. Once mounted you can easily attach motor and begin drilling.
There are thousands of ways to build your custom rig. Please call Ace Cutting if you have any questions.
