Diamond Products M1 Complete Combination Core Drill Rig

SKU: SKU:4245115

$4,050.00

Shipping calculated at checkout.

Motor CB733 without Control Panel CB733 with Control Panel CB744 without Control Panel Weka DK22 with Control Panel Weka DK22S with Control Panel

Vac Pump Yes No

Trusted by contractors nationwide

"Great products and even better customer service. Highly recommend for contractors."

Fast
Shipping

100%
Satisfaction Guarantee

Expert
Customer Support

Talk to an expert 855-225-2337

Secure checkout

90 day returns

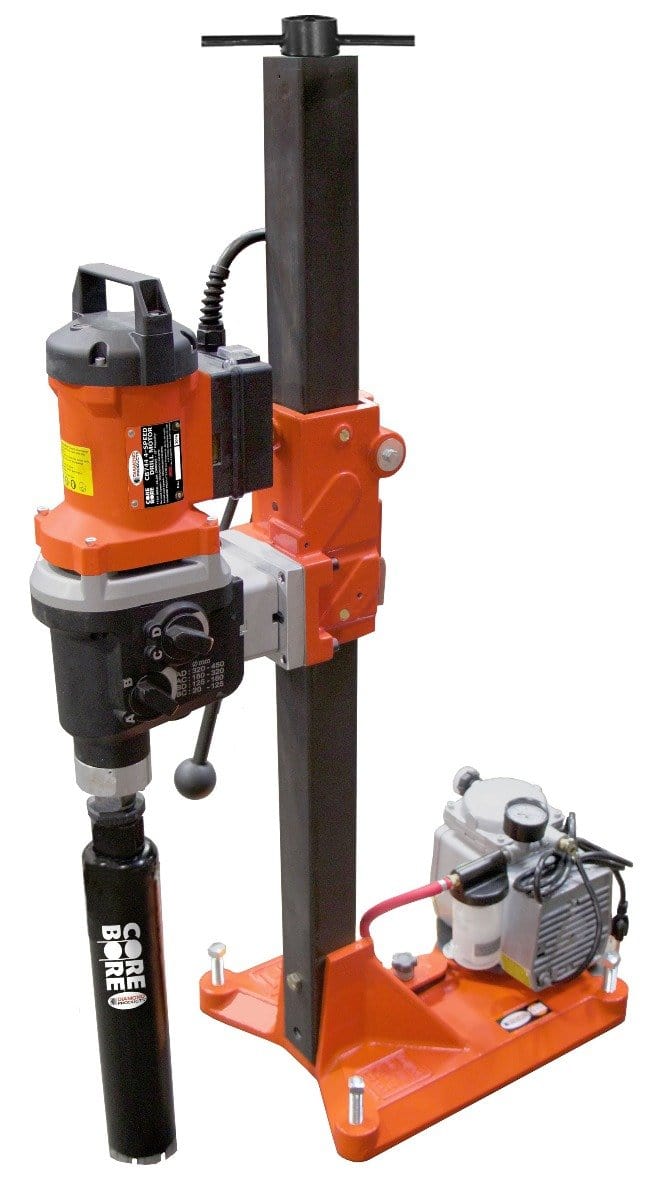

DIAMOND PRODUCTS M1 COMPLETE COMBINATION CORE DRILL RIG

10" Standard Bit Capacity, 14" with Spacers

14" Standard Bit Capacity (CB733, CB744)

CB733 and CB744 motors do not require a control panel for operation - these motors include LED amp meter and on/off switch
2-1/2” square column (mast) with black oxidized finish

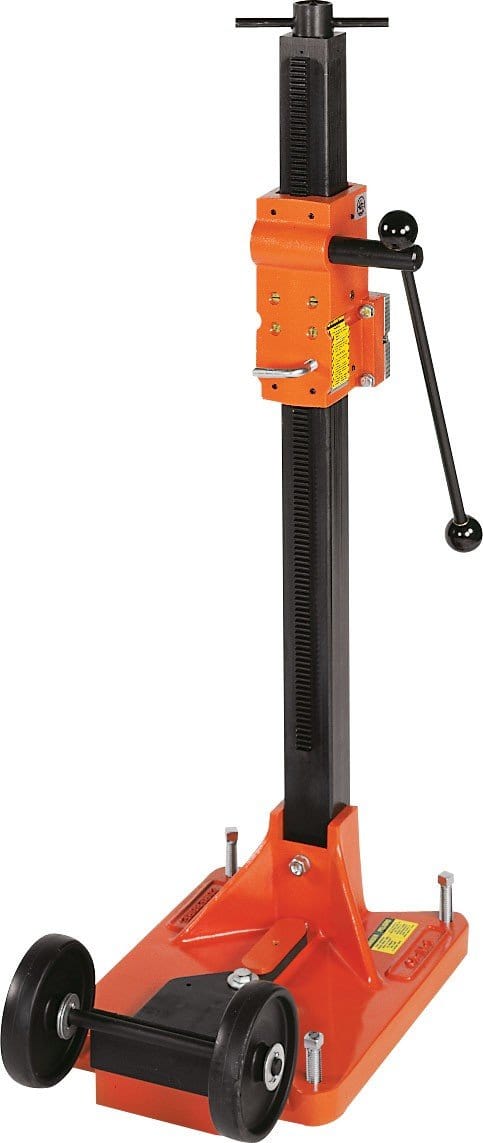

6” wheels for easy mobility
Dual switch/outlet control panel with amp meter
Vacuum pump for quick mounting to flat surface without drilling an anchor hole

This model drill rig is ideal for general core drilling needs up to 14" diameter. For constant larger holes consider the M-2 Drill Rig as heavy duty, larger column rig for handling more weight.

MORE INFORMATION

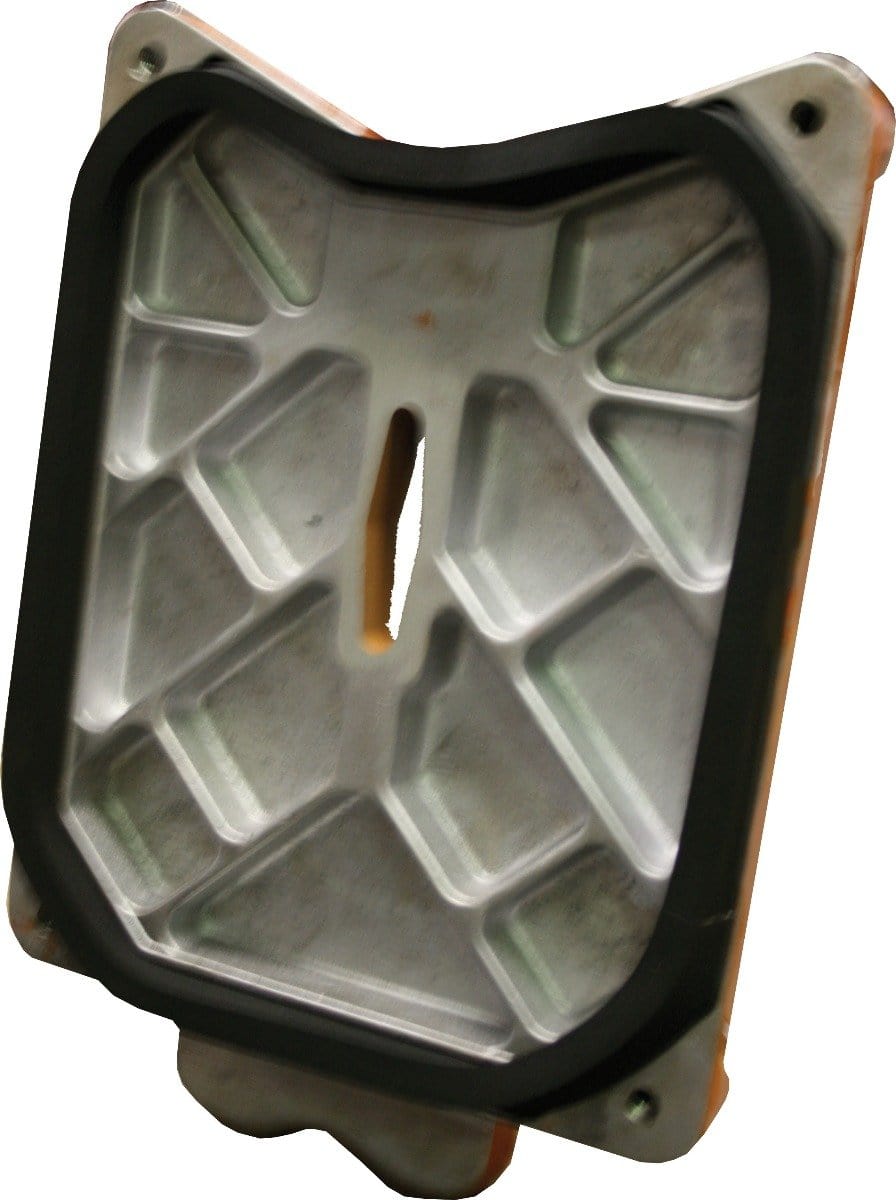

4 leveling screws on the base
Slide handle allows for drilling in tight areas
Combination base is a quick change over from vacuum to anchor base
Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2 x 4 or other material)

There are thousands of ways to build your custom rig. Please call Ace Cutting if you have any questions.

View full details
