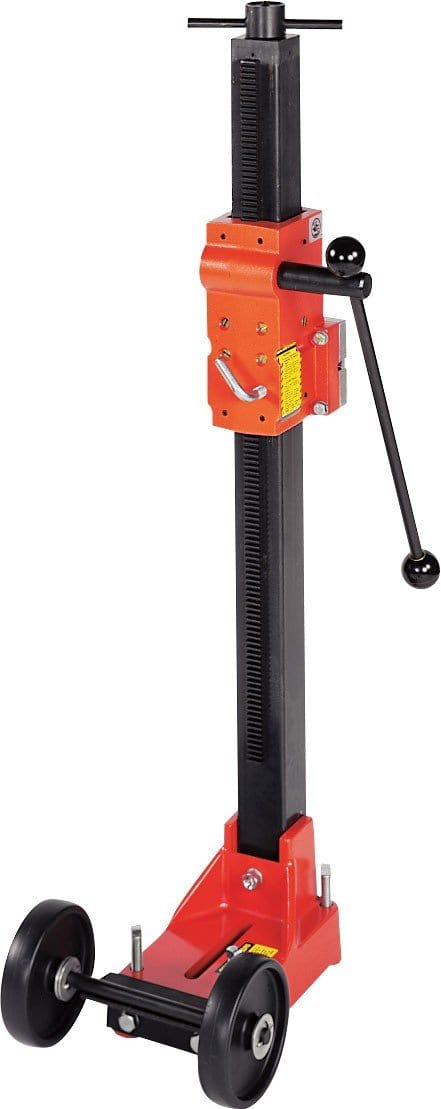

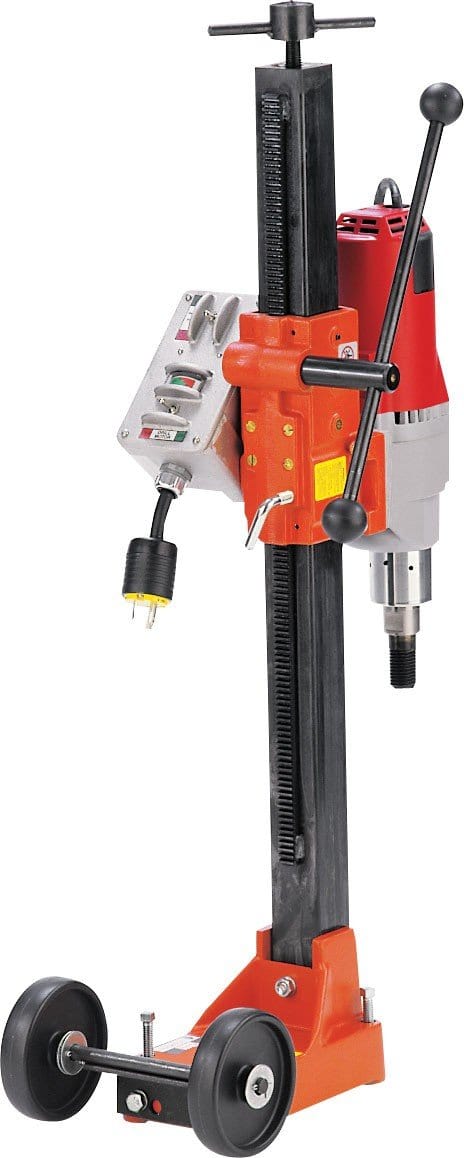

DIAMOND PRODUCTS M1 COMPLETE ANCHOR CORE DRILL RIG
10" Standard Bit Capacity, 14" with Spacers
14" Standard Bit Capacity (CB733, CB744)
Features & Benefits

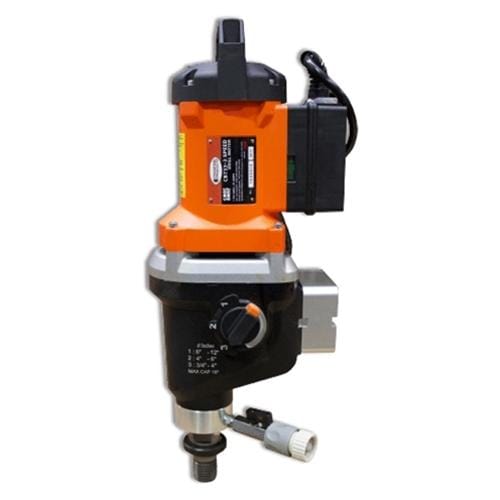

- CB733 and CB744 motors do not require a control panel for operation - these motors include LED amp meter and on/off switch
- 10" standard bit capacity, 14" with spacers
- 14" standard bit capacity with CB733 and CB744 motors

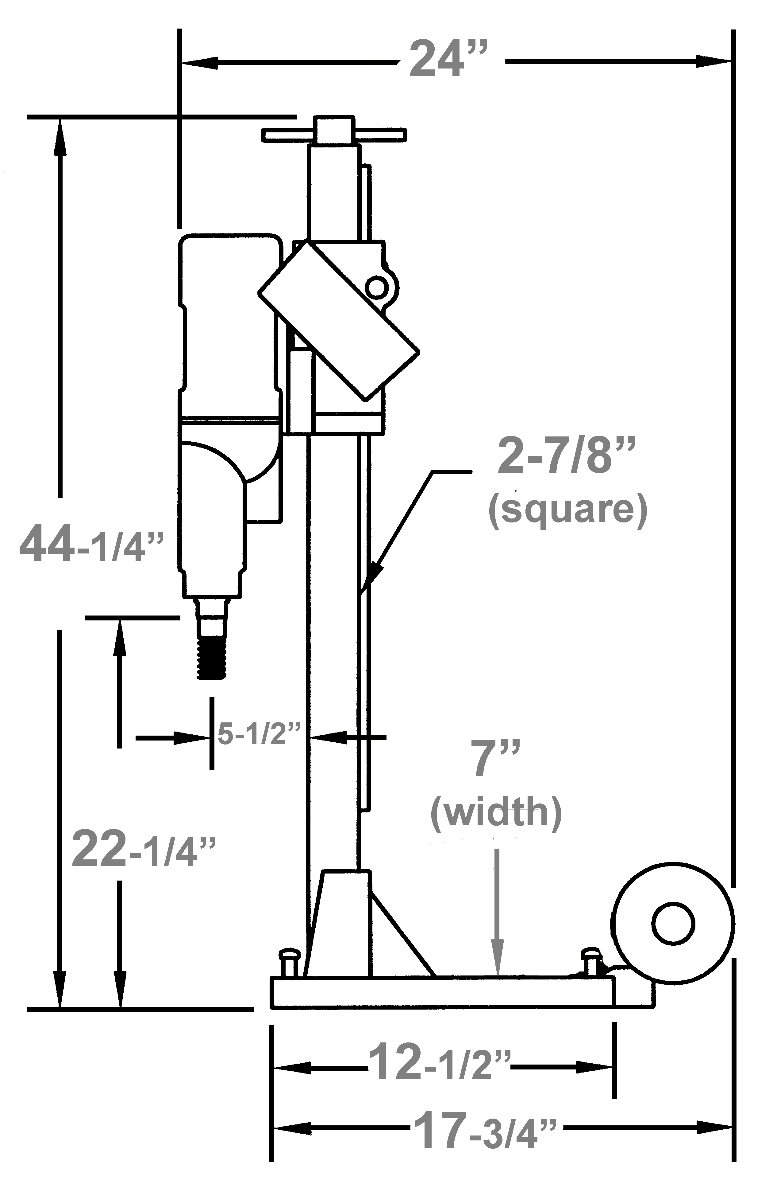

- M-1 Anchor: location to drill anchor hole = 12" measure from the center of the motor spindle to the center of the anchor slot on base
- 2-1/2” square column (mast) with black oxidized finish
- 6” wheels for easy mobility
- Dual switch/outlet control panel with amp meter (except for CB733 and CB744 models with LED amp meter)
- 4-leveling screws on base
- Slide handle allows for drilling in tight areas
- Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece – 2x4 or other material)
This model is ideal for general core drilling up to 14". M-1 is not made for constantly large holes, M-2 Drill Rig has a stronger mast to handle larger core bits constantly.
There are thousands of ways to build your custom rig. Please call Ace Cutting if you have any questions.
