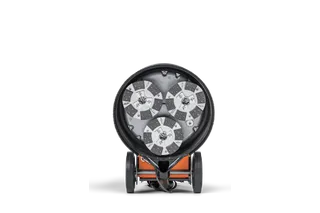

Husqvarna PG 510
The PG 510 planetary floor grinder has three grinding discs and a total working width of 20 inches. This powerful machine is perfectly suited for all types of applications including removing coatings, grinding and polishing concrete. The grinding head on the PG 510 is sealed to prevent dust and moisture out, which extends the life of the bearing and belts. The PG 510 is ideal for the rental market and an excellent choice for both professional and semi-professional work.
- Suitable for removing coatings, grinding and polishing concrete, etc.
- Self-adjusting floating cover with brush list provides a tight seal for dust containment
- Lightweight, compact design and foldable frame make machine easy to transport and setup
- Fixed speed for ease of use with no settings required
- User-friendly logical control panel with overload protection
- Equipped with a digital hour meter
- Husqvarna’s Redi Lock is an instant and hassle-free system for easy change of diamond tooling
- No tools are needed when changing settings or making adjustments
- Wide range of grinding discs available
- Power: 3 HP 1-Phase Motor
- Voltage: 220-240V
- Plug Type: L6-30
- Rated Current: 15 Amps
- Grinding Width: 20 in.
- Grinding Disc: 3 x 9 in.
- Grinding Disc Segment Capacity: 18
- Grinding Pressure: 145 lbs
- Grinding Disc Speed: 438 RPM
- Direction of Rotation: Counter Rotation
- Dimensions (L x W x H): 60 in. x 21.8 in. x 37.4 in.
- Weight: 265 lbs
- Recommended Generator Size: 12 kW
- Recommended Dust Extractor Size: 285 CFM
The Husqvarna PG 510 is a planetary grinder available in both single and three phase versions with unmatched capacity, excellent for residential and light commercial purposes. Perfect for removing coatings, grinding and polishing concrete
Features
- Ideal as a rental machine and suitable for both professional and semi-professional work
- Applications range from wet or dry concrete floor preparation and repair to grinding and polishing of concrete floors as well as the repair and polishing of terrazzo and other natural stone
- Quick release coupling for easy transport
- Fixed speed no settings are required
- Control panel with overload protection
- 3 Planetary grinding disc for a wide range of applications
- Self-adjusting floating cover with brush provides a tight seal protecting bearings and belts
- Easy to transport - chassis and motor head can be separated
- Ease of maneuverability and enhanced operator control
- Recommended generator size: 220 Volts 12 kW, 480 Volts 15 kW
- Their triple-headed grinders deliver more downward pressure and power to grinding heads, which gives a very stable operation over undulating surfaces
- High production rates for rapid removal of tough heavy-duty surfaces/coatings, as well as floor polishing with a light commercial and domestic capacity
- A flatter, more consistent grinding surface than that offered by other 4 headed machines
- Dustless application when used with a Husqvarna S36 Dust Extractor and can be used for both wet and dry grinding
- Free shipping from factory warehouse
| Husqvarna PG 510 Surface Grinder Specifications | |||
| Model | 967932005 | 967932004 | 967932003 |
| Motor | Single Phase - Electric | Three Phase - Electric | Three Phase - Electric |
| Voltage | 230 V | 230 V | 480 V |
| Power | 1 hp | 3 hp | 3 hp |
| Grinding Disk RPM | 438 | 669 | 669 |
| Rated Current | 18 amps | 15 amps | 7 amps |
| Weight | 470 lbs. | 470 lbs. | 460 lbs |
Easy to use
The speed is fixed and no settings are required. The machine also has an user-friendly logical control panel with overload protection.
Efficient dust management
Self-adjusting floating cover with brush list follows the surface and gives a tight seal to prevent the dust from entering the working environment.
Easy to transport and set-up
The machine is light and fits easily in any car thanks to the compact design and foldable frame and dividable parts.
Planetary operation
The machine has three grinding discs making it suitable for a wide range of applications.
