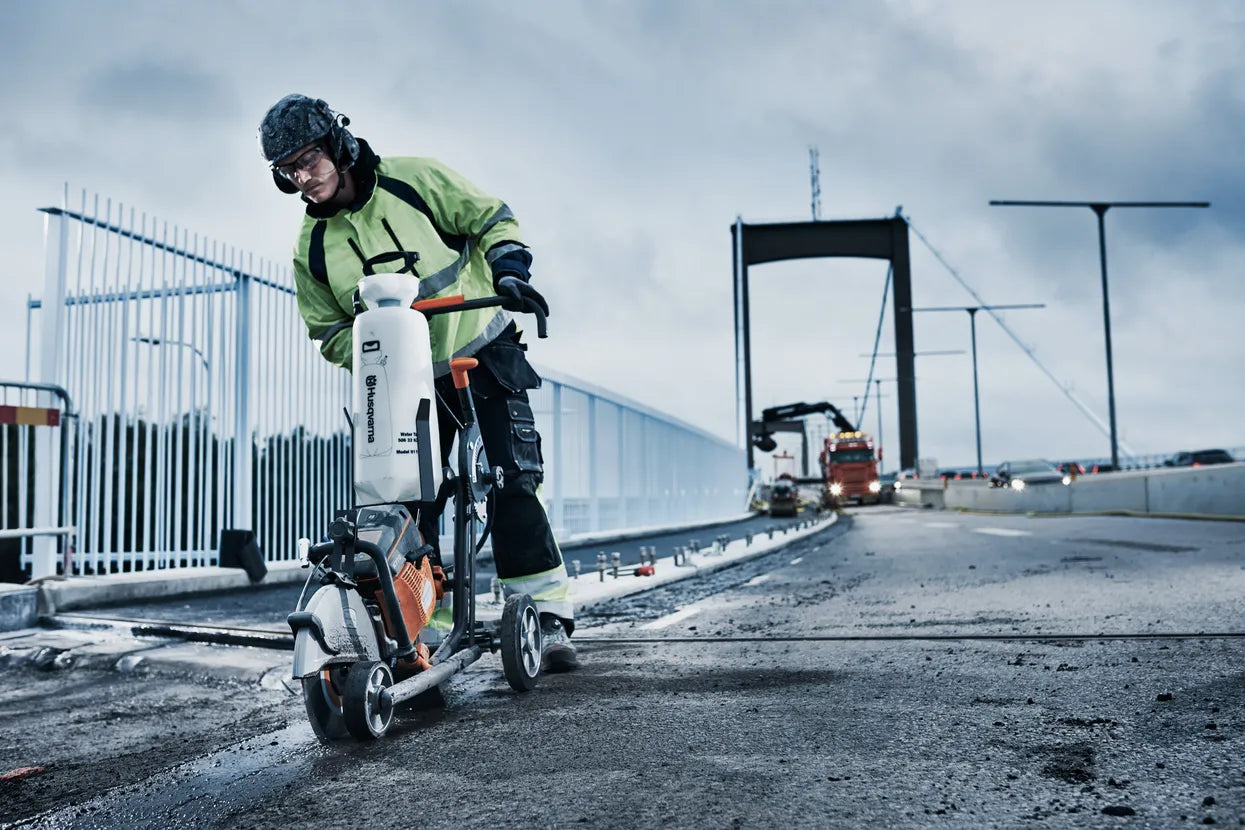

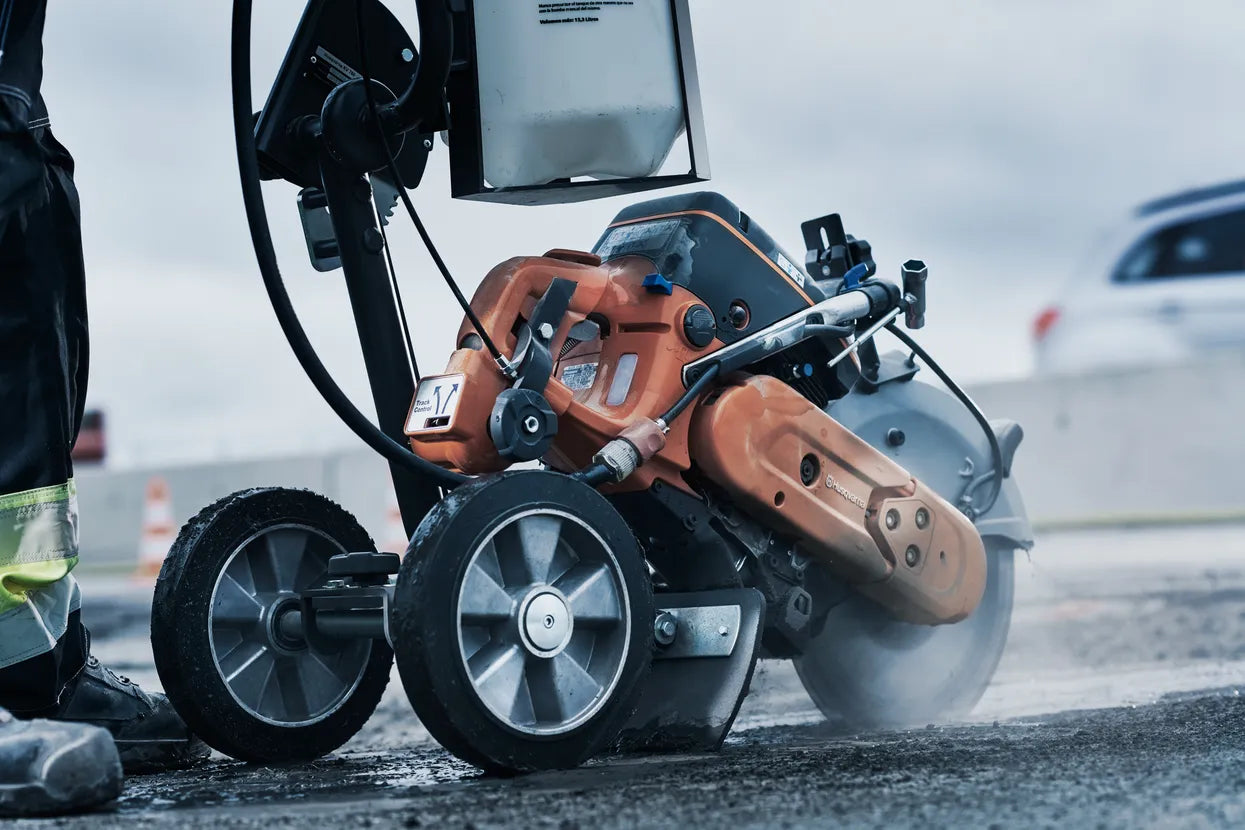

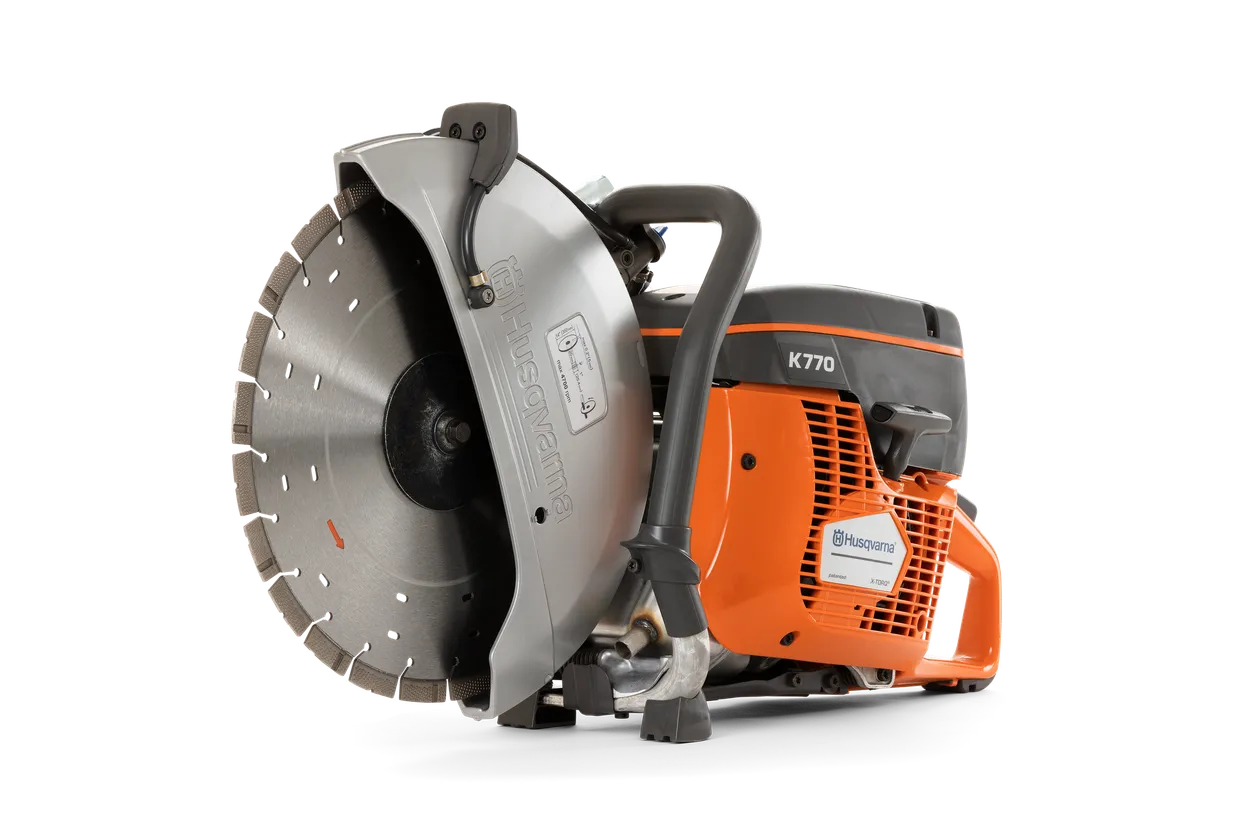

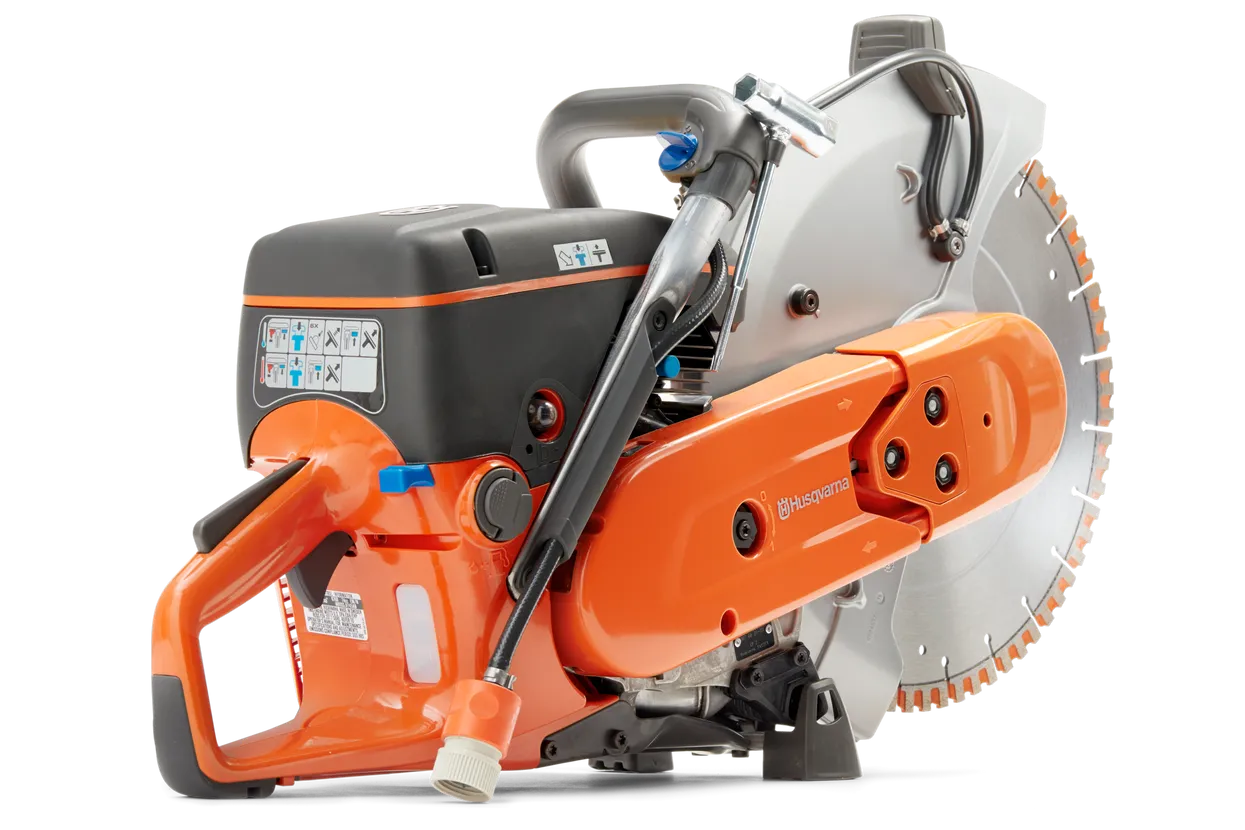

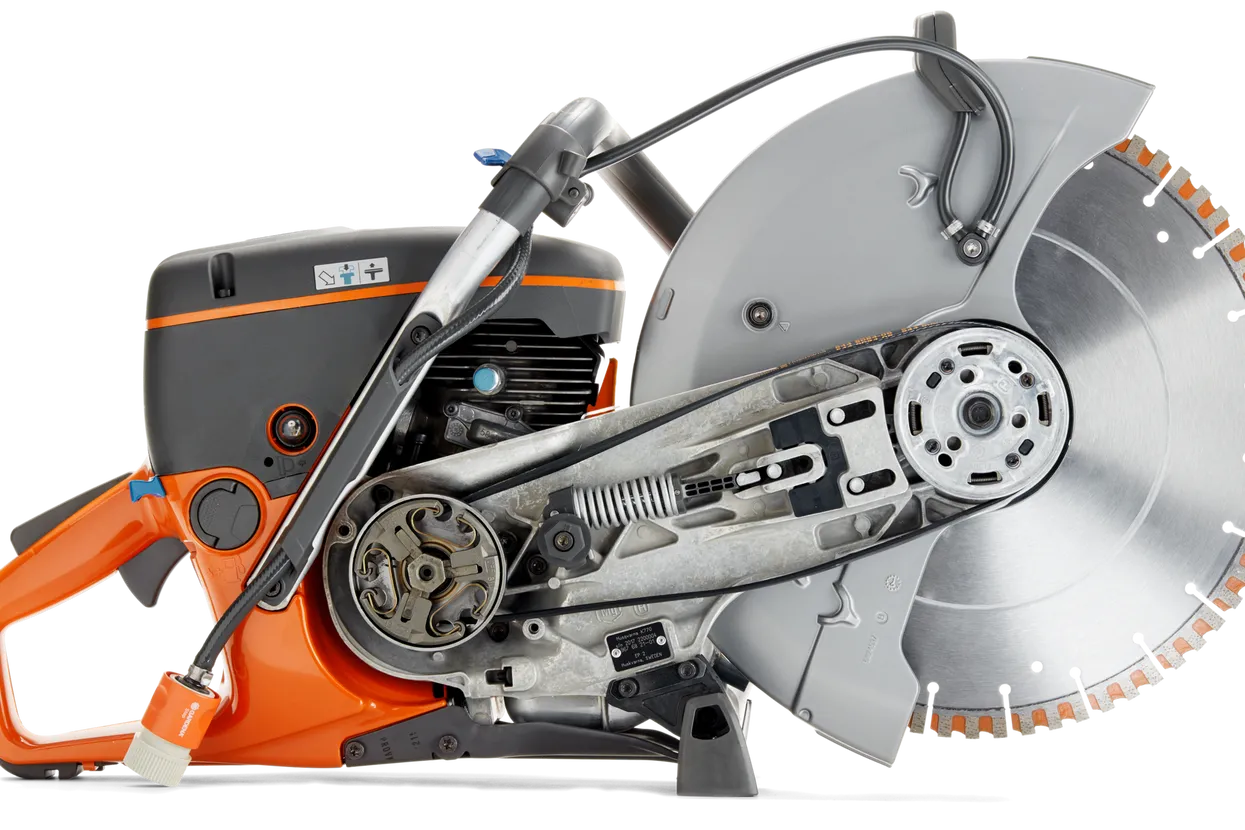

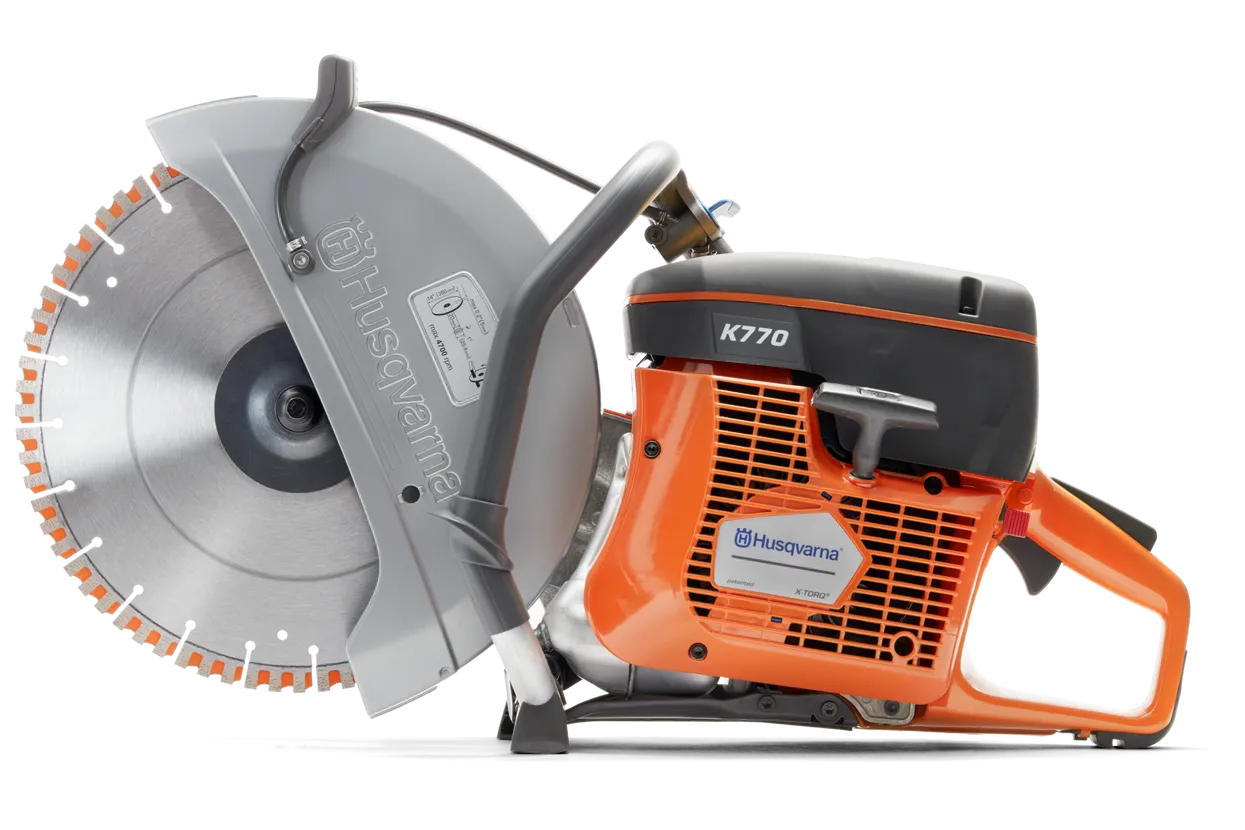

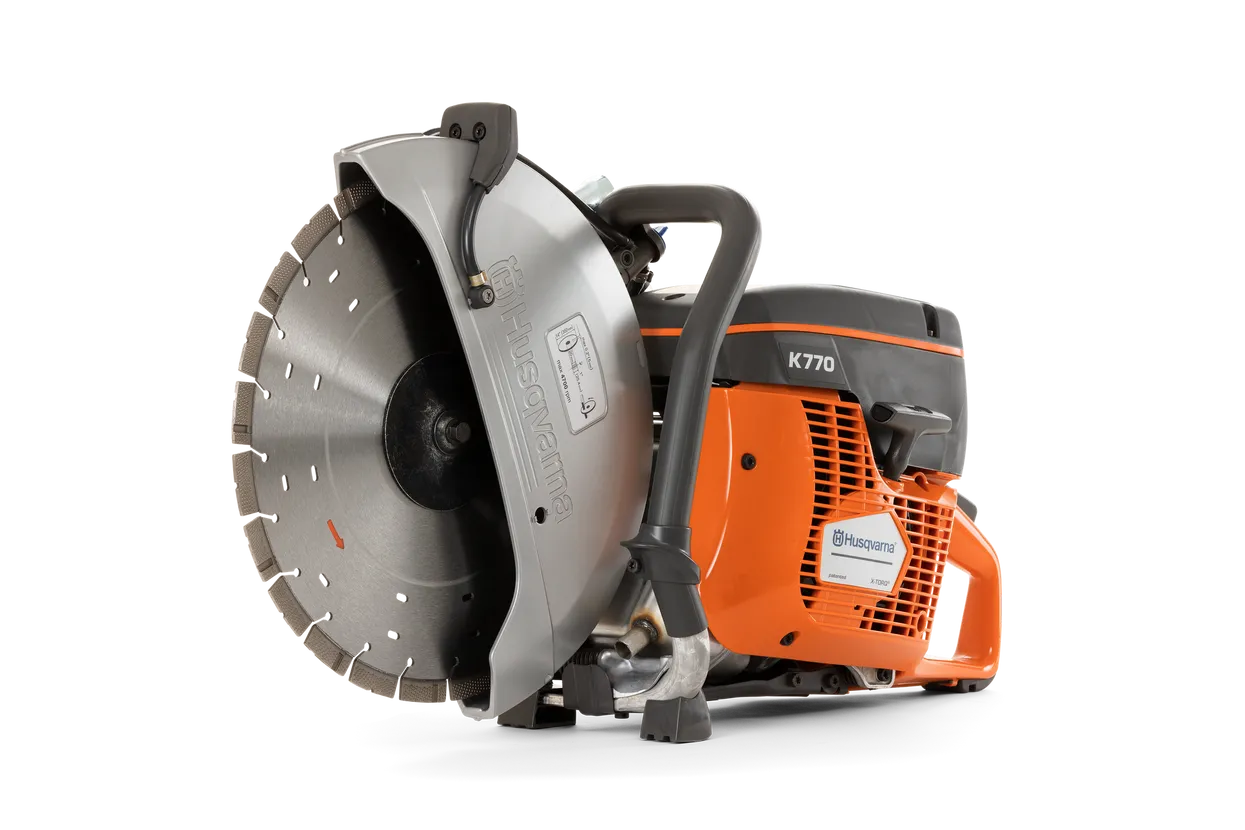

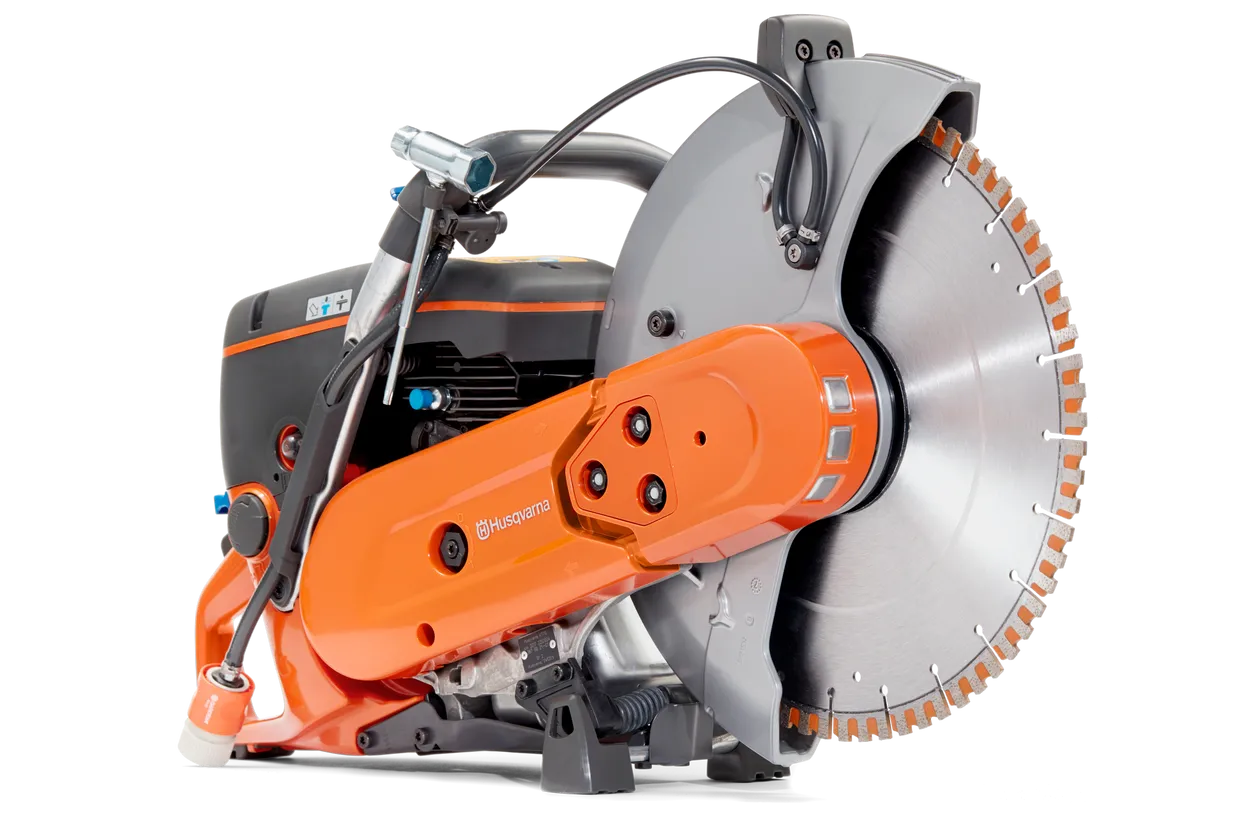

The Husqvarna K 770 is a powerful all-round power cutter with features that make it one of the best power cutters on the market. Equipped with semi-automatic SmartTension™ system allows for optimal power transmission, minimum wear and maximum belt life. The light weight, outstanding power-to-weight ratio, the reliable start and exceptionally low vibrations mean less strain and maximized productivity. Suitable for road work and easy to cut in a straight or curved track or close to sidewalk when used with KV7 trolley.
Petrol
Power Source
5.3 hp
Output power
5 in
Cutting depth, max
14 in
Blade diameter, max
|
POWER CUTTER K 770 14" | 1" / 20mm
967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
967 80 85‑01
|
|
|---|---|---|
|
Engine
|
||
Output power1 |
5 hp
|
5 hp
|
Cylinder displacement |
4.48 cu.inch
|
4.48 cu.inch
|
Electrode gap |
0.02 in
|
0.02 in
|
Cylinders |
1
|
1
|
Number of strokes |
2-stroke engine
|
2-stroke engine
|
|
POWER CUTTER K 770 14" | 1" / 20mm
967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
967 80 85‑01
|
|
|---|---|---|
|
Cutting deck
|
||
Cutting depth, max |
5 in
|
4 in
|
|
POWER CUTTER K 770 14" | 1" / 20mm
967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
967 80 85‑01
|
|
|---|---|---|
|
Emission
|
||
Exhaust emissions (CO₂ EU V)2 |
711 g/kWh
|
711 g/kWh
|
|
POWER CUTTER K 770 14" | 1" / 20mm
967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
967 80 85‑01
|
|
|---|---|---|
|
Cutting System
|
||
Blade diameter, max |
14 in
|
12 in
|
Arbor diameter |
1-7/8B
|
1-7/8B
|
Blade thickness, max |
0.2 in
|
0.2 in
|
Peripheral speed, max |
18,000 fpm
|
16,000 fpm
|
|
POWER CUTTER K 770 14" | 1" / 20mm
967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
967 80 85‑01
|
|
|---|---|---|
|
Dimensions
|
||
Product size length |
23.82 in
|
23.82 in
|
Product size width |
8.86 in
|
8.86 in
|
Product size height |
16.34 in
|
15.39 in
|
Weight |
22.4 lbs
|
22 lbs
|
|
POWER CUTTER K 770 14" | 1" / 20mm
967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
967 80 85‑01
|
|
|---|---|---|
|
Sound and noise
|
||
Sound power level, guaranteed (LWA) |
115 dB(A)
|
115 dB(A)
|
Sound pressure level at operators ear |
101 dB(A)
|
101 dB(A)
|
|
POWER CUTTER K 770 14" | 1" / 20mm
967 68 21‑01
|
POWER CUTTER K 770 12" | 1" / 20mm
967 80 85‑01
|
|
|---|---|---|
|
Vibration
|
||
Vibrations left/front handle |
2 m/s²
|
2.1 m/s²
|
Vibrations right/rear handle |
2.3 m/s²
|
2.3 m/s²
|
- 1Output power: Petrol products - Net power rating as per ISO 7293, Battery products measured comparable to petrol products
- 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
