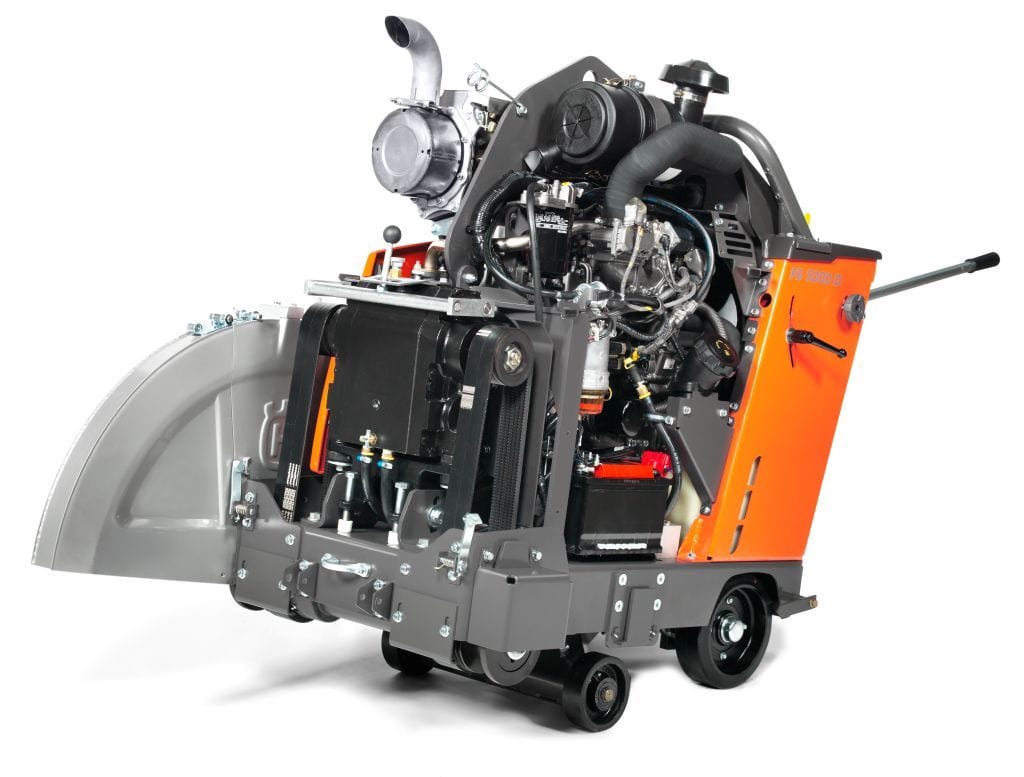

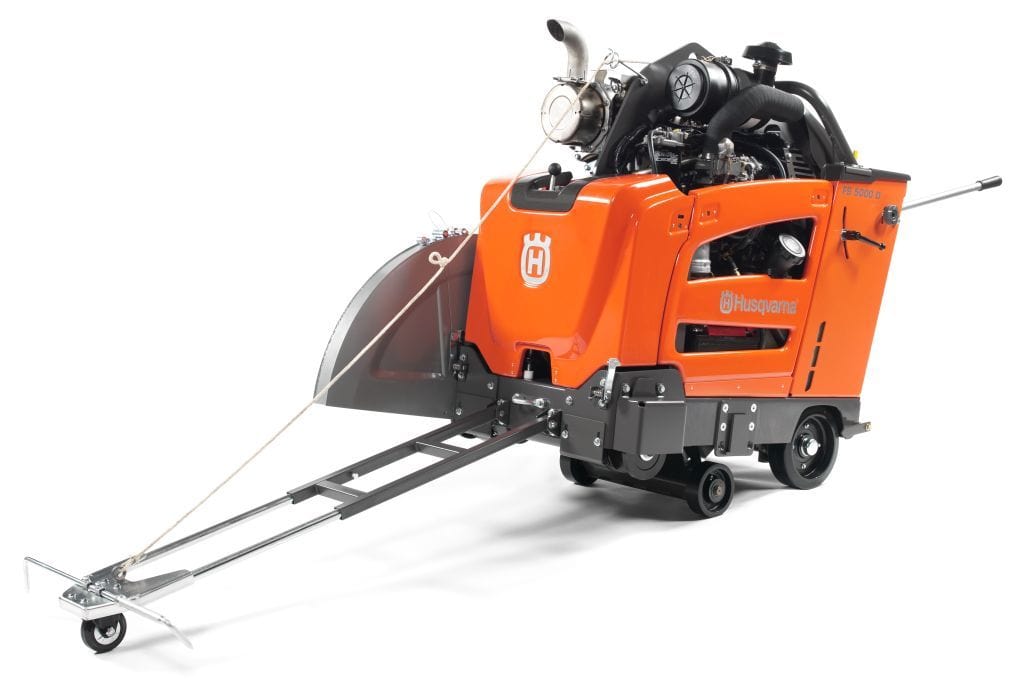

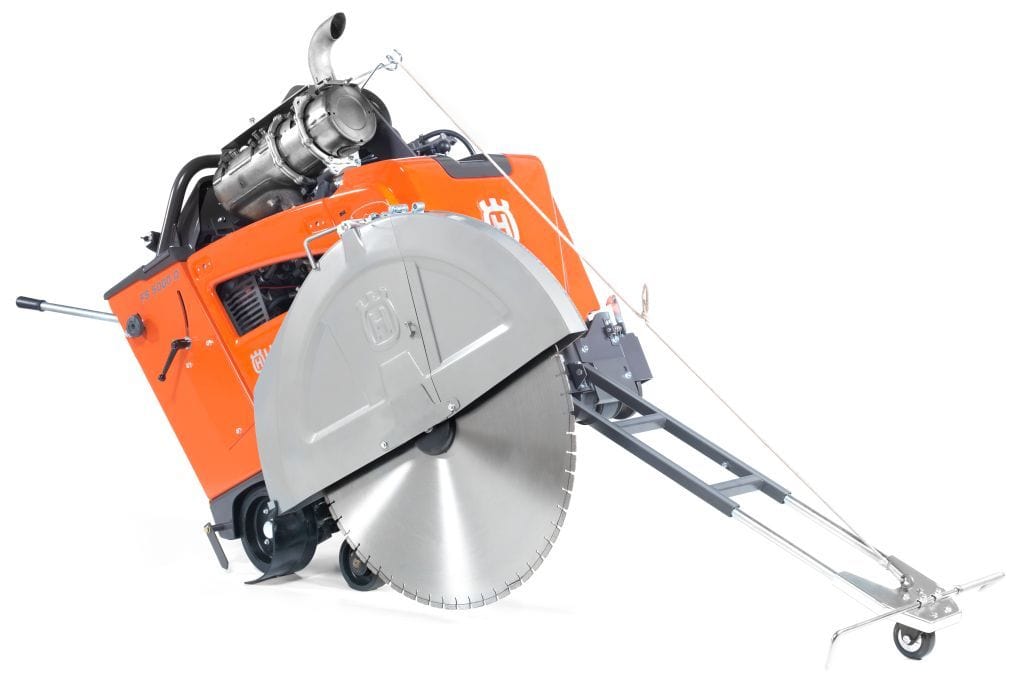

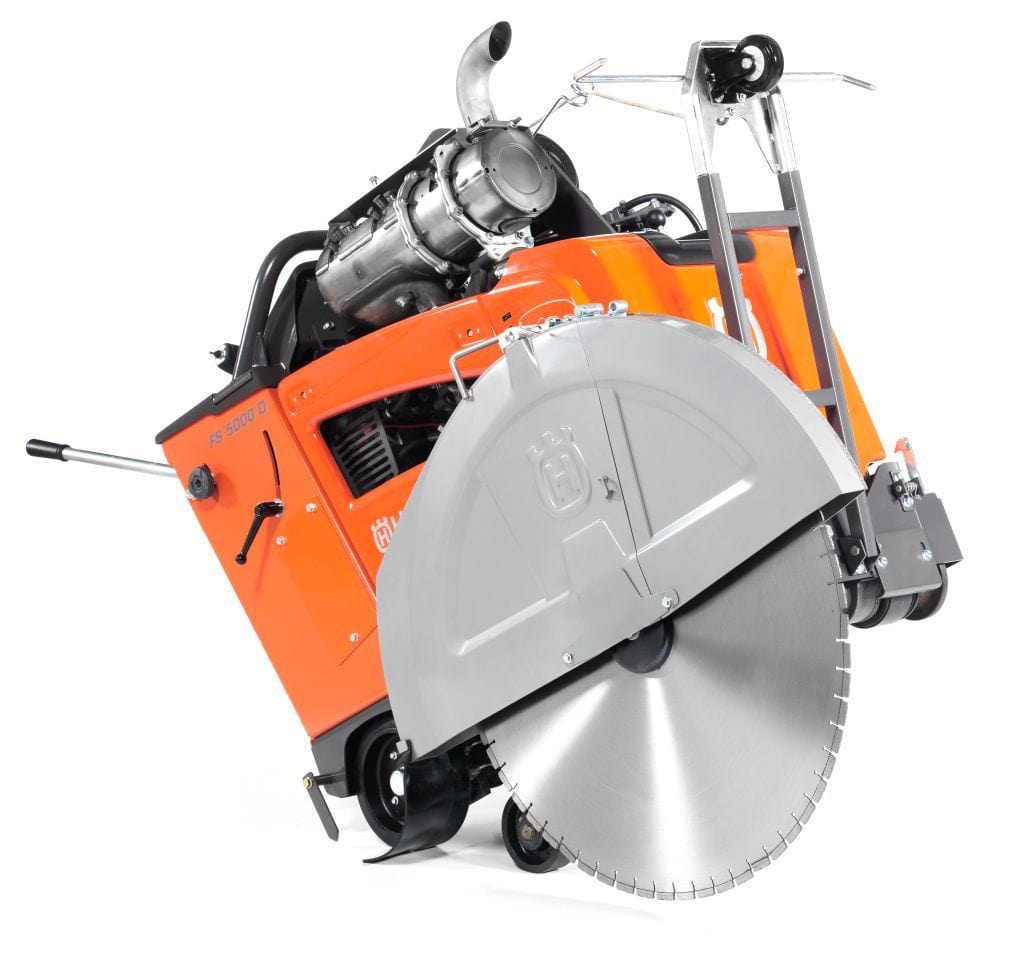

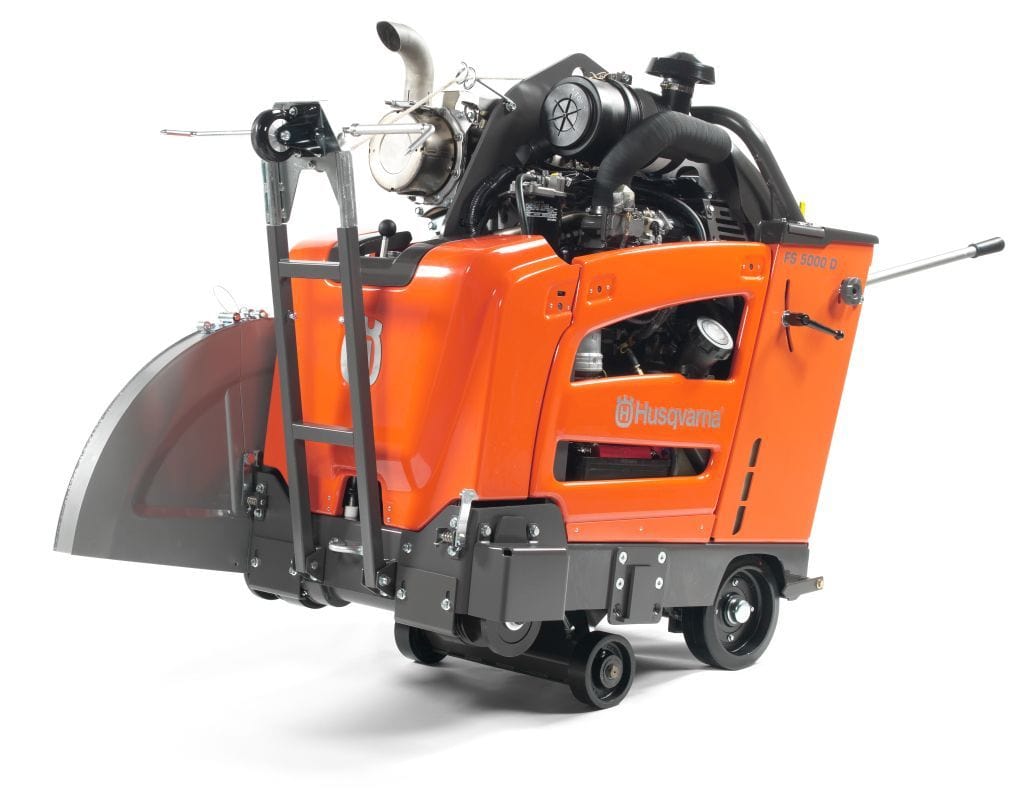

FS5000D HUSQVARNA 3-SPEED GEARBOX DIESEL WALK BEHIND SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
*NOTE - CLUTCH ONLY AVAILABLE WITH E-TRAC AND 36" SETUP*
Applications

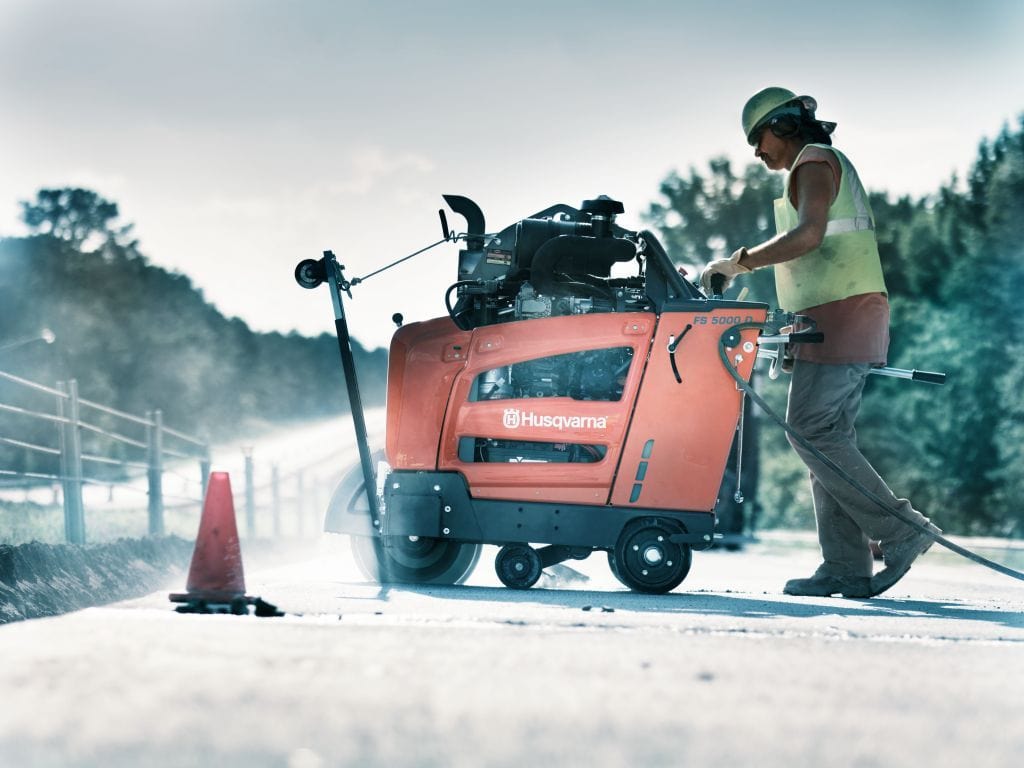

- Perfect for jobs such as airports, highways, service work, and other applications where production is a priority.
- Mid- to small-size jobs that require high production rate.
Benefits
-
Tier 4 compliant engine meets current EPA regulations.
- Blade diameters up to 36" provides maximum cutting depth of 15".
- 3-speed gearbox enables different blade sizes to run at their optimal performance level without changing pulleys or belts.

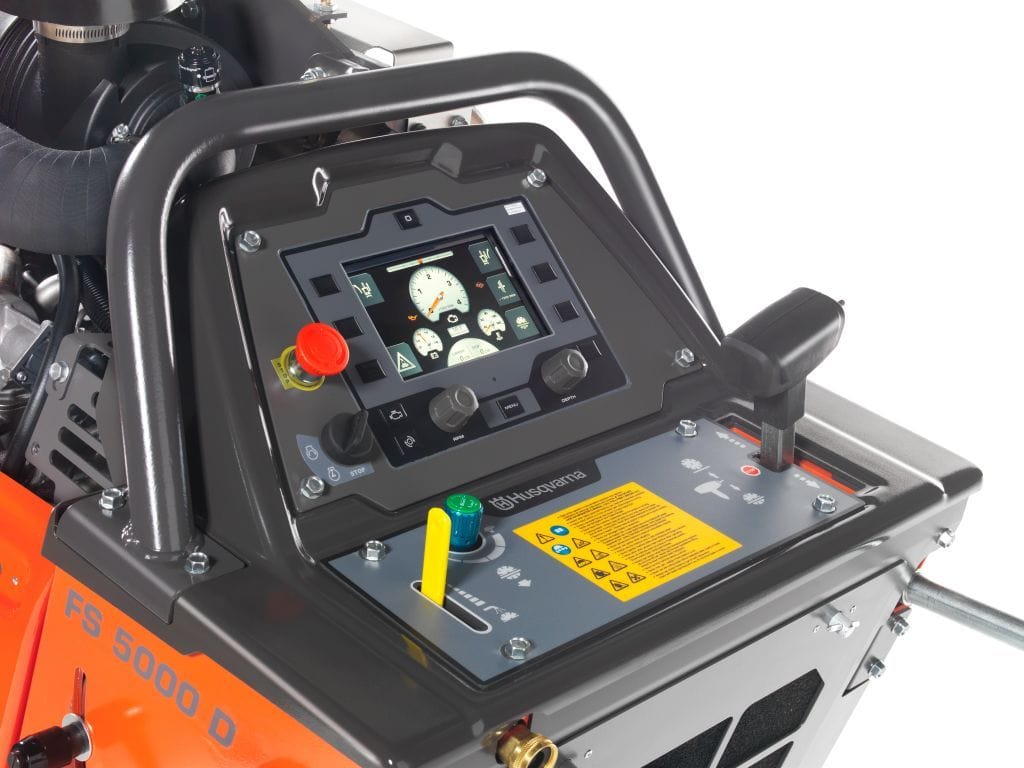

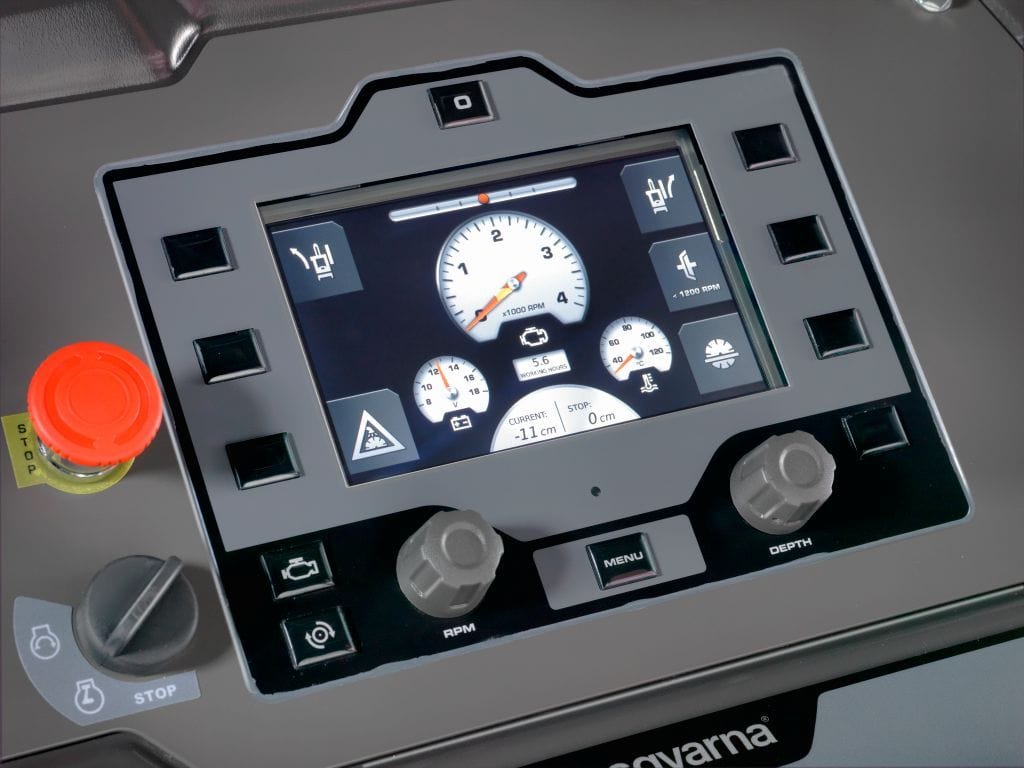

- Optional E-track system with an integrated reset function in the display making it easier to produce a straight cut.
- Power transmission system transmits more power to the bladeshaft with optimum torque.

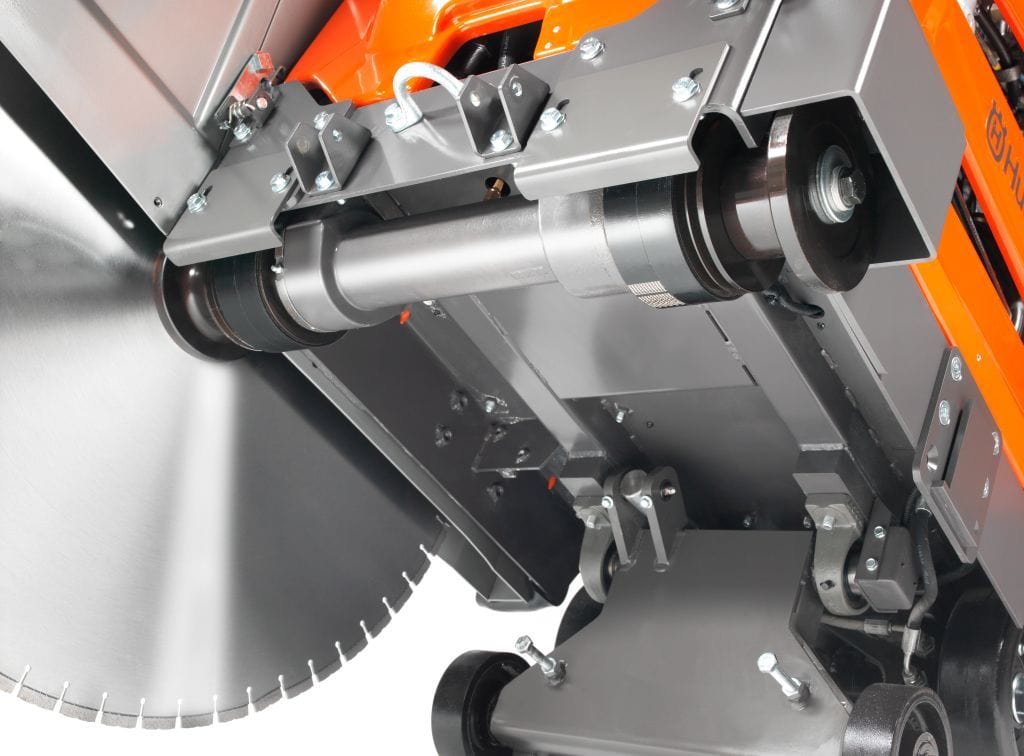

- Patented IntelliSeal bladeshaft system allows a minimum of 500 maintenance-free hours and eliminates daily greasing of bearings.
TECHNICAL SPECIFICATIONS
| Max blade diameter, in | 26" | 30" | 36" |
| Max depth of cut, in | 10-1/2" | 12-1/2" | 15" |
| Average bladeshaft, RPM | 3,100/2,180/1,870 | 2,660/1,800/1,570 | 2,260/1,580/1,360 |
|
Blade range, in |
14"/18"/26" | 18"/26"/30" | 20"/30"/36" |
| Blade flanges, in | 5" | 5" | 6" |
| Max weight crated, lbs | 1,821 | 1,830 | 1,843 |
| Max weight uncrated, lbs | 1,711 | 1,725 | 1,738 |
