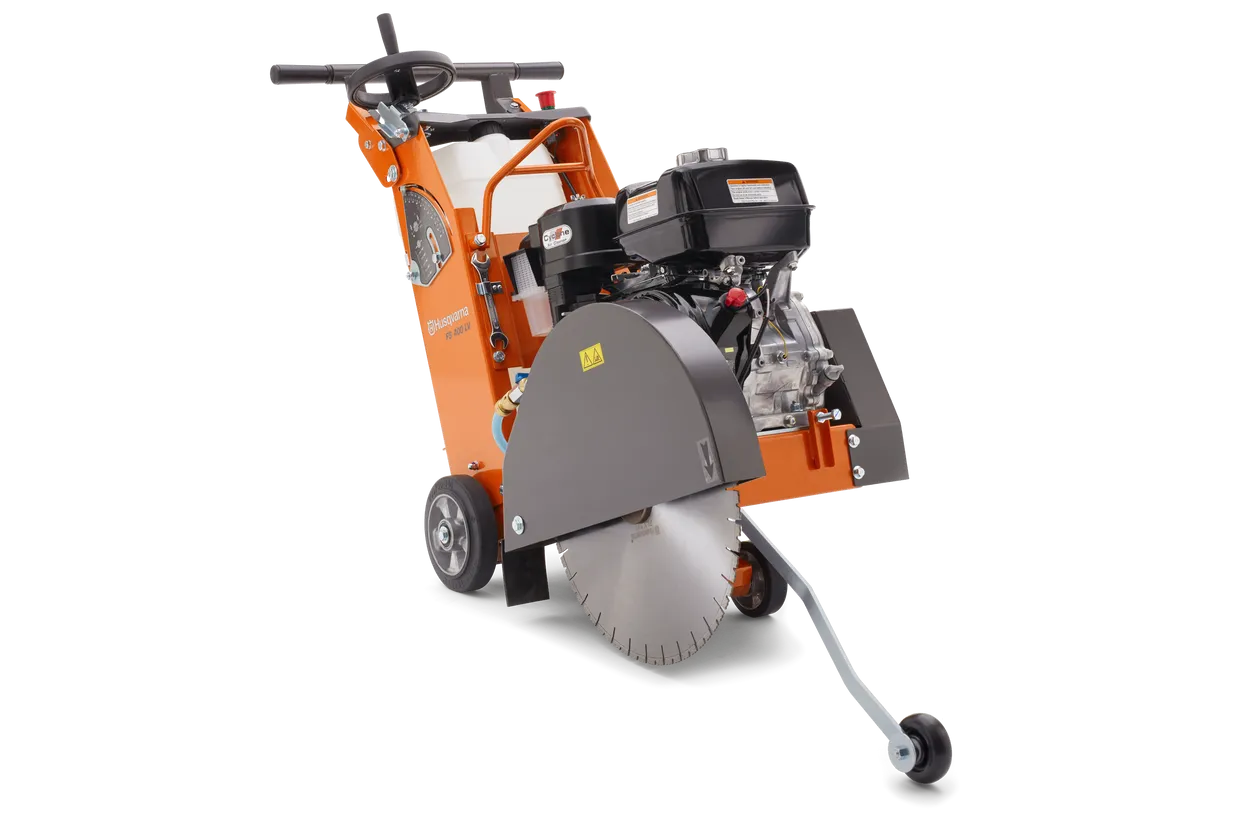

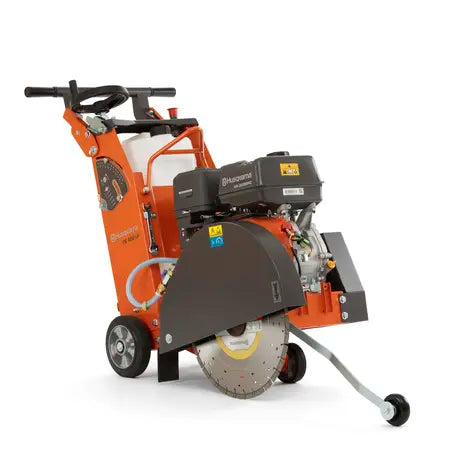

HUSQVARNA FS 400 LV, 20" Flat Masonry Floor Saw - 967796502
NOTE: BLADE ON SAWS IN PICTURE ARE NOT INCLUDED : BLADES MUST BE PURCHASED SEPARATELY
The HUSQVARNA FS 400 LV, 20" Flat Saw – 967796502 is a robust, walk‑behind gasoline floor saw built for small road repair, concrete and asphalt cutting, and general flat‑surface work up to about 7.5" deep. With an 11–11.7 hp Honda GX390 engine, 20" blade capacity, and excellent weight distribution, it delivers stable, productive cutting on roads, driveways, and slabs while remaining compact and easy to handle.
Cutting depth, max: 7.5 in
Output power (As rated by the engine/motor manufacturer): 11.7 hp
Blade diameter, max: 20 in
Overview of the Husqvarna FS 400 LV 20" Flat Saw
The FS 400 LV is a push‑type, all‑round petrol floor saw designed for contractors who need a reliable machine for repair cuts, expansion joints, and small to medium flat‑sawing jobs. Husqvarna emphasizes its convenient size, ergonomic handle design, and stable chassis, which together make it a strong choice for day‑to‑day cutting in concrete and asphalt.
This model is commonly supplied as SKU 967796502 in North America, pairing the FS 400 LV frame with a Honda GX390 engine and 20" blade guard. It is frequently used by concrete contractors, road repair crews, and rental houses thanks to its combination of power, depth capacity, and straightforward controls.
Key Features and Design Benefits
The FS 400 LV is engineered for productivity, stability, and operator comfort. Key features include:
-

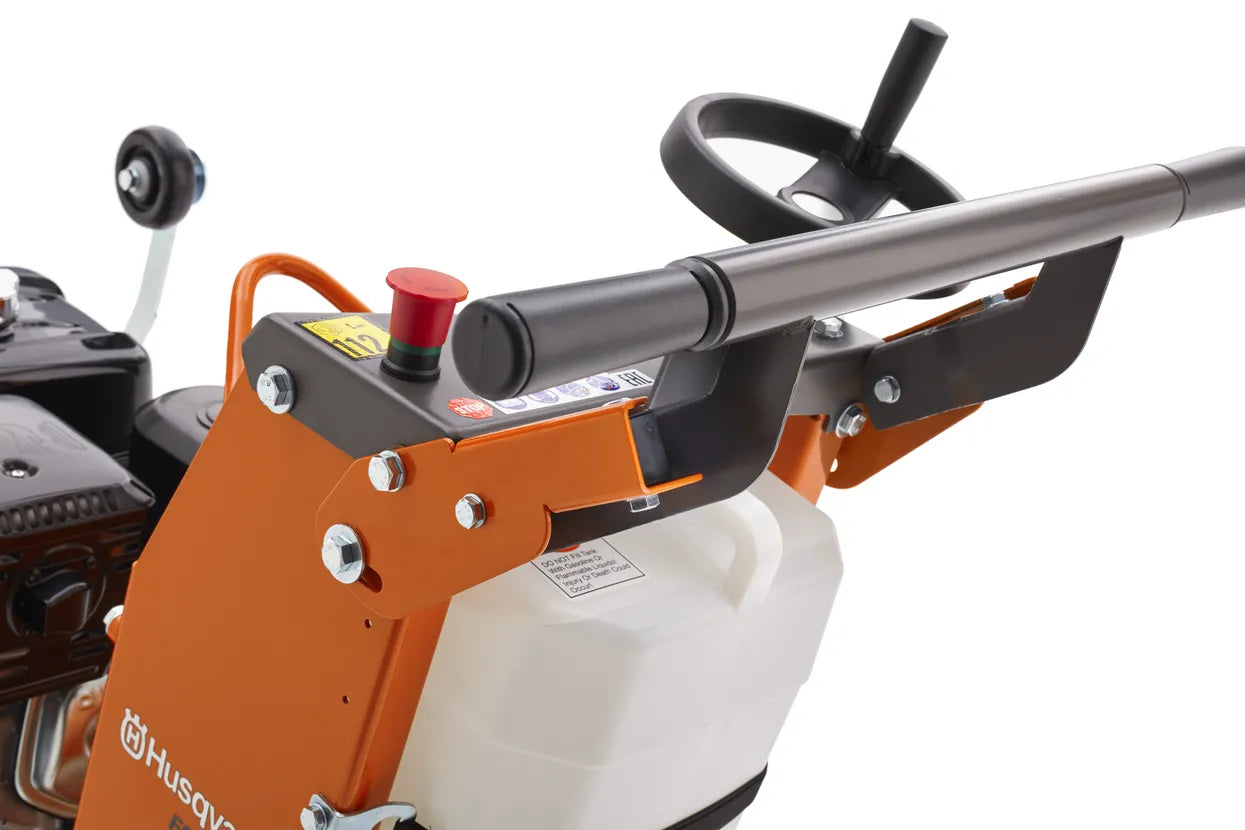

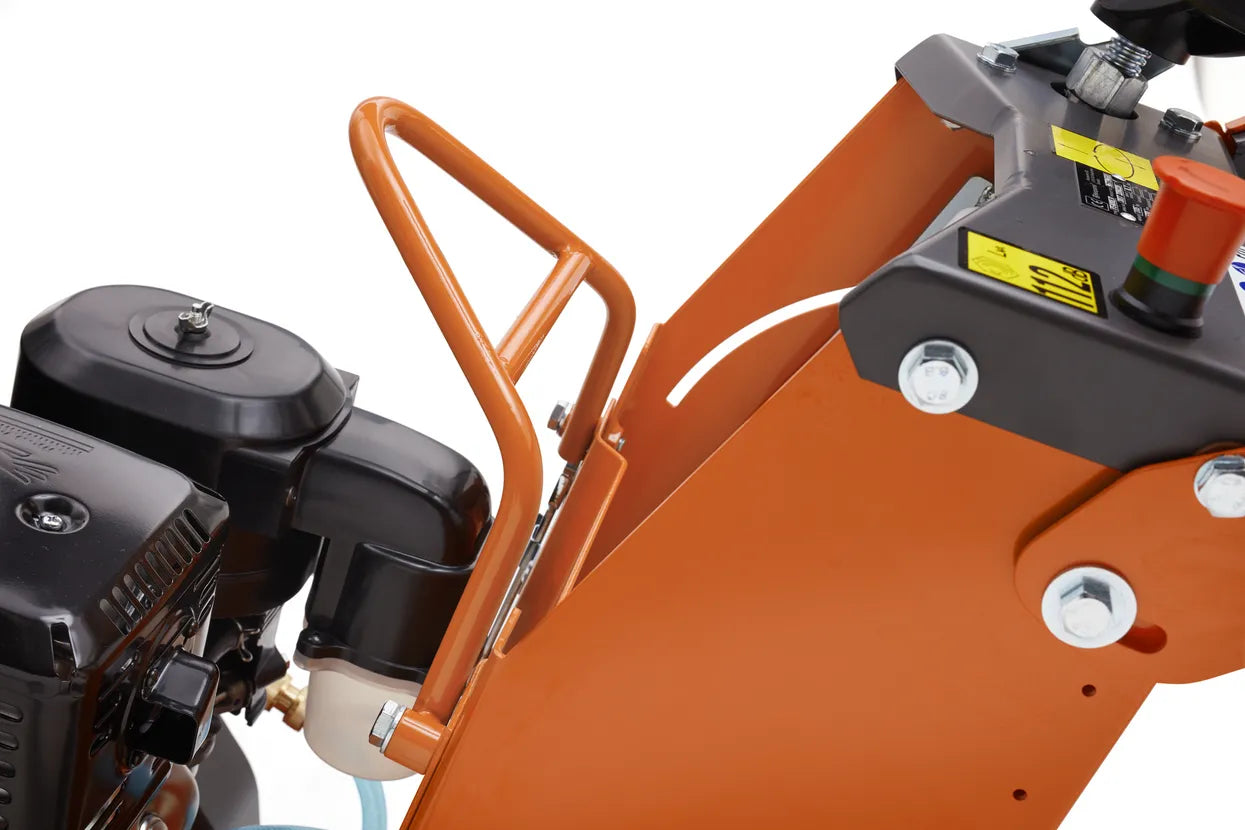

Ergonomic adjustable handle: The handle can be set to different positions to ensure a comfortable working posture, reduce fatigue, and improve control.
-
Perfect weight distribution: Husqvarna designs the frame so weight sits over the blade for better tracking and reduced side forces, which leads to straighter cuts with less effort.
-

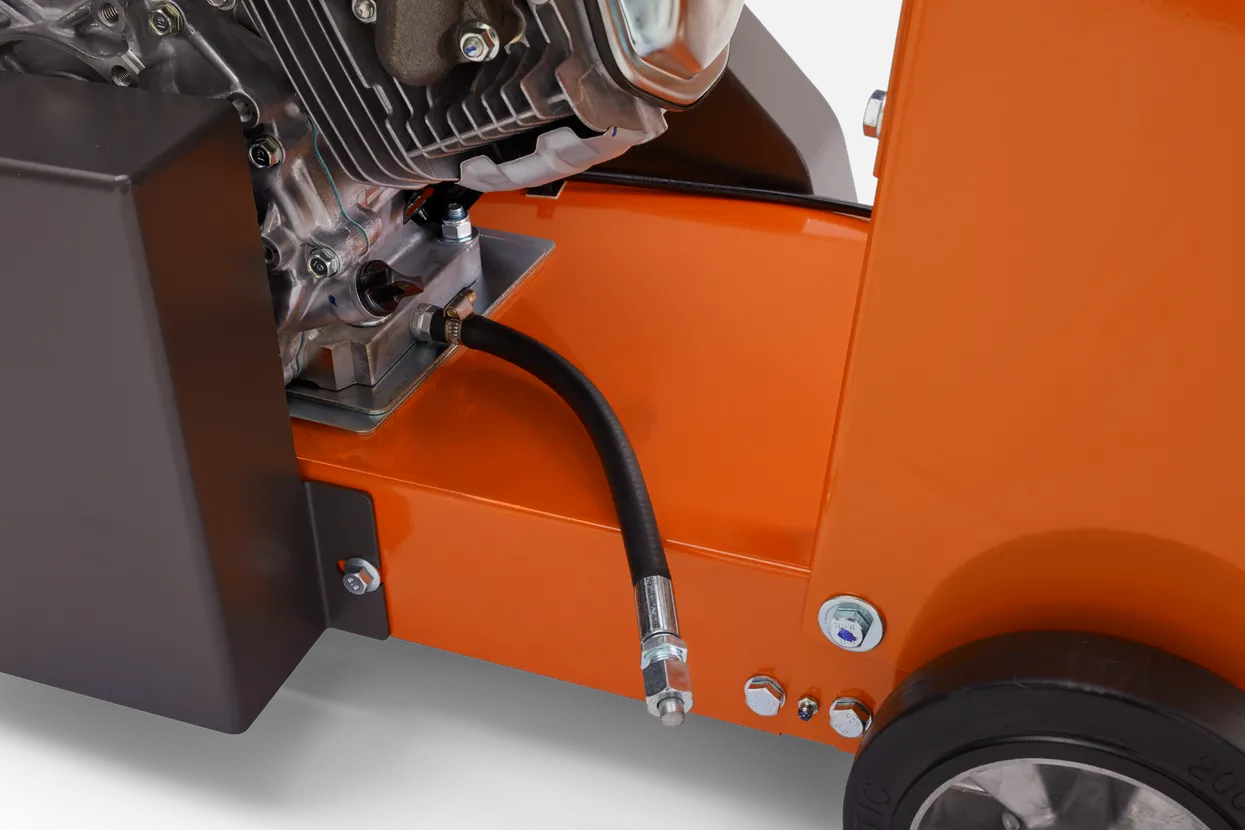

Patented gas raise/lower system (on many US configurations): This system reduces the force needed to raise and lower the blade, making depth adjustments smoother and easier.
-
Front pointer and clear line of sight: A front‑mounted cutting guide aids in keeping cuts straight and on‑line.
-

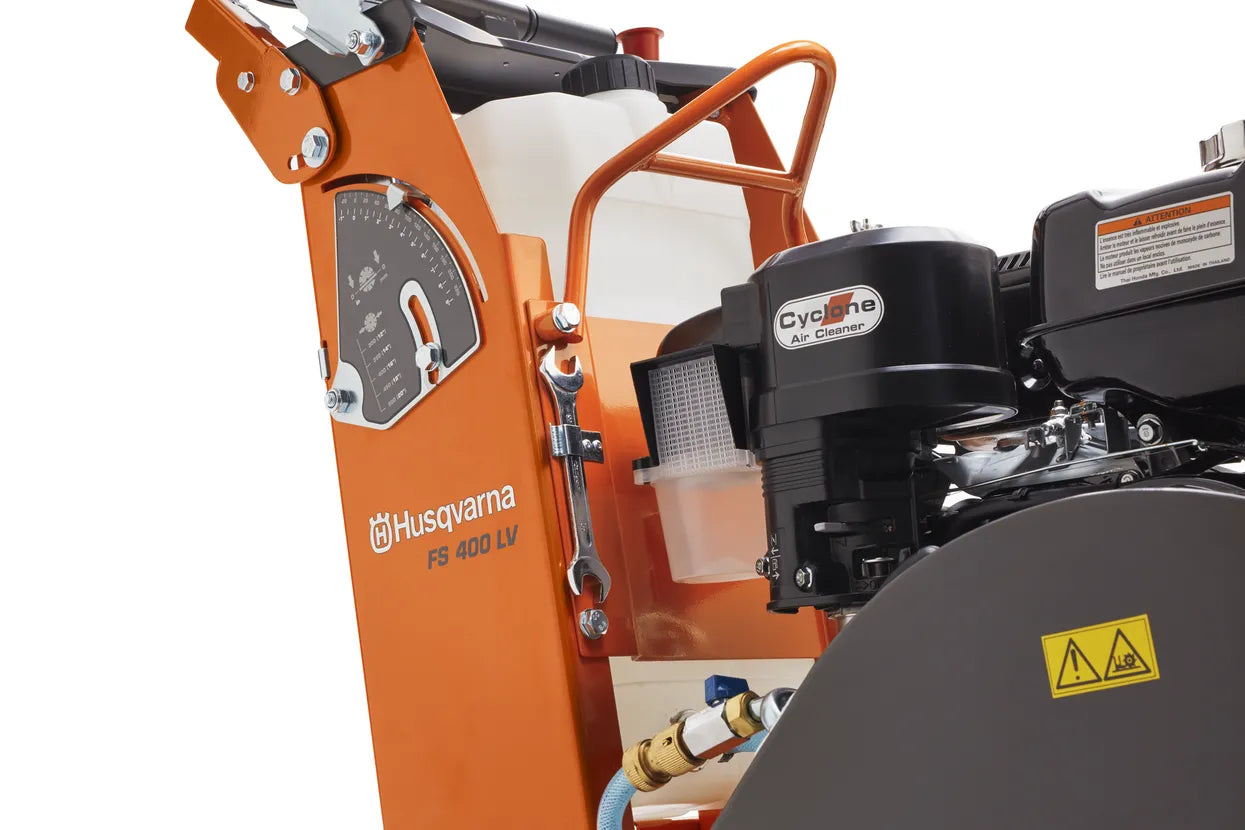

Integrated water tank (standard in many kits): Provides water feed to the blade to control dust and cool the segment, especially important when cutting concrete.
-
Compact push design: No complex drive system; the operator simply pushes the saw, which keeps maintenance simpler and improves reliability.
These features result in a saw that is easy to set up, intuitive to operate, and stable even at maximum cutting depth.
Technical Specifications
Across Husqvarna and distributor listings, the FS 400 LV 20" Flat Saw – 967796502 shares consistent core specifications.
Engine and Power
-
Engine model: Honda GX390, 4‑stroke, air‑cooled gasoline engine.
-
Horsepower: 11–11.7 hp output (commonly listed as 11.7 hp on US spec sheets).
-
Power source: Gasoline/petrol.
-
Fuel tank volume: Approximately 1.6–1.61 gallons (about 206 fl oz).
Blade and Cutting
-

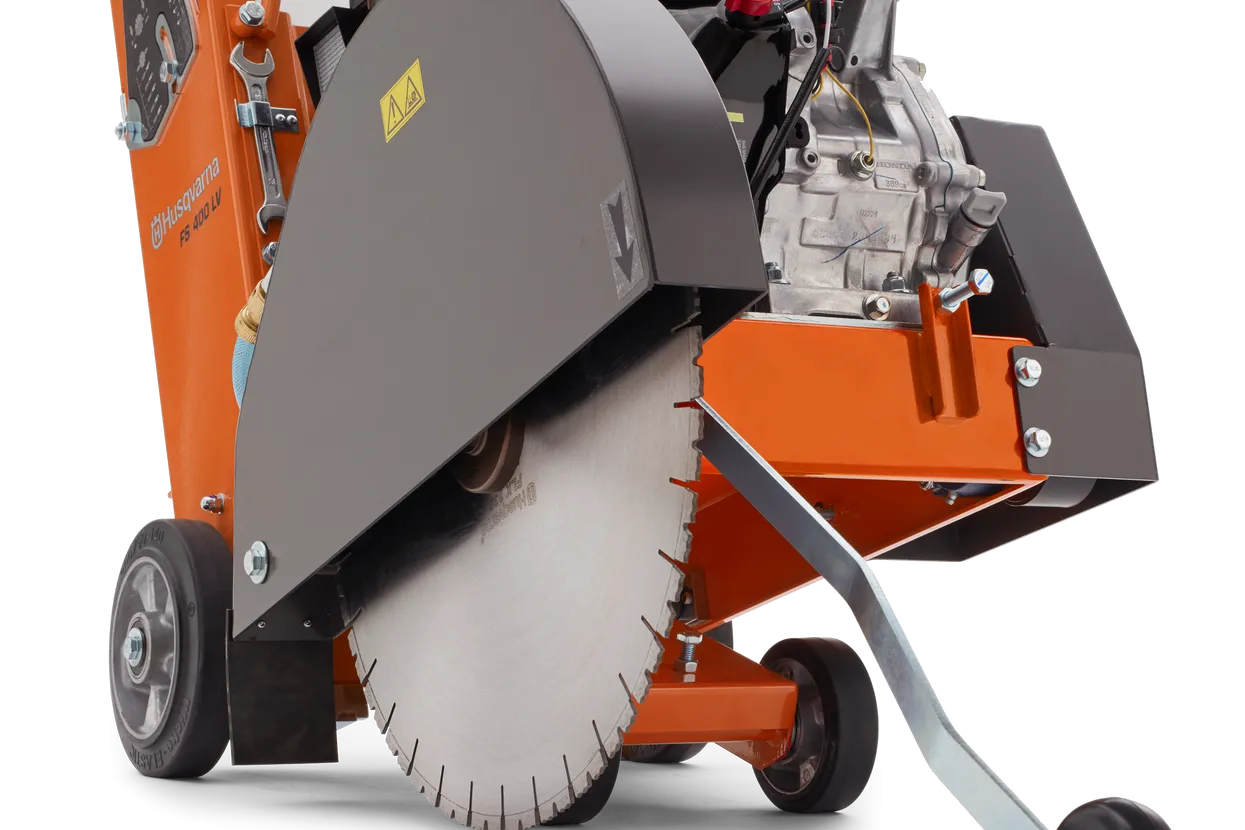

Maximum blade diameter: 20 in (510 mm).
-
Arbor (shaft) diameter: 1 in.
-
Maximum cutting depth: About 7.5–7‑5/8 in (189–194 mm).
-

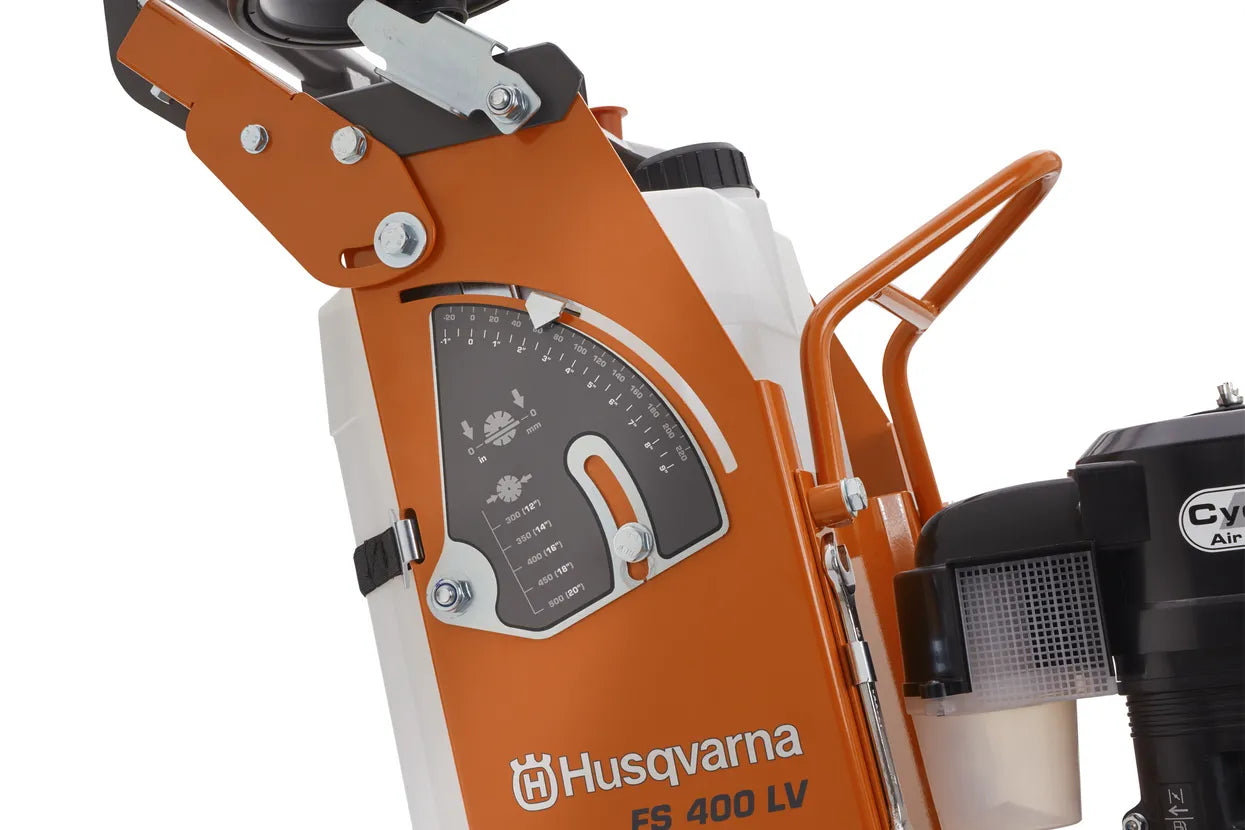

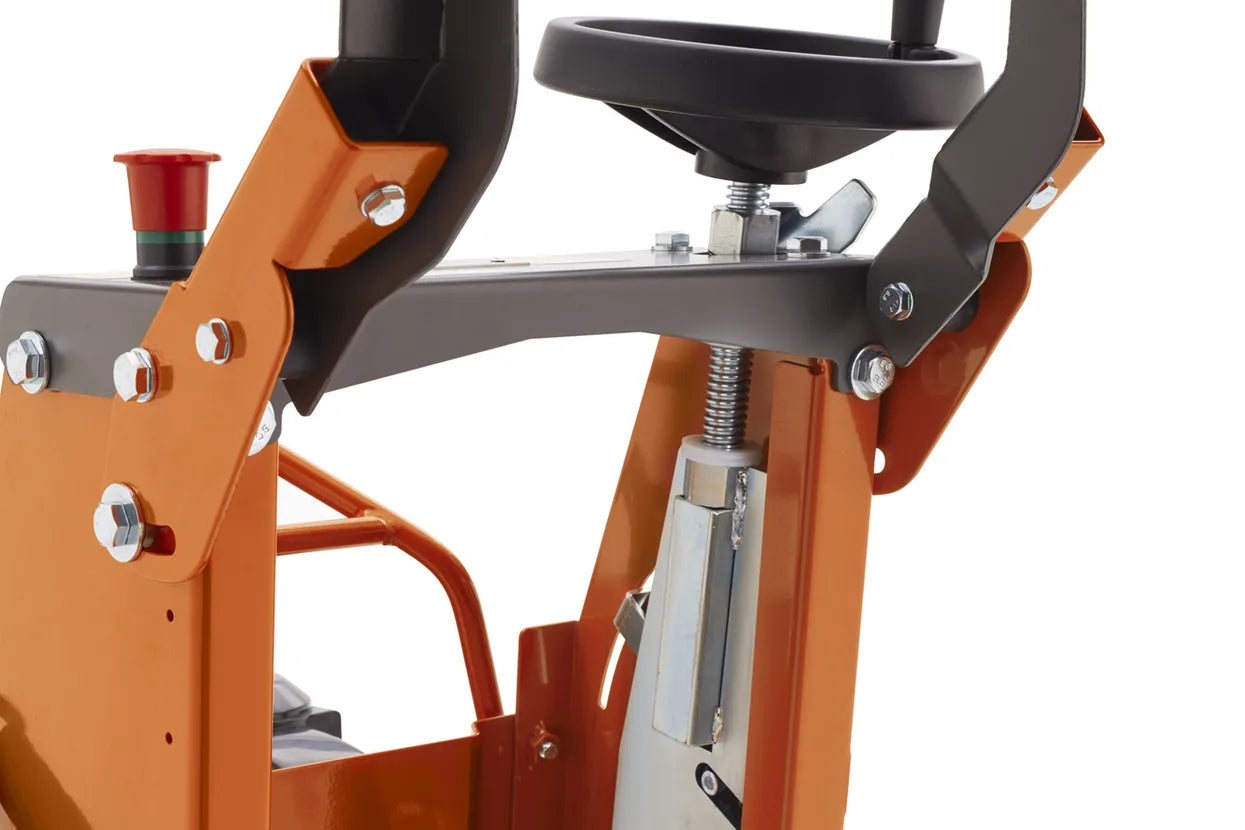

Blade depth control: Hand wheel mechanism; many US units include a gas‑assist for easier raising and lowering.
Dimensions and Weight
-
Weight: Around 219–220 lb (about 99–100 kg).
These specs place the FS 400 LV in the mid‑size push‑saw class: large enough for serious depth and power, yet small enough to maneuver on driveways, sidewalks, and tight repair areas.
Applications: Where the FS 400 LV Excels
The Husqvarna FS 400 LV 20" Flat Saw is built as a true multi‑purpose walk‑behind concrete saw. Typical applications include:
-
Small road repair jobs in concrete and asphalt, cutting out damaged sections for patching.
-
Cutting expansion and control joints in new concrete slabs such as driveways, sidewalks, and interior floors (where ventilation allows gas engines).
-
Utility and trench work, cutting straight openings for pipes, conduits, and drains.
-
Cutting around manholes, catch basins, and curbs during street and parking lot repairs.
-
General sawcutting for slab demolition and removal, including cutting sections into manageable pieces.
Because it is compact and uses a 20" blade, it is ideal for contractors and municipalities that regularly perform patch work, driveway cuts, and general slab modifications but do not need a larger self‑propelled or diesel road saw.
Ease of Use, Stability, and Maintenance
The FS 400 LV’s design focuses on making concrete sawing productive and less physically demanding.
-
Adjustable handle: Helps operators of different heights maintain upright posture and better leverage while pushing the saw.
-
Perfect weight distribution: With weight centered over the blade, the saw tracks straighter and requires less side pressure to keep on line.
-
Gas raise/lower system: Reduces the effort needed to raise and lower blade depth, especially important when making multiple passes or adjustments.
-
Standard water feed: Simplifies dust management and blade cooling—just fill the tank and connect the water line to the blade guard.
-
Simple push transmission: With no complex hydrostatic drive, maintenance is limited mainly to engine service, belts, wheels, and general inspections.
The owner’s manual emphasizes proper cutting techniques—making a shallow guide cut, then increasing depth in increments (often about 2 in per pass) to reduce blade wear and machine load. Adhering to these recommendations extends blade life and helps keep the saw running smoothly.
Frequently Asked Questions About the HUSQVARNA FS 400 LV, 20" Flat Saw – 967796502
What kind of saw is the FS 400 LV?
It is a walk‑behind, petrol‑powered, push‑type flat saw used for cutting concrete and asphalt on flat surfaces such as roads, driveways, and slabs.
What engine does the FS 400 LV use?
The saw is equipped with a Honda GX390 4‑stroke gasoline engine, producing about 11–11.7 hp for strong cutting performance.
What is the maximum blade size and cutting depth?
It accepts blades up to 20" in diameter on a 1" arbor, giving a maximum cutting depth of roughly 7.5–7‑5/8".
Is the FS 400 LV self‑propelled?
No, it is a push‑type saw. The operator pushes the saw while the blade cuts, which keeps the design simpler and easier to maintain.
What type of jobs is the FS 400 LV best suited for?
It is ideal for small road repair jobs, driveway and sidewalk cutting, patches in slabs, trench and utility cuts, and general flat‑surface concrete and asphalt sawing.
Does the saw come with a water tank?
Many packages include a standard water tank that feeds water to the blade guard to control dust and cool the blade during concrete cutting.
What is the weight of the FS 400 LV?
The saw weighs approximately 219–220 lb, which provides stability while remaining manageable to load with proper ramps or lifting equipment.
How is blade depth controlled?
Blade depth is adjusted using a hand wheel, and many US configurations add a gas‑assist raise/lower system to reduce the physical effort of adjusting depth.
Can the FS 400 LV cut both concrete and asphalt?
Yes, with the appropriate diamond blade type, it is suitable for cutting both concrete and asphalt surfaces.
What fuel capacity does the saw have?
The fuel tank holds about 1.6–1.61 gallons of gasoline, providing sufficient runtime for typical cutting sessions when the engine is properly maintained.
Is the handle adjustable?
Yes, the handle is adjustable to help the operator find an ergonomic working position and improve control.
What are the overall dimensions of the FS 400 LV?
Approximate dimensions are 45.3" long, 24.2" wide, and 37" high, making it compact enough for most trailers and service vehicles.
Is the FS 400 LV a good choice for rental fleets?
Its simple push design, Honda engine, robust frame, and easy controls make it a popular choice for rental fleets and contractors who need a dependable, low‑maintenance floor saw.
What safety considerations apply when using this saw?
Operators should follow Husqvarna’s manual, including wearing PPE, using proper lifting and transport methods, setting cutting depth in increments, ensuring adequate water supply for dust, and maintaining safe distances from the blade and exhaust.
