Description

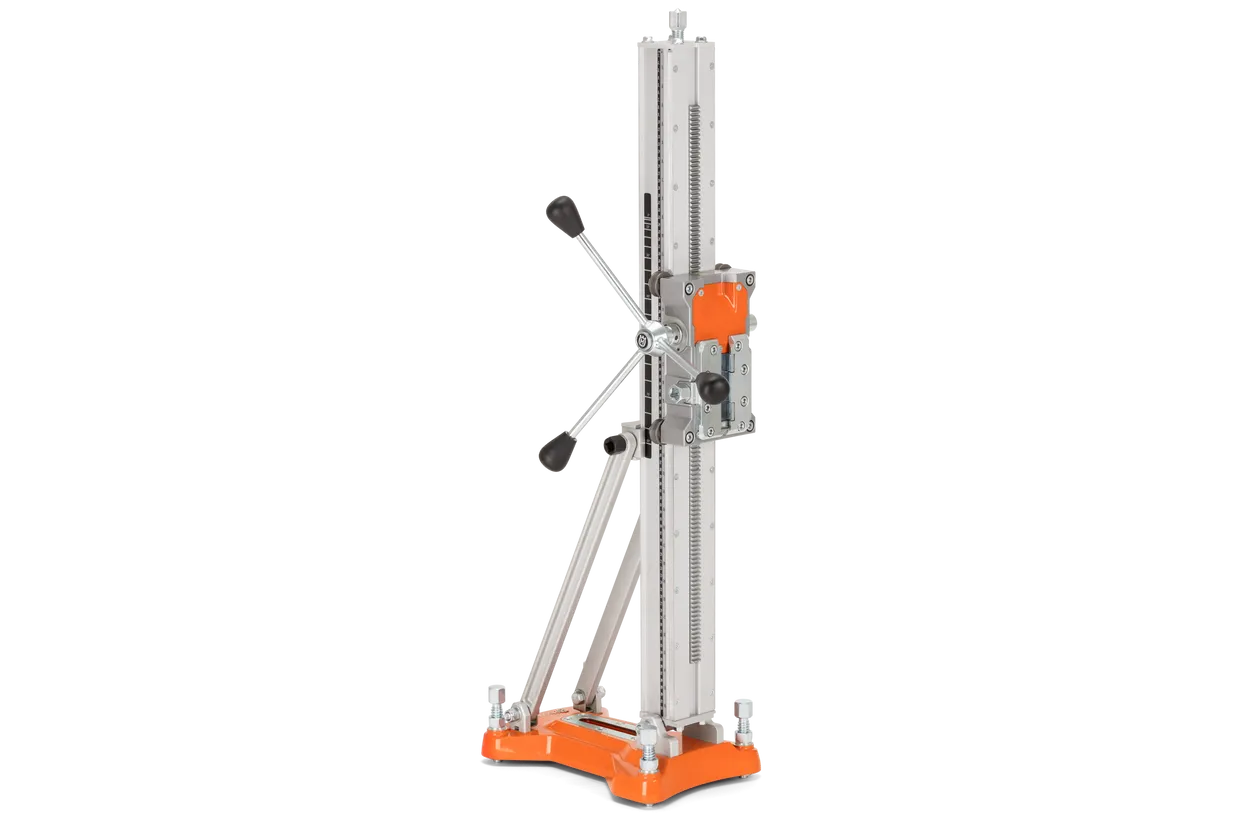

DS 500 is a medium-size drill stand, suitable for a wide range of professional core drilling operations. Combines high stability and sturdiness with surprisingly low weight. The quick connection features and low weight make handling easy and efficient. The slim-design carriage with optimized gear ratio works exceptionally well with Husqvarna DM 400, DM 430, DM 370 and similar high-powered 1-phase drill motors.
FEATURES
Durable and sturdy - The all-metal design with an optimized setup of steel, aluminum and magnesium components ensures stability and durability without adding unnecessary weight
Precision and performance - The design of the steel-reinforced extruded aluminum column is optimized for high precision and drilling performance. All hinges have a zero-play design to enable stability over time
High stability and low weight - The steel-reinforced die cast magnesium base plate ensures rigid anchoring and keeps the overall weight down
Easy to install and operate - The quick-release coupling for drill motor and easy adjustment of back support angle allow for easy setup and angle drilling. The carriage can easily be removed from the column when needed
Drilling ventilation channels and holes for pipes and cables
Drilling horizontally
Drilling multiple holes next to each other to make openings
Drilling upwards and downwards
Stitch drilling, vertical drilling
Drill column angle - 0-90 deg, Max load (on handle)- 264.5 Lbs
SPECIFICATIONS
Brand Name
Husqvarna
Assembled Weight (lbs)
37.4
Compatibility
DM 400, DM 430, DM 370 and Similar High-Powered 1-Phase Drill Motors
Country of Origin
China
MFG Part # (OEM)
967968602
Package Contents
Drill Stand
Package Depth
15.5
Package Height
41.3
Package Weight
37.4
Product Condition
New
Size
Maximum Travel Length - 706 mm
UPC
805544479820
