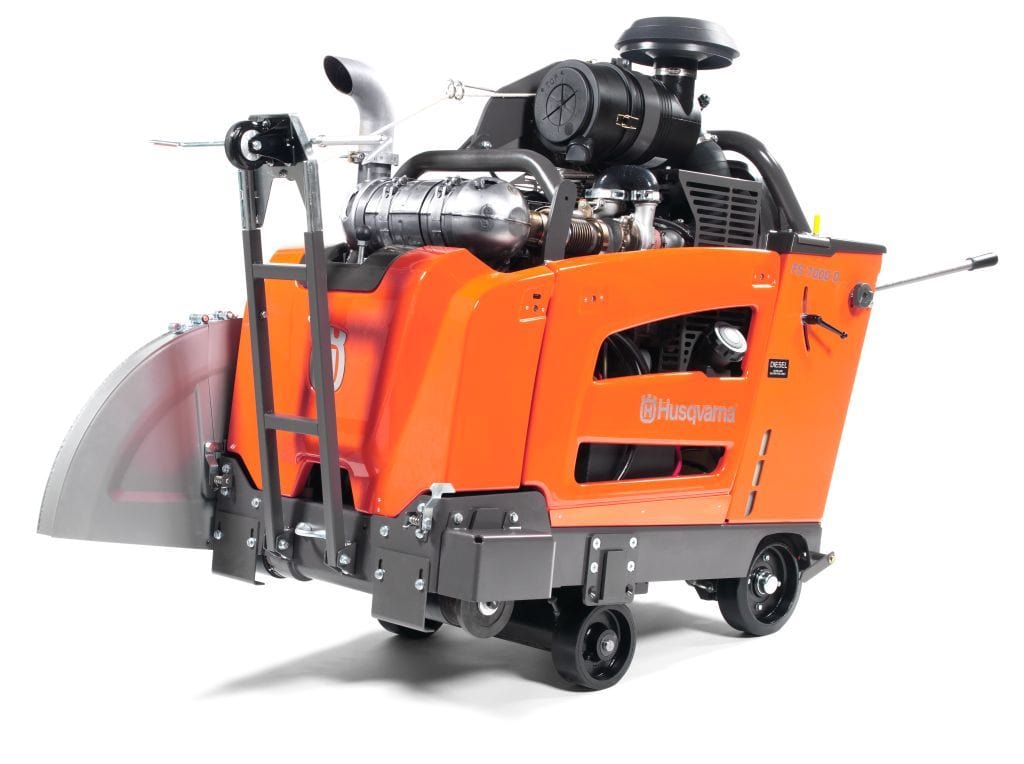

FS7000D HUSQVARNA DIESEL WALK BEHIND SAW
Applications
- Large jobs such as airports, highways, larger service work, and other applications where production is a priority.
- Mid-size jobs that require high production rates.
Benefits
- Tier 4 compliant engine meets current EPA regulations.
- Power transmission system transmits more power to the bladeshaft with optimum torque.

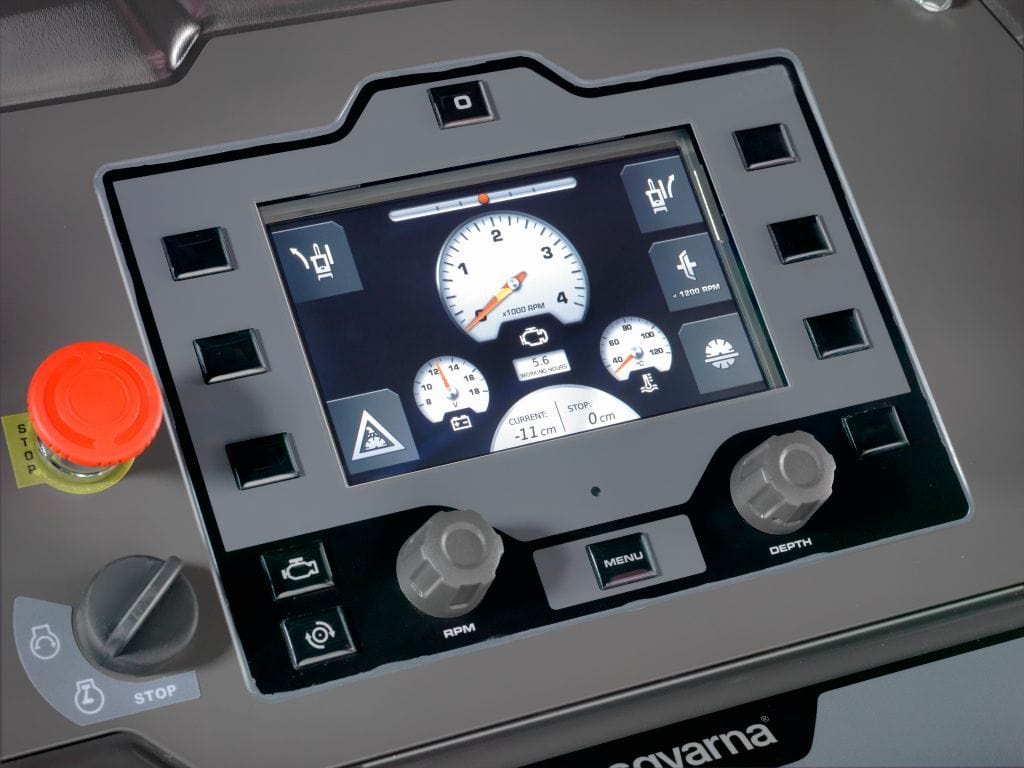

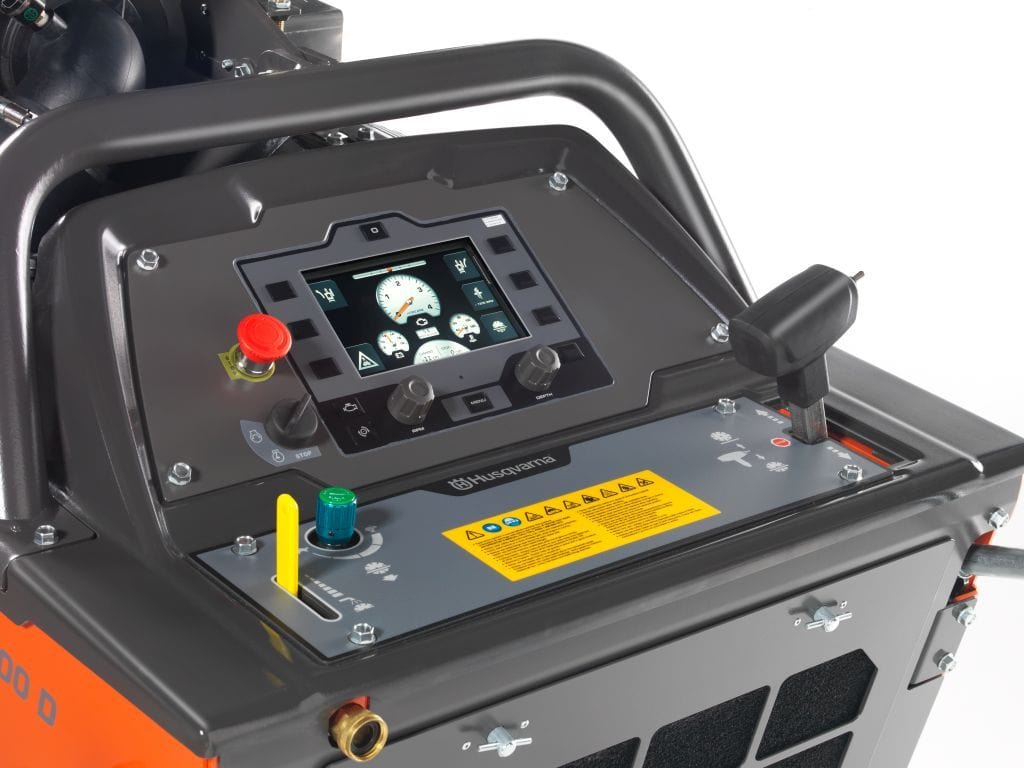

- Digital display dashboard features all important functions and is easy to monitor.

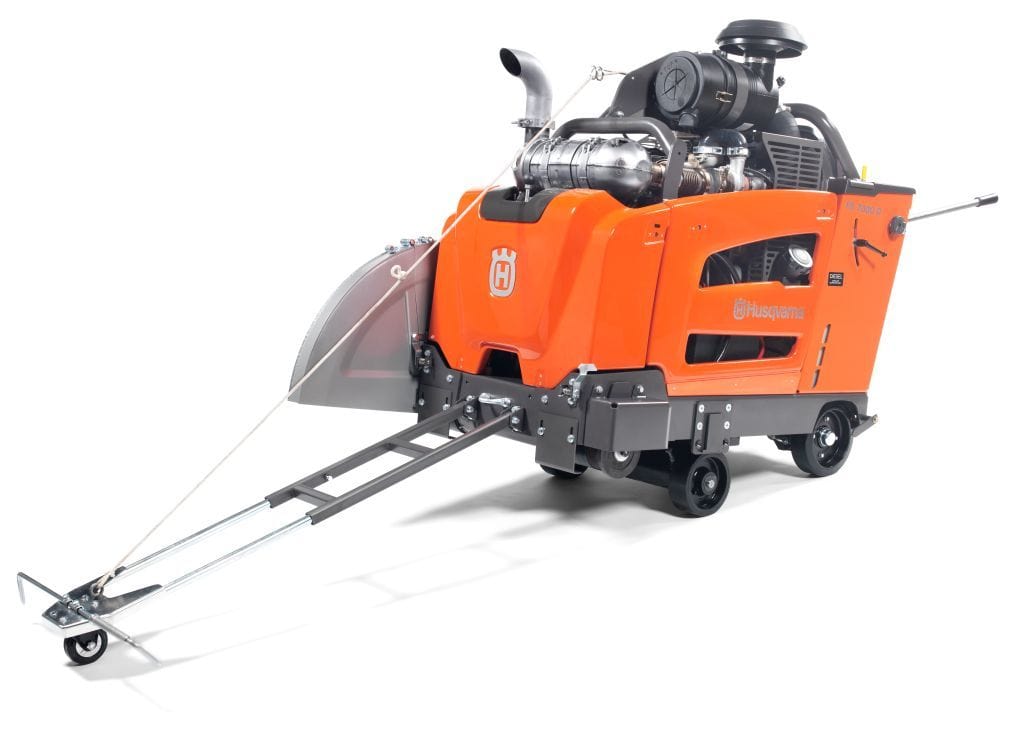

- E-track system option has an integrated reset function in the display making it easier to produce a straight cut.

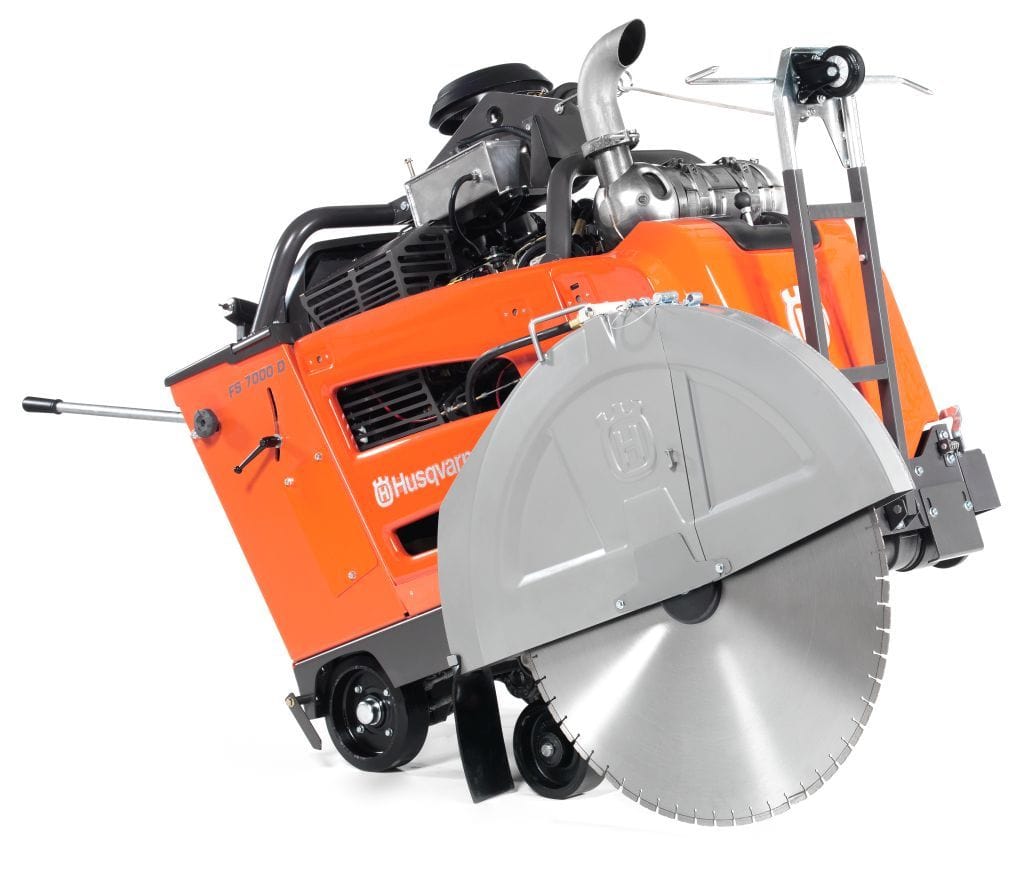

- Heavy-duty blade shaft to handle large blades.
- 5-pin blade flanges with standard single pin featuring LOU pin pattern.
TECHNICAL SPECIFICATIONS
| Â Max blade diameter, in | 20" | 26" | 30" | 36" | 42" |
| Max depth of cut, in | 7-5/8" | 10-1/2" | 12-1/2" | 15" | 17-1/2" |
| Average bladeshaft, RPM | 2,362 | 1,762 | 1,624 | 1,354 | 1,150 |
| Blade flanges, in | 4-1/2" | 5" | 5" | 6" | 7" |
| Max weight crated, lbs | 2,213 | 2,224 | 2,233 | 2,246 | 2,385 |
| Max weight uncrated, lbs | 2,103 | 2,114 | 2,123 | 2,136 | 2,275 |
