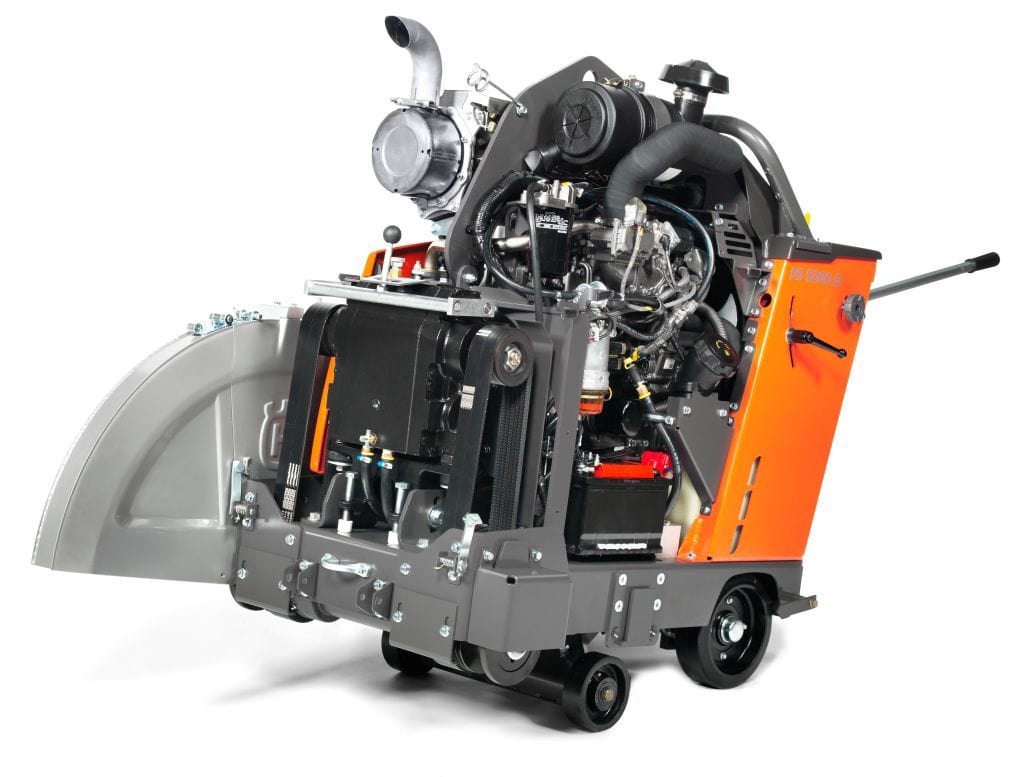

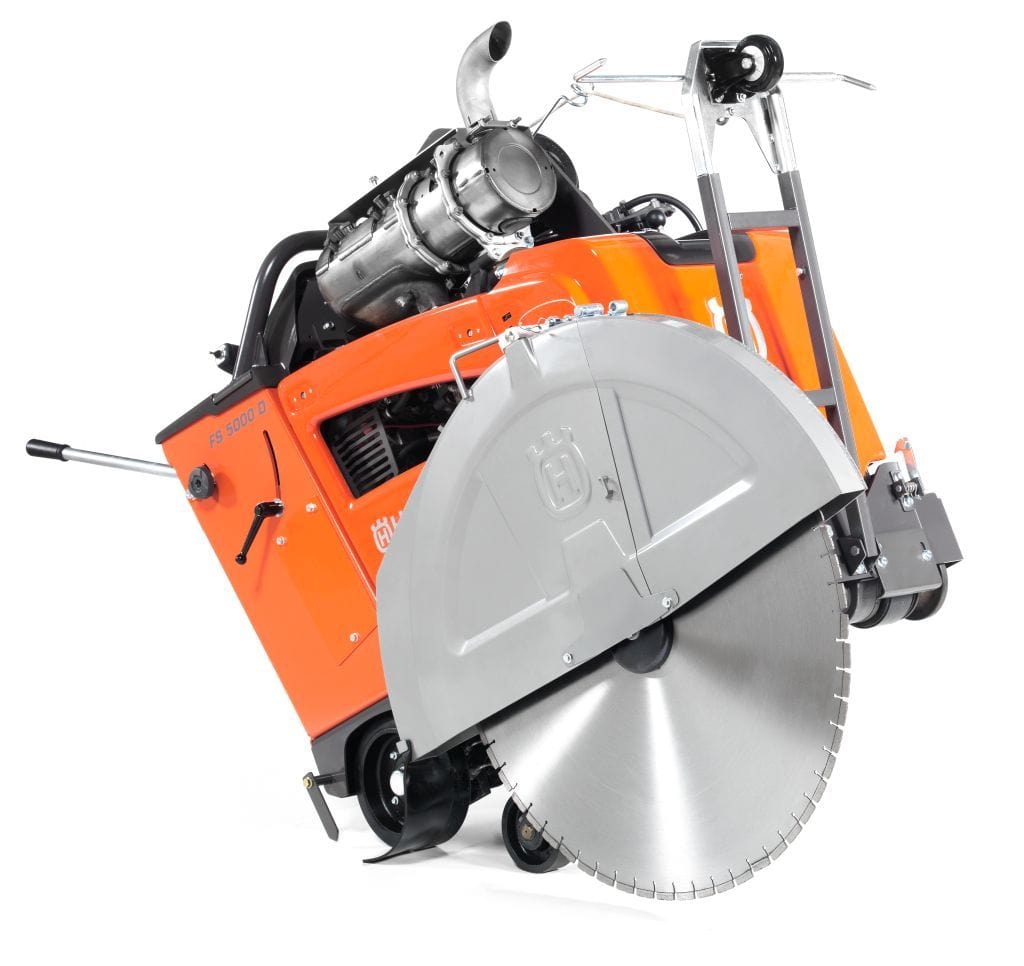

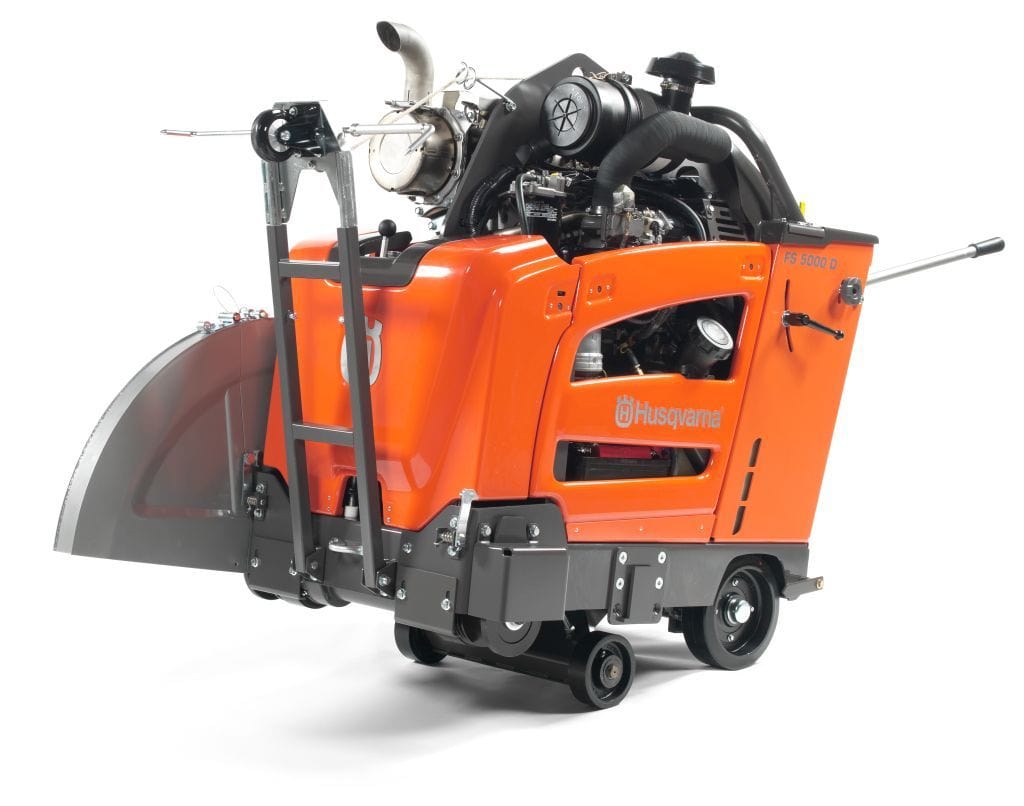

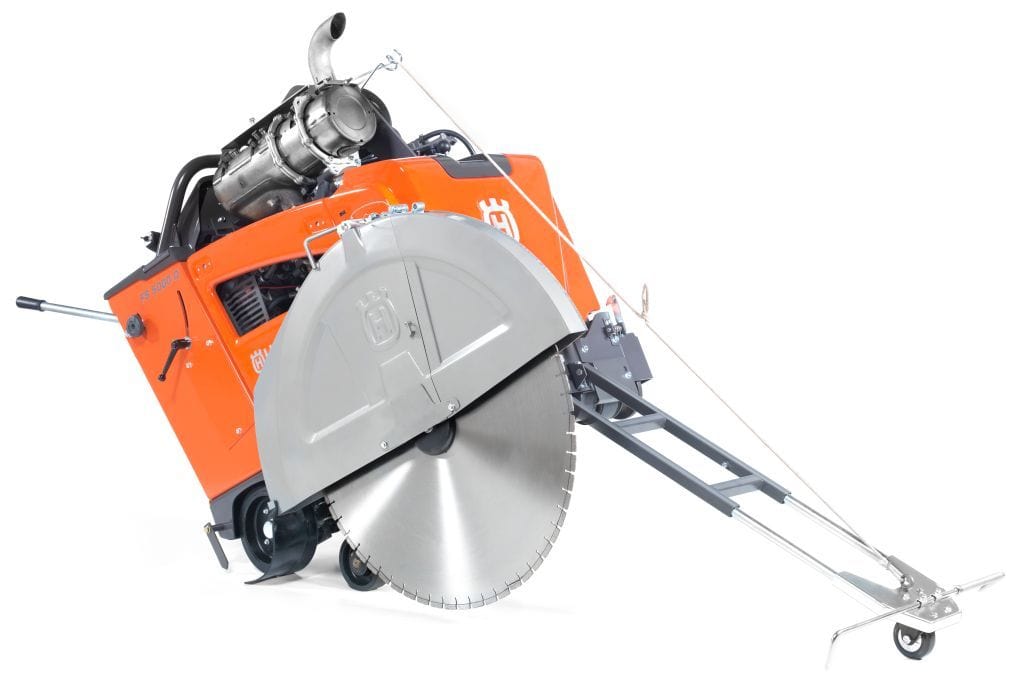

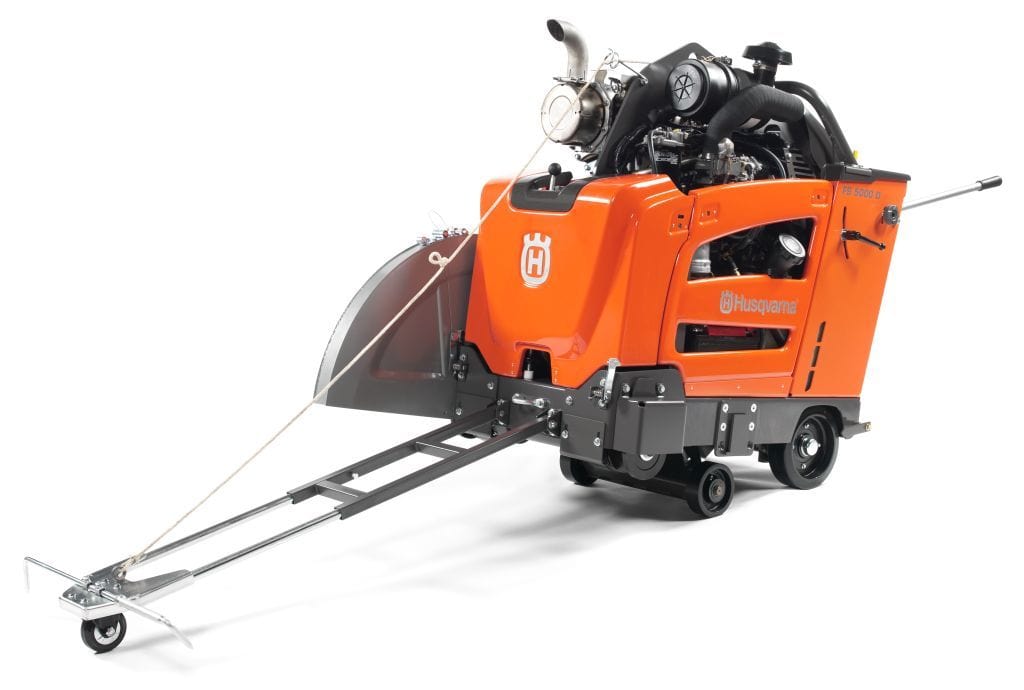

FS5000D HUSQVARNA DIESEL WALK BEHIND SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
Applications
- Perfect for jobs such as airports, highways, service work, and other applications where production is a priority.
- Mid- to small-size jobs that require high production rate.
Benefits
-
Tier 4 compliant engine meets current EPA regulations.
- Blade diameters up to 36" provides maximum cutting depth of 15".

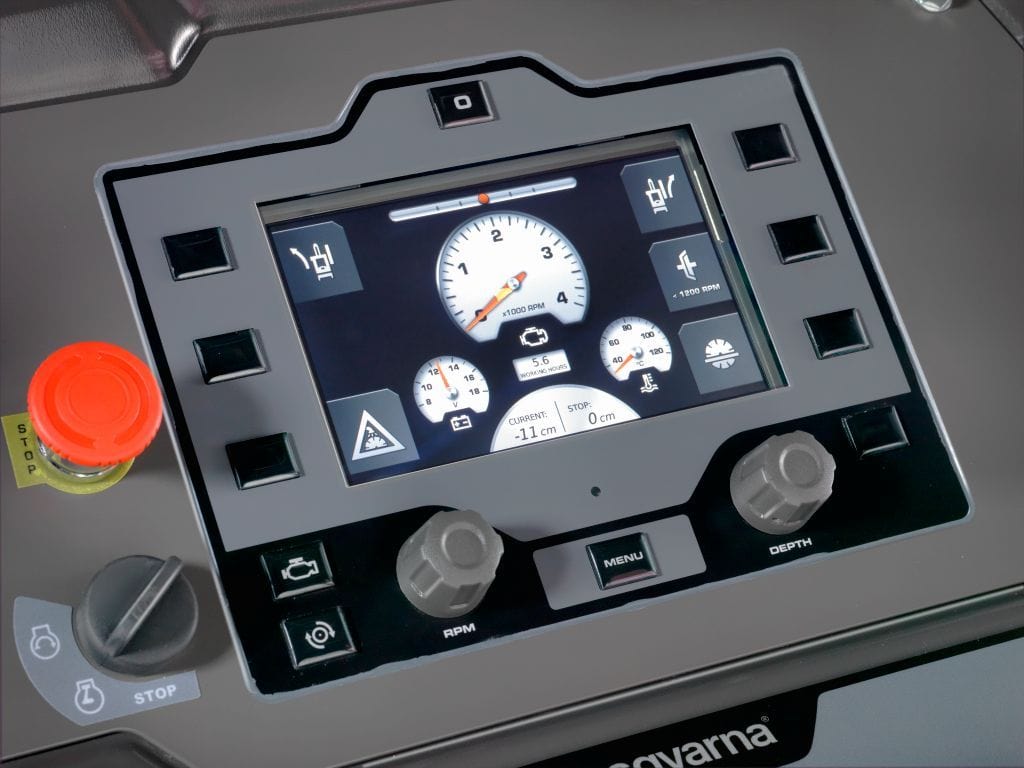

- Optional E-track system with an integrated reset function in the display making it easier to produce a straight cut.
- Power transmission system transmits more power to the bladeshaft with optimum torque.

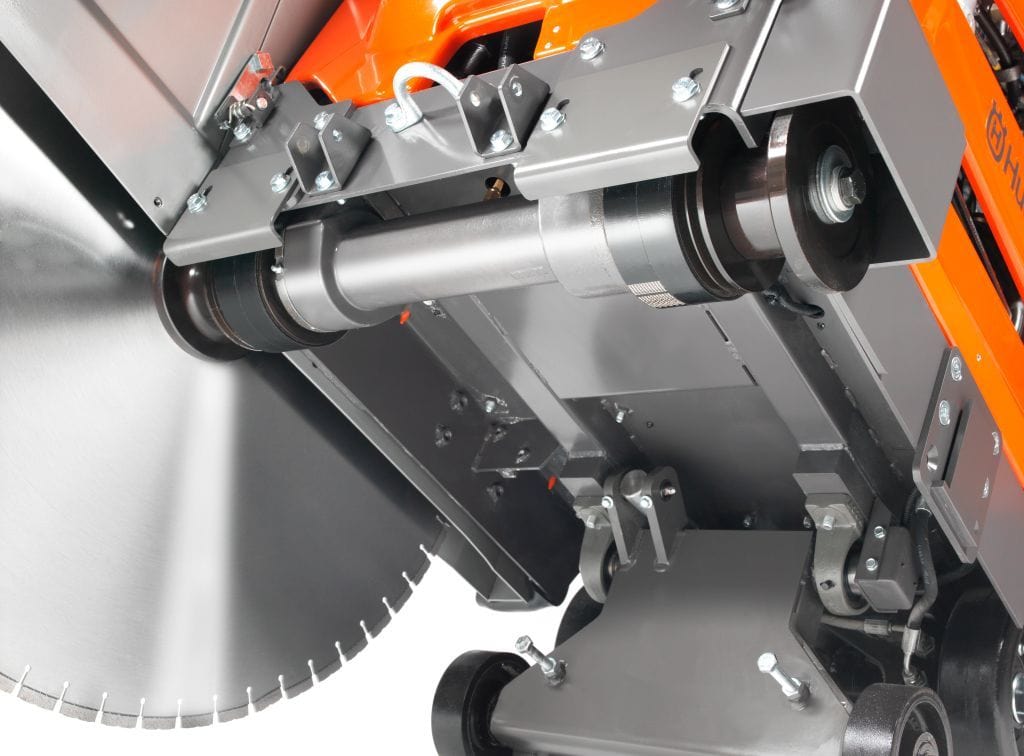

- Patented IntelliSeal bladeshaft system allows a minimum of 500 maintenance-free hours and eliminates daily greasing of bearings.
TECHNICAL SPECIFICATIONS
| Â Max blade diameter, in | 14" | 20" | 26" | 30" | 36" |
| Max depth of cut, in | 4-3/4" | 7-3/4" | 10-1/2" | 12-1/2" | 15" |
| Average bladeshaft, RPM | 3,197 | 2,400 | 1,866 | 1,628 | 1,355 |
| Blade flanges, in | 4-1/2" | 4-1/2" | 5" | 5" | 6" |
| Max weight crated, lbs | 1,761 | 1,772 | 1,783 | 1,792 | 1,805 |
| Max weight uncrated, lbs | 1,656 | 1,667 | 1,678 | 1,687 | 1,700 |
