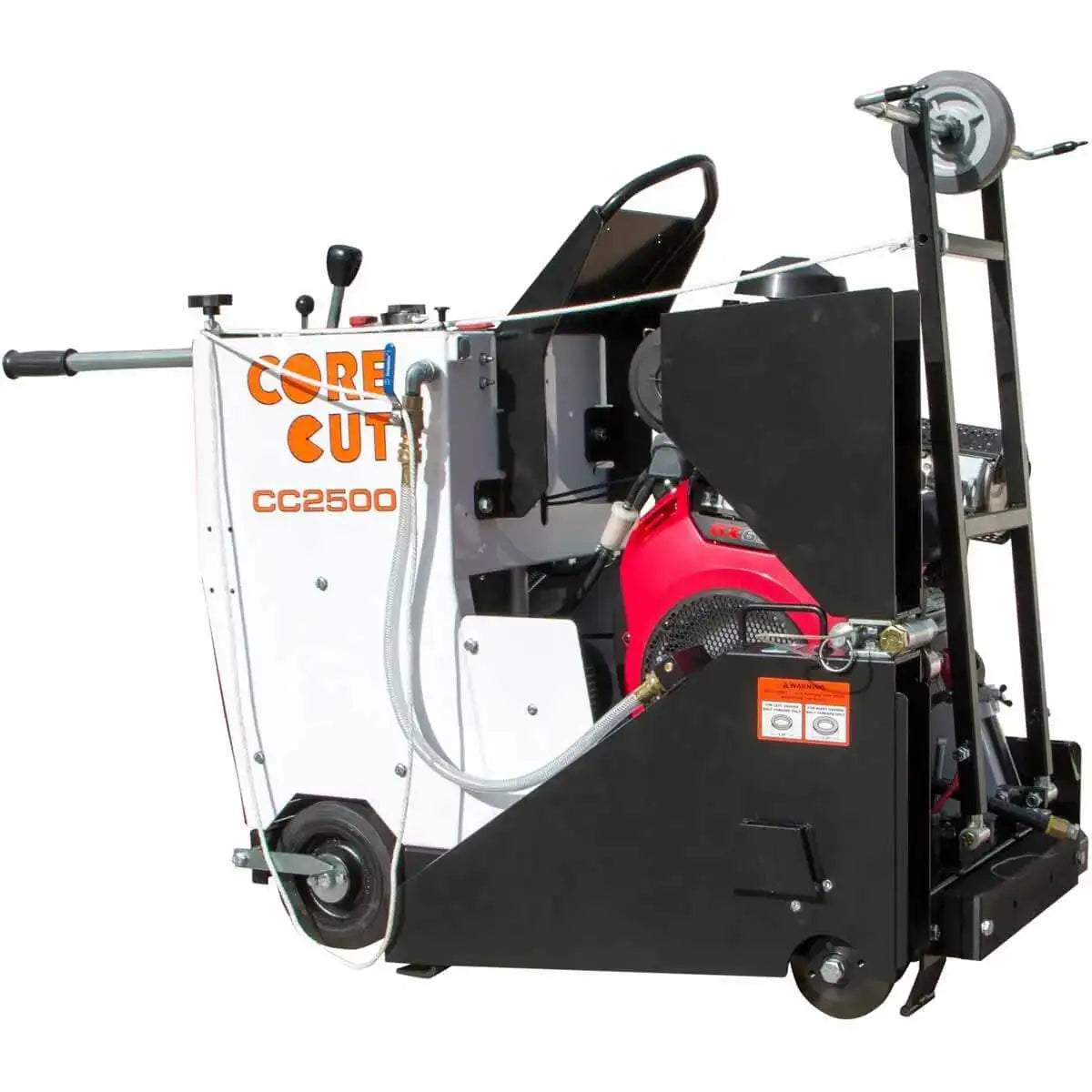

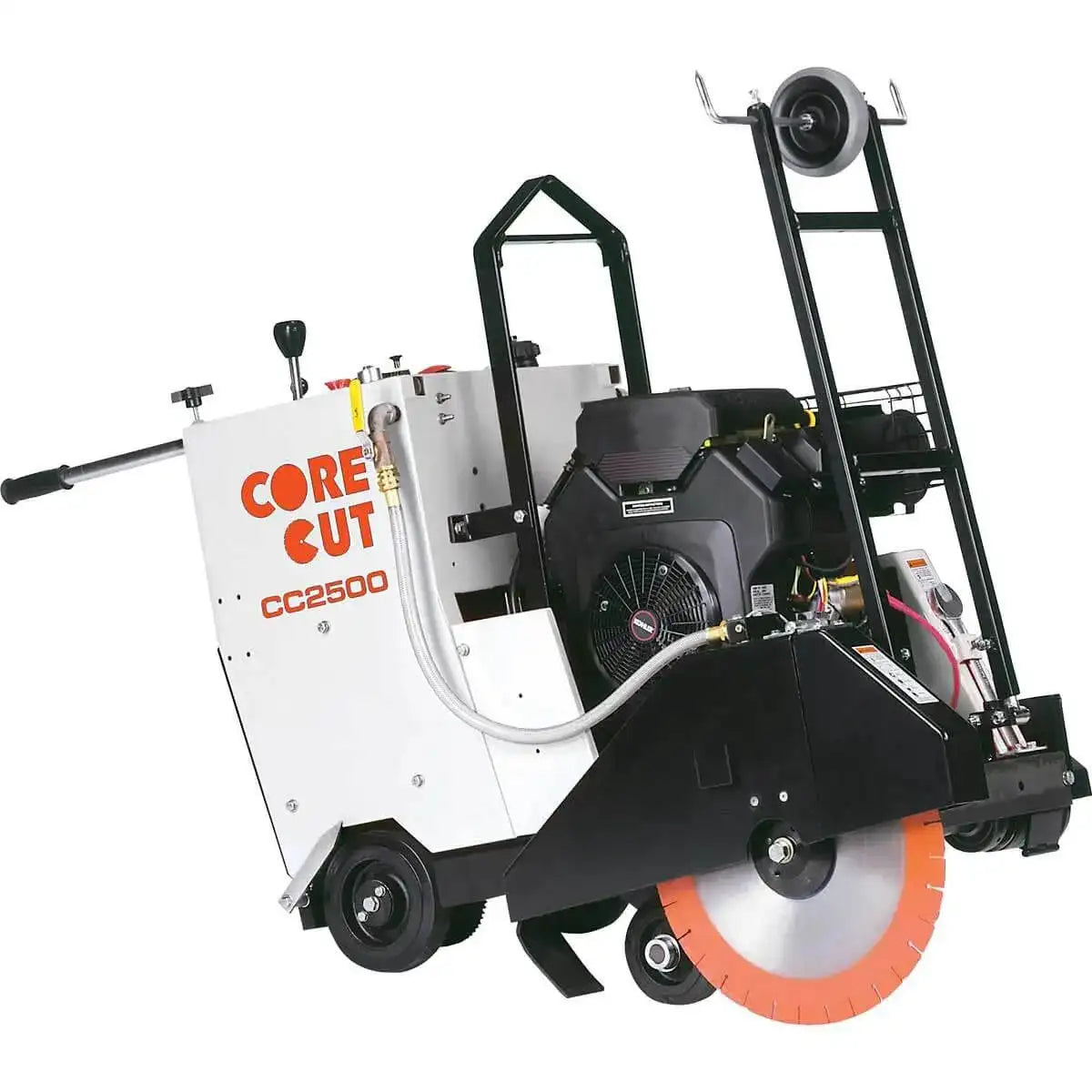

Core Cut CC2500 Self-Propelled Concrete Saws
NOTE: BLADE ON SAWS IN PICTURE ARE NOT INCLUDED : BLADES MUST BE PURCHASED SEPERATELY
Features
- 1-1/2" diameter blade shaft with bearings that are grease able from top of the frame
- Rigid high strength 3/16" steel box frame with heavy bar reinforcement
- Left or right hand sawing
- Large 5 gallons fuel capacity for longer sawing
- Precision screw feed raise and lower system
- Blade drive is via 5 belts on 27hp Kohler. 25hp or bellow have 4 belts

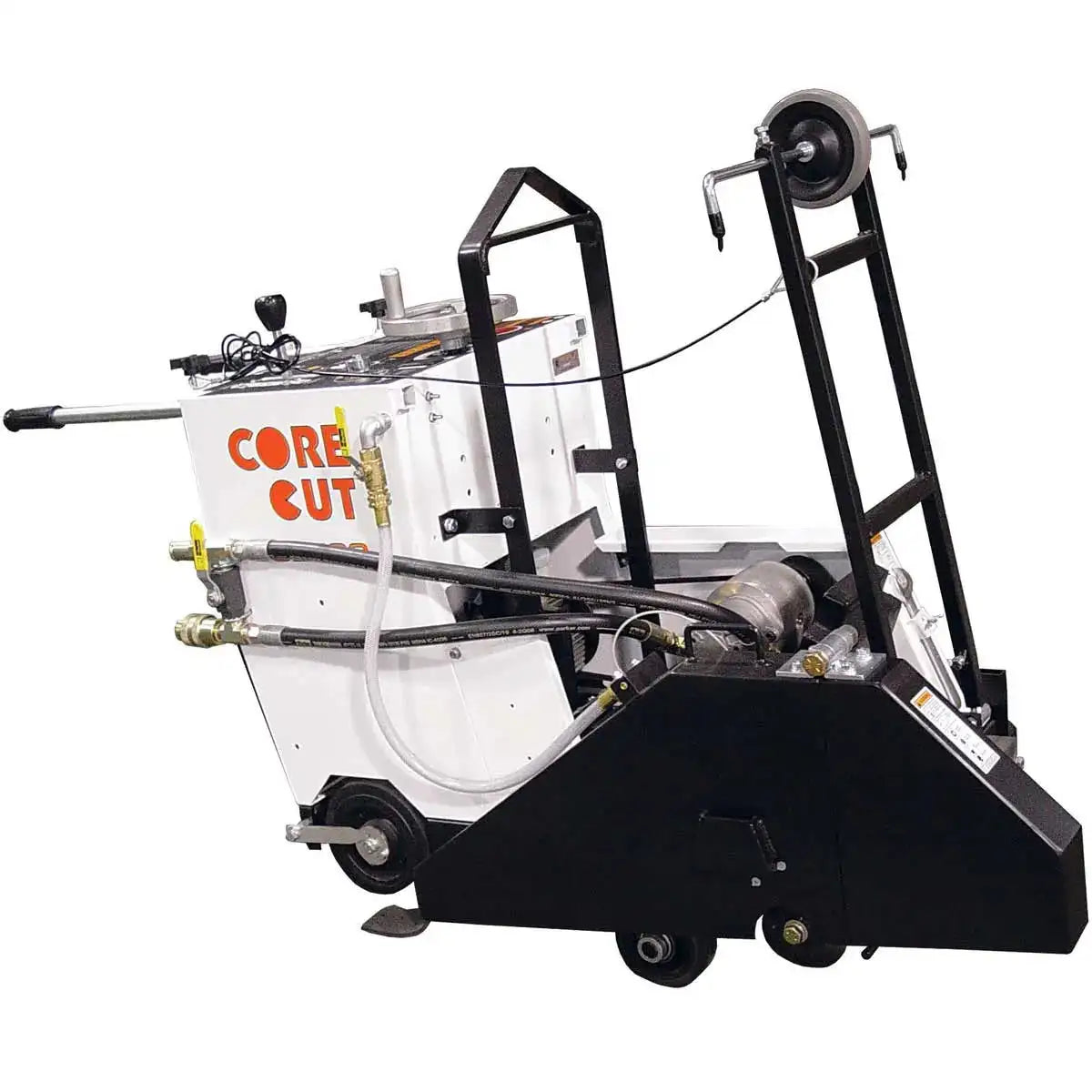

- Hydraulic model input flow 25 GPM 2000 PSI maximum
- Electric models includes motor starter switch-box with amp meter
What's Included?
- Core Cut CC2500 Self-Propelled Concrete Saw
- Telescoping Front Pointer
- Cutting Depth Indicator
- Quick Disconnect Blade Flanges
- Frame Lift
- Tach/Hour Meter (20-22 HP Models)
- Electric Start (20-22 HP Models)
- Low Oil Alert
- Operator's manual
| Core Cut CC2500 Blade Specifications | |||
| Blade Size | 14 inch | 20 inch | 26 inch |
| Depth of Cut | 4-5/8 inch | 7-3/8 inch | 10-3/8 inch |
| Arbor | 1 inch | 1 inch | 1 inch |
| Core Cut CC2500 Motor Specifications | |||||
| Motor Type | Leeson (3-phase) | Honda GX630 | Honda GX690 | Hydraulic (25 GPM @2000 PSI) |
Kohler Command CH740 |
| Power Source | Electric - 230 V | Gas | Gas | Hydro | Gas |
| Power | 15 hp | 20.8 hp | 22.1 hp | 25 hp | 27 hp |
| Blade Capacity | 14, 20, 26 in | 14, 20, 26 in | 14, 20, 26 in | 14, 20, 26 in | 14, 20, 26 in |
| Product Weight in lbs. (Based on Blade Capacity) |
700, 670, 705 | 600, 660, 670 | 610, 610, 685 | 610, 610, 650 | 645, 610, 665 |
