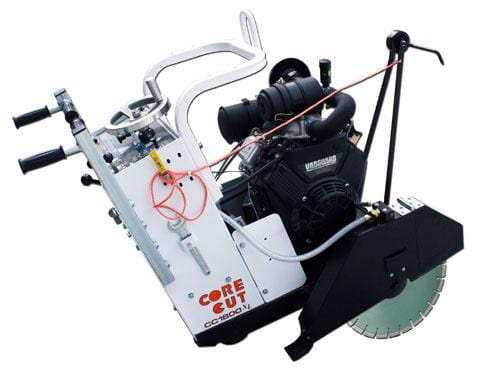

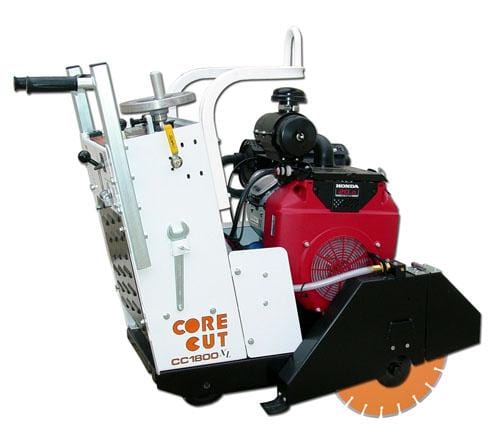

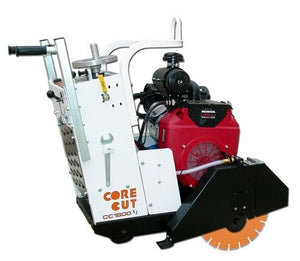

Diamond Products CC1800XL Gas Self-Propelled Core Cut Walk-Behind Concrete Saw

SKU: SKU:5800643

$7,833.00

Shipping calculated at checkout.

Motor 11.7 hp Honda 16 hp Briggs 11.7 hp Honda electric start 23 hp Briggs 20 hp Honda GX630

Blade Guard 14" 20" 24"

Trusted by contractors nationwide

"Great products and even better customer service. Highly recommend for contractors."

Fast
Shipping

100%
Satisfaction Guarantee

Expert
Customer Support

Talk to an expert 855-225-2337

Secure checkout

90 day returns

DIAMOND PRODUCTS CC1800XL GAS SELF PROPELLED CORE CUT SAW

BLADE AND WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY

NOTE: BLADE ON SAWS IN PICTURE ARE NOT INCLUDED : BLADES MUST BE PURCHASED SEPARATELY

Features & Benefits

Many power options to fit your applications
Electric start option on Honda and Briggs Vanguard models
Pull start backup on Briggs Vanguard model
Easy access to battery with heavy duty isolator switch to prevent battery drain
Screw feed raise and lower
Left or right side sawing
Lifting hook standard on all models
Self aligning blade shaft bearings
Made in the USA!

CC 1800XL SPECIFICATIONS

Motor	Honda GX390	Honda GX390 E/S	Briggs Vanguard	Honda GX630	Briggs Vanguard E/S
Power	11.7 hp	11.7 hp	16 hp	20.8 hp	23 hp
Starter	Recoil	Electric start	Recoil	Electric start	Electric start
Weight, lbs	380	395	380	470	460
Max depth of cut, in	7-5/8"	7-5/8"	7-5/8"	9-5/8"	7-5/8"
Bladeshaft, rpm	2,600	2,600	2,600	2,600	2,600

Clipper CC1800XL Gas Self-Propelled Walk-Behind Saw

The CC1800XL, part of the Core Cut/Clipper lineup by Diamond Products, is a medium-sized, self-propelled, gas-powered walk-behind concrete saw, engineered to bring big-saw performance into a more compact, user-friendly package. Ideal for contractors working on commercial floors, pavements, or industrial jobs, it offers flexibility, precision, and power.

Key Features & Benefits

Multiple Power Options
Choose from engines like:
- 11.7 hp Honda GX390 (gas, recoil or electric start)
- 16 hp Briggs Vanguard
- Even higher power options up to 23 hp Honda GX630
Deep Cutting Capability
- 14″ blade: 4-5/8″ depth
- 18″ blade: 6-5/8″ depth
- 20″ blade: 7-5/8″ depth
- 24″ (on higher hp models): 9-5/8″ depth
Robust Drive & Handling
- Self-propelled hydrostatic drive with Eaton Model 6 transmission
- Push or self-propelled control
- Drive speeds from 0 to 80 ft/min
Built for Flexibility & Serviceability
- Screw-feed blade raise/lower mechanism
- Supports left or right side sawing
- Electric start options (on higher horsepower models)
- Battery accessibility with heavy-duty isolator switch
Durability & Ergonomics
- Self-aligning, sealed blade shaft bearings
- Lifting hook standard for easy handling
- Low-oil alert and tach/hour meter (on select models)
- Electric start standard on 18–23 hp models

Technical Specs Snapshot

Specification	Details
Blade Size Options	14″, 18″, 20″ (up to 24″ on select configurations)
Cutting Depths	Up to 7-5/8″ (9-5/8″ with 24″ blade)
Blade Shaft Speed	2,600 RPM
Blade Shaft Diameter	1¼″
Arbor Size	1″ with single drive pin
Drive System	Eaton hydrostatic drive; 0–80 ft/min
Fuel Capacity	~2 gallons (gas models)
Engines Available	11.7 hp Honda GX390, Briggs Vanguard, up to 23 hp GX630
Weight	Averaging 380 lbs (model-dependent)
Safety Features	Low-oil alert, electric start, tach/hour meter

Why Contractors Choose the CC1800XL

Compact Yet Powerful: Delivers deep cut performance usually reserved for larger saws.
Versatile Power Setup: Multiple engine options allow your saw to match project demands.
Operator-Friendly Design: From electric start to self-propelling drive, it’s built for efficiency.
Serviceability: Easy access to battery, consuming fewer upkeep hours—reducing downtime.
Made in the USA: Reliable build quality tailored for worksite rigors.
