DIAMOND PRODUCTS CC1800XL ELECTRIC SELF PROPELLED CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY

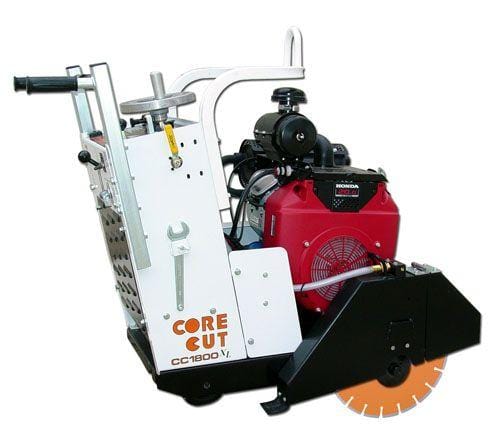

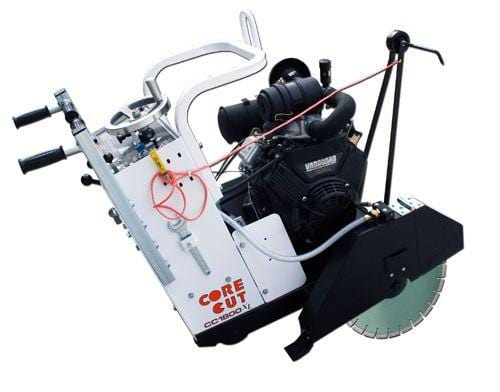

PICTURE SHOWS GAS MOTOR, ELECTRIC IMAGE NOT AVAILABLE
Features & Benefits
- Many power options to fit your applications
- Screw feed raise and lower
- Left or right side sawing
- Lifting hook standard on all models
- Self aligning blade shaft bearings
- Made in the USA!
CC 1800XL SPECIFICATIONS
| Horsepower, hp | 7.5 | 10 | 10 |
| Voltage, v | 230v | 230v | 460v |
| Power supply, phase | 1-phase | 3-phase | 3-phase |
| Motor Amps | 33 | 24 | 12 |
| Weight, lbs | 395 | 420 | 425 |
|
Max depth of cut with 20" blade |
7-5/8" | 7-5/8" | 7-5/8" |
