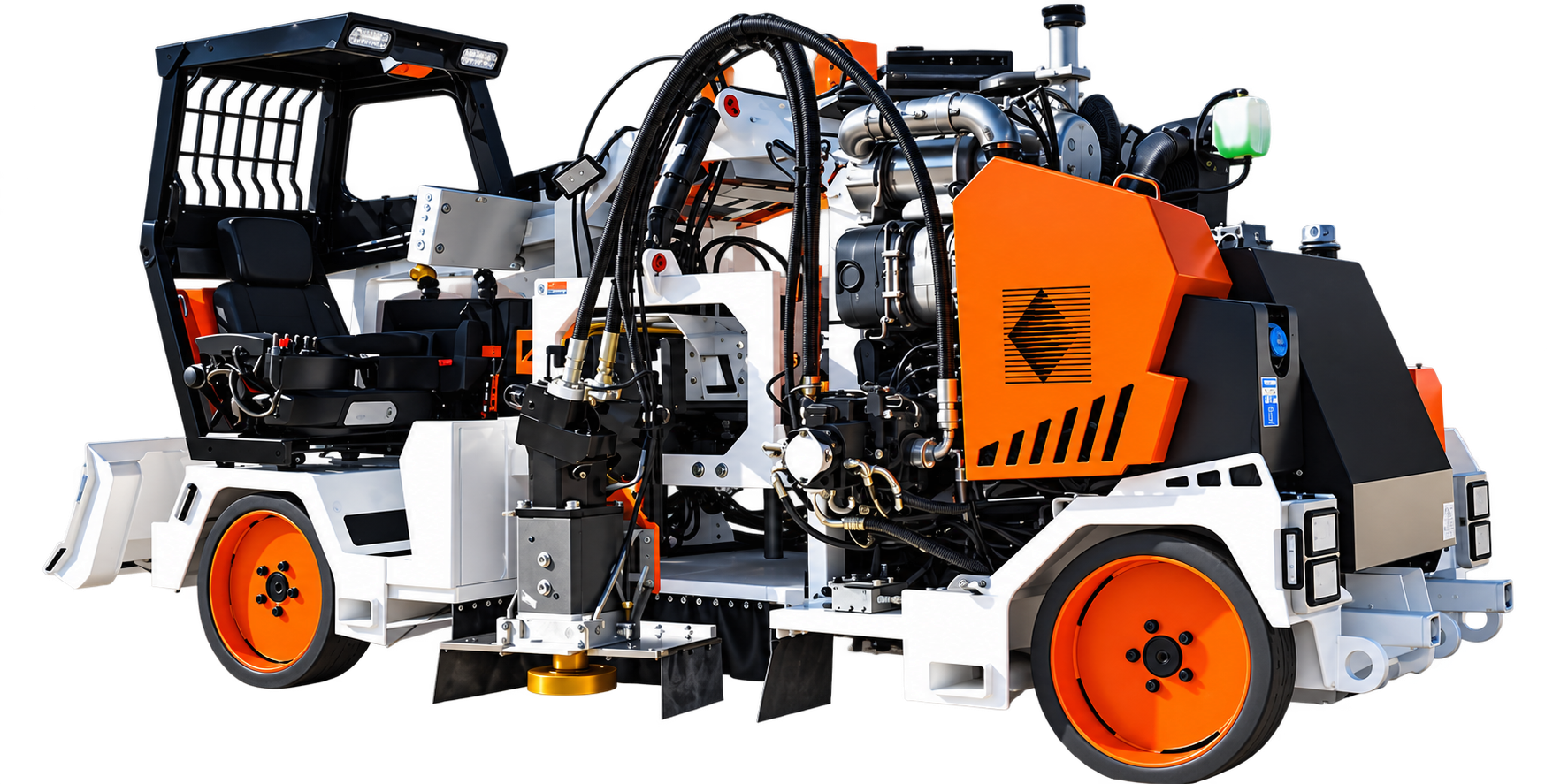

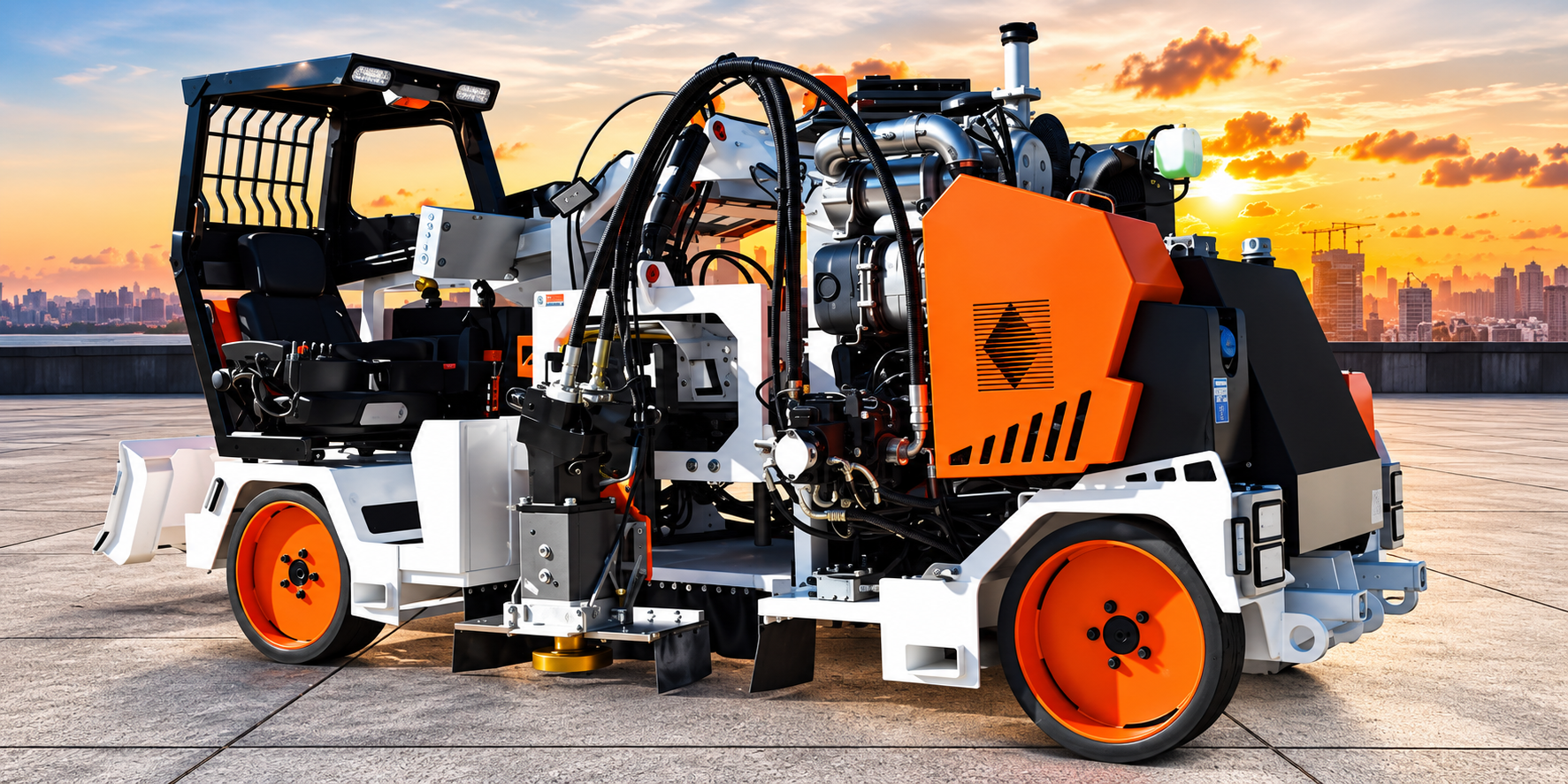

Powerful 36" Diesel Saw Built for Horizontal Cutting Applications
The Diamond Products CC114HSC is a heavy-duty diesel saw designed for precise horizontal cutting. Powered by a 114HP Tier 4 Kubota V3800 engine, this machine features an advanced hydraulic system, modern digital controls, and full-time all-wheel drive to handle the toughest jobs with ease.
- Designed specifically for horizontal cutting applications
- 10” modern digital control touchscreen for intuitive operation
- Ergonomic operator station for maximum comfort and efficiency
- LED lighting package including strobes, work, safety, and backup lights
- Blade angle sensors in both X and Y axes
- Through-hub blade water system for optimal cooling
- 50-gallon on-board water and diesel tanks for extended operation
- Auxiliary hydraulic capacity for expanded tool compatibility
Specifications
| Blade Capacity | 36” Standard |
| Engine | 114HP Tier 4 Kubota V3800 Diesel |
| Drive | Full-Time All Wheel Drive (AWD) |
| Hydraulics | Robust redesigned hydraulic system |
| Controls | CAN-based electronic drive-by-wire |
| Blade Angle Control | ±20° pitch and roll with 30” blade |
| Length | 148” |
| Width | 66” |
| Height | 76” |
| Wheelbase | 110” x 49” |
| Weight | 7,200 lbs (approx.) |
| Part # | 5801585 |
| Catalog # | 108439 |
