Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER
WHY BARRETO?
DESIGN

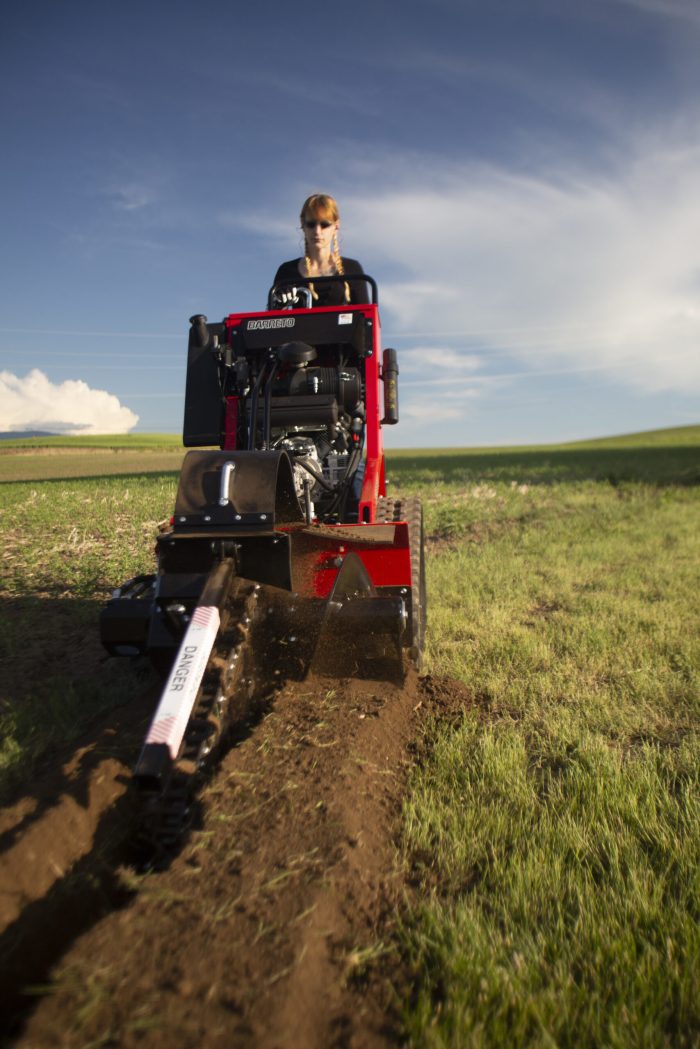

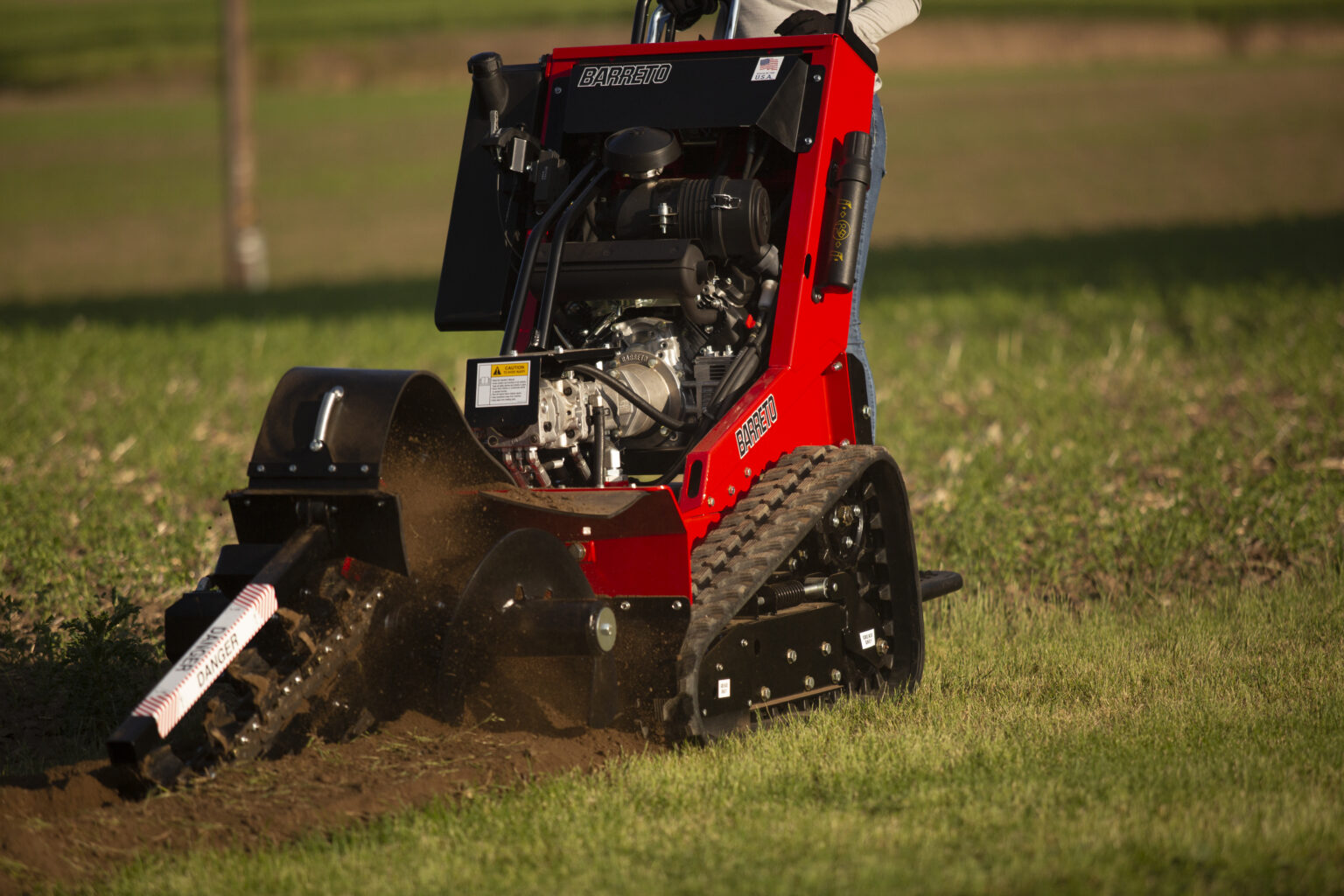

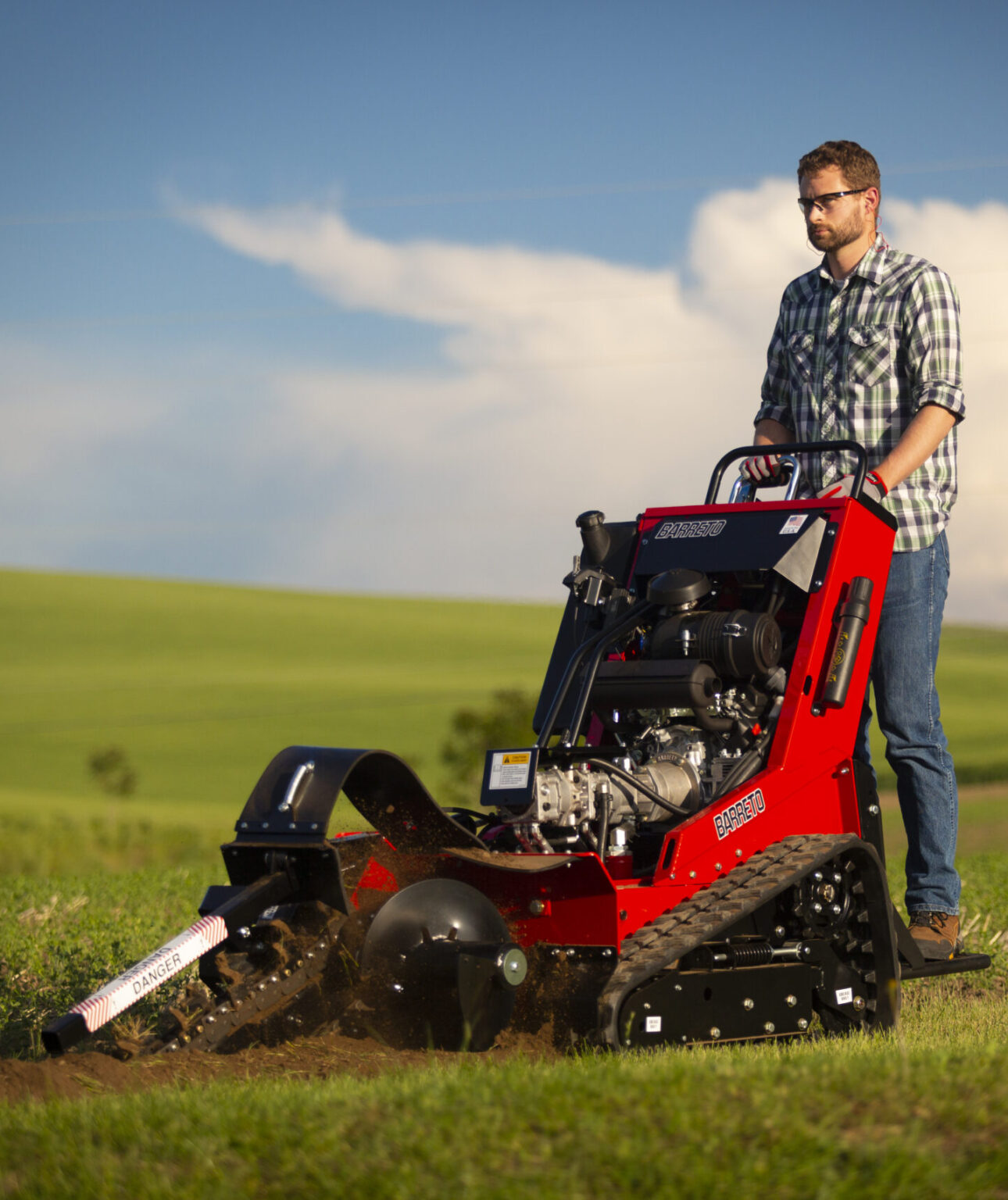

With a fixed operator platform and engine options of 20 or 23hp, the RTK Stand-on Track Trencher attacks the ground and the job with the power to meet the challenge. Trenching up to 48” deep and 6” wide, these trenchers will take on anything that is thrown at them. The RTK trenchers feature a 7.1” wide track that creates 241 square inches of footprint on each side of the machine. This gives outstanding traction on wet soil, clay, sand, or steep terrain while softening the impact on any existing landscaping. The track absorbs most of the impact caused by rocks, roots, or other obstructions in the soil. The RTK features a weight advantage that improves traction, reduces impact on the operator, and provides stability. All models feature electric start.
CONTROLS
The RTK features unique fine-tuning control adjustment that uses rod linkage instead of cables. The new Adjustable Trenching Control (ATC) can be positioned to modify the trenching speed of the tracks individually while on the go. By utilizing the individual track controls, the operator has the ability to keep their trench straight when working on uneven terrain.
ROI
Low maintenance and hardworking, the RTK trencher is reliable in the most difficult conditions. The simple steering, large tracks, and size of this trencher make the operator’s job simple and keeps customer satisfaction high. With accessible yet protected components, maintenance costs are minimal.
U.S. Patent No. 9,988,084
FEATURES
- Boom tension can be easily adjusted when needed
- Quick access to all of the hydraulics for easy maintenance and repair
- Adjustable Trenching Controls (ATC) use rod linkage instead of cables
- Standard electric start on all models
SPECIFICATIONS
ENGINE:
2024RTKH: Honda GX630
2324RTKH: Honda GX690
2324RTKB: Briggs & Stratton Vanguard V-Twin 23hp
DETAILS:
Weight: 1,690 lbs.
Height: 56.2″
Length: 108″
Width: 35.5″
Track Width: 7.1″
Total Ground Contact: 470 sq. in.
Hydraulic Reservoir: 14 gallons
Ground Drive Forward: 210 ft/min
Ground Drive Reverse: 90 ft/min
Digging Chain Speed: 270 ft/min
Boom Depth Options: 24, 30, 36, 42, or 48″ (48″ only available on 23RTK models)
Chain Width Options: 4 or 6″
Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER
Power, Precision, and Performance for Professional Trenching
When it comes to trenching, reliability and efficiency can make or break your project timeline—and your bottom line. The Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER is designed specifically for professional contractors, landscapers, and rental yards who demand top-tier performance and durability on every jobsite.
We talk further about what makes the Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER a standout choice, its key features, real-world benefits, how it compares to other trenchers, maintenance tips, and why investing in this trencher can help your business stay competitive.
What Is the Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER?
The Barreto 2024RTKH is a compact, stand-on track trencher built for versatility and durability. It’s powered by the Honda GX630 engine—a 20.8 HP V-twin engine known for its smooth power delivery, fuel efficiency, and proven reliability. The machine’s rugged track system provides superior traction, even on soft or uneven ground, while its intuitive hydraulic controls make it easy to operate for seasoned professionals and rental customers alike.
Whether you’re installing irrigation systems, electrical conduit, or drainage lines, the Barreto 2024RTKH offers the power and precision to dig consistent trenches quickly.
Key Features That Set the Barreto 2024RTKH Apart
✅ Reliable Honda GX630 V-Twin Engine
-
Power output: ~20.8 HP.
-
OHV design: Enhances efficiency and reduces emissions.
-
Durable construction: Built to handle tough jobsite demands.
-
Low vibration & smooth operation: Reduces operator fatigue during long trenching sessions.
Honda engines are legendary for their ease of maintenance and long lifespan, giving contractors peace of mind.
✅ Heavy-Duty Rubber Tracks
Instead of wheels, the Barreto 2024RTKH uses a robust track system:
-
Better traction: Ideal for muddy, sandy, or sloped terrain.
-
Lower ground pressure: Helps preserve landscaping and turf.
-
Stability: Keeps the trencher steady, even when digging deeper trenches.
Tracks give operators confidence to work on a wider range of job sites without damaging surfaces.
✅ Hydraulic Controls
-
Smooth, responsive operation: Makes precise trenching easy.
-
Simple levers and joystick system: Quick to learn and intuitive for rental customers.
-
Adjustable trenching speed: Tailors performance to soil conditions.
Hydraulics reduce mechanical wear and improve reliability compared to older chain-driven designs.
✅ Compact, Stand-On Design
-
Enhanced visibility: Operators can see the trench as it’s being dug.
-
Easy on/off: Great for repositioning along long trench lines.
-
Operator comfort: Reduces fatigue over full workdays.
The stand-on platform also keeps operators away from debris and dirt kicked up by the chain.
Trenching Performance & Specifications
-
Typical trench depth: Up to ~24 inches.
-
Cut width: Usually 4–6 inches depending on chain selection.
-
Chain options: Can be equipped with different teeth configurations for various soil types.
-
Balanced design: Keeps the center of gravity low for stability.
The Barreto 2024RTKH is built to tackle everything from soft sandy soils to compact clay and rocky ground.
Why Professionals Choose the Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER
🌟 Durability for Daily Use
Built with heavy-gauge steel frames and sealed pivot points, the trencher is engineered to handle daily wear and tear without frequent downtime.
🌟 Versatility Across Job Sites
From residential irrigation installation to commercial utilities and drainage, the machine’s compact footprint makes it suitable for tight spaces and larger open areas alike.
🌟 Low Maintenance
The combination of a Honda GX630 engine and hydraulic drive system keeps maintenance simple and less frequent compared to more complex trenchers.
🌟 High Productivity
Efficient hydraulic systems and consistent engine power mean operators can dig faster, reducing job completion times.
Applications: Where the Barreto 2024RTKH Shines
-
Landscaping: Installing sprinkler systems, lighting, or decorative edging.
-
Utilities: Burying power lines, water pipes, or fiber optic cables.
-
Drainage: Digging French drains, sump lines, or retaining wall drainage.
-
Construction: Preparing footings and small foundations.
Contractors and rental centers alike benefit from its blend of power and user-friendly design.
Track vs. Wheeled Trenchers: Why Tracks Win
For many contractors, the move to tracked trenchers is all about jobsite versatility:
| Feature | Tracks | Wheels |
|---|---|---|
| Traction on slopes & mud | Excellent | Moderate |
| Turf preservation | Better (lower ground pressure) | Higher chance of rutting |
| Stability | Higher | Lower |
| Maneuverability | Good, especially on soft ground | Better on pavement |
Tracks may cost slightly more upfront but often save time and repair costs in the long run.
Tips for Getting the Best from Your Barreto 2024RTKH
-
Keep the chain sharp: Rotate or replace teeth as needed to maintain trenching speed.
-
Daily inspections: Check hydraulic lines, track tension, and fluid levels.
-
Clean after use: Prevent dirt buildup on tracks and around moving parts.
-
Follow Honda maintenance schedule: Regular oil changes and air filter checks keep the GX630 running strong.
-
Train operators: Even with intuitive controls, quick training on best practices helps reduce wear and avoid accidents.
These small steps help protect your investment and keep it running for years.
The Honda GX630 Advantage
The engine is the heart of any trencher. The Honda GX630 offers:
-
Proven reliability in commercial environments.
-
Fuel efficiency, reducing operational costs.
-
Quiet and low-vibration operation.
-
Easy access to parts and service centers across the USA.
Its combination of power and smooth operation makes it ideal for the consistent load demands of trenching.
Maintenance Made Simple
The Barreto 2024RTKH is designed with busy contractors in mind:
-
Easy access panels for servicing hydraulic components.
-
Sealed pivot points to keep dust and moisture out.
-
Robust, corrosion-resistant paint for longevity.
Barreto’s build quality helps minimize downtime and keeps your crew on the job instead of in the shop.
Real-World Testimonials
“It’s a beast on tough clay soils but gentle enough on lawns not to destroy them.”
“Honda engine starts first pull every time, even in cold weather.”
“Tracks keep it from getting stuck where our old wheeled trencher would.”
“Operators learned to run it in under an hour—it’s that intuitive.”
Feedback like this makes it clear why the Barreto 2024RTKH is a contractor favorite.
Why Choose Barreto?
Founded in the USA, Barreto has decades of experience designing trenchers that balance power, operator comfort, and easy maintenance:
-
Built for tough jobsite conditions.
-
Backed by excellent customer support.
-
Designed with the needs of rental centers and contractors in mind.
When you buy Barreto, you’re investing in American engineering trusted by professionals.
Final Thoughts: Is the Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER Right for You?
If you’re looking for:
✅ Reliable trenching power with minimal downtime.
✅ All-terrain performance that protects landscaping.
✅ A proven Honda engine backed by global service support.
✅ Intuitive controls suitable for seasoned pros or rental users.
✅ Durable construction built to last years, not months.
…the Barreto 2024RTKH: Honda GX630 - TRACK TRENCHER is a smart investment that delivers productivity and peace of mind.
