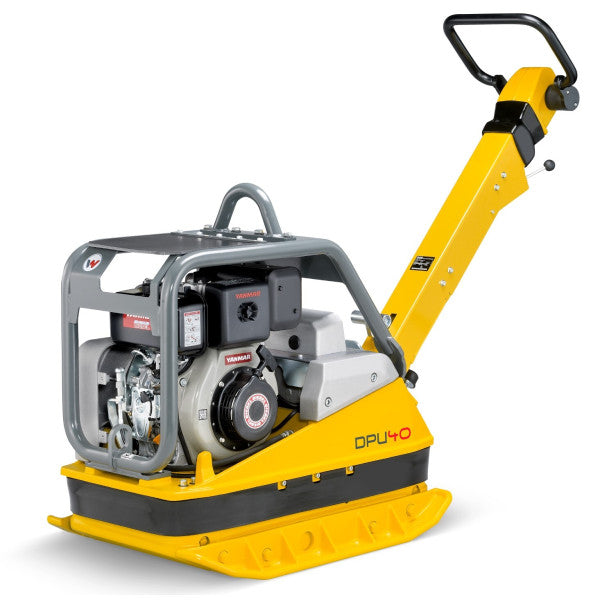

Wacker Neuson - Vibration Plate DPU40Yeh US - 5100063124
- Intuitive control handle: Control the direction of movement and speed in the same motion without reaching around, both hands remain on the control handle.
- Low hand-arm vibrations (significantly below 2.5 m/s²)
- Height-adjustable drawbar
- Electric start with loud signal tone to avoid unnecessary battery discharge
- Safety setting: Machine moves away from the operator when the control handle is released
- Large-sized motor with high power reserves for a long service life
- Motor protection: Cannot be started when oil is low
- Operating hour counter
- Thick, wear-resistant base plate made of spheroidal graphite cast iron
- Motor and tank protected by a sturdy frame, can also be used for secure lashing during transport
- Very stable, play-free drawbar lock, easy to operate, for safe transport
- Large crane eye that can be placed at a neutral height
- All maintenance access points are easy and quick to reach
- Self-tensioning V-belt and maintenance-free alternator
- Comprehensive protection of functional parts against stone impact and dirt
- Due to the low frequency, it is also suitable for compacting heavy interlocking paving stones
- Easy and fast installation of a plate sliding device is also available in our shop for the protection of paving floors.
Specifications
|
OPERATING FLUIDS |
Imperial |
Metric |
|
Tank capacity |
0,9 gal US |
3,30 l |
|
ENGINE |
Imperial |
Metric |
|
Effective power |
6,0 hp, 6,0 hp |
4,5 kW, 4,5 kW |
|
Engine type |
Diesel engine |
Diesel engine |
|
Engine Manufacturer |
Yanmar |
Yanmar |
|
MECHANICAL - OUTPUT DETAILS |
Imperial |
Metric |
|
Vibrations |
4.140 1/min |
4.140 1/min |
|
Forward running |
1,3 fps |
24,00 m/min |
|
Transmission |
FKK-KR |
FKK-KR |
|
Gradeability |
36,4 % |
36,4 % |
|
Centrifugal force |
8.992 lbf |
40,000 kN |
|
Vibrations (Hz) |
69,0 Hz |
69,0 Hz |
|
Area capacity |
9.364,7 ft2/h |
870 m2/h |
|
ENVIRONMENT DATA |
Imperial |
Metric |
|
Operating temperature range |
14 - 104 °F |
-10 - 40 °C |
|
Sound level LpA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, guaranteed |
108,0 dB(A) |
108,0 dB(A) |
|
Storage temperature range |
14 - 104 °F |
-10 - 40 °C |
|
HAV summation (average value) |
8,2 ft/s2 |
< 2,5 m/s2 |
|
Uncertainty in measurement HAV |
1,6 ft/s2 |
0,5 m/s2 |
|
HAV summation (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound level LpA |
91,0 dB(A) |
91,0 dB(A) |
|
Sound power LWA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, measured |
106,0 dB(A) |
106,0 dB(A) |
|
MECHANICAL DETAILS |
Imperial |
Metric |
|
Lenght Drawbar in op. pos. |
65,4 " |
1.661 mm |
|
Operating weight |
844,4 lb |
383,0 kg |
|
Ground clearance |
35,3 " |
897 mm |
|
Height |
51,5 " |
1.308 mm |
|
Width |
23,8 " |
604 mm |
