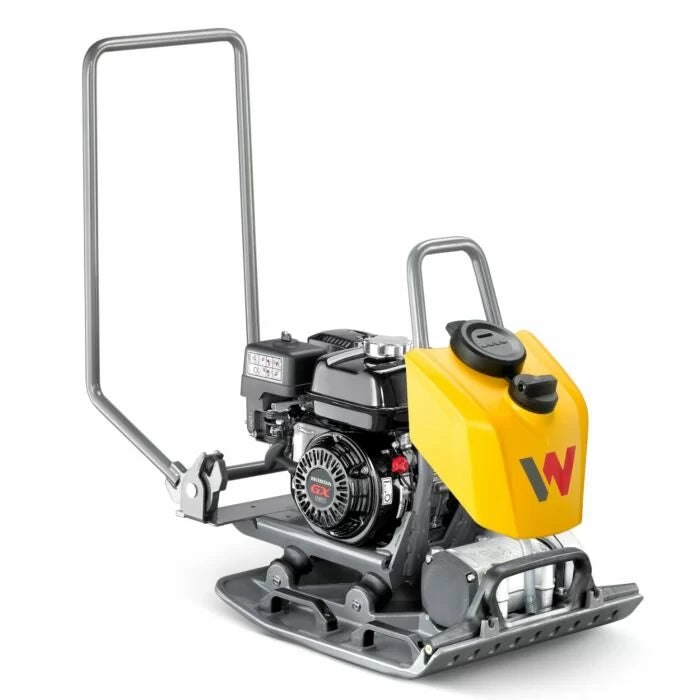

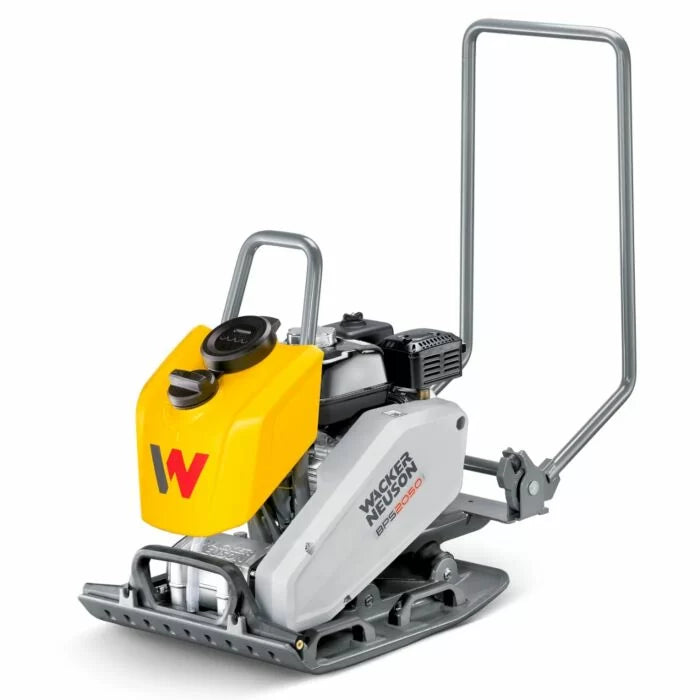

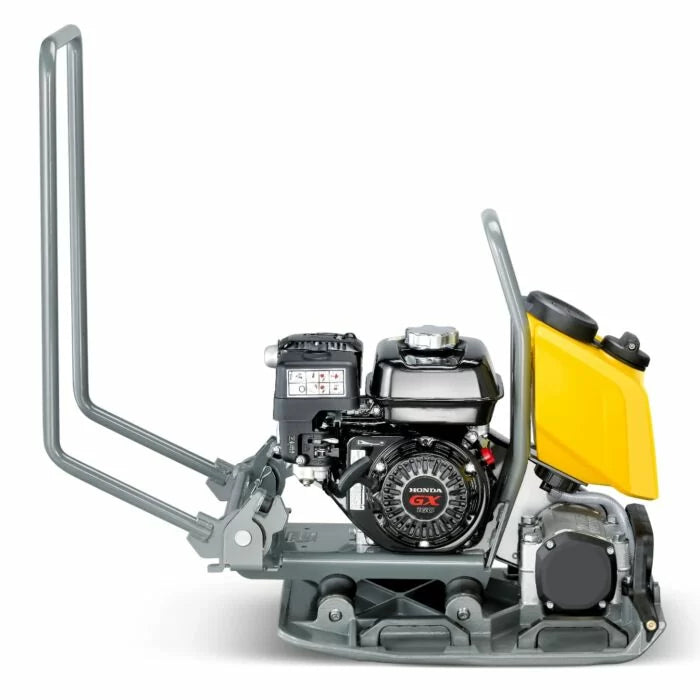

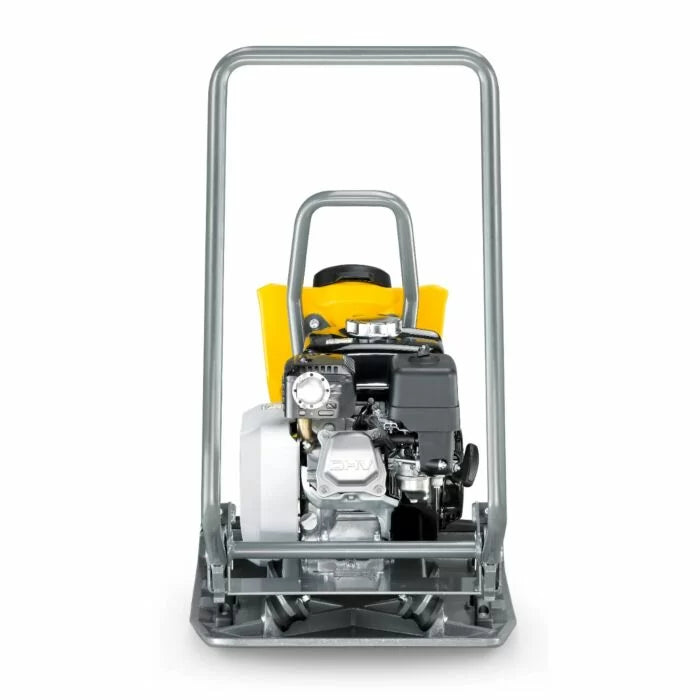

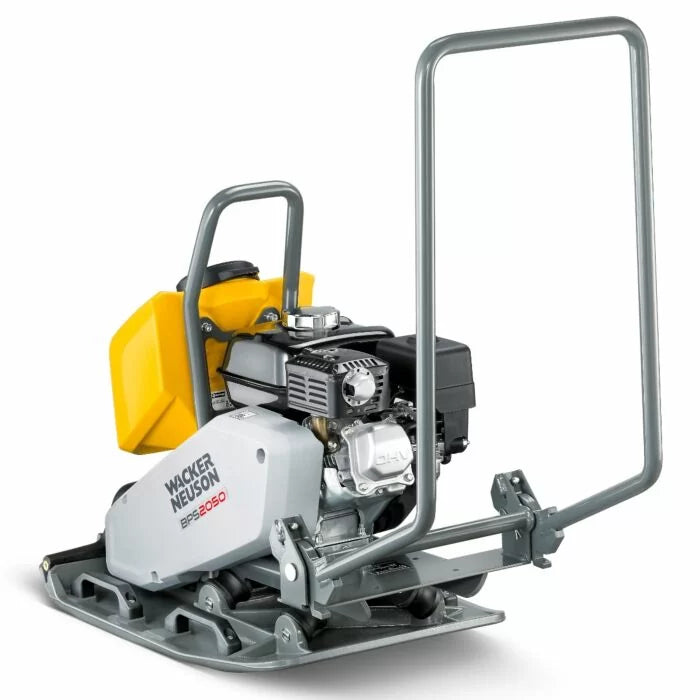

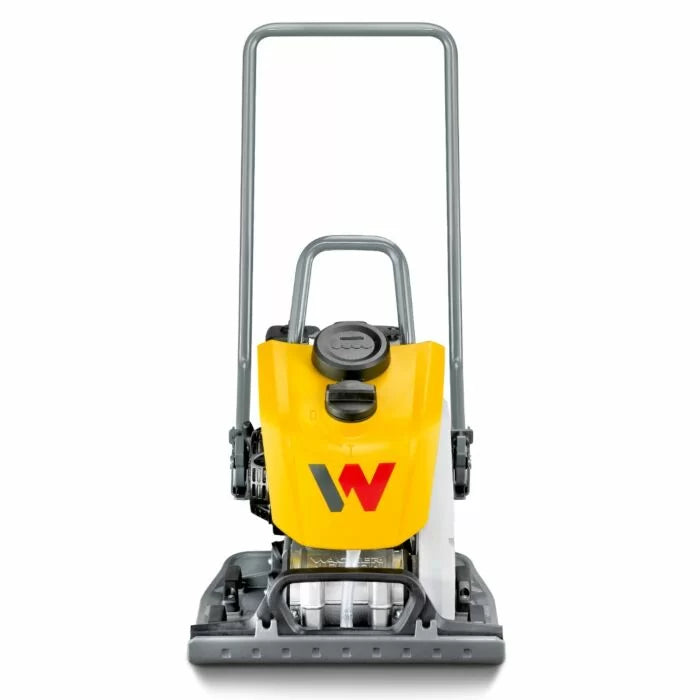

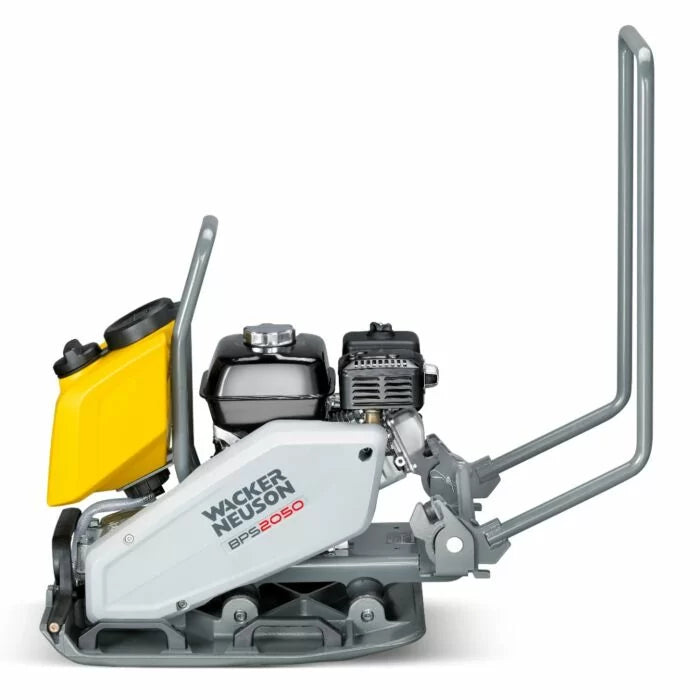

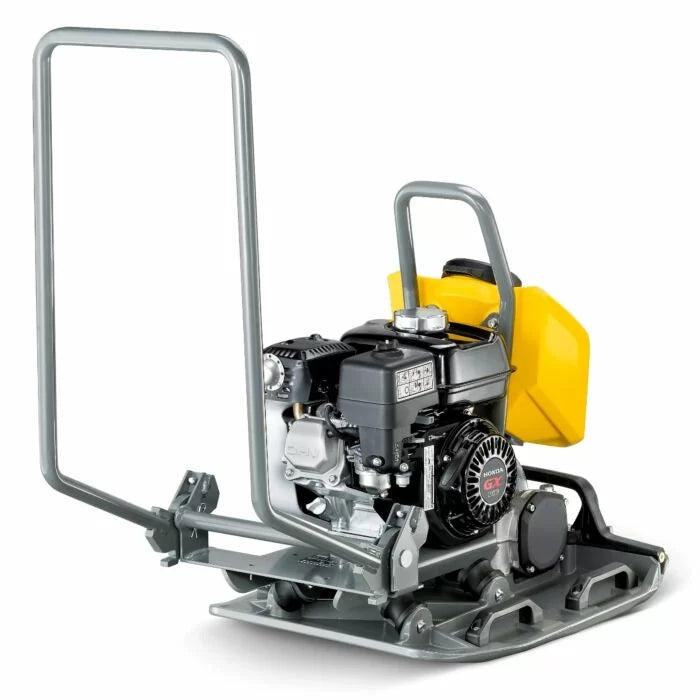

VP2050Aw Single Direction Vibratory Plate

5100029050

Categories

Compaction ,Vibratory Plates ,direction Vibratory Plates ,

Product Detalis

Flawless asphalt compaction: The chamfered edges of the base plate minimise the formation of stress edges when

the vibratory plate turns.

Sturdy design for minimal maintenance effort: The V-belt drive with all-round protection provides for a particularly

long operating duration of the V-belt. The base plate is made from wear resistant nodular cast iron.

A large sturdy lifting eye allows for secure transport. The guide handle that can be folded forward converts the unit

into a compact unit in no time.

Accessories, paving stone sliding mechanism and wheel set available here in the shop

ELECTRICAL SYSTEM-2

Electrode distance : 0,7 - 0,8 mm

ENVIRONMENT DATA-1

Storage temperature range : -15 - 40 C

Sound level LpA : 94,0 dB(A)

Sound level LpA (Standard) : EN 500-4

Operating temperature range : -15 - 40 C

Uncertainty in measurement HAV : 0,5 m/s2

Sound power LWA, measured : 107,0 dB(A)

Sound power LWA, guaranteed : 108,0 dB(A)

Sound power LWA (Standard) : EN 500-4, 2000/14/EG

HAV summation (Standard) : EN 500-4

HAV summation (average value) : 3,1 m/s2

ENVIRONMENT DATA-2

Storage temperature range : 5 - 104 F

Sound level LpA : 94,0 dB(A)

Sound level LpA (Standard) : EN 500-4

Operating temperature range : 5 - 104 F

Uncertainty in measurement HAV : 1,6 ft/s2

Sound power LWA, measured : 107,0 dB(A)

Sound power LWA, guaranteed : 108,0 dB(A)

HAV summation (average value) : 10,2 ft/s2

Sound power LWA (Standard) : EN 500-4, 2000/14/EG

HAV summation (Standard) : EN 500-4

MECHANICAL - OUTPUT DETAILS-1

Vibrations : 5.880 1/min

Vibrations (Hz) : 98 Hz

Centrifugal force : 4.496 lbf

Area capacity : 8.073,0 ft2/h

Forward Running : 1,4 fps

Gradeability : 36,4 %

Transmission : FKK-KR

MECHANICAL - OUTPUT DETAILS-2

Vibrations : 5.880 1/min

Vibrations (Hz) : 98 Hz

Centrifugal force : 20,000 kN

Area capacity : 750 m2/h

Forward Running : 25,00 m/min

Gradeability : 36,4 %

Transmission : FKK-KR

Engine-1

Cooling : air cooling

Engine type : Gasoline engine

Engine operating mode : four-stroke

Fuel : Gasoline

Fuel consumption -GPH US (Unite) : 0,2 GPH US

Cylinder : 1

Cylinder capacity : 9,9 Inch3

Tank capacity : 1,0 gal US

Oil filling max. : 0,2 gal US

Power rating max. : 4,8 hp

Engine speed (Power max.) : 3.600 1/min

Standard (Operating power) : ISO 3046 IFN

Operating Engine speed : 3.520 1/min

Engine Manufacturer : Honda

Fuel management : Carburettor

Nominal Engine speed : 3.600 1/min

Effective power : 4,8 hp

Oil specification : SAE 10W-30

Standard (Effective power) : ISO 3046 IFN

Standard (Power max.) : SAE J1349

Operating power : 3,9 hp

Oil filling min. : 0,2 gal US

Exhaust-gas limit : EPA4/08

Starter battery Voltage : 0 V

Starter type : Recoil starter

Oil volume incl. filter change : 0,2 gal US

Air cleaner : dry air filter

Battery capacity (nom. value) : 0 Ah

Inclined position max. : 20,0

Spark plug(s) : NGK BP-6 ES

Electrode distance : 0,028 - 0,032 "

Engine-2

Engine type : Gasoline engine

Engine operating mode : four-stroke

Fuel : Gasoline

Fuel consumption-Ib/h (Unite) : 0,80 L/hr

Cylinder : 1

Cylinder capacity : 163 cm3

Tank capacity : 3,60 l

Oil filling max. : 0,60 l

Power rating max. : 3,6 KW

Engine speed (Power max.) : 3.600 1/min

Standard (Operating power) : ISO 3046 IFN

Operating Engine speed : 3.520 1/min

Engine Manufacturer : Honda

Nominal Engine speed : 3.600 1/min

Effective power : 3,6 KW

Cooling : dry air filter

Inclined position max. : 20,0

Oil specification : SAE 10W-30

Standard (Effective power) : ISO 3046 IFN

Starter battery Voltage : 0 V

Starter type : Recoil starter

Exhaust-gas limit : EPA4/08

Oil volume incl. filter change : 0,60 l

Air cleaner : dry air filter

Battery capacity (nom. value) : 0 Ah

Standard (Power max.) : SAE J1349

Operating power : 2,9 KW

Spark plug(s) : NGK BP-6 ES

Electrode distance : 0,7 - 0,8 mm

MECHANICAL DETAILS-1

Width : 386 mm

Height : 940 mm

Operating weight : 110,0 kg

Length Drawbar in op. pos. : 1.035 mm

Ground clearance : 583 mm

MECHANICAL DETAILS-2

Width : 15,2 "

Height : 37,0 "

Operating weight : 242,5 lb

Length Drawbar in op. pos. : 40,7 "

Ground clearance : 23,0 "

OPERATING FLUIDS-1

Tank capacity : 1,0 gal US

Exciter oil volume : 0,26 qt US

Exciter oil type : 75W-90 API GL-4

OPERATING FLUIDS-2

Tank capacity : 3,60 l

Exciter oil volume : 0,25 l

Exciter oil type : 75W-90 API GL-4

Comes With

Single direction vibratory plate with water tank for soil compaction

Operation manual
