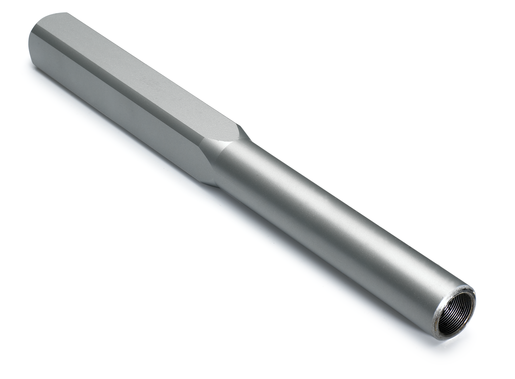

H35HA Vibrator Head, 1 3/8"
5000610059Categories
Concrete Technology ,Internal Vibrators ,Modular Internal Vibrators ,Product Detalis
1.4 in. (35 mm) diameter, 15.9 in. (405 mm) length
Complete induction hardened, highly wear resistant steel vibrator head
Individual parts can be repaired or interchanged

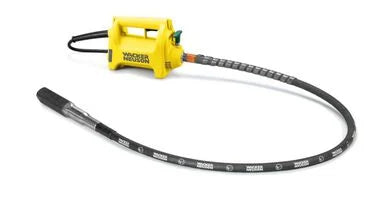

The HMS consists of three components: Engine, flexible shaft and vibrator head. You will also find a large selection of
matching engines and flexible shafts here in the shop.
ENVIRONMENT DATA-1
Storage temperature range : -30 - 80 C
Operating temperature range : -30 - 45 C
ENVIRONMENT DATA-2
Storage temperature range : -22 - 176 F
Operating temperature range : -22 - 113 F
MECHANICAL - OUTPUT DETAILS-1
Amplitude at air : 2,12 mm
Vibrations : 12.000 1/min
Vibrations (Hz) : 200 Hz
MECHANICAL - OUTPUT DETAILS-2
Amplitude at air : 0,083 "
Vibrations : 12.000 1/min
Vibrations (Hz) : 200 Hz
MECHANICAL DETAILS-1
Length Head : 405 mm
Weight : 2,30 kg
Head diameter/-diagonal : 36 mm
Head design : square
MECHANICAL DETAILS-2
Length Head : 15,9 "
Weight : 5,07 lb
Head diameter/-diagonal : 1,4 "
Head design : square
OPERATING FLUIDS-1
Oil volume : 0,020 l
Oil specification : Klberoil 4UH1-46N
OPERATING FLUIDS-2
Oil volume : 0,005 gal US
Oil specification : Klberoil 4UH1-46N
Comes With
Vibrator head
