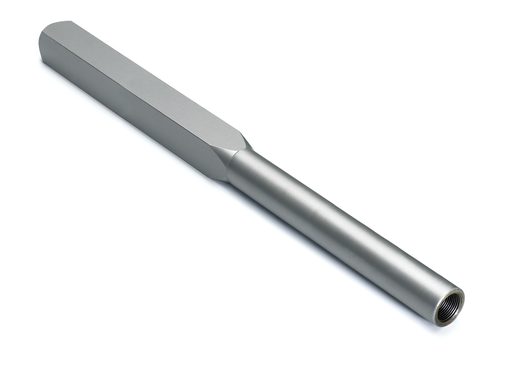

H25HA Vibrator Head, 1"

5000610058

Categories

Concrete Technology , Internal Vibrators , Modular Internal Vibrators ,

Product Detalis

1 in. (25 mm) diameter, 15 in. (380 mm) length

Complete induction hardened, highly wear resistant steel vibrator head.

Individual parts can be repaired or interchanged

ENVIRONMENT DATA-1

Storage temperature range : -30 - 80 C

Operating temperature range : -30 - 45 C

ENVIRONMENT DATA-2

Storage temperature range : -22 - 176 F

Operating temperature range : -22 - 113 F

MECHANICAL - OUTPUT DETAILS-1

Amplitude at air : 2,13 mm

Vibrations : 12.000 1/min

Vibrations (Hz) : 200 Hz

MECHANICAL - OUTPUT DETAILS-2

Amplitude at air : 0,084 "

Vibrations : 12.000 1/min

Vibrations (Hz) : 200 Hz

MECHANICAL DETAILS-1

Length Head : 380 mm

Weight : 1,27 kg

Head diameter/-diagonal : 26 mm

Head design : square

MECHANICAL DETAILS-2

Length Head : 15,0 "

Weight : 2,80 lb

Head diameter/-diagonal : 1,0 "

Head design : square

OPERATING FLUIDS-1

Oil volume : 0,010 l

Oil specification : Klberoil 4UH1-46N

OPERATING FLUIDS-2

Oil volume : 0,003 gal US

Oil specification : Klberoil 4UH1-46N

Comes With

Vibrator head
