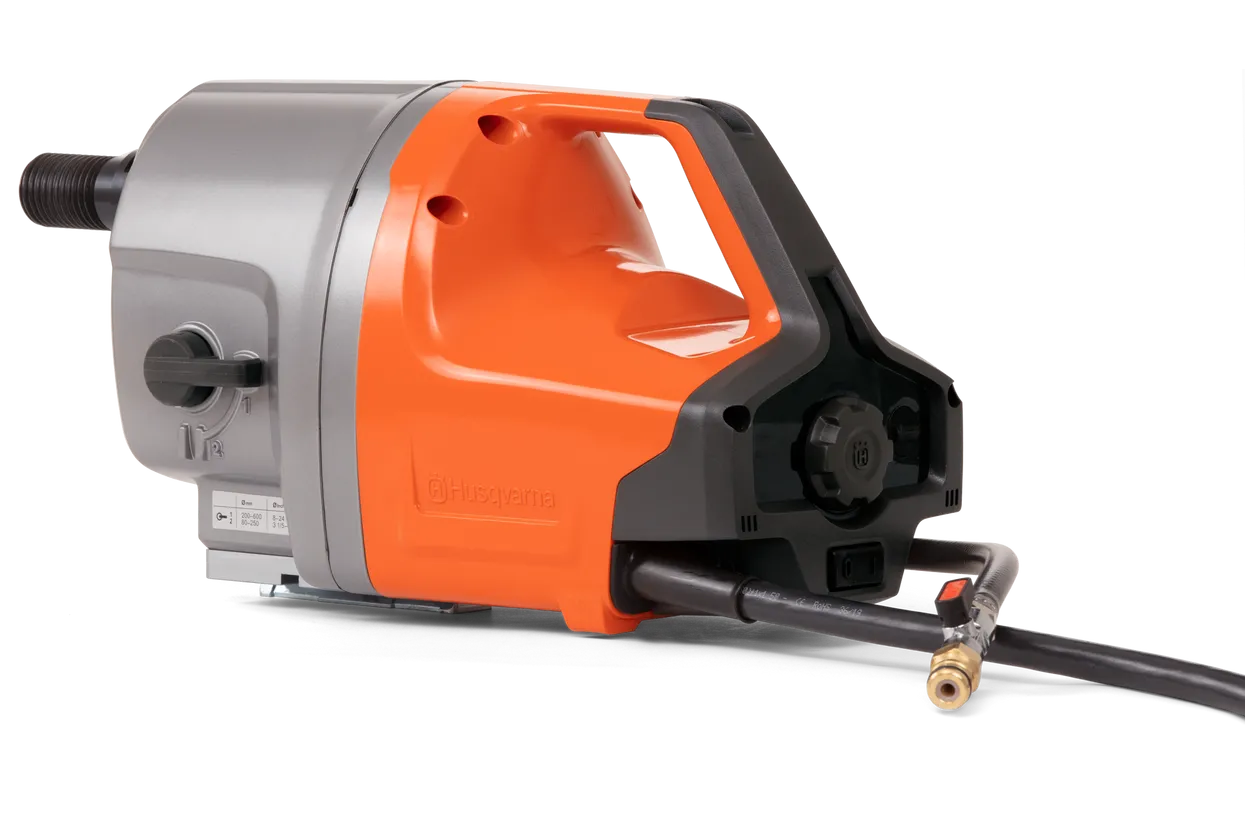

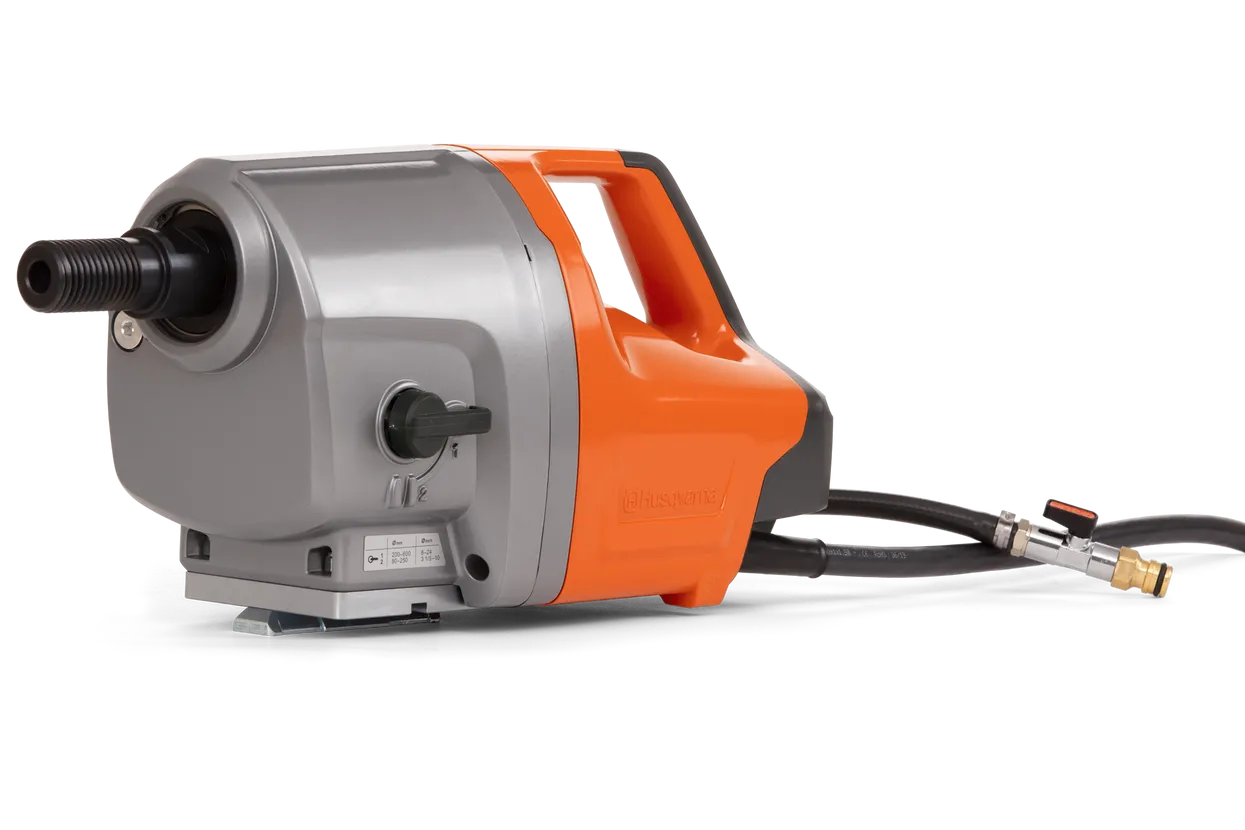

The Husqvarna DM 700 concrete core drill – 970763501 is Husqvarna’s most powerful electric core drill motor, built on PRIME™ high‑frequency technology to deliver up to 6 kW (8 hp) on the spindle for heavy‑duty drilling in hard, reinforced concrete from 80 mm up to 600 mm (3"–24") in diameter. With high power output, low weight, and intelligent electronic control, the DM 700 is designed for all‑day use by professional drilling contractors who need reliable performance on large, deep holes for plumbing, ventilation, and service penetrations.

Model identity and PRIME™ system

Husqvarna describes the DM 700 as “our most powerful electric drill motor,” part of the PRIME™ high‑frequency equipment family.

Key identifiers for the version you asked about:

• Product name: Husqvarna DM 700 concrete core drill motor.

• Article / model code variant: 970763501 (regional article number referenced on Husqvarna’s UK DM 700 page).

• System: PRIME™ high‑frequency system (runs from PRIME power packs PP 70 / PP 220).

The PRIME platform uses a high‑frequency permanent‑magnet motor and external power pack to provide high power, flexible voltage options, and lighter drill motors compared to conventional 1‑phase/3‑phase motors.

Power, torque, and speed range

The Husqvarna DM 700 is built around a maintenance‑free, water‑cooled, high‑frequency motor:

• Motor type: Permanent magnet high‑frequency electric motor.

• Power output: Up to 6 kW on the spindle (about 8 hp) when powered from PP 70 or PP 220 (3‑phase), and 3 kW on single‑phase input.

• Cooling: Water‑cooled and dust‑proof motor design for minimal service needs.

Speed and torque management:

• 18‑step adjustable RPM range provides optimal speed for a wide range of bit diameters.

• The intelligent motor control software “enables optimized RPMs for a wide range of drilling diameters, from 3–24 in (80–600 mm).”

• A torque boost function automatically reduces RPM when drilling in steel or difficult materials to increase torque.

This combination gives the DM 700 exceptional torque for large‑diameter bits and deep holes in hard, reinforced concrete while still offering fine RPM control for smaller bits.

Drilling capacity and applications

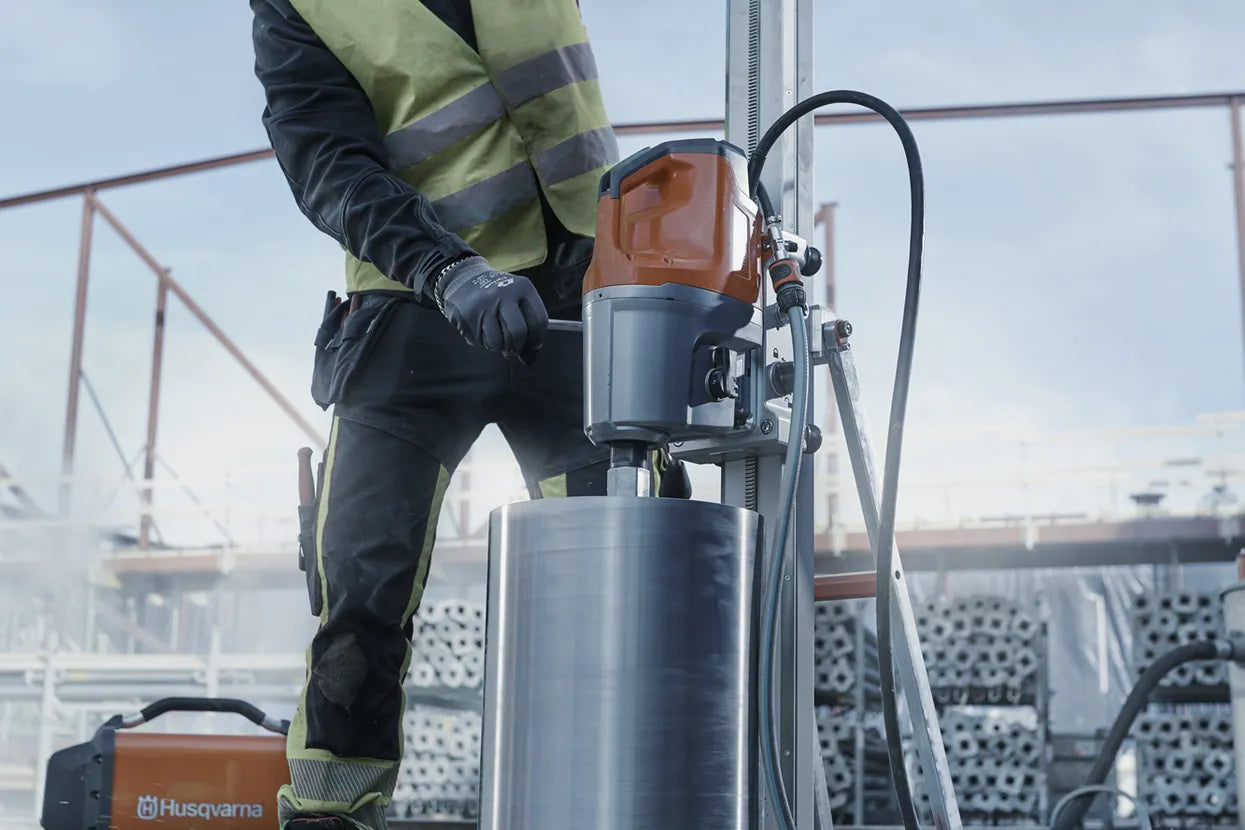

The DM 700 – 970763501 is aimed squarely at heavy‑duty core drilling in construction and civil work.

Capacity:

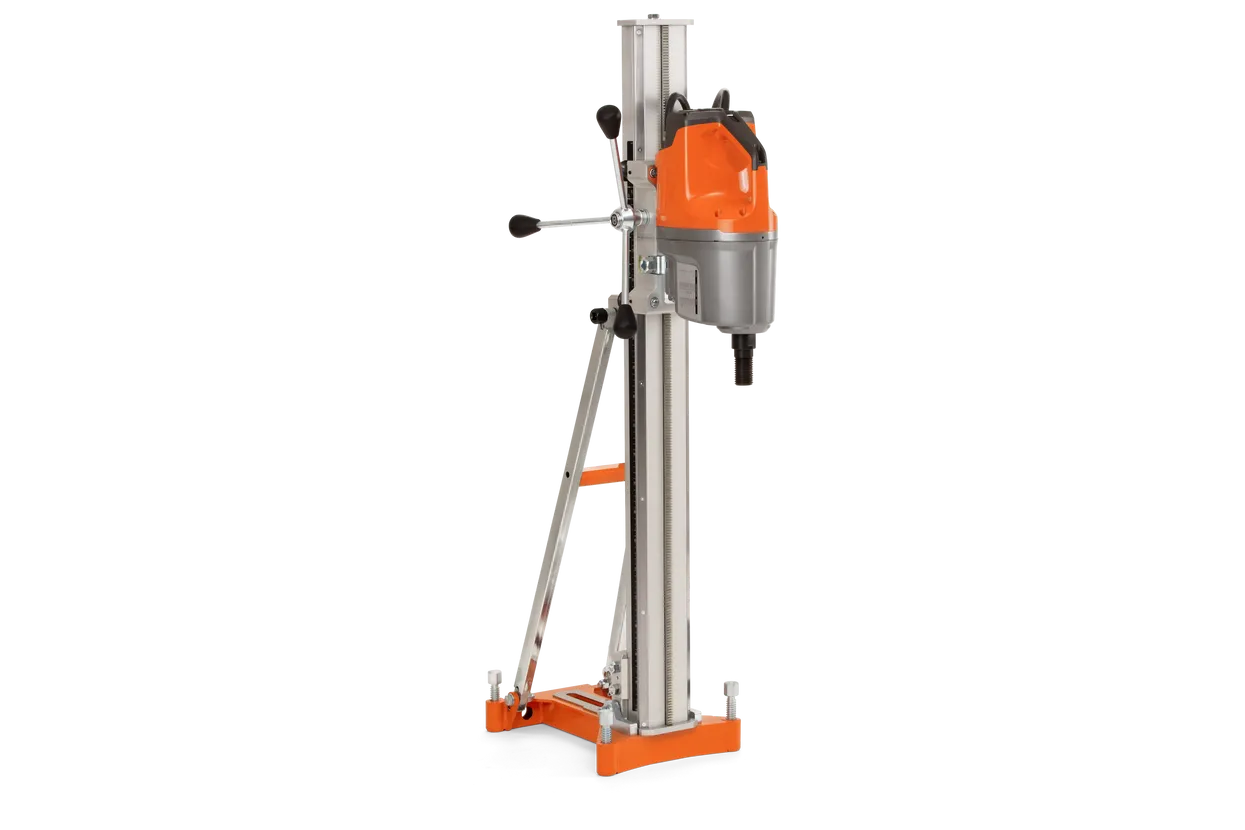

• Recommended bit diameter: 80–600 mm (3"–24") with a drill stand.

• Ideal working range often cited as 4" (100 mm) to 24" (600 mm) in reinforced concrete, brick, and other building materials.

Typical applications listed by Husqvarna and distributors:

• Service penetrations in concrete:

  • Water drains and waste evacuation pipes.

  • Ventilation / HVAC penetrations and duct sleeves.

  • Plumbing and gas supply channels.

• Structural and infrastructure work:

  • Manholes and barrier drilling.

  • Service holes in floors, walls, and foundations where multiple large‑diameter holes are required.

Husqvarna notes that the “high power output, low weight, user‑friendly setup and intelligent design makes DM 700 the perfect choice for heavy‑duty applications like hard concrete with rebar and where multiple, deep and large diameter is needed.”

Design, ergonomics, and durability

The DM 700 is engineered to be powerful yet relatively light and easy to handle for its class:

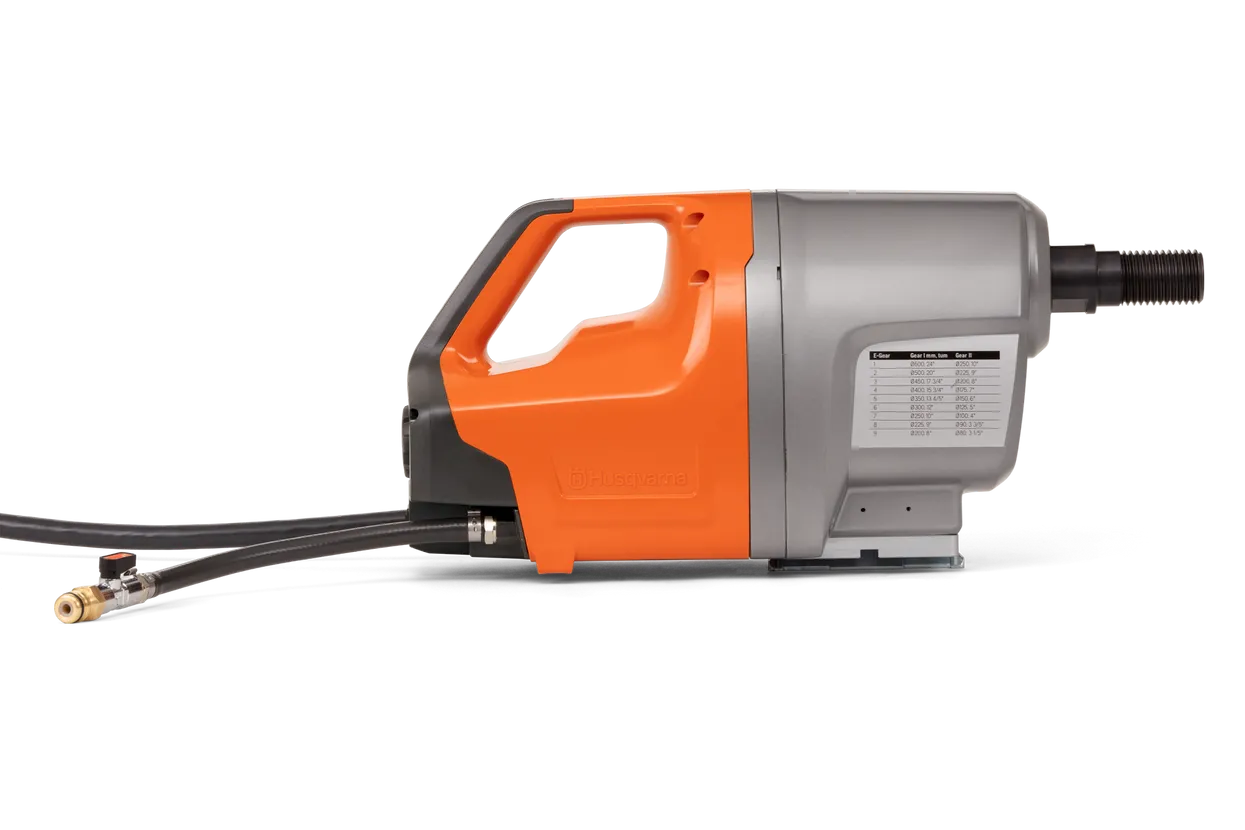

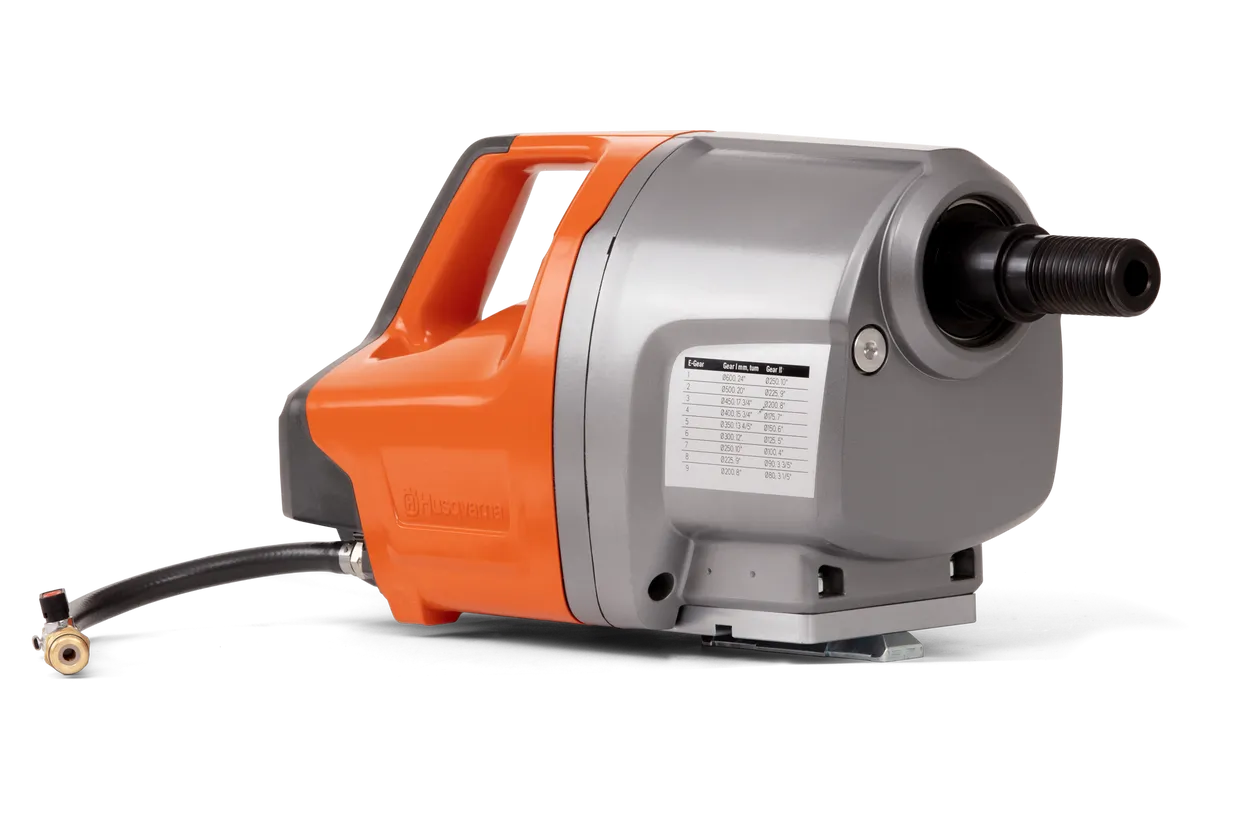

• Weight: Approx. 14 kg (31 lb) for the drill motor.

• Dimensions: About 452 mm length x 164 mm width; compact for a 6 kW drill.

• Ergonomics: Low weight and balanced design “makes it easy to carry and mount,” according to Husqvarna.

Durability features:

• Dust‑ and water‑proof motor housing with water cooling, minimizing service requirements even in harsh drilling environments.

• Shock‑proof design to protect electronics from impact and vibration on the jobsite.

These aspects make the DM 700 suitable for daily rig mounting and repositioning on site, despite its high power output.

Intelligent controls: Elgard™, load indicator, and safety

Husqvarna integrates several electronic control features into the DM 700 to improve productivity and protect both the machine and operator:

• Elgard™ overload protection:

  • The system uses “pulsation to warn you of an approaching overload,” allowing the operator to ease off before tripping the unit.

  • This lets you drill “at maximum pressure without risk of overload,” maintaining high productivity safely.

• Load indicator:

  • A visual load indicator helps the operator apply optimal feed pressure; staying in the green zone maximizes drilling speed and tool life.

• Torque boost:

  • When drilling in rebar or very dense material, torque boost reduces RPM to increase torque and keep the bit moving.

Together, these electronics make the DM 700 much more forgiving and efficient than older core drill motors, particularly on demanding jobs with varying reinforcement and aggregate hardness.

PRIME power sources: PP 70 and PP 220

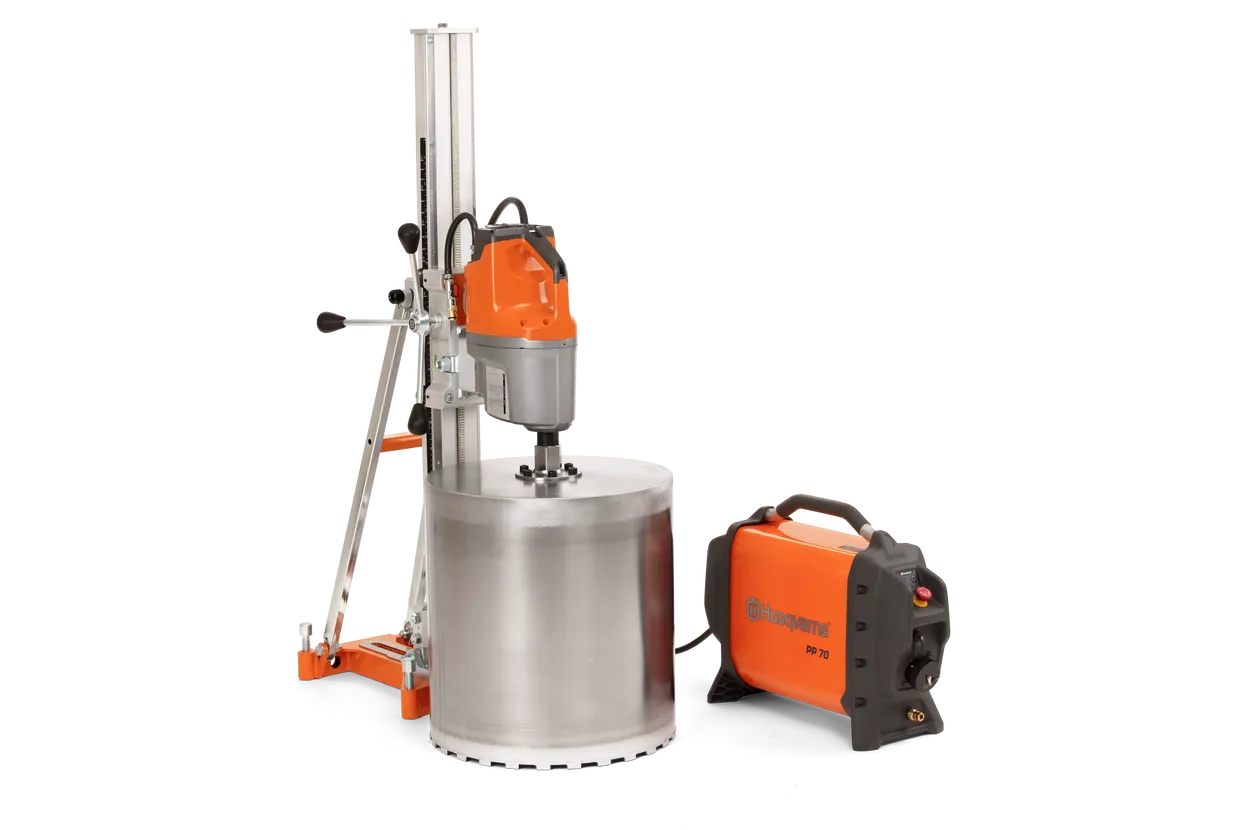

As a PRIME™ high‑frequency unit, the DM 700 – 970763501 doesn’t plug directly into the wall like a conventional motor; it runs from a PRIME power pack:

• Compatible power packs: PP 70 and PP 220.

• Husqvarna: “Can be used with either PP 70 or the PP 220 as a power source.”

Benefits of this setup:

• Allows the DM 700 to deliver 6 kW on the spindle from a relatively light motor body, with power electronics housed in the separate pack.

• Supports both single‑phase and three‑phase input (depending on the power pack), offering flexibility on different sites.

• Integrates control interface, RPM adjustment, and monitoring in the PRIME power pack for easier operation.

Contractors already using PRIME wall saws or other PRIME tools can share the same power pack, maximizing investment in the system.

Advantages versus conventional core drills

Compared to traditional electric core drill motors, the Husqvarna DM 700 offers several notable advantages:

• Higher power‑to‑weight ratio: 6 kW at the spindle in a 14 kg motor gives a much higher power density than many induction‑motor drills.

• Broad RPM range: 18‑step adjustable RPM range lets you match speed to bit diameter and material more precisely.

• Improved productivity: Husqvarna specifically notes “higher productivity – increased drilling performance giving higher productivity when paired with PP 70.”

• Lower service needs: Dust‑ and water‑proof construction plus water cooling reduce internal contamination and thermal stress.

• Enhanced control: Elgard overload warning, torque boost, and load indicator help avoid stalls and protect bits and equipment.

These benefits translate into faster, more reliable drilling, especially on large‑diameter, deep holes where power and control are critical.
