Reengineered for maximum productivity and performance.
Features:

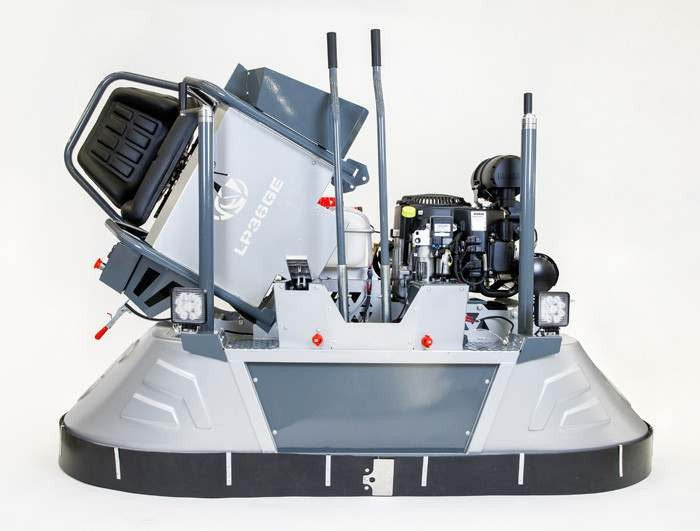

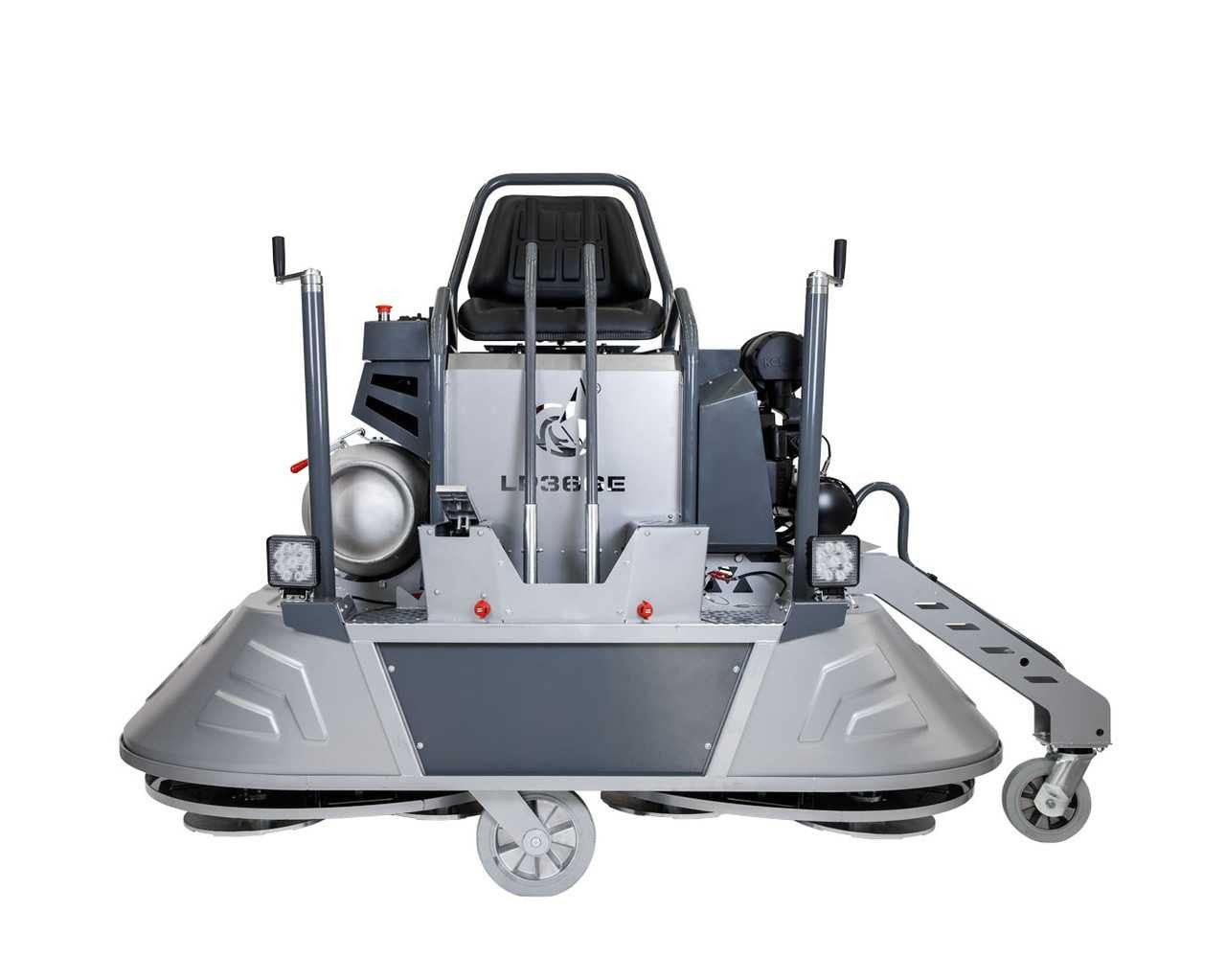

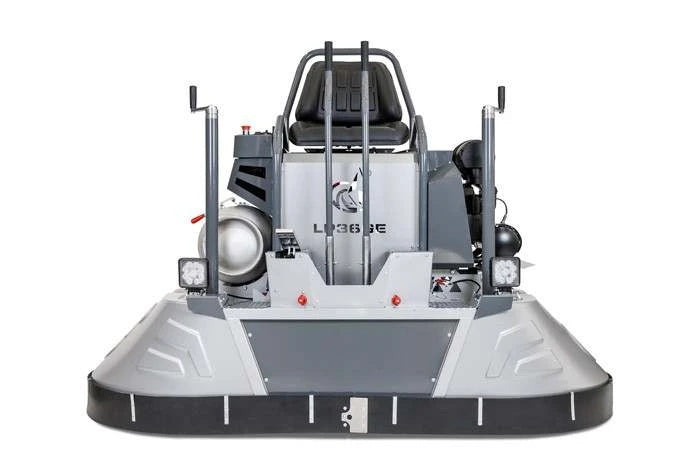

- Propane-driven ride-on trowel with a free planetary drive.

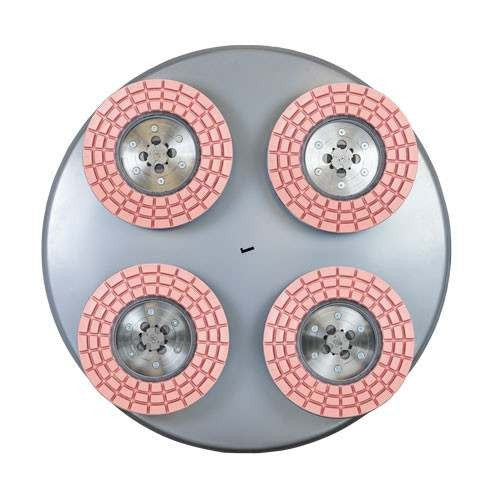

- Equipped with two 36-inch floating pans, and each pan has four 13.2″ Tools Holders with quick change attachment and compatible with Lavina Quick Change metals and rings
- Powerful KOHLER Propane engine – cleaner, more fuel efficient, more uptime and better warranty.
- Heavy-duty shroud with pins to protect walls from slurry.

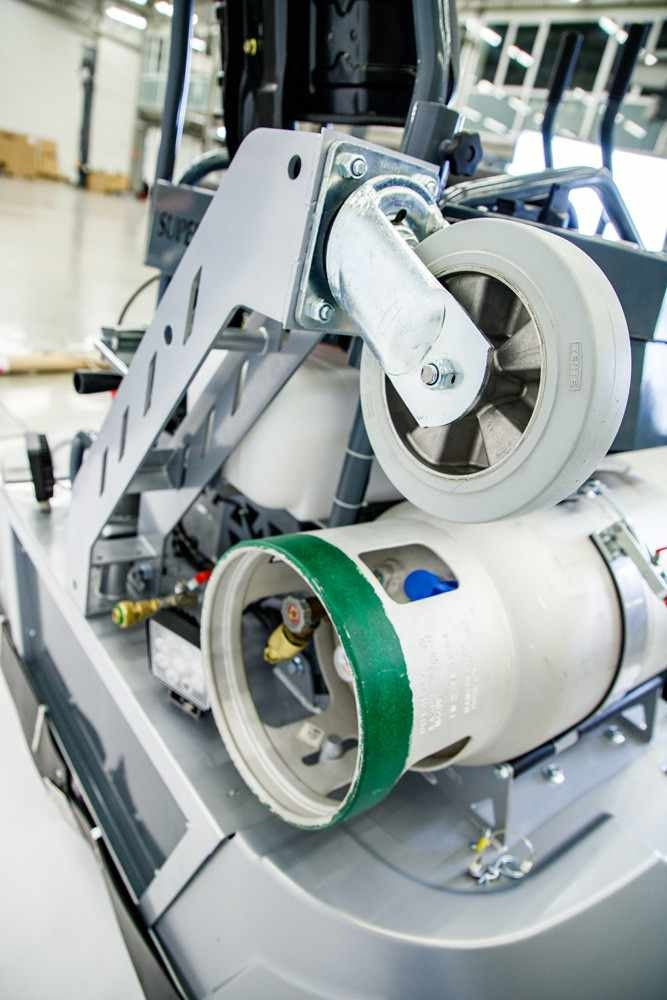

- Integrated wheel set and manual crank system to lift the trowel (200mm) for changing tools. Transportation wheel included as well.
- Continuously variable transmission provides superior performance by continually adjusting the drive ratio to obtain optimum torque and speed during all phases of finishing from low-speed, high-torque to high-speed burnishing.
- LED lights for better visibility.
- Emergency stop sensor on the operator’s seat.
- Propane Engine:
- Kohler Command Pro EFI PCV 740
- Path Width:
- 80"
- Engine Capacity:
- 747 cc / 45 cu.in., 24hp / 17 kW 3600 min
- Rotor RPM:
- 0-185 rpm
- Engine RPM:
- 2000-3600 rpm
- Pan Diameter:
- 2 x 36”
- Tool Holders (total):
- 8 x 13.2”
- Blades per Rotor:
- 4
- Propane Tank:
- 8 x 13.2”
- Lifting (manual jack):
- 7.9”
- Weight (with pans):
- 1424 lbs
- Machine Dimensions (LxWxH):
- 82 x 41 x 61 in
