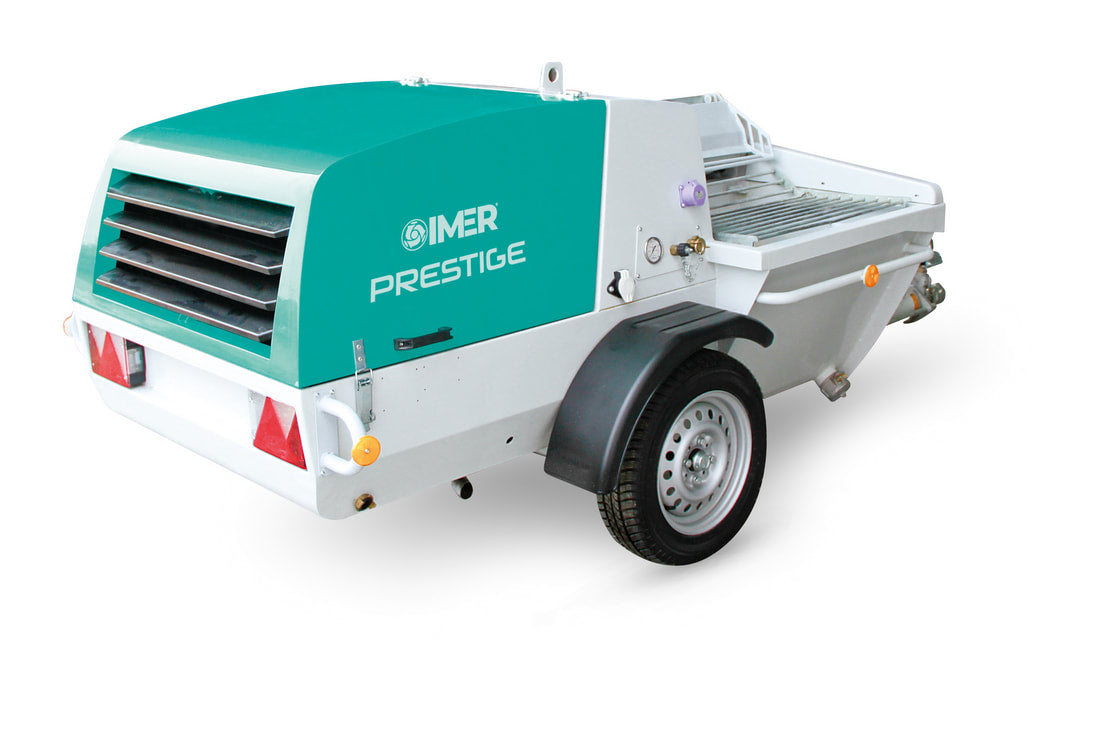

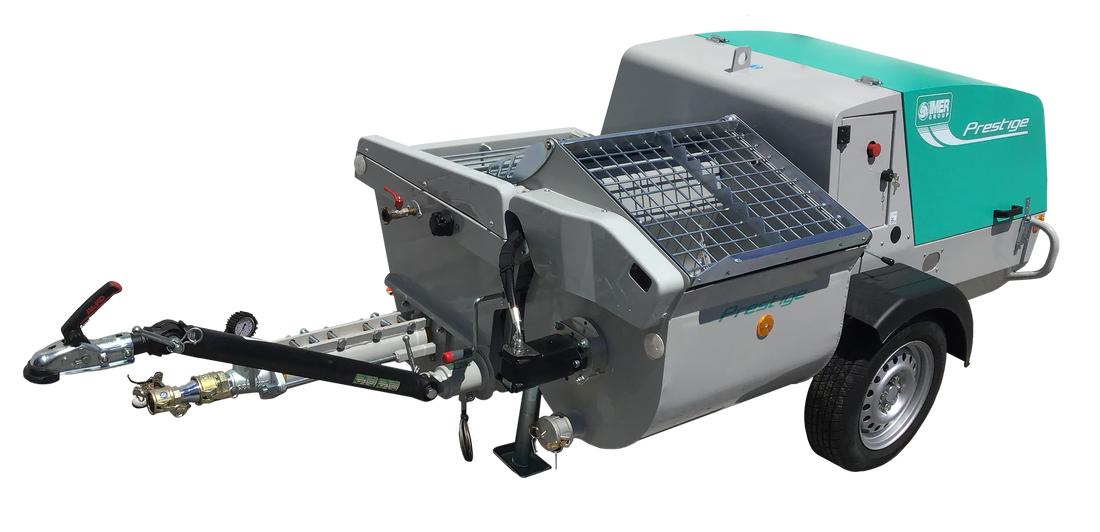

IMER - PRESTIGE 300 Pump - 1106133

The Prestige 300 is a diesel-powered multi-purpose pump and spray machine with a built-in 6.3 cubic foot hydraulic mixer and onboard compressor for spraying. The military spec control panel integrates all these functions in one location, allowing operators to quickly and easily learn to operate the pump. Known for its versatility, the Prestige is designed to use different rotor/stator combinations for pumping a wide range of materials - including up to 3/8” aggregate with the optional L7 rotor / stator.

IMER – PRESTIGE 300 Pump – 1106133 is a diesel‑powered, towable, high‑output progressive cavity pump and spray machine designed for mixing, pumping, and spraying a wide range of cementitious and gypsum‑based materials on demanding commercial and industrial jobsites. With a 24 HP Yanmar/Lombardini diesel engine, 7 cu ft hopper, 6.3 cu ft high‑shear hydraulic mixer, 14 CFM onboard compressor, and 2L6 screw pump, it acts as an all‑in‑one mobile mini‑batch plant and pump.

Overview of the IMER PRESTIGE 300 Pump 1106133

The IMER Prestige 300 (also branded as Silent 300 Prestige) is a compact yet powerful rotor/stator pump system that combines three main components on one towable frame: pump, mixer, and compressor. A quiet 3‑cylinder, liquid‑cooled industrial diesel engine powers the hydraulic systems that drive the high‑shear mortar mixer, the progressive cavity pump, and the 14 CFM air compressor for spraying.

IMER describes the Prestige 300 as a multi‑purpose pump that can be used from first‑stage soil stabilization and drilling grouting, to block‑fill, to finish work like spraying stucco on high‑end homes. It can be positioned under a silo for maximum efficiency, mix and pump simultaneously (6.3 cu ft in the mixer while the 7 cu ft hopper feeds the pump), and then use the onboard pressure washer to clean up.

Key Specifications: IMER – PRESTIGE 300 Pump – 1106133

From IMER USA and multiple distributor spec sheets:

• Model: Prestige 300 (Silent 300 Prestige)

• SKU / Manufacturer part: 1106133

• Engine: 3‑cylinder diesel, quietized, liquid‑cooled, industrial duty

  • Power: 24 HP (ISO 3046/1‑IFN rating)

  • Brands referenced: Yanmar or Lombardini, depending on configuration/region.

• Compressor: Onboard air compressor for spraying

  • Flow rate: 14 CFM

• Pump type: Progressive cavity screw pump

  • Standard stator/rotor: 2L6 adjustable stator and rotor

  • Optional stators/rotors: IM25L, 60.12, L7‑1.5 kits for different flow/pressure/aggregate demands

• Max pumpable aggregate size (with IM25L): 3/8 in

• Variable flow rates (approximate):

  • With 60.12 stator/rotor: about 12 cu ft/hr

  • With IM25L stator/rotor: about 4 cu ft/hr

  • With 2L6 stator/rotor: about 3 cu ft/hr
    (Actual output depends on mix design, ratios, and cement content.)

• Max pressure with 2L6 stator: approx. 580 PSI

• Hopper capacity: 7 cu ft (approx. 53 gallons)

• Mixer capacity: 6.3 cu ft high‑shear hydraulic mixer

• Max pumping distance:

  • With 1‑1/4 in hose: about 150 ft horizontally

  • Discharge head: approx. 25 ft vertical lift (varies with material and stator)

• Dimensions (L × W × H): approx. 131.5 in × 55.5 in × 53 in

• Weight: approx. 1,650–1,653 lb

• Tow package: Highway‑rated tow bar and axle included.

These specifications confirm that IMER – PRESTIGE 300 Pump – 1106133 is a serious diesel pumping and spraying platform suited for high‑output, professional use.

Materials and Applications

The Prestige 300 is built to mix, pump, and spray a wide range of materials:

• Premixed bagged mortars (cement or gypsum based).

• Cement/lime and gypsum plasters and stuccos.

• Grouts (block‑fill, soil stabilization, drilling grouts).

• Fireproofing materials (spray‑applied fire resistive).

• Epoxies and specialty repair mortars (when pumpable).

• Self‑leveling underlayments and toppings (from bag or silo).

PDQuipment notes that the Prestige 300 is ideal for mixing, pumping, and spraying cement, fireproofing, grout, epoxies, self‑leveling underlayments, or repair mortars, and that it can mix up to 6 cu ft of material while the hopper supplies the pump with the previous batch. Contractors Direct describes its use in soil stabilization and drilling grouting, and then for finishing work like spraying stucco on high‑end homes.

Typical applications include:

• Block‑fill grouting for CMU walls (replacing grout boxes and forklifts).

• Soil stabilization and piling/drilling grouting.

• Spraying stucco on residential and commercial façades.

• Fireproofing structural steel on large projects.

• Pumping self‑leveling materials over slabs when used as part of a silo or batching system.

With the appropriate rotor/stator kit (L7‑1.5), the Prestige 300 can handle mixes with up to 3/8 in aggregate, broadening its range to include certain lightweight concretes and high‑flow mixes.

High‑Shear Hydraulic Mixer and Continuous Production

A central feature of the Prestige 300 is its integrated, high‑shear hydraulic mortar mixer mounted on the same frame as the pump.

• Mixer capacity: 6.3 cu ft per batch.

• High‑shear action: Designed to rapidly blend cementitious materials for uniform consistency.

• Hydraulic drive: Powered by the diesel engine’s hydraulic circuit for robust, variable‑speed mixing.

• Programmable mixer timer: Allows you to set mixing cycles for consistent batch quality, then automatically discharge into the hopper.

The workflow is designed so that while the pump draws from the 7 cu ft hopper, the mixer is simultaneously preparing the next 6.3 cu ft batch, enabling near‑continuous output. This “mix and pump at the same time” capability is a major productivity advantage over setups that require separate mixers or batch transfers.

Progressive Cavity Pumping System and Stator Options

The IMER – PRESTIGE 300 Pump – 1106133 uses a progressive cavity rotor/stator system, with the 2L6 stator included as standard.

• 2L6 stator/rotor: Standard configuration tuned for higher pressure (up to 580 PSI) and moderate flow (~3 cu ft/hr), ideal for heavier mortars, grouts, and higher‑head pumping.

• IM25L stator/rotor: Optional kit optimized for pumping up to 3/8 in aggregate with about 4 cu ft/hr flow (for certain mixes where aggregate size is critical).

• 60.12 stator/rotor: Optional high‑flow kit (about 12 cu ft/hr) for jobs where flow volume is more important than pressure, such as some spray and slab applications.

• L7‑1.5 stator/rotor: Optional kit to further expand compatibility with larger aggregate or special mixes.

By selecting the appropriate stator/rotor combination, contractors can tune the Prestige 300 for pressure, flow, or aggregate size depending on the job’s requirements.

Compressor, Spraying Capability, and Accessories

The Prestige 300 includes a built‑in air compressor for spraying operations:

• Compressor flow rate: 14 CFM, sufficient for mortar and stucco spray guns and fireproofing guns.

Standard “in the box” components typically include:

• 24 HP diesel engine.

• 14 CFM compressor.

• 2L6 screw pump.

• 2 clean‑out sponges.

• High‑shear hydraulic mixer.

• Variable‑speed hydraulic pump.

• Programmable mixer timer.

• Metal accessory box.

• Tow package for highway use.

Optional accessories listed by IMER include:

• 33 ft of 35 mm and 50 mm hose (Part #1107528, #1107533).

• Aqua Control electronic water meter system (Part #1107209).

• Vibrating grate for the hopper (Part #1107036).

• 164 ft remote control (Part #1107086).

• Rotor/stator kits: IM25L (#1107149), 60.12 (#1107090), L7‑1.5 (#1107660).

• Hose reducer 50 mm to 35 mm (#1106178).

• Spray gun Step 120 (#1107577).

• Overhead wand 5 ft (#1107549).

• Male‑to‑male hose adapters and pintle tow ring.

This ecosystem of accessories makes the Prestige 300 highly adaptable for pumping, spraying, and grouting in different configurations.

Towable Chassis, Dimensions, and Mobility

The IMER – PRESTIGE 300 Pump – 1106133 is built as a highway‑towable machine:

• All‑in‑one towable frame with integrated tow package.

• Dimensions: Approximately 131.5 in long × 55.5 in wide × 53 in high.

• Weight: Around 1,653 lb, balanced for safe towing.

• Drop‑down stability legs: Make setup easy and ensure stability during pumping and spraying.

Contractors Direct notes that it has drop‑down stability legs and a tow‑ready axle, making on‑site setup and relocation straightforward. This design allows crews to move the Prestige 300 like a small trailer, set it up under silos or by material storage areas, and feed large projects with minimal repositioning.

Control Panel, Ease of Use, and Cleaning

IMER and dealers describe the Prestige 300 as having a “military spec” control panel that integrates all major functions in one location.

• Centralized controls: Operators can control the engine, mixer, pump, and compressor from a single panel, which simplifies training and reduces operator error.

• Variable‑speed hydraulic pump: Allows precise adjustment of pumping speed to match material and hose length.

• Optional radio remote: 5‑function radio remote (Part #1107208) and 164 ft remote cable (Part #1107086) enable remote start/stop and control from the work area.

Cleaning and maintenance are also addressed:

• Integrated hydraulic pressure washer: Optional hydraulic power washer kit (Part #1107171) makes end‑of‑day cleaning faster and more effective.

• Clean‑out sponges: Included to clean hoses and pump lines.

• Smooth surfaces on hopper and mixer to reduce material buildup.

PDQuipment emphasizes that with the Silent 300 Prestige, “mix, pump, apply, clean up, and go” is the workflow, thanks to the onboard pressure washing system and integrated design.

Why Choose IMER – PRESTIGE 300 Pump – 1106133?

IMER – PRESTIGE 300 Pump – 1106133 is an excellent choice for contractors and industrial crews who need a diesel‑powered, all‑in‑one mixing, pumping, and spraying solution for high‑volume mortar, grout, stucco, fireproofing, self‑levelers, and repair mortars. Its 24 HP diesel engine, 7 cu ft hopper, 6.3 cu ft high‑shear mixer, 14 CFM compressor, and flexible rotor/stator options (2L6 standard, IM25L for 3/8 in aggregate, 60.12 for high flow) provide a powerful, adaptable platform for a wide range of jobs.

With continuous mix‑and‑pump capability, towable chassis, programmable mixer timer, optional Aqua Control water metering, vibrating grate, long‑range remote, and built‑in or optional pressure washer, the Prestige 300 delivers mini‑batch‑plant performance in a compact, mobile package. For demanding projects requiring reliable mixing, pumping, and spraying from a single machine, the IMER Prestige 300 Pump 1106133 stands out as a high‑performance, professional‑grade solution.
