IMER – MASONRY 750 PLUS SAW – 30” Blade is a powerful, water‑cooled block, stone, and precast saw engineered for deep, accurate cuts in large masonry units, structural stone, pavers, and precast products. With a massive 30" blade, up to 12" cutting depth in a single pass, and up to 27" max cutting length with plunge, this saw is built for serious masons, precast yards, and hardscape contractors who routinely handle big material.

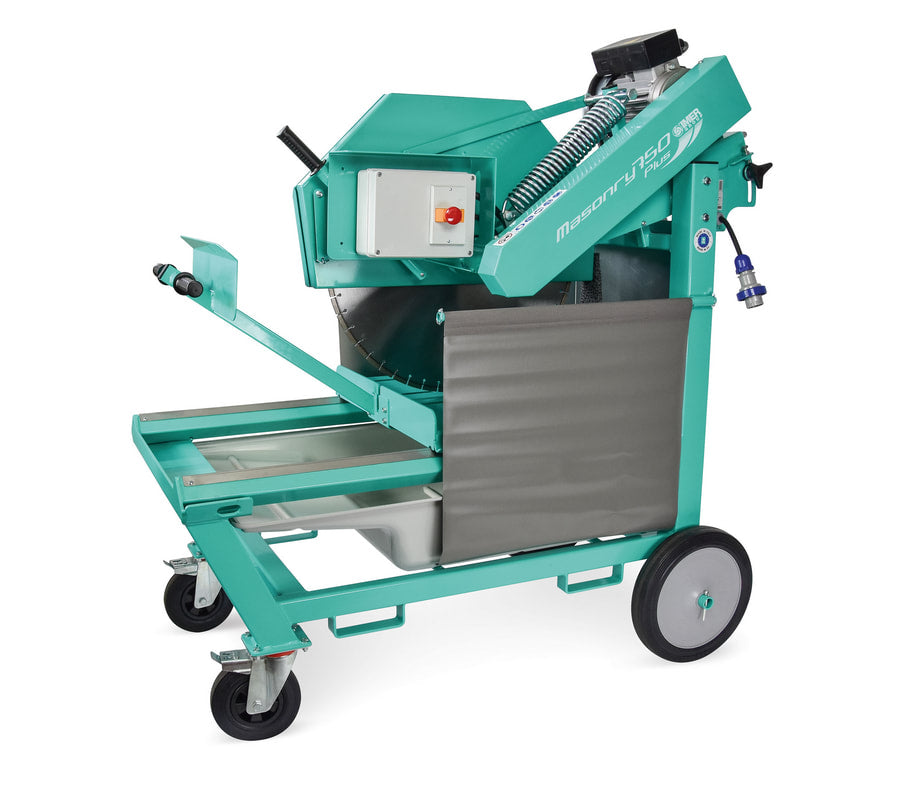

Overview of the IMER Masonry 750 Plus – 30” Blade

The IMER Masonry 750 Plus is described as “the ergonomic 30” blade stone saw that handles big block and stone.” It allows operators to cut 8" and 10" CMU blocks, heavy pavers, and precast concrete products in a single pass, without the hassle of a foot pedal. The combination of a 30" blade and a powerful electric motor delivers up to 12" of cutting depth, making it ideal for structural blocks and deep cuts in large units.

The frame and cutting tray are hand‑fabricated from heavy‑duty box steel, and the low‑profile design reduces lifting height, making it easier to load and unload heavy pieces throughout the day. Built‑in forklift slots and wheel kit simplify transport around the jobsite and onto trucks.

Key Specifications: IMER – MASONRY 750 PLUS SAW – 30” Blade

From IMER USA and official spec sheets:

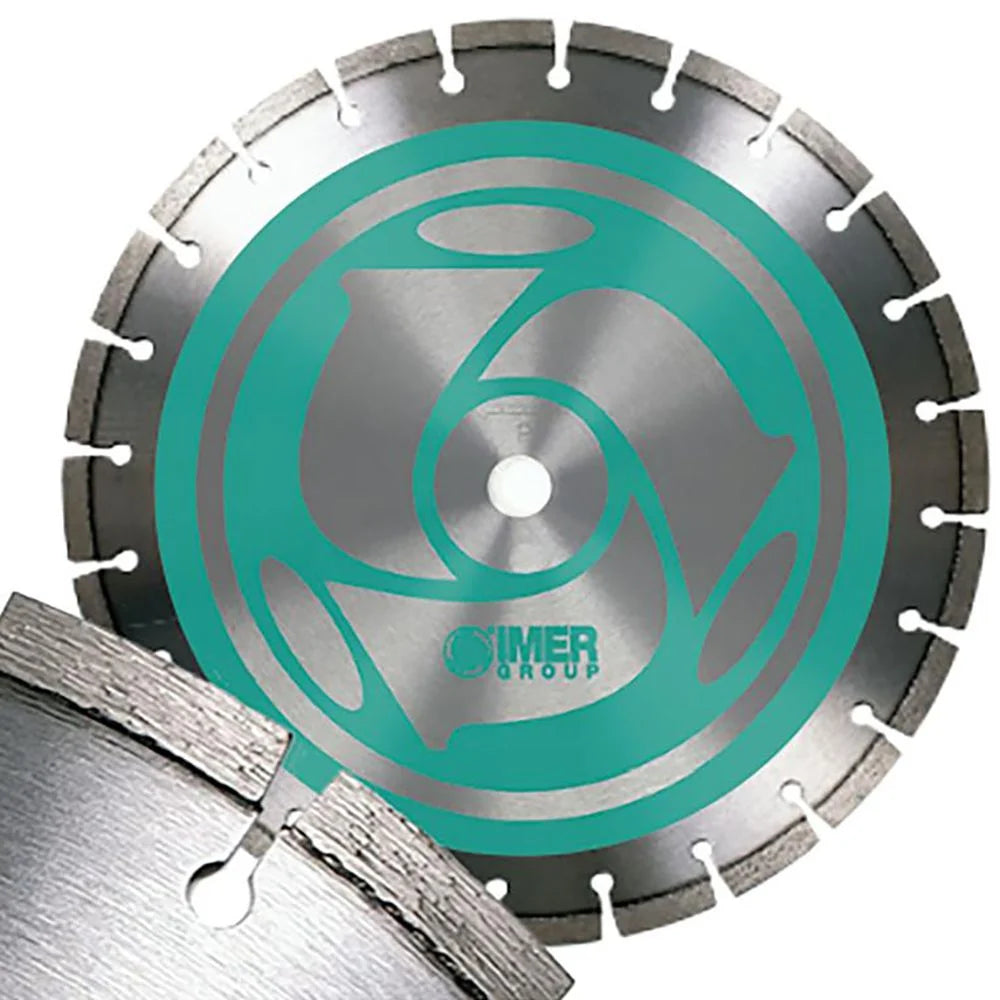

• Blade diameter: 30 in

• Blade shaft (arbor) diameter: 1 in

• Max cutting depth (single pass): 12 in

• Max cutting depth (w/ plunge) / cutting height: up to 18 in in some literature; European spec lists 300 mm (11.8") 1‑pass height.

• Max cutting length (with plunge): 18 in / 27 in (plunge extended)

• Motor rating:

  • Single‑phase model 1188863: 5.5 HP, 220V/60Hz, 1‑phase

  • Three‑phase model 1188864: 7.5 HP, 220V/60Hz, 3‑phase

• Blade speed: approx. 1,700 RPM (North American spec)

• Water pan capacity: 9 gal

• Water pump flow: 3 GPM, self‑priming centrifugal pump

• Weight:

  • Approx. 440 lb (495 lb crated)

  • Some distributors list around 495 lb net for complete saw with options

• Overall dimensions (L × W × H): approx. 61 in × 33.5 in × 63 in (boxed)

These specs confirm that the IMER – MASONRY 750 PLUS SAW – 30” Blade is a high‑capacity block and precast saw that goes beyond the capabilities of standard 14"–20" masonry saws.

Cutting Capacity, Plunge Cutting, and Tray Design

Cutting capacity is where the Masonry 750 Plus stands out.

• Cutting depth:

  • Up to 12" in a single pass when equipped with the 7.5 HP three‑phase motor and 30" blade.

  • European data lists 300 mm (approx. 11.8") cutting height in one pass.

• Cutting length:

  • Standard: approx. 18"

  • With plunge: up to 27" max cutting length.

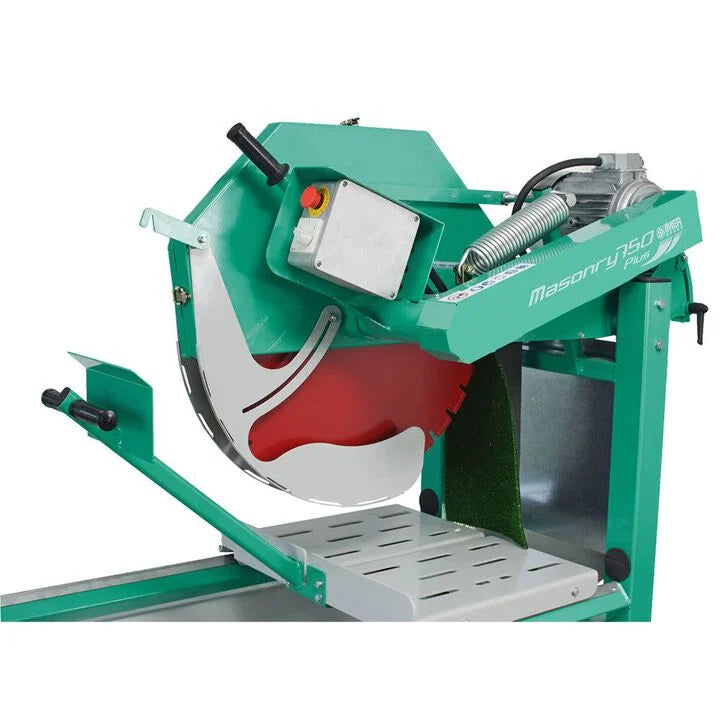

The plunge function is particularly important:

• The cutting head pivots on sealed bearings, and the operator can grab the tilt handle and ease the blade into the material for smooth, controlled plunge cuts.

• This allows you to cut deeper than the standard pass, create notches, and handle oversized blocks and precast elements more flexibly.

The cutting tray and frame are designed to support heavy loads:

• Heavy‑duty tray built to support large structural blocks, stone slabs, and precast pieces.

• Low profile design means blocks and stones can be loaded and unloaded with less lifting effort, increasing productivity over a long day.

Motor Options: Single Phase 5.5 HP and Three Phase 7.5 HP

IMER offers the Masonry 750 Plus in both single‑phase and three‑phase configurations:

• Model 1188863 (1Ø):

  • Motor: 5.5 HP, 220V, single phase.

  • Ideal where only single‑phase power is available.

• Model 1188864 (3Ø):

  • Motor: 7.5 HP, 220V, three phase.

  • Equipped with an electronic soft start system for smooth blade spin‑up.

The powerful 7.5 HP motor combined with the 30" blade provides the muscle needed to use the full 12" cutting depth efficiently. The soft start feature reduces inrush current and mechanical stress at startup, extending motor and belt life.

For sites without three‑phase power, the 5.5 HP single‑phase version still offers serious cutting performance while remaining more flexible for general use.

Water System and Dust Control

The MASONRY 750 PLUS SAW – 30” Blade uses a water‑cooled cutting system designed for heavy‑duty work.

• Water pan capacity: 9 gallons, providing adequate water volume for prolonged cutting sessions.

• Pump: Self‑priming centrifugal pump with 3 GPM flow rate ensures steady water delivery to the blade for cooling and dust suppression.

Wet cutting is essential for controlling silica dust from blocks and precast materials, and the 750’s water system is built to keep the blade cool and the cutting line visible while reducing airborne dust.

Frame, Ergonomics, and Portability

The Masonry 750 Plus is built with a rigid box steel frame for durability, yet IMER emphasizes ergonomic design for easier handling:

• Rigid box steel frame: Provides high stiffness for accurate cuts and long service life under heavy loads.

• Low profile: The cutting deck is lower than many competitors, reducing the lifting height required to load heavy blocks and precast products, which helps operators “get a lot more done in a day.”

• Built‑in forklift pockets: Welded into the frame for easy loading and unloading with forklifts, ideal for yard and precast plant environments.

• Wheel kit: Locking wheels allow one person to roll the saw around the jobsite, improving mobility.

Together, these features make the Masonry 750 Plus easier to position and use than many other large block saws, despite its substantial capacity.

Versatility and Safety Features

The IMER – MASONRY 750 PLUS SAW – 30” Blade is designed to be both versatile and safe:

Versatility:

• Smooth, precise plunge cutting ability for notches, openings, and partial passes.

• Optional 20" kit allows you to convert the saw to run a 20" blade when full 30" capacity is not needed, increasing flexibility.

• Applications include cutting structural stone blocks, cement blocks, stone facing, large pavers, and precast elements.

Safety:

• Hands‑protected guard design to keep operators’ hands away from the blade while pushing the tray.

• Noise levels under 79 dB during operation, with some data listing under 70 dB at the operator’s position in certain conditions.

• Sealed bearings on the pivoting cutting head and moving parts reduce the risk of contamination and unexpected failures.

The ability to make plunge cuts smoothly and controlled, combined with hand protection and a solid frame, helps reduce operator fatigue and risk.

Typical Materials and Applications

The Masonry 750 Plus is built for large materials and deep cuts:

Typical materials:

• 8" and 10" CMU blocks (single‑pass cuts).

• Large structural stone blocks.

• Cement blocks and precast wall units.

• Thick concrete and porcelain pavers.

• Stone facing, wall caps, steps, and architectural precast.

Typical users and applications:

• Masonry contractors doing structural block and stone work.

• Precast manufacturers cutting large wall panels, lintels, and beams.

• Hardscape contractors cutting large pavers, steps, and retaining wall elements.

• Stone yards and fabrication shops handling heavy blocks and slabs.

With its 12" cutting depth, 27" plunge cutting length, and rugged tray, the saw is especially well suited for operations that routinely process big, dense materials.

Why Choose IMER – MASONRY 750 PLUS SAW – 30” Blade?

IMER – MASONRY 750 PLUS SAW – 30” Blade is an excellent choice for professionals who need a serious block, stone, and precast saw capable of deep, long cuts on large materials. Its 30" blade, up to 12" cutting depth, and 18"/27" max cutting length with plunge allow operators to cut 8" and 10" blocks in a single pass and handle oversized structural pieces with ease.

With powerful 5.5 HP single‑phase or 7.5 HP three‑phase motor options, a rigid box steel frame, low‑profile ergonomic design, built‑in forklift pockets, wheel kit, 9‑gallon water system, and smooth plunge capability, the Masonry 750 Plus delivers production‑grade performance and durability for demanding masonry and precast applications. For contractors and yards that regularly cut big block and stone, this 30" IMER masonry saw offers the depth, length, and reliability needed to keep crews productive and cuts precise.
