IMER – MASONRY 350 SMART CUT – 14” Blade / 30” Max Cutting Length w/Plunge is a heavy‑duty wet masonry saw engineered for cutting bricks, blocks, paving stones, and tile with precision and power on the largest cutting table available for a 14" masonry saw. With a 2 HP, 120V motor, 14" blade capacity, up to 30" max cutting length with plunge, and 4‑3/4" cutting depth, it is built for professional masons, hardscape installers, and contractors who need long, accurate cuts day in and day out.

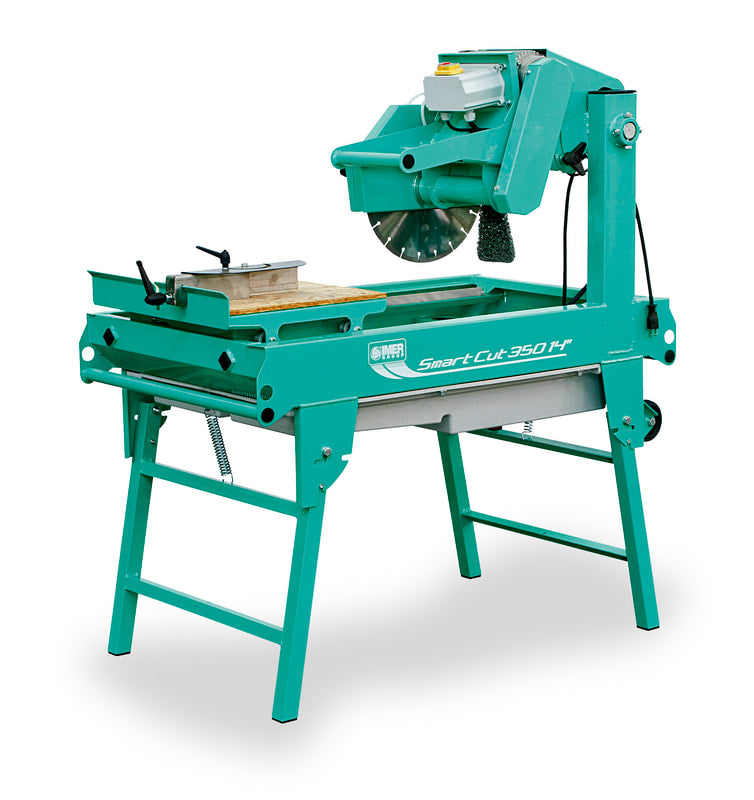

Overview of the IMER Masonry 350 Smart Cut

The IMER Masonry 350 Smart Cut (model 1188975) is a water‑cooled masonry saw with a sliding cutting tray that rides on ceramic nylon rollers with sealed bearings. IMER highlights it as “the best solution for cutting bricks, blocks, paving stones, or tile,” delivering very accurate cuts up to 30" in length and 4‑3/4" deep.

This Smart Cut 350 is designed around a single‑arm cutting head and a large 20" × 16" cutting table, giving you the biggest cutting table available on a 14" masonry saw. The integrated folding stand, wheel kit, and 120V power make it practical to move, set up, and run on most construction sites without special power requirements.

Key Specifications: 14” Blade / 30” Max Cutting Length w/Plunge

From IMER USA and distributor spec sheets:

• Model: Masonry 350 Smart Cut

• Model number: 1188975

• Blade diameter: 14 in

• Blade shaft (arbor) diameter: 1 in

• Max cutting length (standard): 26 in

• Max cutting length (with plunge): 30 in

• Max cutting depth at 90°: 4.75 in (4‑3/4 in)

• Motor rating: 2 HP, 120V (115–120V), 15 Amp, single phase

• Motor speed: 2,800–2,850 RPM

• Cutting table dimensions: 20 in × 16 in

• Cutting surface height: 33.5 in (33‑1/2 in)

• Water pan capacity: 10 gallons

• Water pump flow: approx. 3 GPM

• Machine dimensions (approx. L × H × W): 47 in × 51–55 in × 28.5 in

• Weight: 175 lb (215 lb boxed/palletized)

These specifications show why the IMER – MASONRY 350 SMART CUT – 14” Blade / 30” Max Cutting Length w/Plunge is a favorite for block, brick, and paver cutting: it offers deep cuts, long length capacity, and runs on a standard 120V, 15‑amp circuit.

Cutting Capacity, Plunge Feature, and Table Design

The Masonry 350 Smart Cut is built to handle larger and longer pieces than typical 14" saws.

• Max length of cut: 26 in straight, extended to 30 in when using the plunge capability.

• Max depth of cut at 90°: 4‑3/4 in, allowing you to cut many 4" blocks, pavers, and bricks in a single pass or with shallow second passes for very thick units.

The cutting tray and table design include:

• 20" × 16" cutting table surface, one of the largest in its class for a 14" masonry saw.

• Cutting tray rolling back and forth on ceramic nylon rollers with sealed bearings, delivering smooth, consistent cutting action.

• One roller mounted under the guide bar to keep the tray from jumping up or falling off the saw, preventing misalignment or accidental separation on site.

This design gives a stable, precise platform for long block and paver cuts, producing sharp, accurate cuts pass after pass.

2 HP 120V Motor and Performance

The IMER Masonry 350 Smart Cut is powered by a 2 HP electric motor running on standard 115–120V power at about 15 amps.

• 2 HP motor provides the power required to cut through larger and longer pieces day in and day out.

• 2,800–2,850 RPM blade speed delivers enough torque and speed for most brick, block, and paver materials when used with the proper diamond blade.

Distributors emphasize the importance of proper power supply, recommending a 10‑gauge extension cord and verification of jobsite voltage so the motor can deliver full horsepower. This ensures the saw keeps up under heavy cutting loads and avoids motor overheating due to voltage drop.

Water Pan, Pump, and Cooling System

The Masonry 350 Smart Cut uses a wet‑cutting system with a plastic water pan and submersible pump.

• Water pan: Shatter‑resistant plastic pan, protected by the saw frame to prevent damage during transport and use.

• Capacity: Approximately 10 gallons, enough for extended cutting before needing refill or cleaning.

• Pump: 3 GPM flow rate, located in a protected sump pocket so it pulls the cleanest water possible, extending pump life and improving cooling.

This water system keeps the blade cooled and drastically reduces dust, which is essential when cutting masonry materials that may contain crystalline silica.

Integrated Stand with Wheel Kit and Portability

The IMER – MASONRY 350 SMART CUT – 14” Blade / 30” Max Cutting Length w/Plunge comes with an integrated stand and wheel kit as standard equipment.

• Stand design: New stand folds up and out of the way with a spring‑loaded assist, so setup and breakdown are quick and easy, and the stand remains rock solid in use.

• Wheel kit: Each 350 Smart arrives with a wheel‑kit mounted in place, making moving the saw around the jobsite quick and easy.

This built‑in mobility means you don’t have to wrestle with separate stands or hand trucks; one person can roll the saw into position and set it up with minimal effort.

Protractor, Noise Reduction, and User-Friendly Features

The Masonry 350 Smart Cut is designed for accuracy, comfort, and ease of use.

Included equipment and features:

• 180° protractor: Large stainless steel protractor included for setting precise angle cuts on pavers and bricks.

• Noise‑reduced blade guard: The blade guard is lined with sound‑absorbing material used in the boat building industry, significantly reducing blade noise.

• Quick blade access: The blade guard can be removed with just two thumb screws, making blade changes fast and easy.

• Cutting tray stability: One roller mounted under the guide bar ensures the tray doesn’t jump or fall off, maintaining alignment.

• User‑friendly design: IMER notes that Smart Cut is user‑friendly and easy to use, with easy‑to‑remove arm guard and simple access to the electric panel for maintenance.

These details make the saw more pleasant and efficient to operate, especially on long days of cutting block or pavers.

Typical Materials and Applications

IMER markets the Smart Cut 350 as “the best solution for cutting bricks, blocks, paving stones, or tile.” Typical materials include:

• Concrete blocks and CMU

• Clay bricks and structural brick

• Concrete and porcelain pavers

• Natural stone and manufactured stone veneer (within thickness limits)

• Hardscape caps, sills, and step treads

• Some tile and large masonry units where deeper cuts are needed

Typical users and applications:

• Masonry contractors cutting block and brick on commercial and residential sites.

• Hardscape installers cutting pavers, wall blocks, and caps.

• Landscape contractors cutting patio and walkway materials.

• General contractors needing a robust jobsite masonry saw for remodels and new construction.

With its 4‑3/4" cutting depth and 30" cutting length with plunge, the IMER – MASONRY 350 SMART CUT – 14” Blade / 30” Max Cutting Length w/Plunge can handle most needs in this segment.

What’s Included with the Masonry 350 Smart Cut

Standard equipment listed by IMER includes:

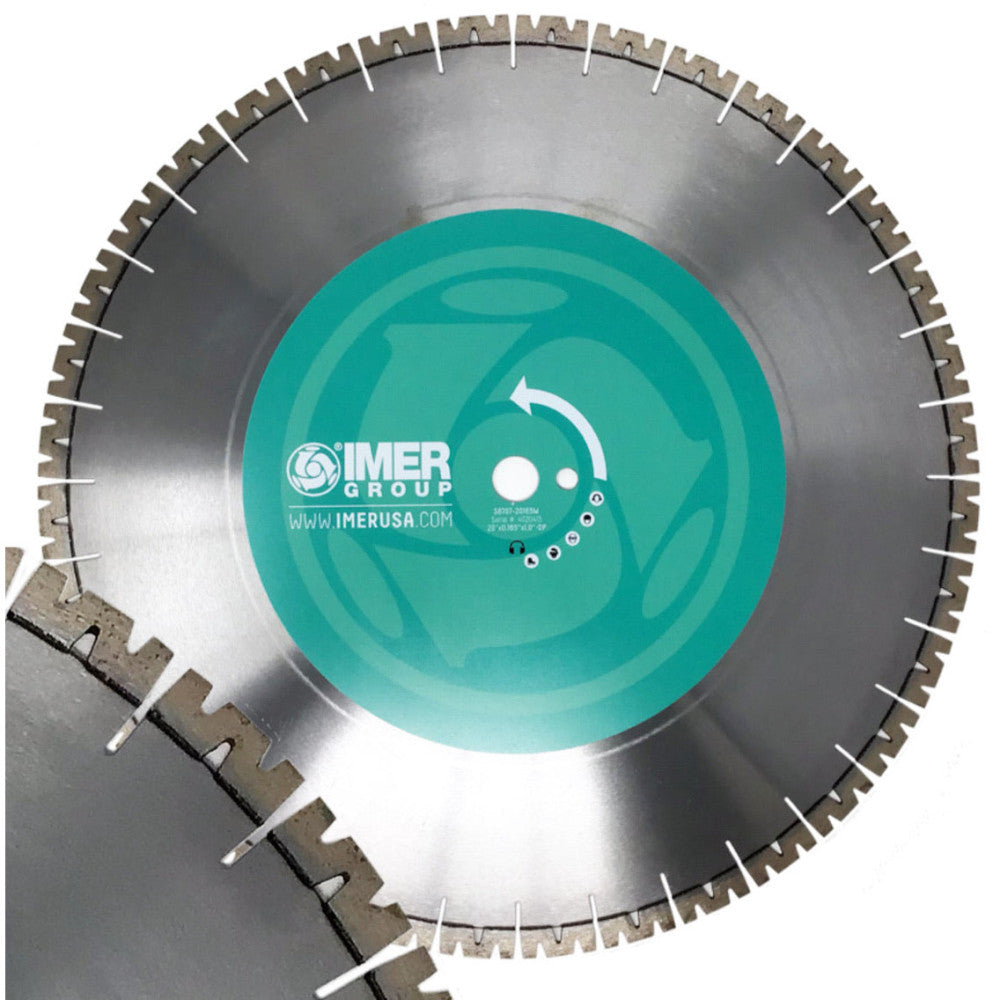

• 14" general purpose diamond blade

• 180° protractor

• Integrated stand with wheel kit

• Water pump and water pan

IMER also catalogs several compatible replacement blades for different materials, such as continuous rim porcelain blades, segmented premium masonry blades, and turbo concrete blades.

Why Choose IMER – MASONRY 350 SMART CUT – 14” Blade / 30” Max Cutting Length w/Plunge?

IMER – MASONRY 350 SMART CUT – 14” Blade / 30” Max Cutting Length w/Plunge is an excellent choice for professionals who need a powerful, accurate, and portable masonry saw that can run on standard 120V power. Its 2 HP motor, 14" blade, 4‑3/4" depth of cut, 30" max cutting length with plunge, large 20" × 16" cutting table, and smooth rolling tray on ceramic nylon rollers make it a true production‑grade brick, block, and paver saw.

With an integrated folding stand, wheel kit, noise‑reducing blade guard, 180° protractor, 10‑gallon water pan with 3 GPM pump, and user‑friendly design, the Masonry 350 Smart Cut delivers sharp, accurate cuts pass after pass, year after year, on demanding masonry and hardscape jobs.
