Imer IM 35 Electric Scissor Aerial Lift

Imer's Electric Scissor Lifts lead the industry with innovative technologies as a direct result of years of experience, concentrated research, and a goal to provide superior products that deliver unparalleled productivity and safety. Innovative technologies plus a commonality of parts, which simplifies maintenance and improves parts costs and accessibility. Engineered to be compact and light-weight for easy clearance and maximum versatility. Reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles. Operators may drive in any position, including at full height, providing superior productivity.The IM Series scissors ensure the maximum capacity in both the platform and on the manual deck extension. They offer traction and stability at maximum height, even with two workers on the fully extended platform.

Features

• Electric front wheel drive motors
• Negative electromagnetic parking brakes
• 90° wheel steering
• Manual deck extension 51°

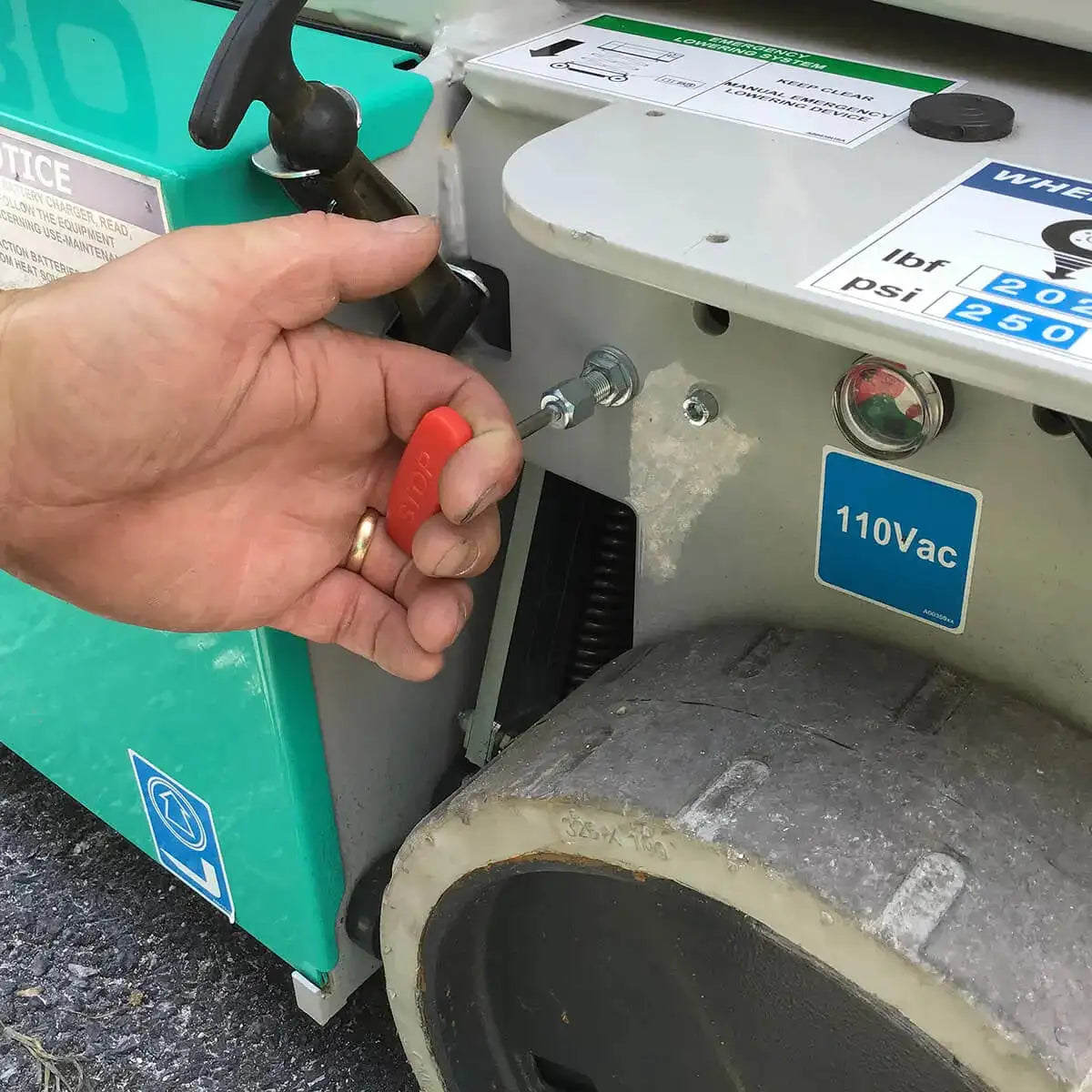

• Manual emergency lowering device
• Cylinder holding valve
• Traction batteries 24 V
• Battery charger: 24 V / 30A
• Battery charger with automatic switch-off
• Audible motion alarm, horn, hour meter
• Inclinometer with motion cut-out and alarms
• Mechanical wheel drive release for emergency hauling
• Cushioned non-marking tires
• Electrical scissor protection
• Pothole protection
• Battery control system with low-voltage cut-out protection
• Fast action fold-able railings
• Overload sensor
• AC power to platform
• Free shipping from IMER factory warehouse

Imer IM 35 Electric Scissor Aerial Lift is a compact, 100% electric scissor lift series engineered to deliver safe, high‑productivity access for indoor and light outdoor work at heights up to 45 feet. With a narrow 35‑inch chassis, powerful 24V electric drive, and industry‑leading safety features, the IM 35 series is designed for contractors, facility managers, and rental fleets that need reliable vertical access in tight, congested spaces.

Overview of the Imer IM 35 Electric Scissor Aerial Lift

The Imer IM 35 Electric Scissor Aerial Lift refers to IMER’s IM 35 series of micro scissor lifts, primarily the IM 3534 and IM 3540/3546 models. These units share a common 35‑inch base width and compact footprint but differ in platform height and working height:

• IM 3534 E / IM 3534

  • Platform height: about 33 ft.

  • Working height: about 39 ft.

• IM 3540 / IM 3546

  • Platform height: approximately 32–39 ft depending on configuration.

  • Working height: approximately 39–45 ft.

All IM 35 models are fully electric scissor lifts with front‑wheel electric drive motors, on‑board traction batteries, and integrated chargers for quiet, emission‑free operation in warehouses, plants, retail spaces, and commercial construction.

Key Specifications of the IM 35 Series

Contractors Direct and IMER USA spec sheets highlight the core technical data for the IM 35 electric scissor aerial lifts:

• Working height

  • IM 3534 / IM 3534 E: 39 ft.

  • IM 3540 / IM 3546: up to 45 ft.

• Platform height

  • IM 3534: 33 ft.

  • IM 3540: 40 ft (approximate).

• Base width

  • 35 inches (2 ft 11 in) overall width for all IM 35 models.

• Platform length and extension

  • Basket length: about 7 ft 5 in.

  • Extended platform length: about 11 ft 8 in with manual deck extension.

  • Deck extension travel: approximately 39–51 inches depending on model.

• Power and drive

  • Motor rating: 24V, about 4 HP (electric drive).

  • Traction batteries: 24V 185Ah (C5).

  • Integrated 24V / 30A battery charger with automatic cut‑off.

• Weight

  • IM 3534: roughly 6,250 lb.

  • IM 3546: roughly 7,110 lb.

These specs give the IM 35 enough height and platform space for two workers plus tools while staying narrow enough to pass through standard double doors and maneuver in tight aisles and corridors.

Compact Design for Tight Indoor Spaces

A standout advantage of the Imer IM 35 Electric Scissor Aerial Lift is its ultra‑compact 35‑inch base width. IMER emphasizes that the chassis is engineered to be compact and lightweight for easy clearance and maximum versatility:

• Narrow width fits in tight industrial aisles, between racking, and into congested work areas that wider lifts cannot access.

• Optimized weight distribution and small steering angles improve maneuverability in restricted spaces.

• Fast‑action foldable guardrails make it easier to move the unit through low doorways or under overhead obstructions.

This design makes the IM 35 series ideal for:

• Indoor maintenance in warehouses, distribution centers, and manufacturing plants.

• Mechanical, electrical, and plumbing installations in commercial buildings.

• Fit‑out work in retail stores, offices, and institutional facilities.

Despite its compact size, the IM 35 series still delivers generous capacity and a large working platform. IMER notes that IM Series scissors ensure maximum capacity on both the main platform and the manual deck extension, maintaining traction and stability even at full height with two workers onboard.

Electric Drive and Power System

The Imer IM 35 Electric Scissor Aerial Lift relies on an efficient, low‑maintenance electric powertrain:

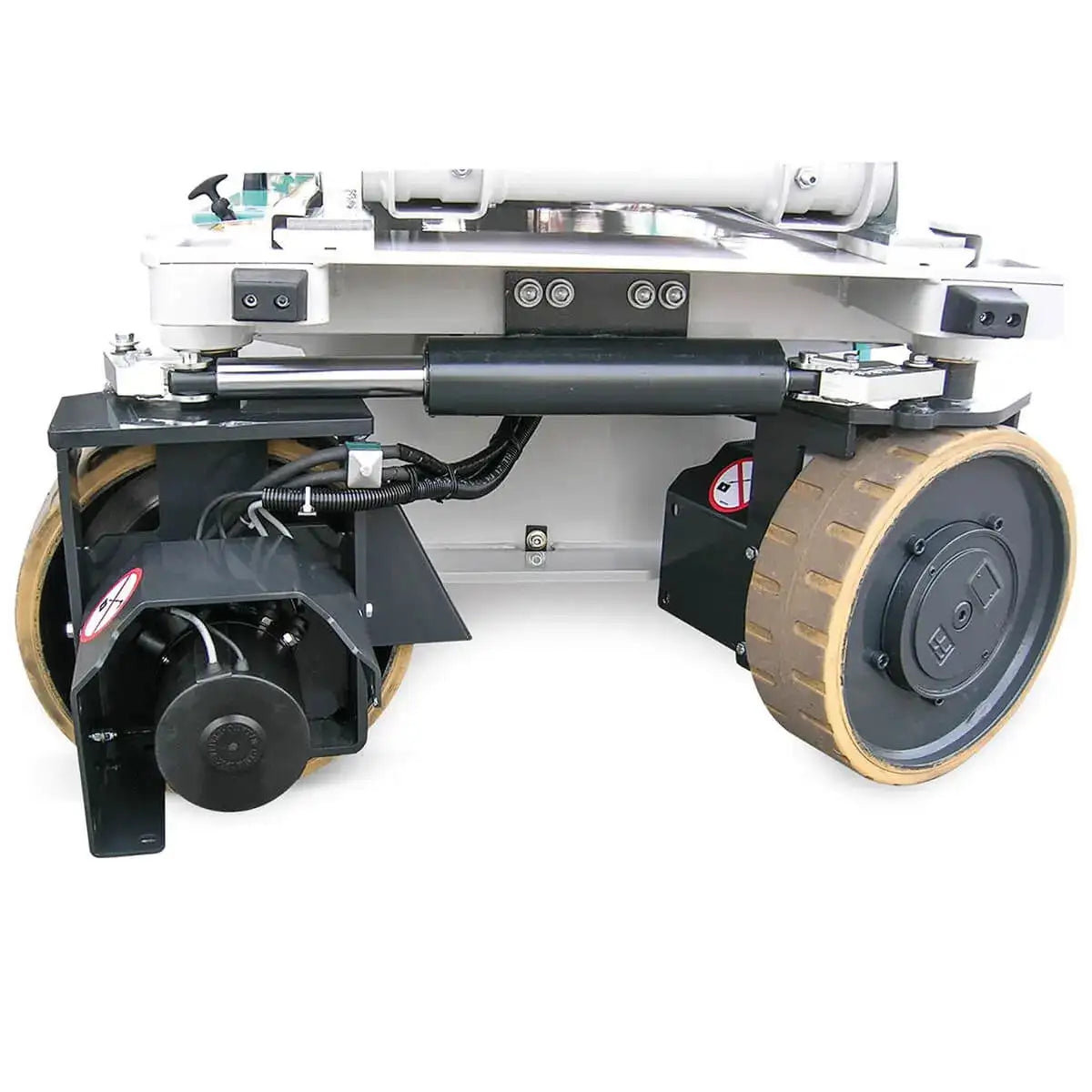

• Electric front wheel drive motors

  • Provide quiet, emissions‑free operation for indoor use.

  • Offer precise proportional control for smooth driving and positioning.

• Traction batteries

  • 24V 185Ah (C5) traction battery pack supplies both lifting and drive power.

  • Designed for a full workday of typical use when properly charged.

• On‑board charger

  • 24V / 30A battery charger with automatic cut‑off to protect batteries.

  • Allows convenient overnight charging on standard AC power.

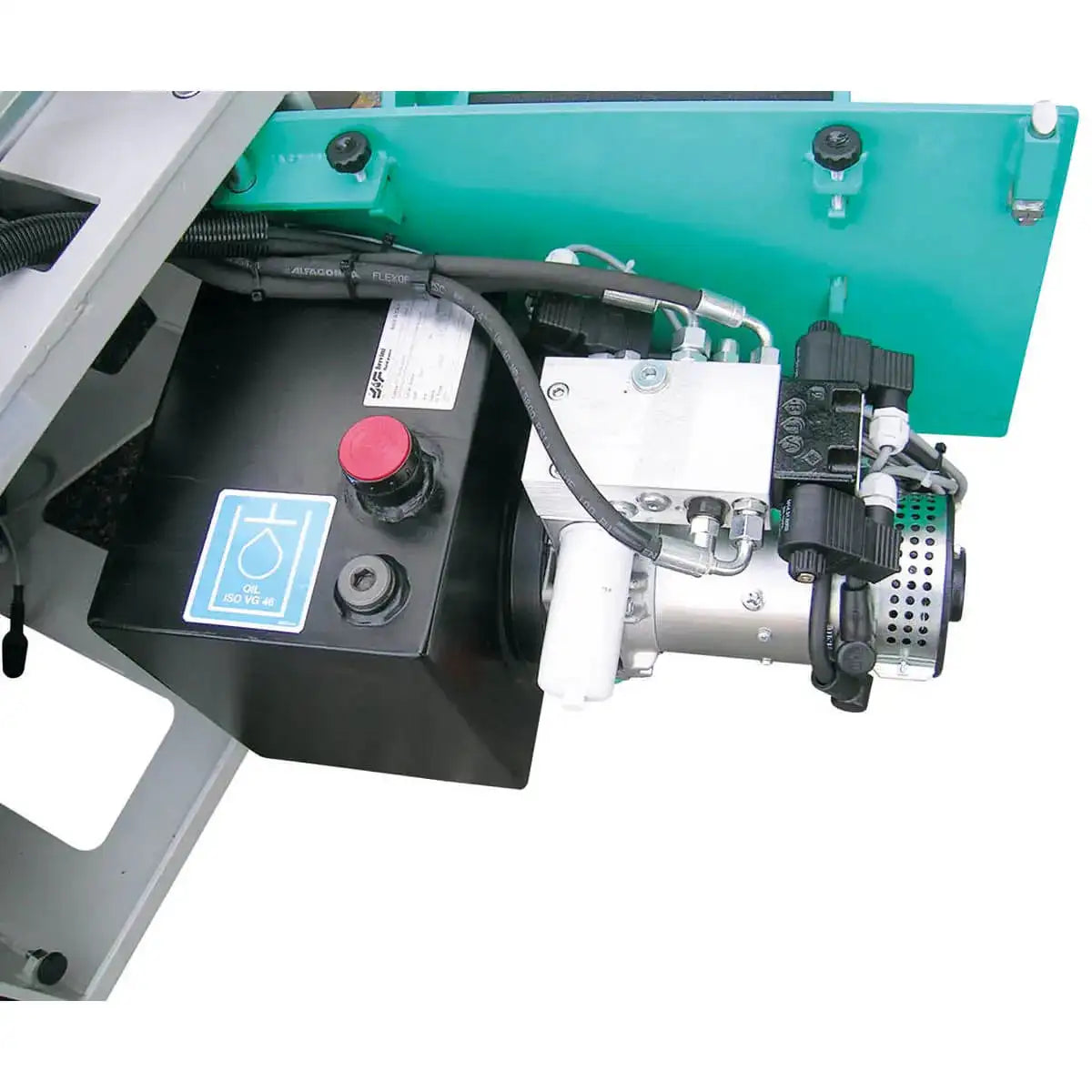

• Electric pump for lifting and steering

  • The IM 35 manual notes an electric pump serving the lift cylinders and steering system, ensuring smooth operation.

The electric design reduces noise, eliminates onsite exhaust emissions, and cuts routine engine maintenance compared to engine‑powered lifts, which is especially valuable for indoor contractors and rental fleets.

Safety Features and Compliance

Safety is central to the Imer IM 35 Electric Scissor Aerial Lift’s design. IMER documentation and IM Series catalogs emphasize multiple built‑in protections:

• Tilt meter (inclinometer) with motion cut‑out and alarms

  • Stops travel and lift functions if unsafe tilt conditions are detected.

• Negative electromagnetic parking brakes

  • Automatically engage when the lift is stopped or power is off, preventing unintended movement.

• Pothole protection

  • Mechanical pothole protection system to enhance stability when elevated on uneven surfaces.

• Electrical and hydraulic safety

  • Non‑return valves / cylinder holding valves on lifting cylinders.

  • Electric scissor protection to prevent unsafe movement.

• Platform safety systems

  • Overload sensor / platform weight management to prevent lifting when overloaded.

  • Fast‑action foldable guardrails and toeboards to secure workers.

  • AC power to platform for corded tools.

• Alerts and controls

  • All‑movement audible alarm, horn, and hour meter as standard.

  • Battery level control with low‑voltage cut‑out protection to keep the lift from operating in unsafe low‑power conditions.

IM 35 is compliant with ANSI A92.20 / 2018 and corresponding CSA and EN280 standards, ensuring it meets stringent North American and European design and safety requirements for mobile elevating work platforms.

Productivity‑Focused Features

Beyond compact size and safety, the Imer IM 35 Electric Scissor Aerial Lift incorporates several features specifically aimed at boosting productivity on the job:

• Drive at full height

  • Operators may drive in any position, including at full elevation, to reposition quickly without lowering the platform.

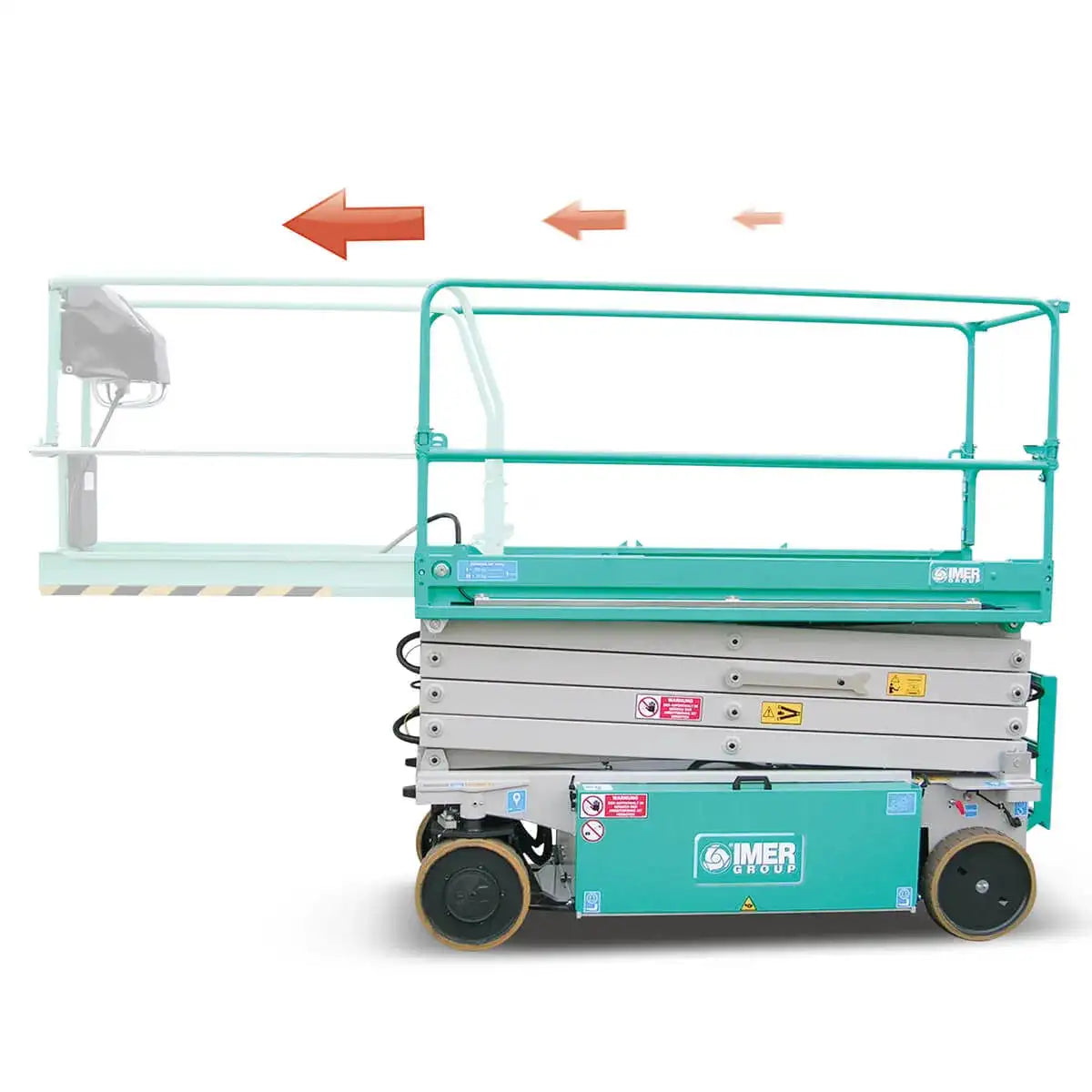

• Manual deck extension

  • Manual extension (approximately 39–51 in) increases platform length so two workers can reach farther without moving the base unit.

• 90° wheel steering

  • Tight steering angles improve maneuvering in confined work zones and around obstacles.

• Mechanical wheel drive release

  • Allows emergency hauling or repositioning if the machine loses power.

Collectively, these features let crews spend more time working at height and less time re‑positioning, lowering, or manually moving equipment.

Standard and Optional Equipment

IMER and dealer listings show a robust standard equipment package on the IM 35 scissor lifts:

• Manual deck extension designed for two workers.

• Electric traction on front wheels.

• Negative electromagnetic parking brakes.

• 90° wheel steering.

• Manual emergency lowering.

• Non‑return / holding valves on lift cylinders.

• 24V traction batteries and 24V/30A charger with automatic switch‑off.

• All movement alarm, horn, hour meter.

• Tilt meter with motion cut‑out and alarm.

• Mechanical release for emergency hauling.

• Solid rubber non‑marking tires.

• Electric scissor and pothole protection.

• Battery level monitoring with low‑voltage protection.

• Foldable guardrails.

• Platform weight management / overload sensor.

• AC power to platform.

• Flashing beacon (listed as standard on some IM 35 documents).

Optional equipment commonly offered includes:

• 120V cable with plug, socket, and safety cut‑out to the platform.

• Gel battery option for IM 35 series (reduced maintenance, better deep‑cycle characteristics).

• Additional flashing beacon kit.

• Compressed air line to platform (on some configurations and packages).

These options allow rental houses and end‑users to tailor the IM 35 lift to their specific jobsite requirements and maintenance preferences.

Typical Applications for the Imer IM 35 Electric Scissor Aerial Lift

Given its size, height, and electric drive, the Imer IM 35 Electric Scissor Aerial Lift is well suited for a wide range of tasks, including:

• Building maintenance

  • Lighting, HVAC, sprinkler systems, and signage in warehouses and large commercial spaces.

• Construction and fit‑out

  • Drywall, framing, electrical, mechanical, and finish work in multi‑story buildings.

• Industrial and manufacturing

  • Overhead conveyor service, crane inspections, process piping, and plant maintenance.

• Institutional and retail

  • Facility upkeep in schools, hospitals, malls, and big‑box retail environments.

Its non‑marking tires, zero local emissions, and quiet operation make it especially attractive for sensitive indoor environments where guests, patients, or shoppers are present.

Why Choose the Imer IM 35 Electric Scissor Aerial Lift

The Imer IM 35 Electric Scissor Aerial Lift stands out in the micro scissor lift category because it combines narrow width, full‑height drive capability, and robust safety systems in one compact package. For contractors and rental fleets, the benefits include:

• Access to 39–45 ft working heights in spaces where larger lifts cannot fit.

• Reduced operating costs and maintenance thanks to the electric powertrain and onboard charger.

• Strong safety compliance with ANSI A92.20 / CSA / CE & EN280.

• High productivity through drive‑at‑height capability, manual deck extension, and intuitive controls.

If you need an indoor‑ready, compact aerial work platform that maximizes reach, safety, and maneuverability, the Imer IM 35 Electric Scissor Aerial Lift is a purpose‑built solution designed to deliver long‑term reliability and performance in demanding professional environments.
