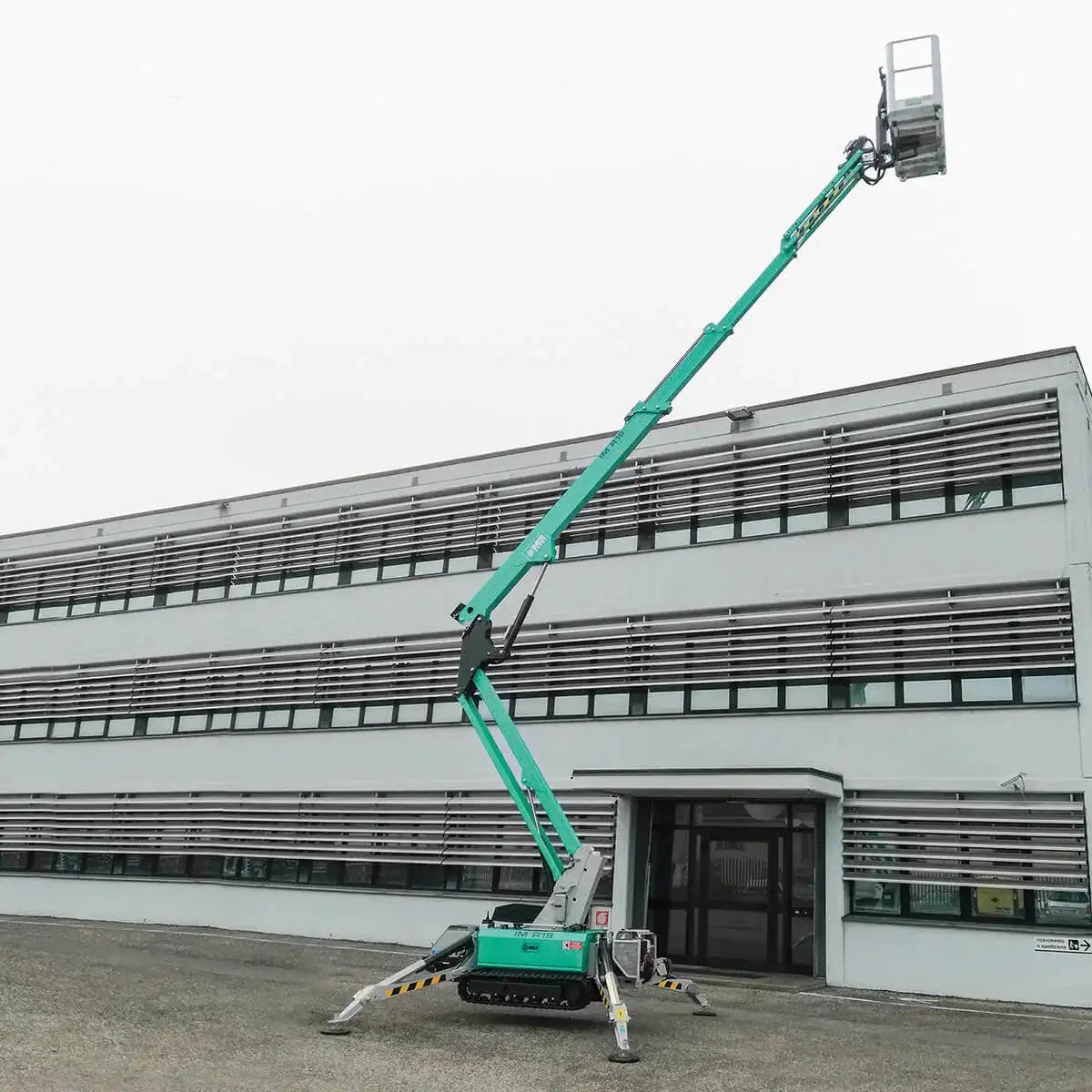

Imer Tracked Atrium Lift, IM R 19, 62 ft is a compact, tracked articulated‑and‑telescopic “spider” lift that delivers a 62 ft (19 m) working height, 56 ft (17 m) platform height, and up to 32 ft of horizontal outreach in a narrow, bi‑energy package designed for tight indoor and outdoor access. With non‑marking rubber tracks, automatic outrigger leveling, Honda GX390 engine plus onboard electric motor, and full radio remote controls, the IM R 19 is built for safe, versatile elevated access where traditional boom lifts cannot go.

Imer IM R 19 Tracked Atrium Lift – Key Specs and Performance

The IM R 19 sits in Imer’s IM R Series of tracked, indoor/outdoor articulated and telescopic lifts engineered to European and US safety standards. It combines an articulated riser, telescopic boom, and jib on a compact crawler chassis to give excellent up‑and‑over reach in tight spaces.

Core specifications for the Imer Tracked Atrium Lift, IM R 19, 62 ft:

• Working height: 62 ft (19 m)

• Platform height: 56 ft (17 m)

• Maximum side outreach (ft / lb):

  • 32 ft at 176 lb

  • 28 ft at 310 lb

  • 23 ft at 510 lb

• Platform capacity: up to 510 lb (approx. 230 kg), depending on outreach zone

• Platform size: approx. 4.6 ft × 2.3 ft (1.4 m × 0.7 m)

• Rotation: 360° (not continuous)

• Power: Bi‑energy

  • Honda GX390 gas engine for outdoor use

  • Integrated electric motor for indoor/zero‑emission work

• Tracks: Rubber tracks with hydraulically adjustable width (IM R 19 only)

• Travel widths (tracks in/out): as narrow as about 31 in (0.8 m) for single‑door access, wider for stability (per walk‑around and spec commentary).

• Weight: approx. 11,900–12,000 lb class (varies slightly by configuration; see spec sheet).

These specs let the IM R 19 deliver full 62 ft working height and meaningful side reach in a truly compact atrium‑lift format.

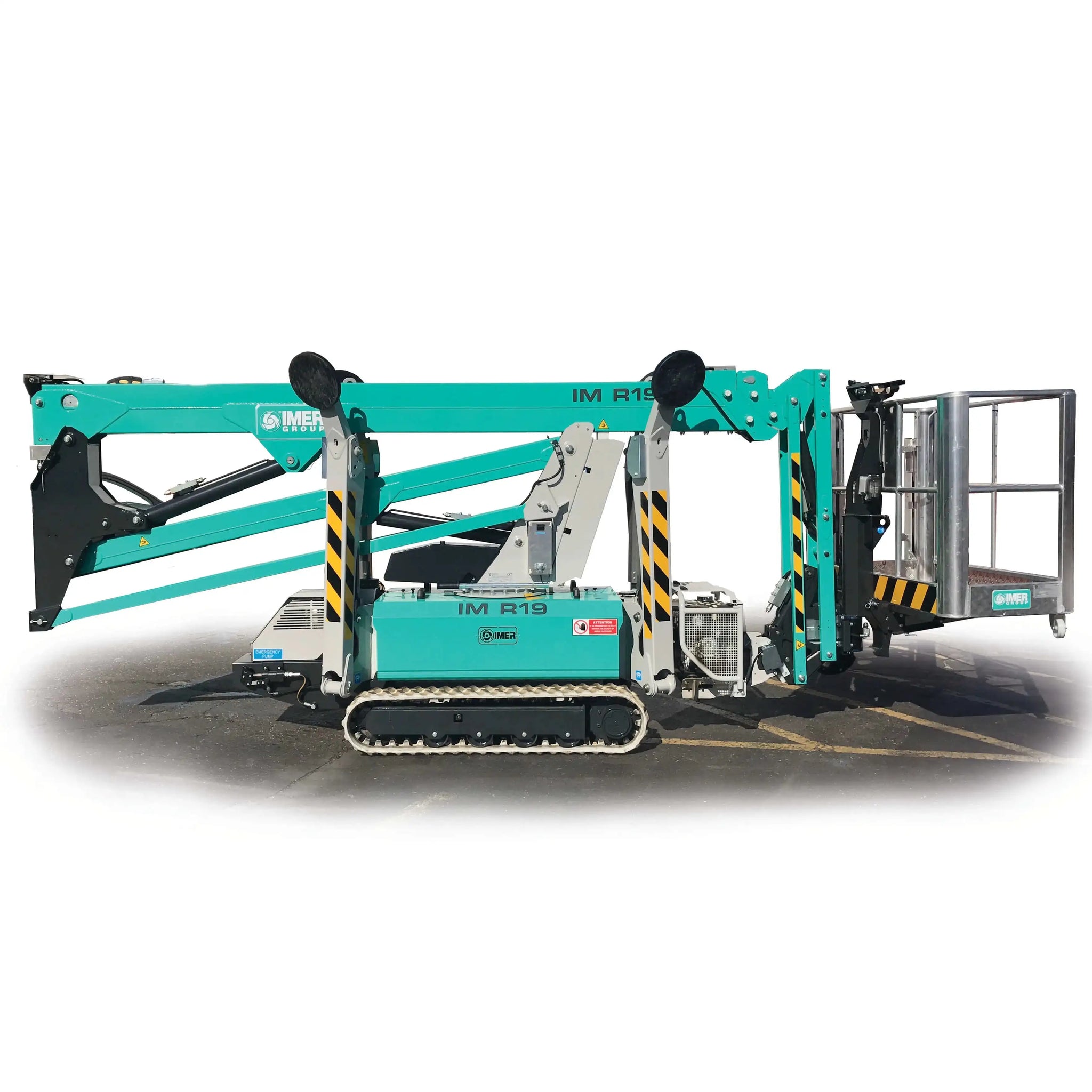

Compact Tracked Atrium Design and Access Capability

The Imer IM R 19 is designed as a “tracked atrium lift” or spider lift, optimized for narrow access and delicate surfaces.

Key access and chassis features:

• Tracked undercarriage: Rubber crawler tracks spread ground load and provide traction on soft or uneven terrain.

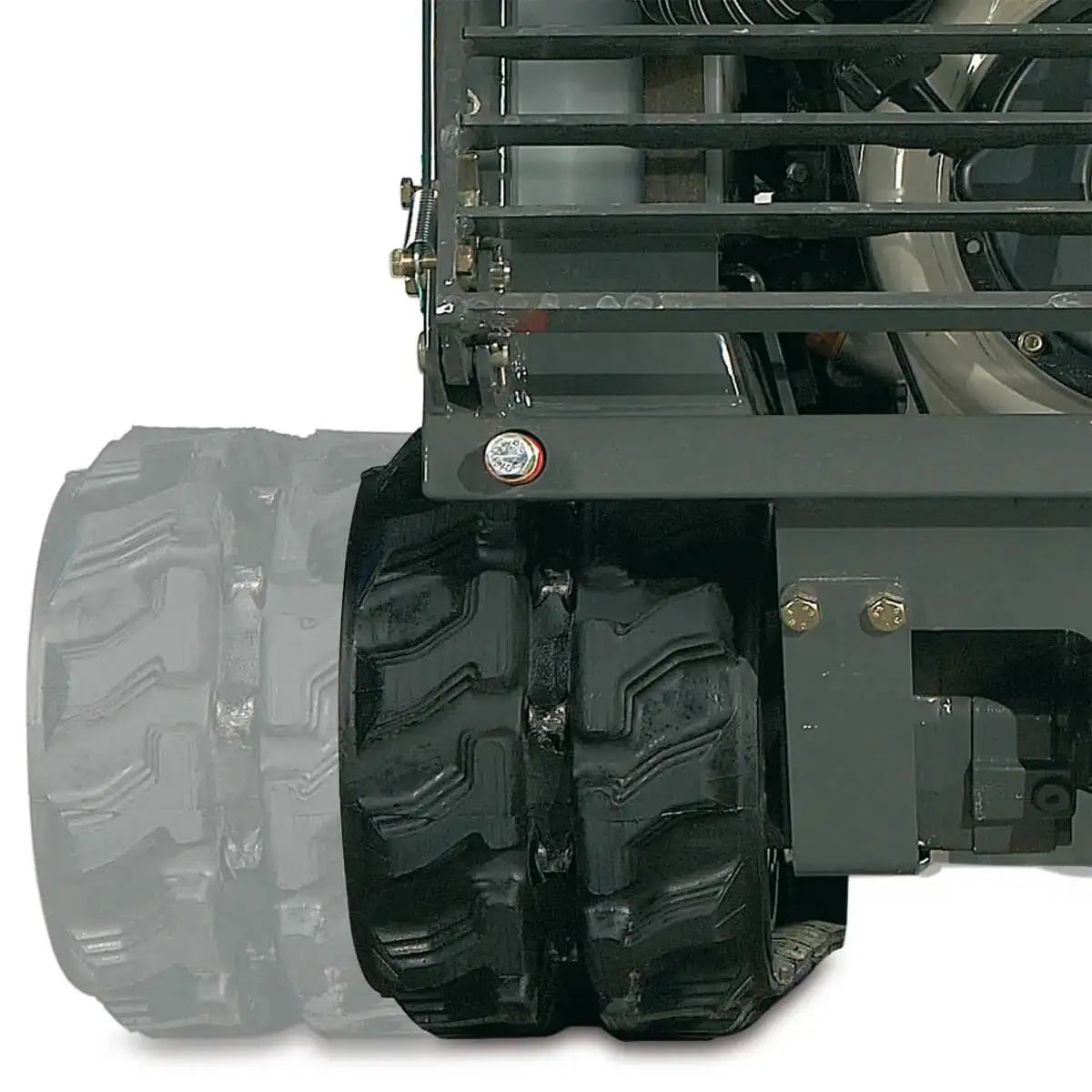

• Hydraulically adjustable track width: Tracks can be drawn in to pass through standard single doors/gates and expanded for greater stability in travel and setup.

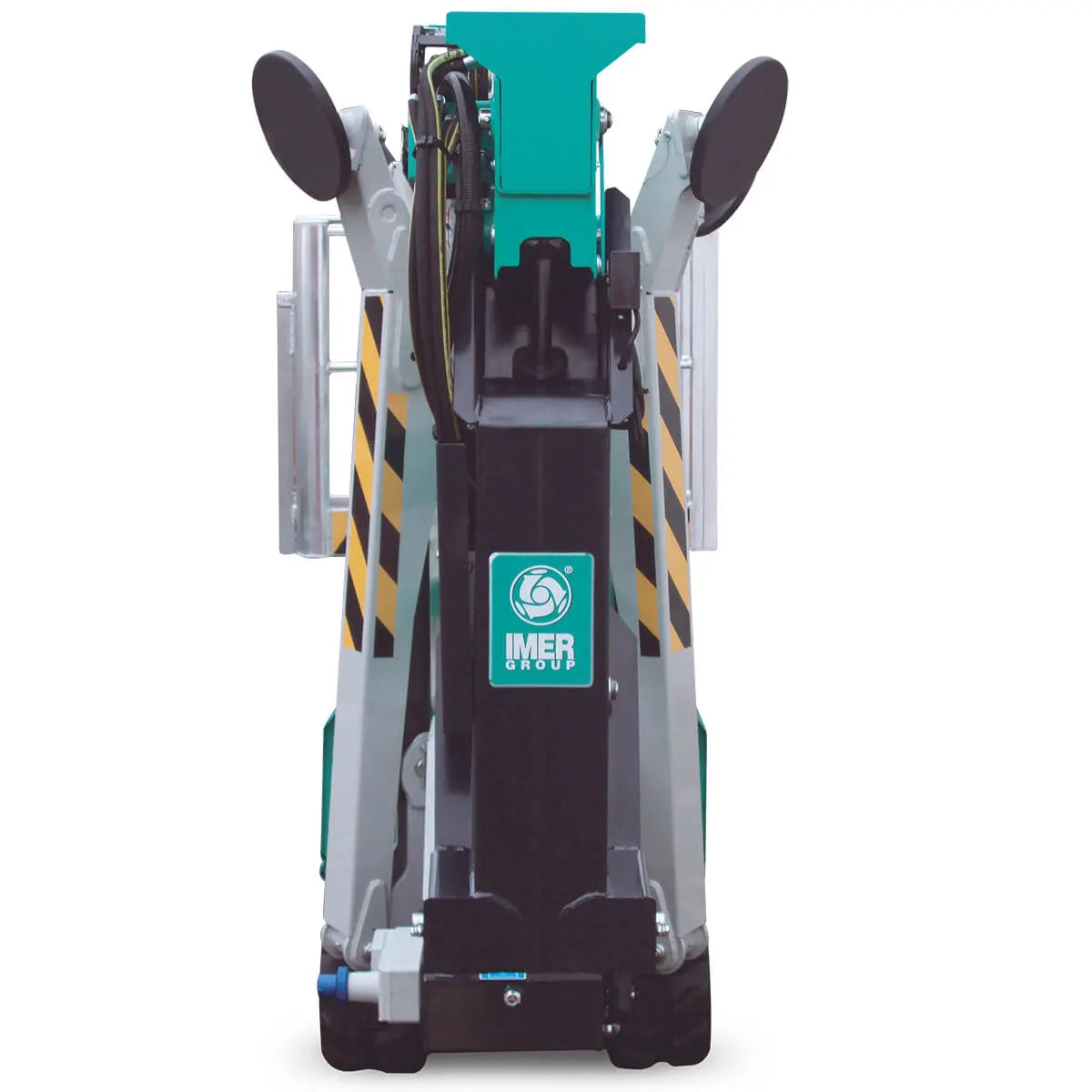

• Narrow transport width: With tracks retracted and the basket removed, the machine can be only about 31 in wide, allowing passage through many 32 in interior doors and garden gates.

• Low ground pressure: Tracks and outriggers distribute weight, making it suitable for sensitive floors (with proper mats) and landscaped surfaces.

Because it is tracked and highly compact, the Imer Tracked Atrium Lift, IM R 19, 62 ft can be used where conventional trailer or self‑propelled boom lifts cannot physically enter, such as atriums, backyards, tree‑filled properties, and tight industrial corridors.

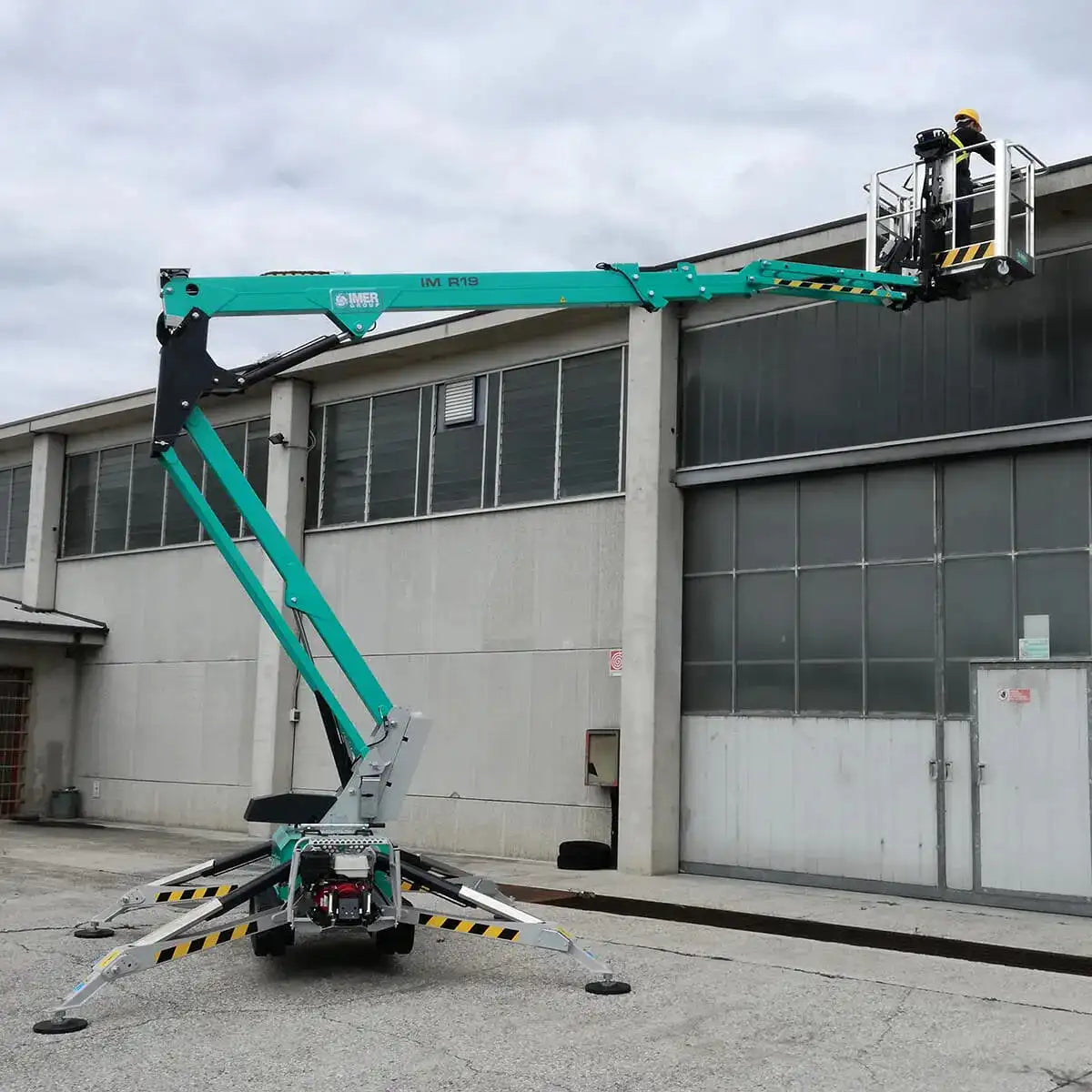

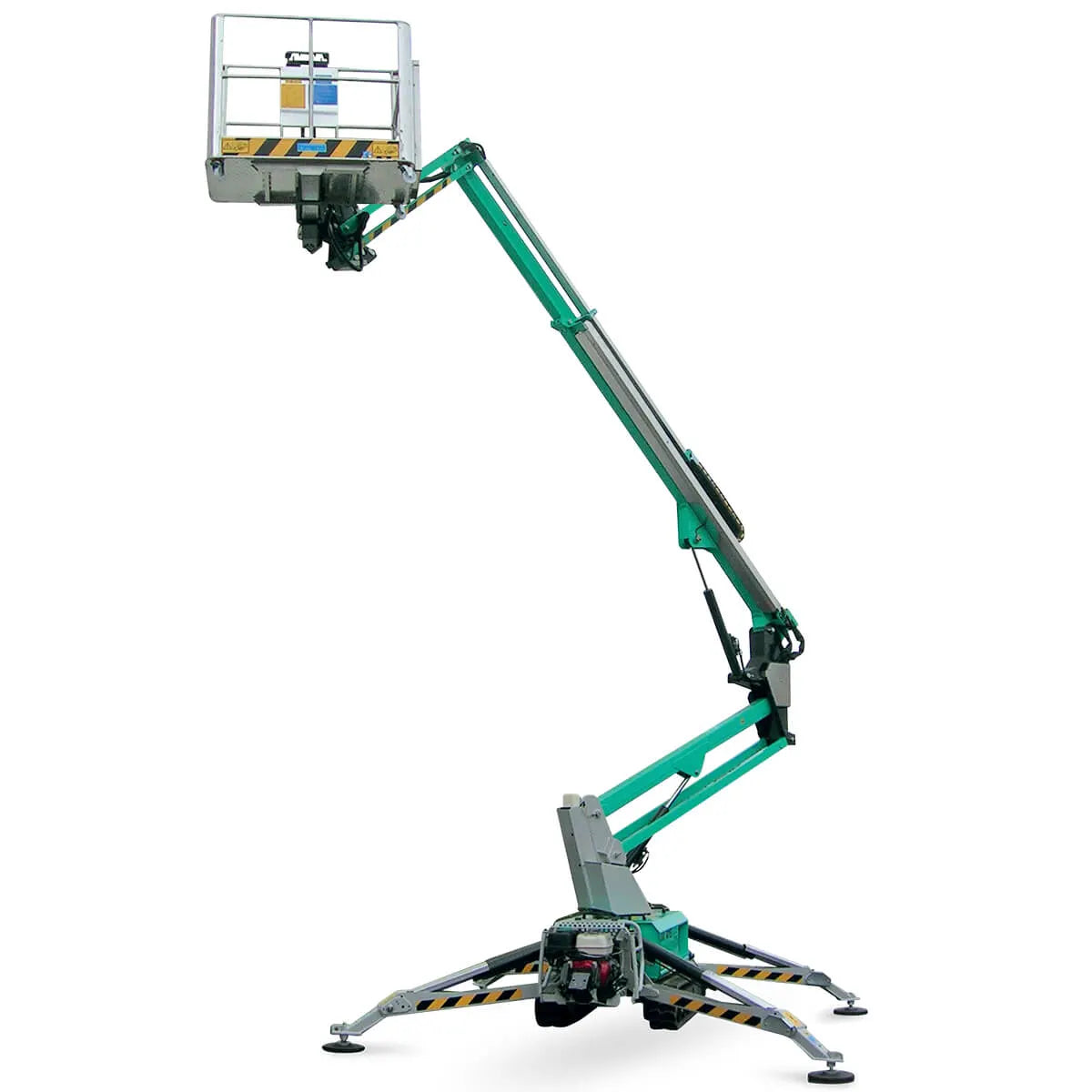

Outreach, Jib, and Work Envelope

The IM R 19 combines articulated and telescoping boom sections with a hydraulic jib, providing flexible reach above and around obstacles.

Working envelope highlights:

• Working height: 62 ft (19 m) gives access to 5–6 story structures, tall atriums, and mature trees.

• Platform height: 56 ft (17 m) measured at basket floor.

• Side outreach with load zoning:

  • Up to 32 ft outreach with 176 lb load.

  • Up to 28 ft outreach with 310 lb load.

  • Up to 23 ft outreach with full 510 lb platform capacity.

• Hydraulic jib: Standard hydraulic jib for fine positioning around branches, beams, or architectural features.

This zoning allows safer operation by limiting outreach at higher loads, while still providing excellent horizontal reach for lighter work like pruning or inspection.

Bi-Energy Power: Honda Engine + Electric Motor

The Imer IM R 19 is a true bi‑energy tracked atrium lift, offering both combustion and electric power modes.

Standard power configuration includes:

• Honda GX390 gas engine

  • For outdoor applications, travel, and full‑power boom operation.

  • Reliable, serviceable small‑engine platform widely supported in the field.

• Electric motor for indoor use

  • Plugs into AC power to run the lift with zero local emissions and reduced noise.

  • Ideal for indoor atriums, warehouses, churches, and industrial facilities.

Bi‑energy capability lets operators drive and set up outside on the engine, then switch to electric power for indoor work at height, meeting many jobsite emission and noise requirements.

Standard Safety and Control Features

IMER engineered the IM R Series with European and US safety standards at the forefront. Standard equipment on the Imer Tracked Atrium Lift, IM R 19, 62 ft includes:

• Automatic outrigger leveling system for quick, precise setup.

• 360° turret rotation (not continuous) for wide area coverage.

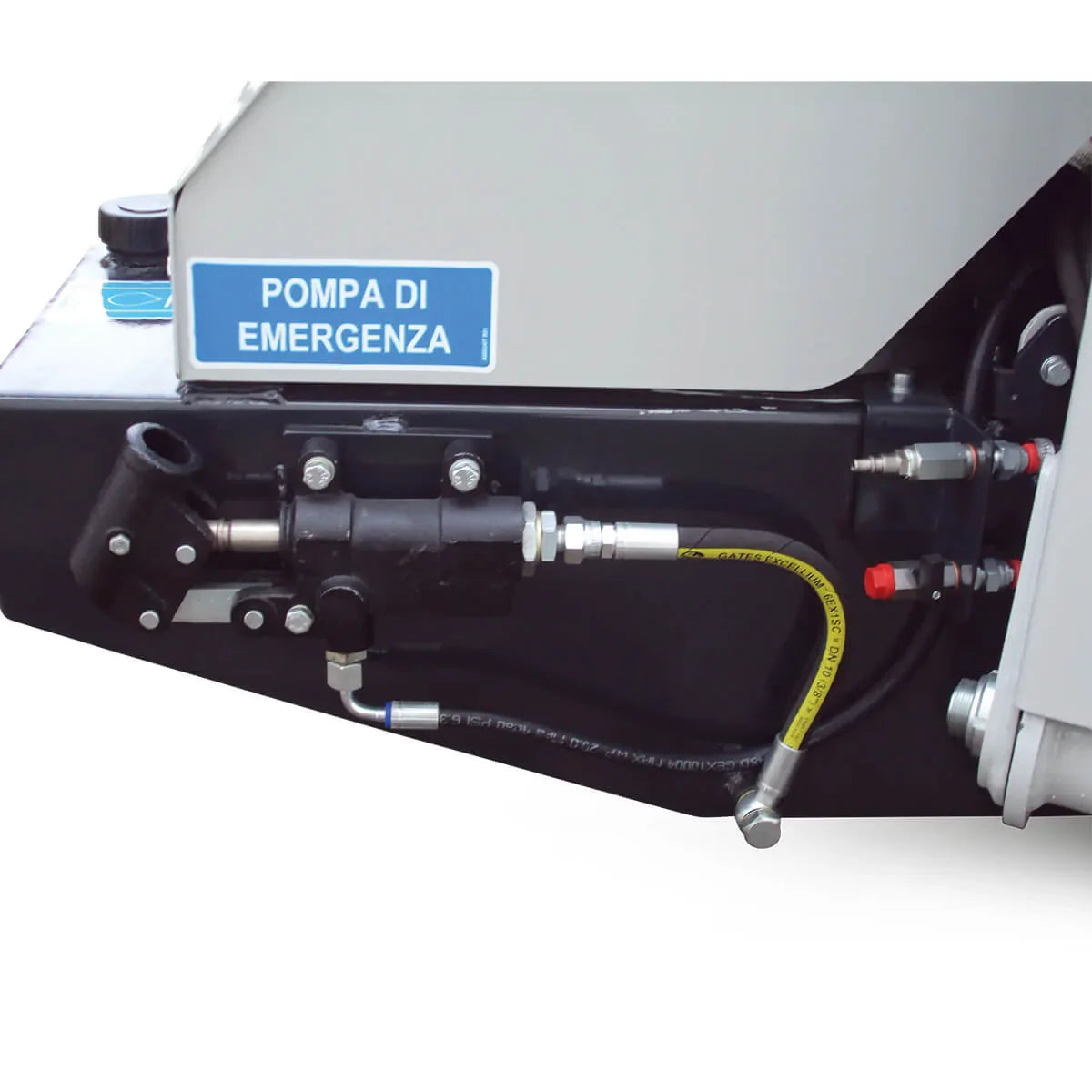

• Emergency hand pump and 12 V emergency pump for lowering in case of power failure.

• Cylinder holding valves to prevent uncontrolled movement if a hose fails.

• Load and tip detection sensors and load cell in the basket.

• Overload sensor for platform load monitoring.

• Inclinometer and spirit level for slope and leveling safety.

• Proportional hydraulic controls with diagnostics for smooth, precise movements.

• Audible alarms, overload indicators, and safety labels per ANSI/OSHA.

Newer ANSI standards also require weight limiting and basket safety interlocks, all of which are integrated on the IM R 19.

Remote Control Operation and Basket Features

The IM R 19 is designed around remote control operation for both chassis travel and aerial functions.

Control and basket features include:

• Wireless radio remote control box for travel and boom operation, allowing the operator to walk with the machine for better visibility and safety.

• Removable wired control box as backup; you can operate via corded controls if needed.

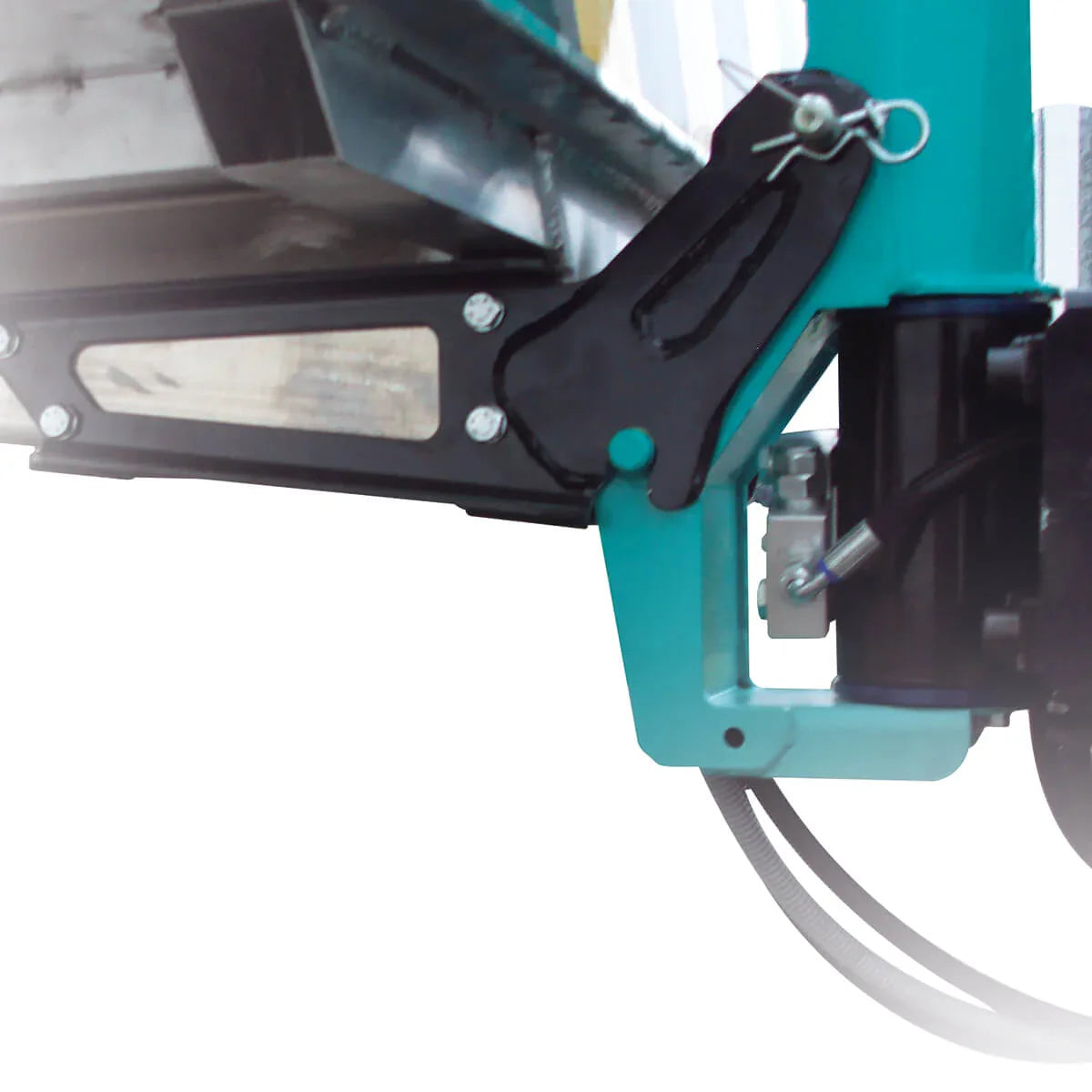

• Removable basket with one‑pin detach:

  • Basket is wider than the machine, so it can be quickly removed to pass through tight gates or doorways, then reattached.

  • Limit switch ensures basket is properly reinstalled before elevation is allowed.

• Basket utilities:

  • Air/water outlet in the platform basket with color‑coded high‑pressure lines to the base—use for pressure washing or pneumatic tools at height.

  • 120V AC power to platform using the same plug used to run the 110/120V motor, with a switch to feed power to the basket instead.

These features make the IM R 19 particularly attractive for tasks like high‑reach cleaning, painting, maintenance, and tree care where power, air, or water tools are needed aloft.

Outriggers, Setup, and Ground Protection

Like other tracked atrium lifts, the IM R 19 sets up on hydraulically deployed outriggers.

Key setup features:

• Automatic outrigger leveling system simplifies setup and reduces operator error.

• Oversized outrigger pads (approx. 14" standard on the IM R 19 US version) spread load and protect surfaces.

• Compact outrigger footprint (brace support length and width around 2.9 m × 2.98 m per European specs) allows setup in relatively tight spaces.

Optional equipment includes non‑marking rubber tracks and larger outrigger pads, further improving suitability for interior floors and sensitive surfaces.

Typical Applications for the Imer IM R 19 Tracked Atrium Lift

The Imer Tracked Atrium Lift, IM R 19, 62 ft is used in a wide range of industries where high reach, narrow access, and surface protection are critical:

• Tree care and arborist work

  • 62 ft working height and 32 ft outreach make it ideal for pruning, removals, and canopy work.

  • Tracks and outriggers handle uneven, soft ground in yards and parks.

• Building maintenance and facility management

  • Atrium, lobby, and high interior access for lighting, HVAC, signage, and cleaning.

  • Electric mode and non‑marking tracks for indoor use.

• Churches, theaters, and event venues

  • Access to high ceilings, catwalks, and stage rigging through narrow aisles and doors.

• Industrial and plant work

  • Access for inspection and maintenance in factories, refineries, and plants where floor loads and narrow paths are constraints.

• Construction and façade work

  • Curtain wall access, painting, caulking, and window replacement, especially on sites with limited room for conventional booms.

Because the IM R 19 is both bi‑energy and extremely compact, it bridges the gap between small indoor lifts and large outdoor booms, offering a single solution for diverse access challenges.

Why Choose the Imer Tracked Atrium Lift, IM R 19, 62 ft?

The Imer Tracked Atrium Lift, IM R 19, 62 ft combines a 62 ft working height, up to 32 ft horizontal outreach, 510 lb platform capacity, and 360° non‑continuous rotation in a narrow, tracked, bi‑energy package engineered to stringent European and US safety standards. Standard features such as automatic outrigger leveling, load and tip detection, Honda GX390 engine plus electric motor, removable basket, air/water and 120V power to the platform, and full radio remote operation make it a highly capable, modern spider lift for both indoor and outdoor work.

For contractors, arborists, facility managers, and rental fleets needing a versatile tracked atrium lift that can go through tight access points, protect surfaces, and still reach 62 ft with meaningful side outreach, the IMER IM R 19 offers a proven, safety‑focused solution that expands what’s possible in elevated access on challenging sites.
