Imer IM 47 Electric Scissor Aerial Lift

Imer Electric Scissor Lifts lead the industry with innovative technologies as a direct result of years of experience, concentrated research, and a goal to provide superior products that deliver unparalleled productivity and safety.The IMER IM Series includes five models of scissors which all fill a unique void in the market and share innovative technologies plus a commonality of parts, which simplifies maintenance and improves parts costs and accessibility.Engineered to be compact and light-weight for easy clearance and maximum versatility. The reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles. Operators may drive in any position, including at full height, providing superior productivity.The IM Series scissors ensure the maximum capacity in both the platform and on the manual deck extension. Delivering traction and stability at maximum height, even with two workers on the fully extended platform.

Features

• Electric front wheel drive motors
• Negative electromagnetic parking brakes with electric disengagement
• 90° steering
• Manual deck extension of 51 in
• Manual emergency lowering device
• Cylinder holding valve
• Heavy duty traction batteries 24V-250Ah/300Ah (c5)
• Battery charger with automatic switch-off
• Audible motion alarm, horn, hour meter
• Inclinometer with motion cut out and alarms
• Mechanical wheel drive release for emergency hauling
• Cushioned non-marking tires
• Electrical scissor protection
• Pothole protection
• Battery control system with low-voltage cut-out protection
• Fold down railings
• Overload sensor
• AC power to platform
• Flashing beacon
• Free shipping from IMER factory warehouse

Imer IM 47 Electric Scissor Aerial Lift is a high‑reach, 100% electric scissor lift series engineered to safely lift workers and tools to working heights up to 52 feet while remaining compact, maneuverable, and efficient for demanding indoor and light outdoor jobs. The IM 47 series includes models like the IM 4740 and IM 4746, giving contractors and facility managers flexible options for accessing elevated work in warehouses, plants, commercial buildings, and construction sites.

Overview of the Imer IM 47 Electric Scissor Aerial Lift

The Imer IM 47 Electric Scissor Aerial Lift refers to the IMER IM 47 series of indoor electric scissor lifts, primarily the IM 4740 and IM 4746 (also marketed as IM 4740 E and IM 4746 E). These models share a common design philosophy—electric drive, compact chassis, and full‑height drive capability—while offering different platform heights and working heights:

• IM 4740

  • Platform height: 40 ft.

  • Working height: 46 ft.

  • Base width: 40 inches.

• IM 4746

  • Platform height: about 46 ft.

  • Working height: 52 ft.

  • Base width: 47 inches.

Both models are fully electric scissors designed for industrial and commercial access where quiet, emissions‑free operation, strong safety features, and high productivity are essential.

Key Specifications of the IM 47 Series

Dealers and the official IMER USA product sheet detail the core specifications of the Imer IM 47 Electric Scissor Aerial Lift:

• Working height

  • IM 4740: 46 ft.

  • IM 4746: 52 ft.

• Platform height

  • IM 4740: 40 ft.

  • IM 4746: 46 ft (45 ft 7 in listed on some spec sheets).

• Base width

  • IM 4740: 40 in.

  • IM 4746: 47 in.

• Platform and extension

  • Basket/platform length: approx. 7 ft 5 in.

  • Extended platform length: approx. 11 ft 8 in with manual deck extension.

  • Deck extension travel: about 51 in.

• Capacity / personnel

  • Typical capacity: 550 lb with up to 2 people on the platform.

• Power and drive

  • Electric drive motors: 24 V / 4.0 HP.

  • Lifting hydraulic power pack: 24 V / about 5.3 HP (IM 4746 spec).

• Batteries and charger

  • Traction batteries: 24 V, 250–300 Ah (C5), depending on configuration.

  • Battery charger: 24 V / 30 A with automatic cut‑off.

• Weight and performance

  • Total weight (IM 4746): approx. 6,610 lb.

  • Drive speed: up to about 2.5 mph, with reduced “safety traction” speed at height (~0.4 mph).

  • Gradeability: about 25%.

These specifications give the IM 47 series a powerful combination of vertical reach, generous platform space, and indoor‑friendly dimensions.

Compact Design and Maneuverability

IMER describes the IM 47 Electric Scissor Aerial Lift as “engineered to be compact and light‑weight for easy clearance and maximum versatility.” The design focuses on:

• Optimized base width

  • 40–47 in base width lets the lift navigate through typical industrial aisles and work areas while still providing platform stability at height.

• Optimized weight distribution

  • Weight and center of gravity are tuned to give stability at full height while maintaining agile steering and tight turning radii.

• Small steering angles and zero internal radius

  • IM 4746 specs list 0 ft internal steering radius and about 7 ft 8.5 in external steering radius, helping operators maneuver in congested spaces.

• Fast‑action foldable guardrails

  • Fold‑down rails reduce transport height and allow the lift to pass through lower doorways or under obstacles.

This compact, agile design makes the IM 47 series ideal for indoor work in warehouses, plants, hangars, and commercial structures where floor space and clearance are limited.

Electric Drive System and Powertrain

The Imer IM 47 Electric Scissor Aerial Lift is built around a robust, low‑maintenance electric system that powers both drive and lift functions:

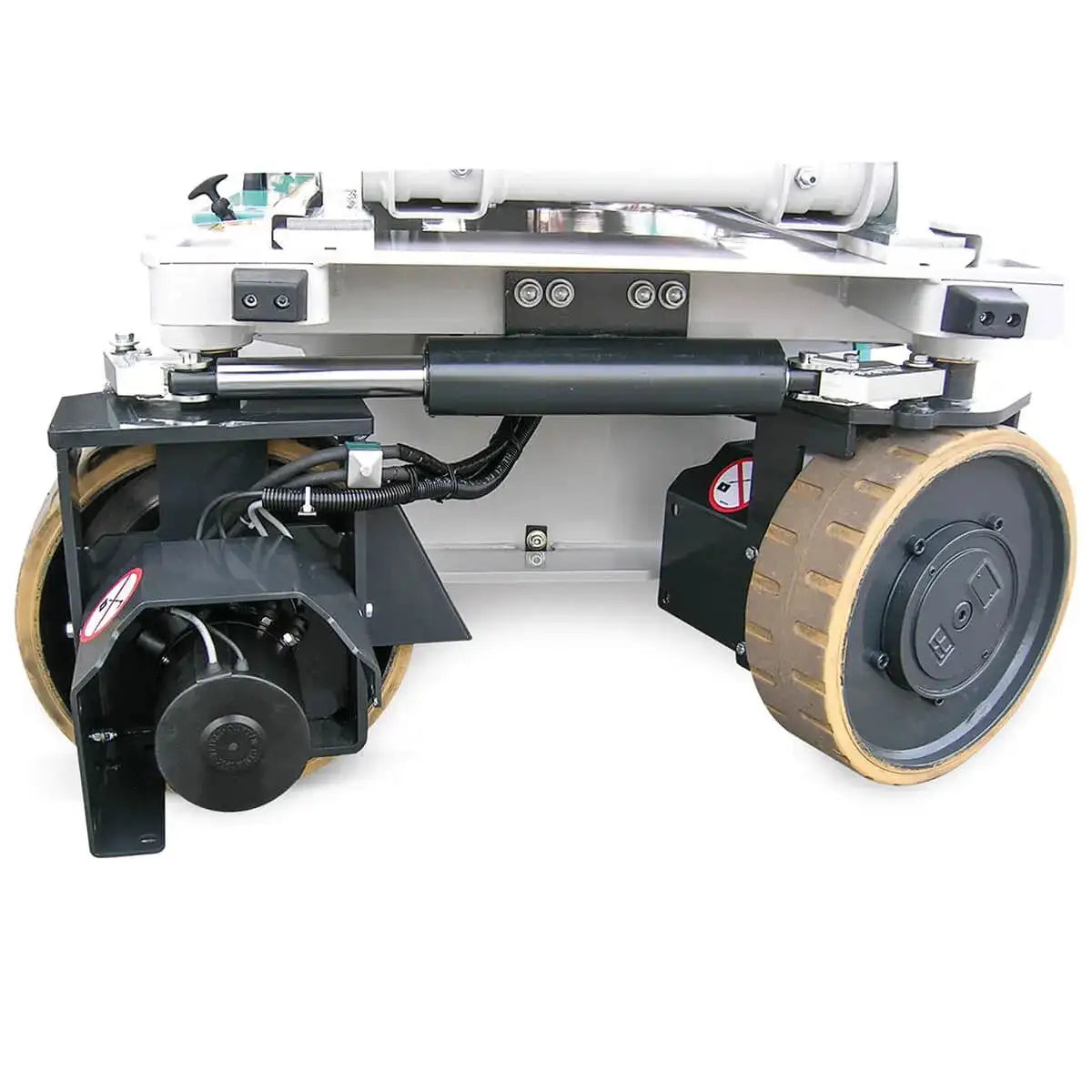

• Electric front wheel drive motors

  • 24 V / 4.0 HP drive motors deliver smooth, proportional control and strong traction on flat indoor surfaces.

• Traction battery pack

  • Heavy‑duty deep‑cycle batteries (24 V, up to 300 Ah C5) are sized for a full workday of typical lift and drive operations when properly charged.

• On‑board charger

  • 24 V / 30 A charger with automatic cut‑off allows convenient plug‑in charging and helps maximize battery life.

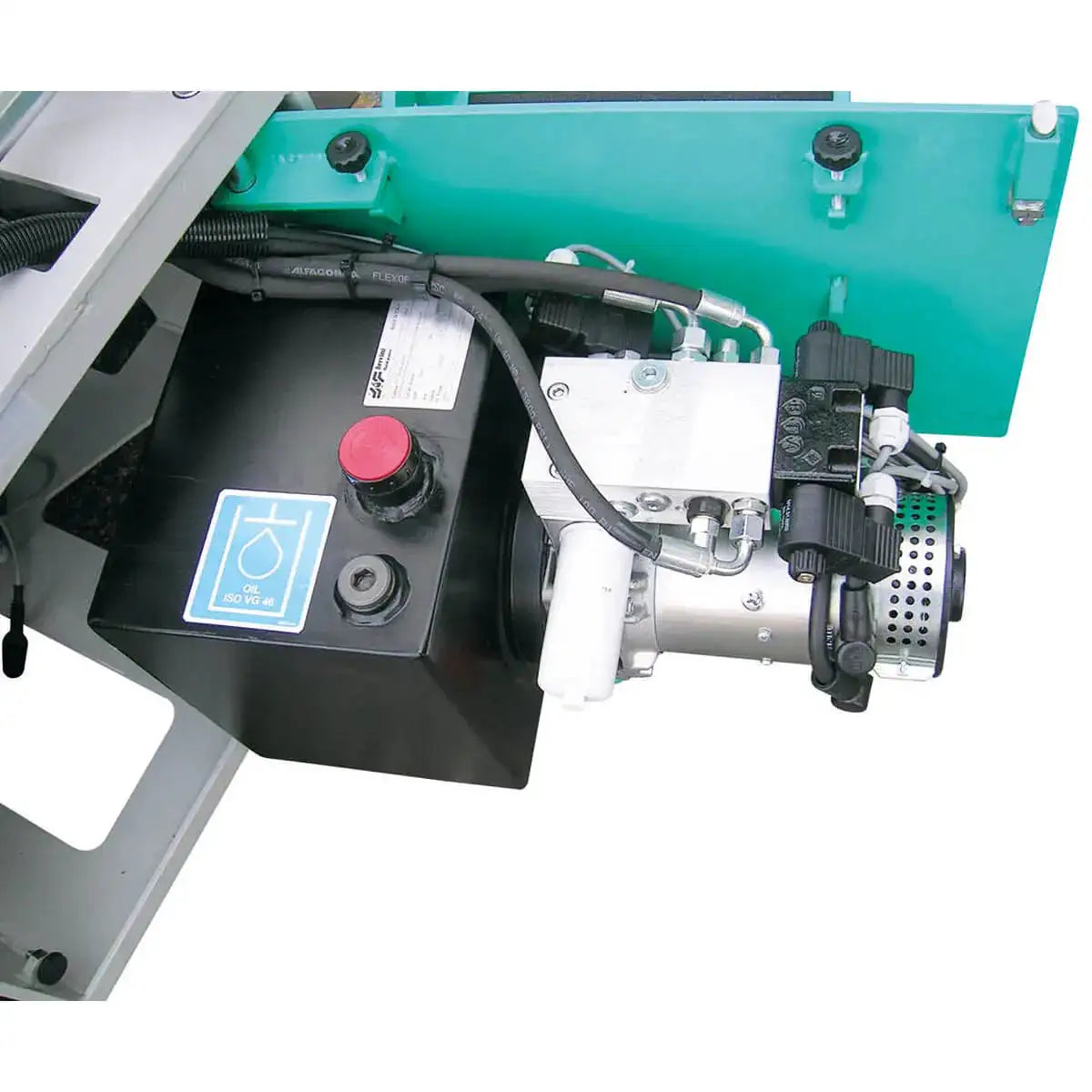

• Hydraulic lift pack

  • A 24 V hydraulic power unit (around 5.3 HP on IM 4746) drives the lifting cylinders for raising and lowering the scissor stack.

The electric powertrain means no engine emissions, reduced noise, and lower overall maintenance compared to combustion‑powered machines—key benefits for indoor and sensitive environments.

Advanced Safety Features and Standards

Safety is a core feature of the Imer IM 47 Electric Scissor Aerial Lift. IMER’s IM‑series scissors are built to meet modern standards with multiple redundant safety systems:

• Negative electromagnetic parking brakes

  • Automatically engage when the machine stops or power is off, holding the lift securely in place.

• Tilt meter with motion cut‑out and alarms

  • Inclinometer cuts drive and lift movement if the machine exceeds allowable tilt, and warns the operator with alarms.

• Pothole protection

  • Pothole protection system deploys to enhance stability when elevated on slightly uneven surfaces.

• Non‑return / holding valves on cylinders

  • Cylinder holding valves prevent uncontrolled descent if a hydraulic line fails.

• Battery and electrical protection

  • Battery control system with low‑voltage cut‑out to prevent unsafe operation and protect batteries.

  • Electric scissor protection to prevent unsafe motion of the scissor stack.

• Platform safety systems

  • Overload sensor / platform weight management to prevent lifting beyond rated capacity.

  • Foldable guardrails, toeboards, and entry gates to secure personnel.

• Audible and visual alerts

  • All‑movement audible alarm, horn, flashing beacon, and hour meter included as standard on IM 47 series models.

The IM 47 Electric Scissor Aerial Lift is listed as compliant with ANSI 92.20 / CSA / CE & EN280, ensuring it meets up‑to‑date international safety standards for mobile elevating work platforms.

Productivity‑Boosting Features

Beyond height and safety, the Imer IM 47 Electric Scissor Aerial Lift includes features specifically designed to maximize daily productivity:

• Drive in any position, including at full height

  • IMER highlights that the IM 47 series allows operators to drive while fully elevated, reducing time lost to repeated lowering and raising cycles.

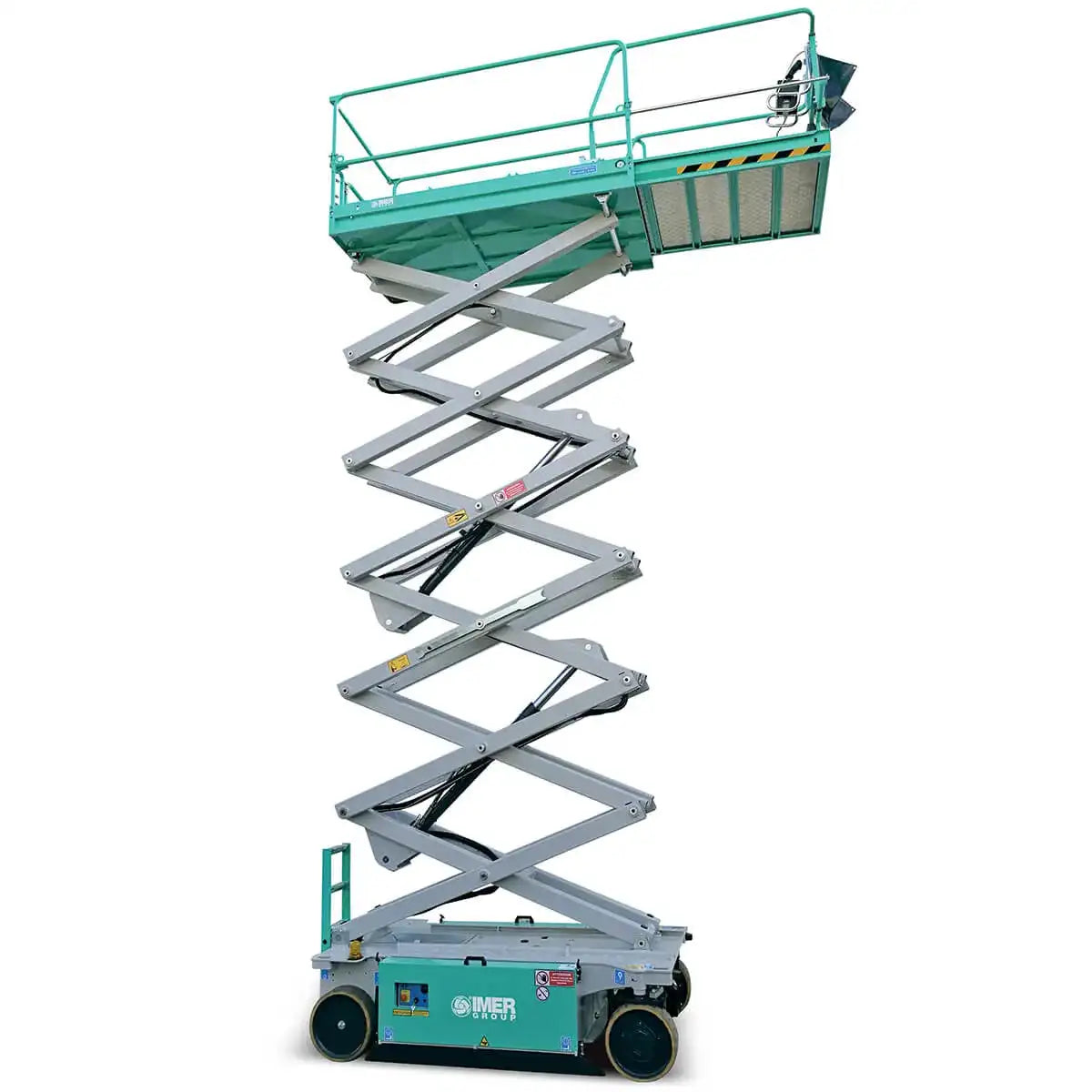

• Manual deck extension (holds two people)

  • 51 in manual deck extension increases reach without repositioning the base machine and is rated for two workers, allowing more efficient work along walls, ceilings, and facades.

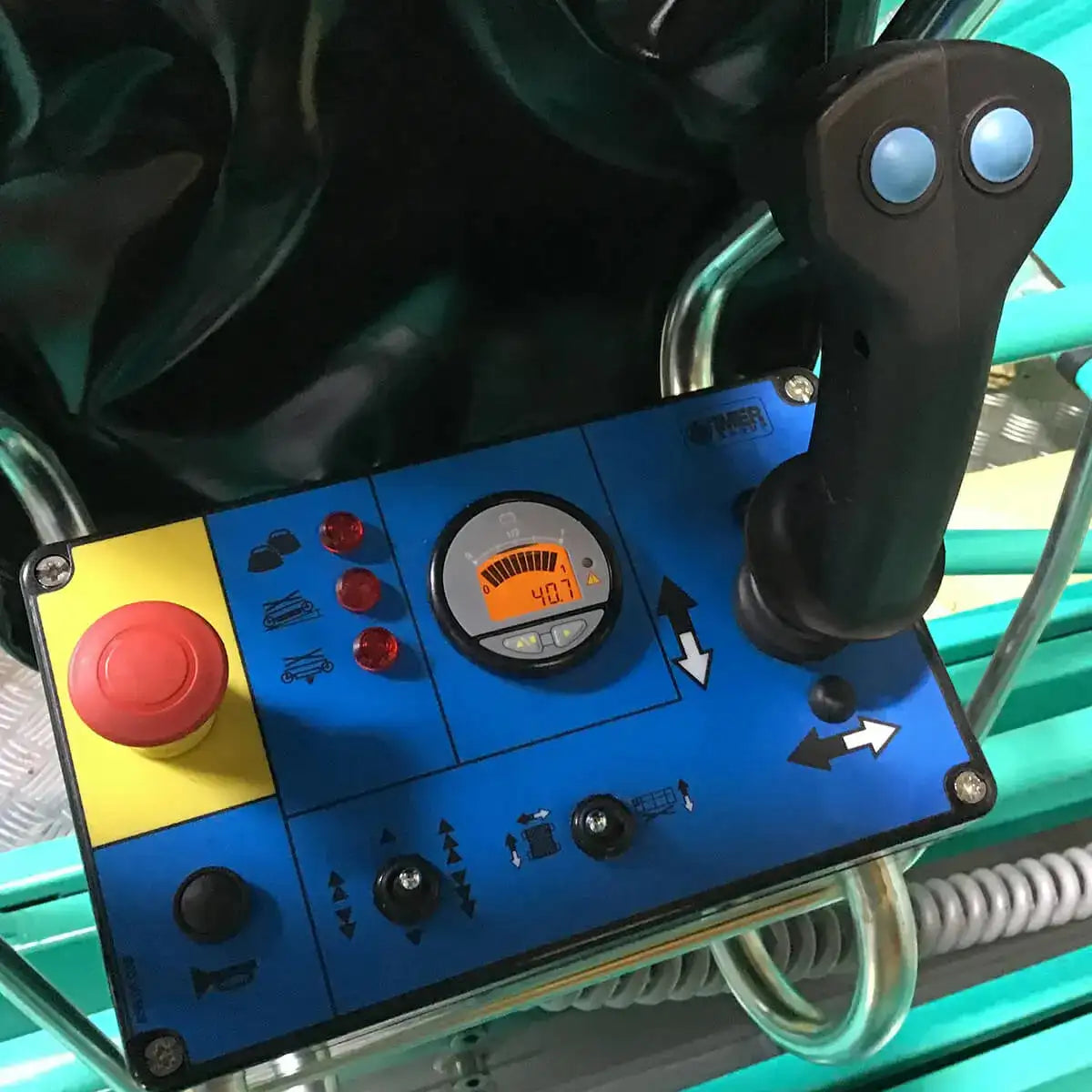

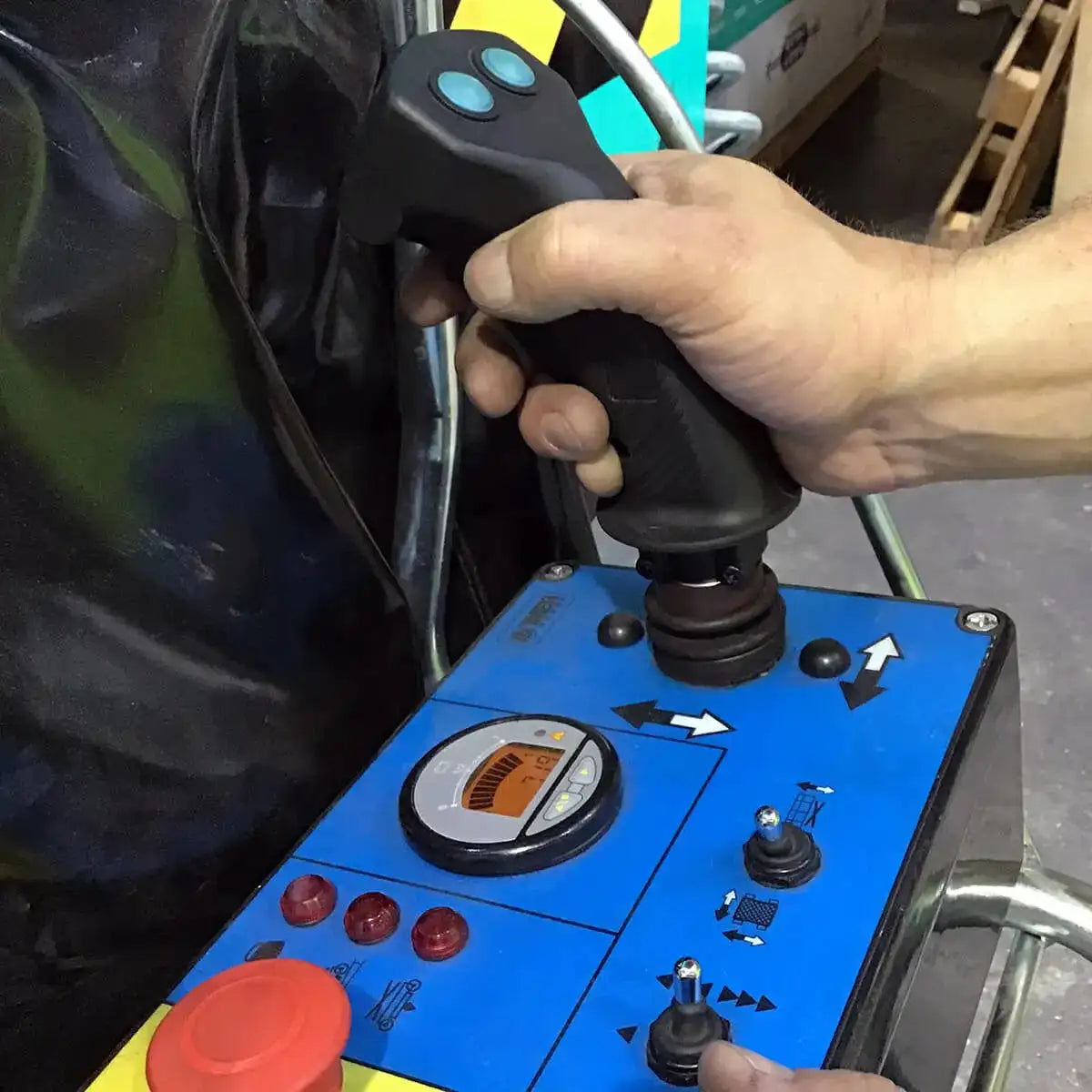

• Proportional controls with diagnostics

  • Smooth proportional controls for lift and drive, plus built‑in diagnostics to simplify troubleshooting and reduce downtime.

• AC power to platform

  • Standard AC power outlet on the platform lets operators plug in corded tools directly at height.

• Mechanical drive release

  • Mechanical wheel drive release allows emergency towing or repositioning if the lift loses power.

These elements help crews achieve more tasks per shift while keeping equipment movements efficient and intuitive.

Standard and Optional Equipment

IMER and distributors list a wide range of standard and optional features for the IM 47 Electric Scissor Aerial Lift:

Standard equipment typically includes:

• Manual deck extension (51 in) rated for two people.

• Electric front wheel drive motors.

• Negative electromagnetic parking brakes.

• 90° wheel steering.

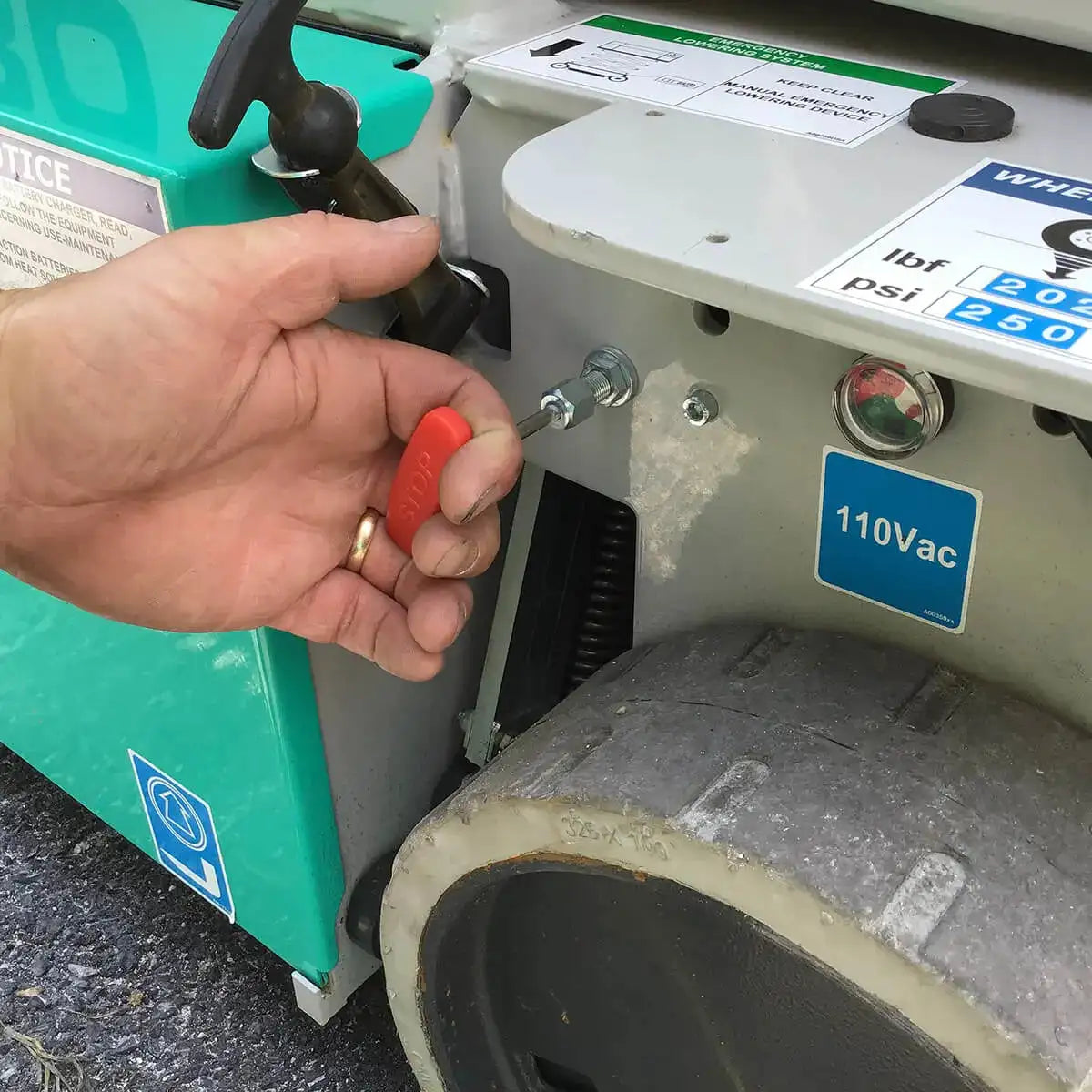

• Manual emergency lowering system.

• Cylinder holding valves.

• Traction batteries (24 V, up to 300 Ah C5).

• 24 V / 30 A automatic battery charger.

• All‑movement alarm, horn, hour meter.

• Tilt meter with motion cut‑out and alarms.

• Mechanical release for emergency hauling.

• Solid rubber non‑marking/cushion tires.

• Electric scissor protection and pothole protection.

• Battery level control with low‑voltage protection.

• Fast‑action foldable guardrails.

• Platform weight management / overload sensor.

• AC power to platform.

• Flashing beacon.

• Proportional controls with onboard diagnostics.

Optional equipment can include:

• 120 V cable with plug, socket, and safety cut‑out (standard in some US configurations).

• Gel battery package for IM 47 (reduced maintenance and improved cycling).

• Additional rotating beacon kit.

• Compressed air line to platform.

• Remote monitoring through systems like IMERVIEW GPS (on some configurations).

This equipment mix allows fleets to configure IM 47 lifts for specialized industrial, commercial, or construction applications.

Typical Applications for the Imer IM 47 Electric Scissor Aerial Lift

With its 46–52 ft working height, compact base, and electric drive, the Imer IM 47 Electric Scissor Aerial Lift is ideal for high‑reach tasks such as:

• Industrial and warehouse maintenance

  • Servicing overhead conveyors, lighting, HVAC, cranes, and sprinkler systems.

• Commercial construction and fit‑out

  • Installing ductwork, piping, electrical runs, and ceilings in tall interior spaces.

• Facility management

  • Ongoing maintenance in big‑box retail, arenas, convention centers, airports, and distribution centers.

• Light outdoor work on finished surfaces

  • Exterior façade access, canopies, and signage on flat, improved surfaces where non‑marking tires and electric drive are advantageous.

Because the IM 47 is electric, quiet, and uses non‑marking tires, it is especially suited for environments where disruption must be minimized and interior finishes protected.

Why Choose the Imer IM 47 Electric Scissor Aerial Lift

The Imer IM 47 Electric Scissor Aerial Lift stands out as a premium high‑reach electric scissor platform that combines 52 ft working height, a compact 40–47 in base, and full‑height drive capability in one rugged package. It delivers:

• Excellent vertical reach for tall interiors and complex builds.

• Quiet, emissions‑free operation with heavy‑duty traction batteries and onboard charging.

• Strong safety systems meeting ANSI, CSA, and CE & EN280 standards.

• High productivity through large platforms, two‑person deck extensions, and proportional controls.

For contractors, facility managers, and rental fleets seeking a reliable, high‑performance electric scissor lift for demanding indoor and light outdoor work, the Imer IM 47 Electric Scissor Aerial Lift offers the reach, safety, and efficiency needed to keep projects on schedule and workers safe at height.
