Imer Dump Platform with opening sides for Tracker 811

The dump platform accessory is perfect for transporting and unloading bulky materials from 3 sides of the platform bed

Features

• Turn your Tracker 811 into a versatile hauler
• Tilt-able dump platform with opening sides

Imer Dump Platform with opening sides for Tracker 811 is a genuine IMER accessory that converts the Tracker 811 mini track dumper into a versatile flatbed hauler with a tilting dump platform and three opening sides for easy, controlled unloading. Designed specifically for the IMER Tracker 811, this dump platform is ideal for moving bulky, awkward, or palletized materials—such as lumber, drywall, block, stone, and bagged products—across rough terrain and through narrow access points where larger machines can’t go.

Overview of the Imer Dump Platform with Opening Sides for Tracker 811

The Imer Dump Platform with opening sides for Tracker 811 (MPN 5510502) is listed by IMER and major distributors as a dump platform bed attachment with folding sides made to fit the Tracker 811 track mini‑dumper. Contractors Direct describes it as a “dump platform accessory…perfect for transporting and unloading bulky materials from 3 sides of the platform bed.”

Instead of the standard 8 cu ft tipping bucket, the dump platform gives the Tracker 811 a flat cargo deck with three hinged sides and integrated dump capability. This turns the concrete buggy into a compact tracked carrier that can handle more types of loads while still benefiting from the machine’s 1,102 lb payload and 27" width.

Key Specifications and Construction

The Imer Dump Platform with opening sides for Tracker 811 is engineered as a robust, jobsite‑ready attachment. Key details include:

• Product: Dump Platform with opening sides

• Compatibility: IMER Tracker 811 Gas Powered Mini‑Dumper (also marketed as tracker 811 / Carry 105 in some documentation)

• Part number (MPN): 5510502

• Construction: Heavy‑duty steel platform bed designed to match the Tracker 811 chassis and hydraulic dump frame

• Sides:

  • Three folding / opening sides around the bed perimeter.

  • Allow loading and unloading from three directions.

• Dump action:

  • Uses the Tracker 811’s hydraulic dump mechanism to tilt the entire platform for tipping loads.

The exact deck dimensions are not individually published, but the platform is built within the Tracker 811’s compact footprint to preserve its ability to pass through tight gates and doorways.

Tracker 811 Base Machine Specs (for Context)

To understand how the dump platform performs, it helps to know the key specifications of the IMER Tracker 811 itself:

• Operating load / payload capacity: 1,102 lb (500 kg)

• Standard skip (bucket) volume: 8 cu ft (0.23 m³)

• Overall width: 27 in (685 mm)

• Power: 8 HP Honda GX200 gasoline engine

• Travel speed: approx. 2 mph (3.2 km/h)

• Ground clearance: 4 in (100 mm)

• Turning radius: 36 in (0.9 m)

• Max gradeability: 20% (about 11°) loaded

The Dump Platform with opening sides is engineered to work within these limits: it does not change width, and it’s designed to operate safely up to the same 1,102 lb payload when used according to IMER guidelines.

How the Dump Platform Changes What the Tracker 811 Can Do

With the standard steel bucket, the Tracker 811 is optimized for moving concrete, soil, gravel, and other loose materials. The Dump Platform with opening sides for Tracker 811 expands its capabilities by providing:

• A flatbed cargo area for irregular and bulky loads.

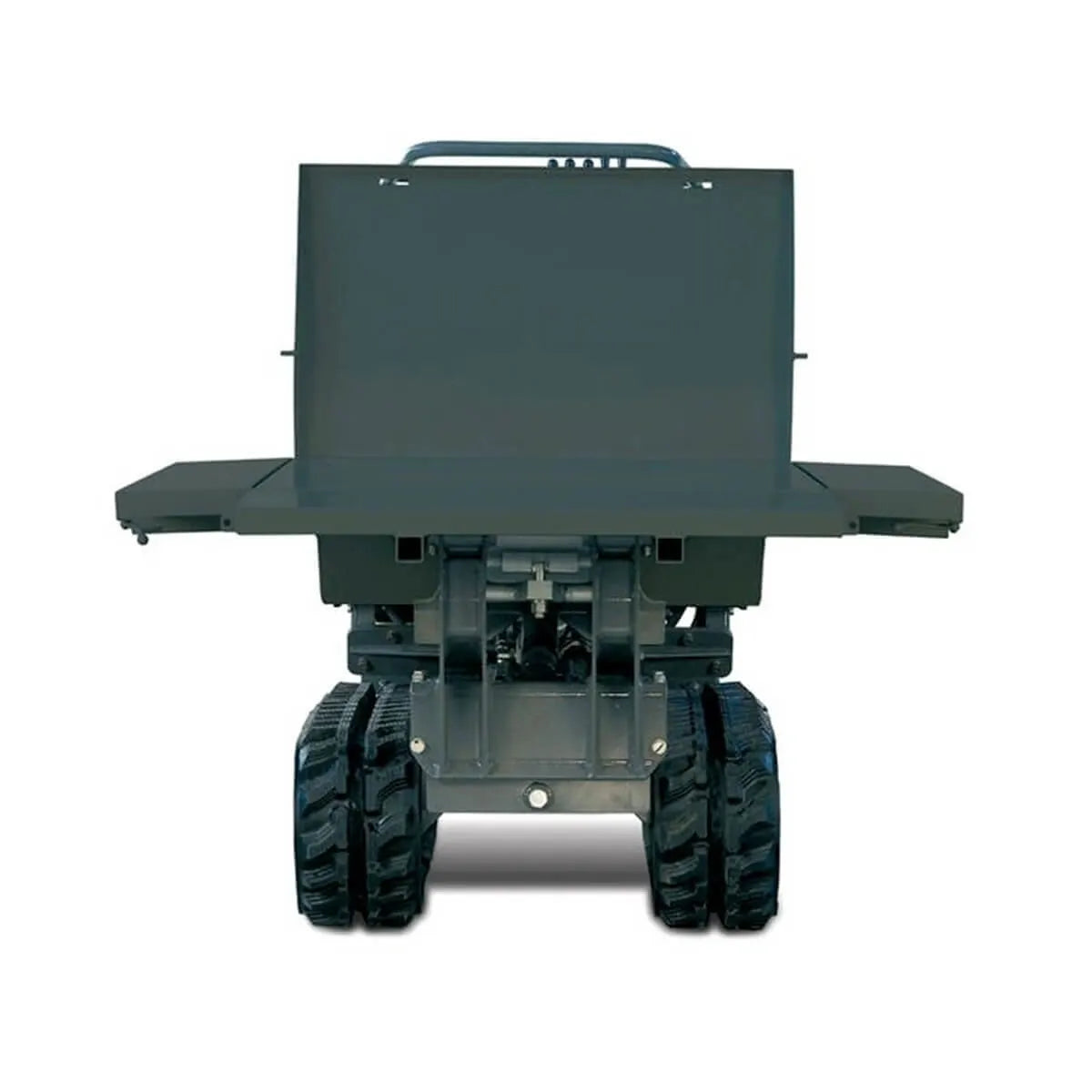

• Three opening sides that fold down, allowing flexible loading and unloading from the left, right, or rear.

• The ability to tilt the platform and slide material off using the hydraulic dump action.

This transforms the Tracker 811 into a multi‑purpose material carrier that can:

• Move stacks of lumber, plywood, or drywall through narrow passages.

• Carry pallets or bundles of block, pavers, or stone over soft or uneven ground.

• Transport bagged materials, tools, and equipment right to the work location.

By leveraging the same tracked chassis, you still get excellent traction and low ground pressure, while the platform bed and opening sides handle materials that don’t fit in a regular hopper.

Opening Sides: 3‑Side Loading and Unloading

The hallmark feature of the Imer Dump Platform with opening sides for Tracker 811 is its three folding sides. IMER’s catalog notes for similar tracked carriers that “three folding sides on the dump platform present multiple possibilities for moving everything from logs and large rocks to drywall and lumber,” and the Tracker 811 platform follows that same concept.

Benefits of the opening sides:

• Multi‑directional unloading

  • Drop the rear side to unload behind the machine, or lower a side panel to unload to the left or right depending on site constraints.

  • Useful in narrow alleys, alongside trenches, or when working close to walls and foundations.

• Easier loading and securing

  • With sides up, the bed acts as a box to keep materials contained.

  • With sides down, the platform behaves like an open flatbed, making it easier to load large or long items.

• Reduced manual lifting

  • Instead of lifting materials over fixed sidewalls, you can roll or slide them on and off, reducing strain and potential injury.

This versatility is a major advantage over fixed, non‑opening bed designs.

Typical Materials and Jobsite Applications

ContractorsDirect, IMER USA, and dealers highlight that the dump platform is particularly useful for bulky materials:

Common loads include:

• Construction materials: lumber, plywood, drywall, metal studs, rebar bundles, insulation packs.

• Masonry and hardscape materials: concrete block, brick, pavers, stone caps, natural stone pieces.

• Landscaping materials: large rocks, logs, timbers, stepping stones, bagged mulch, soil amendments.

• Demolition and remodel debris: old studs, siding, tile, broken concrete, and other demo waste in manageable bundles.

Ideal job types:

• Residential and commercial construction sites with limited access.

• Backyard and interior remodel projects where wide equipment cannot reach.

• Landscapes, golf courses, and parks requiring low ground impact but high transport efficiency.

• Tight urban sites where narrow alleys and gates restrict larger machines.

The platform allows crews to move more material per trip than by hand while taking full advantage of the 811’s narrow profile and tracked traction.

Integration with the Hydraulic Dump System

The Imer Dump Platform with opening sides for Tracker 811 retains the machine’s hydraulic dump functionality. That means:

• The entire platform bed can be tilted using the same controls used for the standard skip.

• With sides down, tilting lets you slide material off the bed quickly.

• With sides up, you can still use the tilt to help empty loose or semi‑contained loads.

This is particularly helpful for quickly unloading pallets or bundled items that can be made to slide off, as well as for clearing loose materials that may accumulate on the platform.

Installation as an OEM Accessory

Because this dump platform is a factory‑engineered IMER accessory for the Tracker 811, installation is straightforward compared to fabricating a custom bed:

• It mounts to the existing tilt frame and pivot points on the Tracker 811 where the standard hopper attaches.

• It uses the same hydraulic cylinder and linkages to provide dump motion.

• The balance and center of gravity are engineered to remain within safe operating limits when installed correctly and used within load ratings.

IMER’s 2024 equipment catalog lists the Tracker 811 and its accessory options, including dump platforms and other attachments, confirming that the platform is an official option in the product line.

Advantages Over Improvised Solutions

Choosing the genuine Imer Dump Platform with opening sides for Tracker 811 has clear benefits compared to building your own rack or platform:

• Structural safety

  • The platform is designed to handle the full 1,102 lb payload load safely, including dynamic forces while driving and dumping.

• Stability and balance

  • IMER’s engineering ensures the loaded platform keeps the center of gravity within safe limits for slopes and uneven ground.

• Durability

  • Heavy‑gauge steel construction, professional welds, and powder‑coat or equivalent finish are built to withstand real jobsite abuse.

• Compatibility and resale

  • OEM attachments tend to hold their value better and are easier for buyers to trust when it comes time to sell or trade in the machine.

Why Choose the Imer Dump Platform with Opening Sides for Tracker 811?

The Imer Dump Platform with opening sides for Tracker 811 is the best way to unlock the full material‑handling capability of your IMER Tracker 811 mini track dumper. Instead of being limited to concrete and loose materials in an 8 cu ft skip, you gain a robust, tilting flatbed with three folding sides that lets you transport and unload bulky materials from three directions on rough terrain and through 27"‑wide access points.

For general contractors, landscapers, masons, and rental fleets, the dump platform turns the Tracker 811 into a compact, multi‑purpose tracked carrier that can haul everything from logs and large rocks to drywall and lumber, making the most of the machine’s 1,102 lb payload and agile footprint. If you want to maximize productivity and versatility on tight, challenging jobsites, the Imer Dump Platform with opening sides for Tracker 811 is a smart, OEM‑engineered upgrade that pays off every day the machine is on the job.
