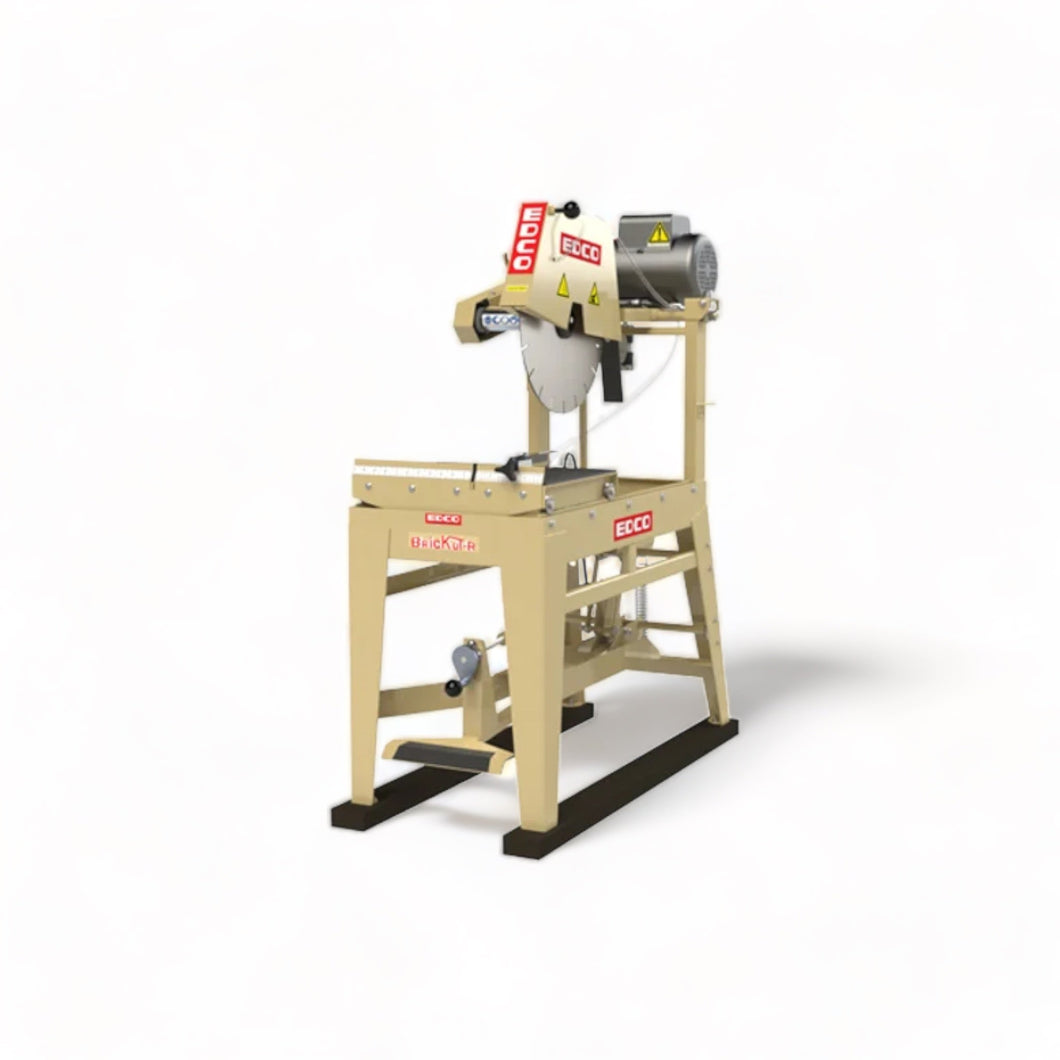

Masonry Saws are used for all kinds of installation applications like patios, landscaping, and decorative/commercial builds. Users cut with this 20" saw by using the hands-free foot pedal. You can cut a block up to 8" on both sides.
FEATURES
- Electric power
- Freestanding model with 14" to 20" blade capacity
- Large capacity, 3-stage air filter protects from wear
- Belt driven diaphragm water pump is standard and can be disconnected when cutting dry
- Fixed or adjustable cutting head for extra versatility
- Extra-large rolling table supports large materials and rolls easily
- Double-sided table rails are easy to replace
- Standard foot pedal for hands-free operation
- Patented fixed engine platform.
IDEAL FOR
- Professional masons
- Block manufacturers
- Block masons
- Paver manufacturers
- Paver installers
- Landscape suppliers
- Masonry equipment suppliers
AVAILABLE OPTIONS
ED21200 - MS20E - 5HP/230V/1 Phase/60Hz Electric 20"
ED21300 - MS20E - 7.5HP/3 Phase/60Hz Electric 20"
Specs
MS-20-5
- Power: Electric
- Horse Power: 5 HP
- RPMs: 2,500
- Phase: Single Phase
- Length: 55"
- Width: 26"
- Height: 63"
- Weight: 440 lbs
- Max Cut - Depth (Fixed): 8"
- Max Cut - Depth (Chop): 16"
- Belts: Cgd "V" Belt
MS-20-7.5H
- Power: Electric
- Horse Power: 7.5 HP
- RPMs: 2,500
- Phase: Three Phase
- Voltage: 230/460 V
- Amps: 8.7/17.4 A
- Length: 55"
- Width: 26"
- Height: 63"
- Weight: 455 lbs
- Max Cut - Depth (Fixed): 8"
- Max Cut - Depth (Chop): 16"
- Belts: Cgd "V" Belt
