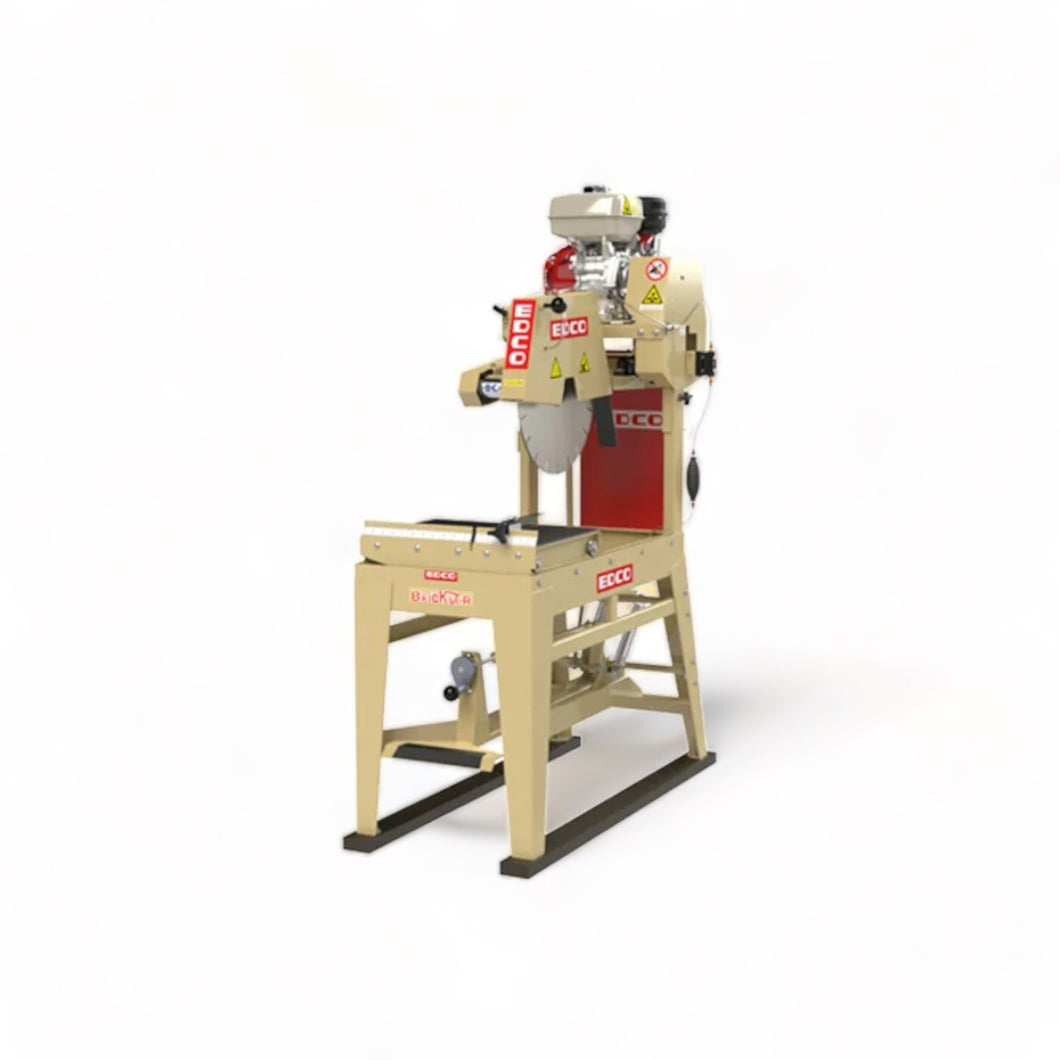

Masonry Saws are used for all kinds of installation applications like patios, landscaping, and decorative/commercial builds. Users cut with this 20" saw by using the hands-free foot pedal. You can cut a block up to 8" on both sides.

FEATURES

• Gasoline power
• Freestanding model with 14" to 20" blade capacity
• Large capacity, 3-stage air filter protects from wear
• Belt driven diaphragm water pump is standard and can be disconnected when cutting dry
• Fixed or adjustable cutting head for extra versatility
• Extra-large rolling table supports large materials and rolls easily
• Double-sided table rails are easy to replace
• Standard foot pedal for hands-free operation
• Patented fixed engine platform.

IDEAL FOR

• Professional masons
• Block manufacturers
• Block masons
• Paver manufacturers
• Paver installers
• Landscape suppliers
• Masonry equipment suppliers

AVAILABLE OPTIONS

ED22500 - GMS20 - 9HP Honda GX270 20"

ED27700 - GMS20 - 13HP Honda GX390 20"

Specs

GMS-20-9H

• Power: Gasoline
• Horse Power: 9 HP
• RPMs: 2,400
• Length: 58.5"
• Width: 26"
• Height: 75.5"
• Weight: 480 lbs
• Max Cut - Depth (Fixed): 8"
• Max Cut - Depth (Chop): 16"
• Belts: Std "V" Belt

GMS-20-13H

• Power: Gasoline
• Horse Power: 13 HP
• RPMs: 2,400
• Length: 58.5"
• Width: 26"
• Height: 75.5"
• Weight: 485 lbs
• Max Cut - Depth (Fixed): 8"
• Max Cut - Depth (Chop): 16"
• Belts: Std "V" Belt
