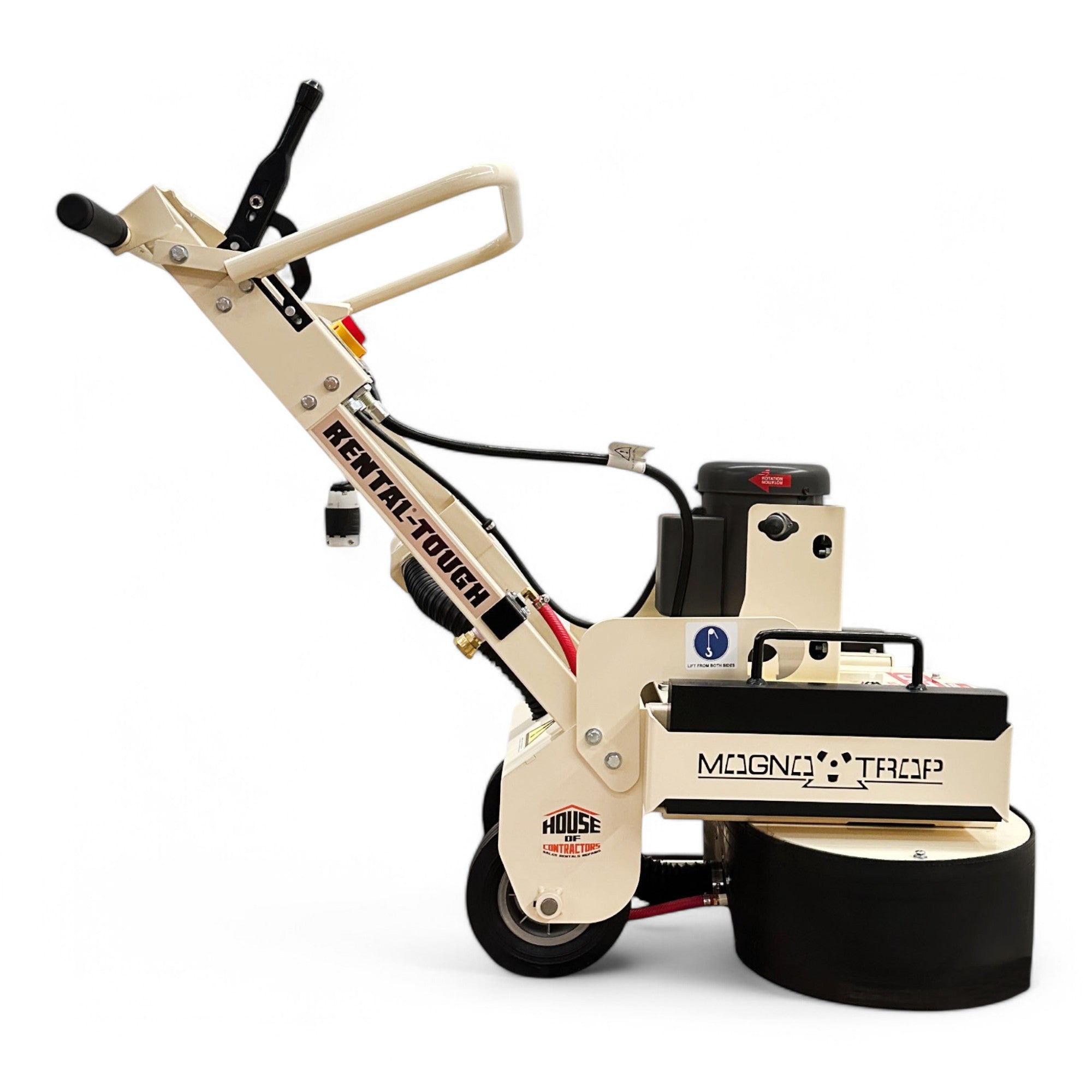

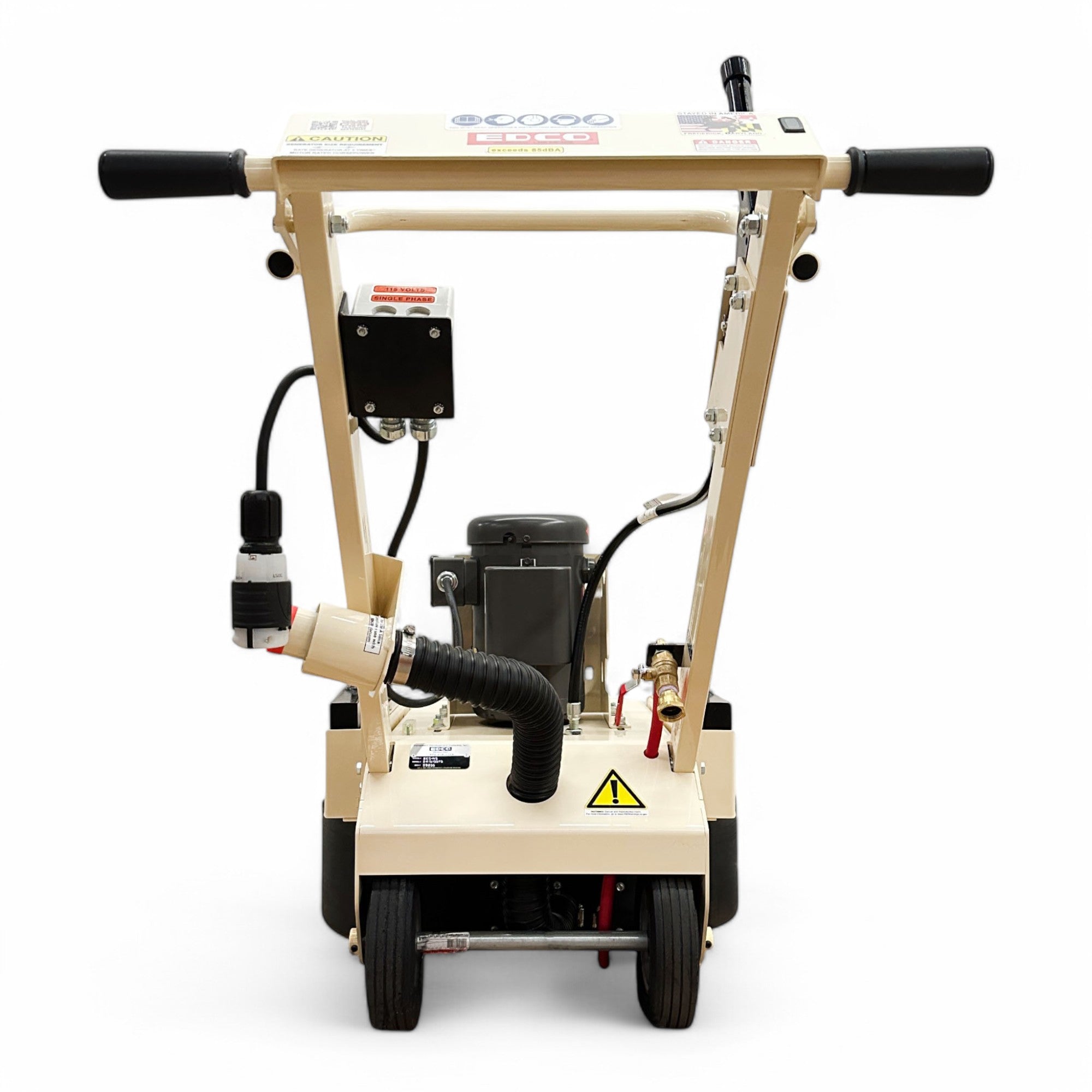

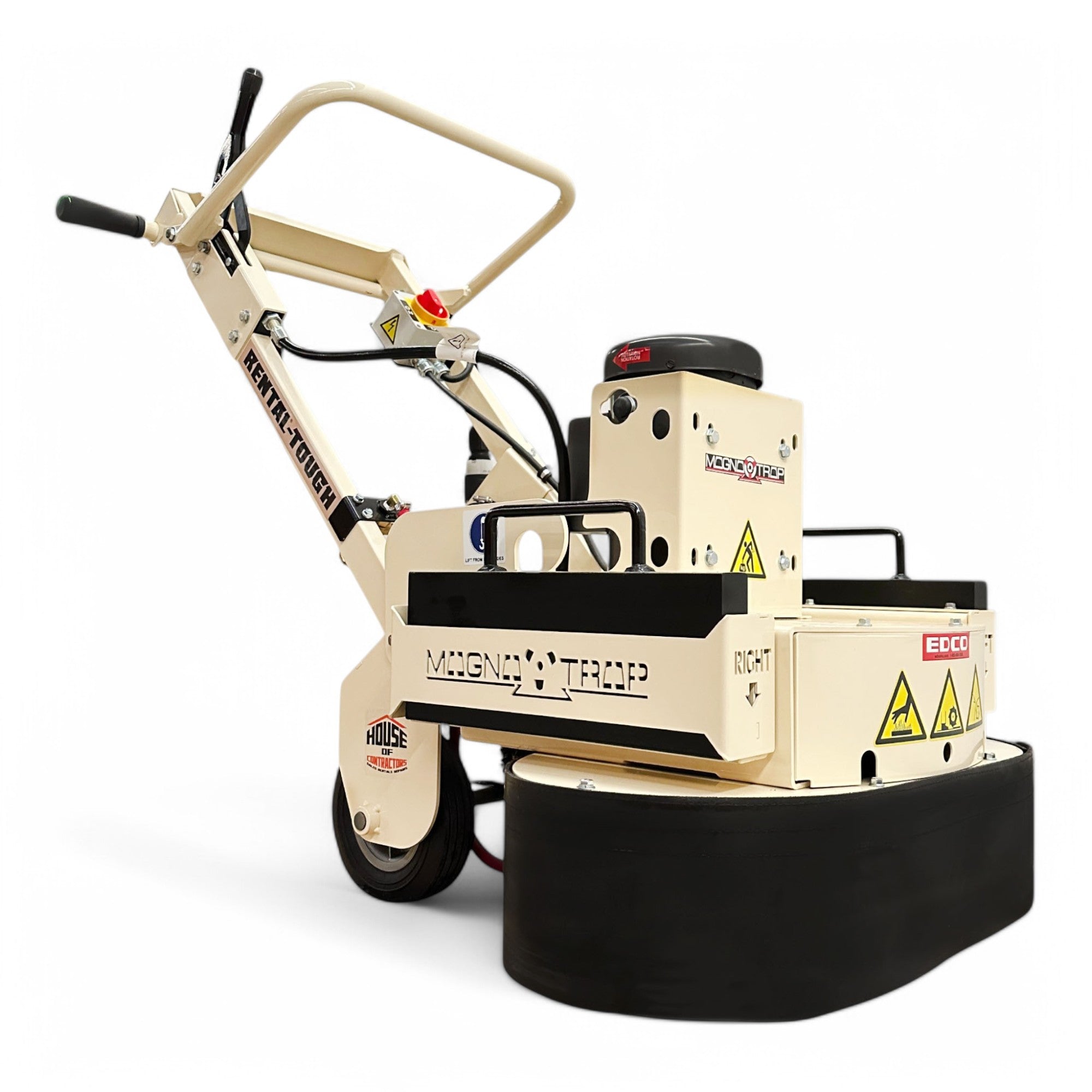

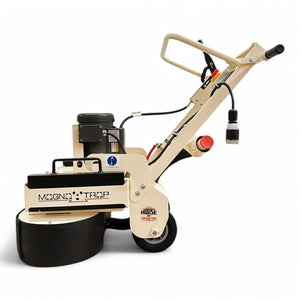

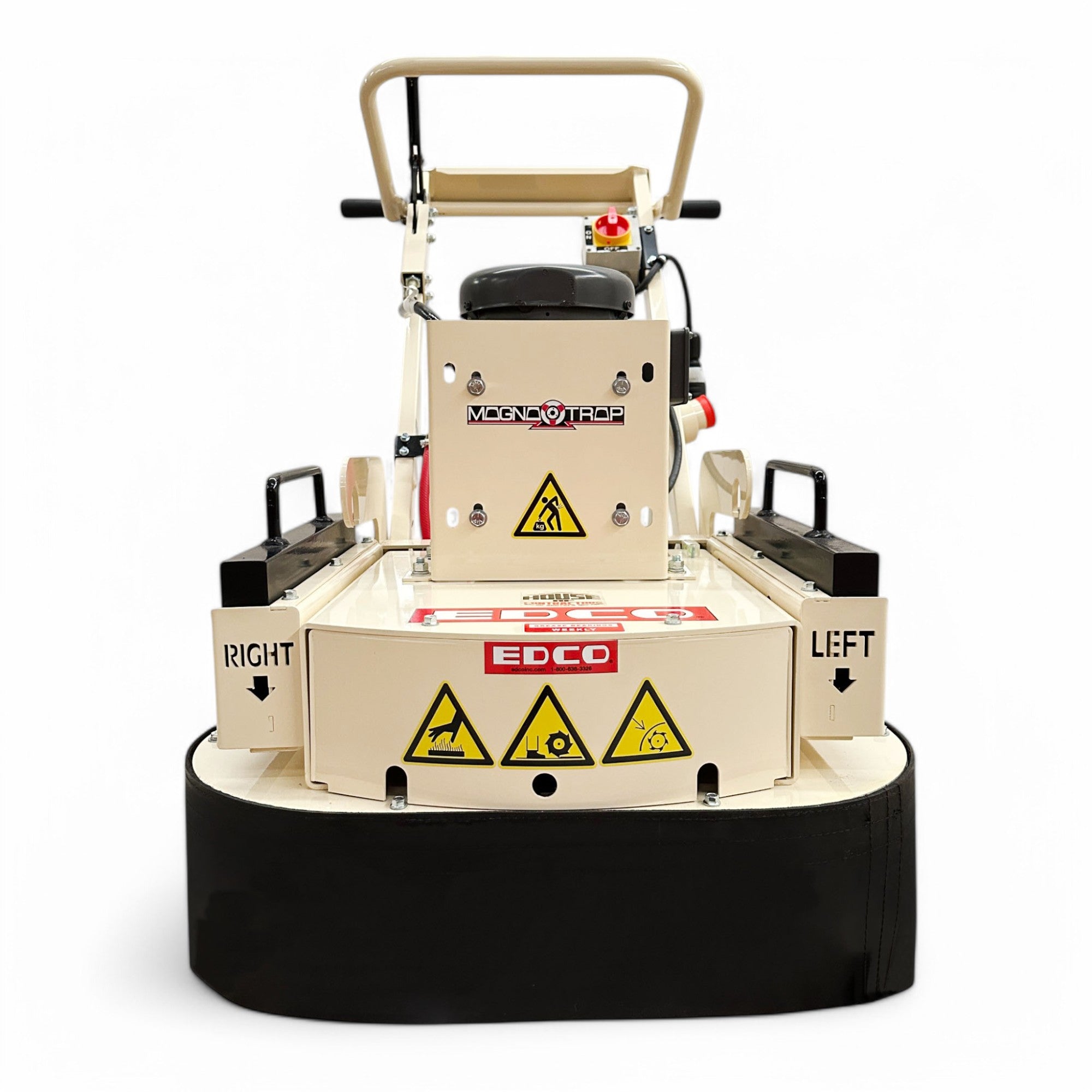

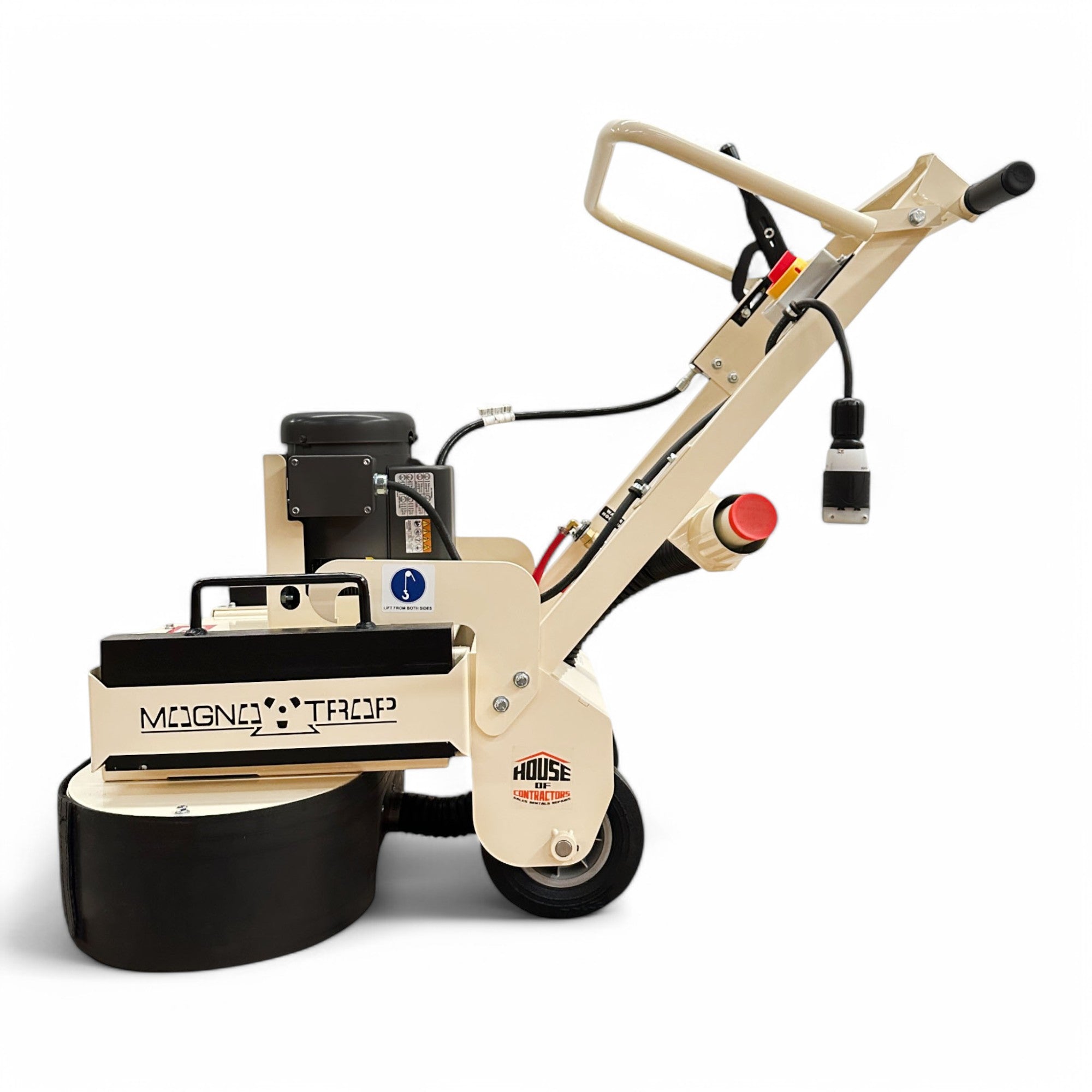

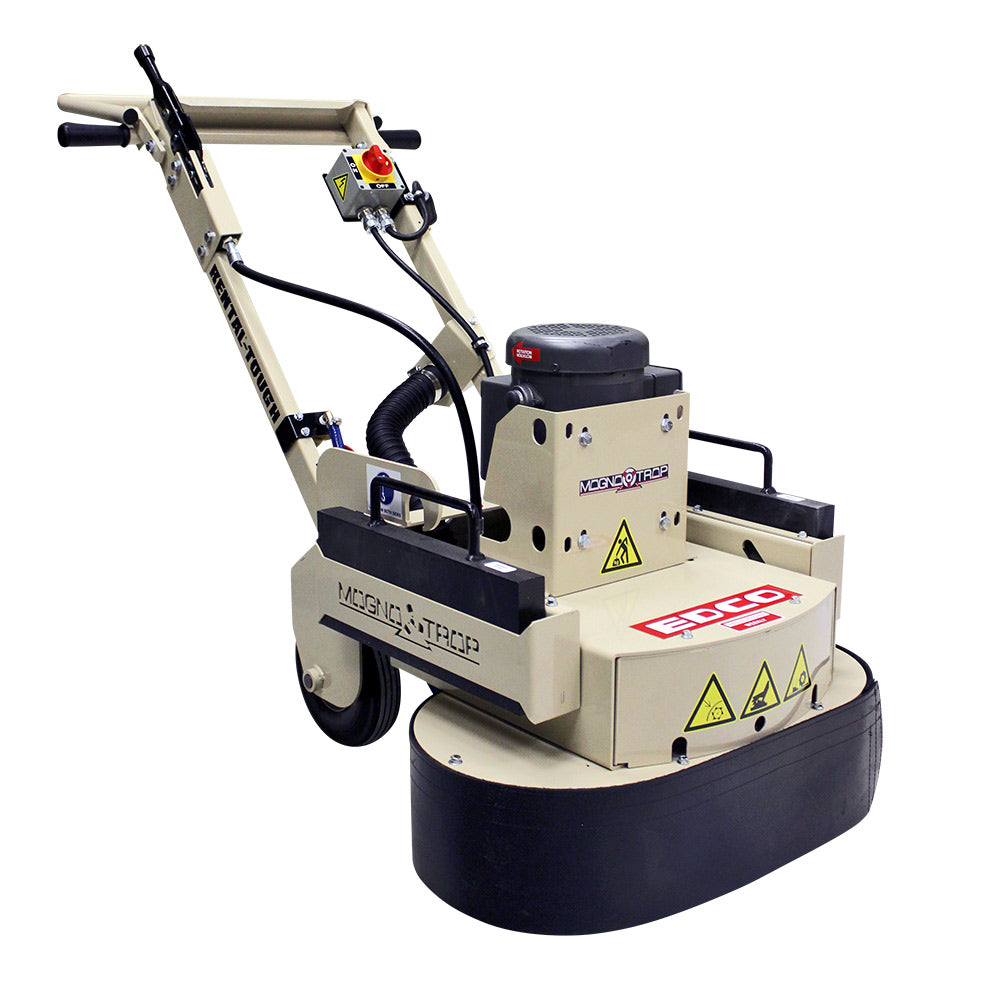

EDCO 2EC-NG Electric MAGNA-TRAP Dual-Disc Floor Grinder - Precision Grinding & Surface Preparation

The EDCO 2EC-NG Electric MAGNA-TRAP Dual-Disc Floor Grinder is a high-performance solution for first-layer applications, including smoothing concrete, preparing floors for new coverings, and removing thin coatings, soft materials, and ice. With a 21.5-inch working width, this dual-disc grinder covers up to 500 sq. ft. per hour, making it a highly efficient choice for professional surface preparation.

FEATURES & BENEFITS

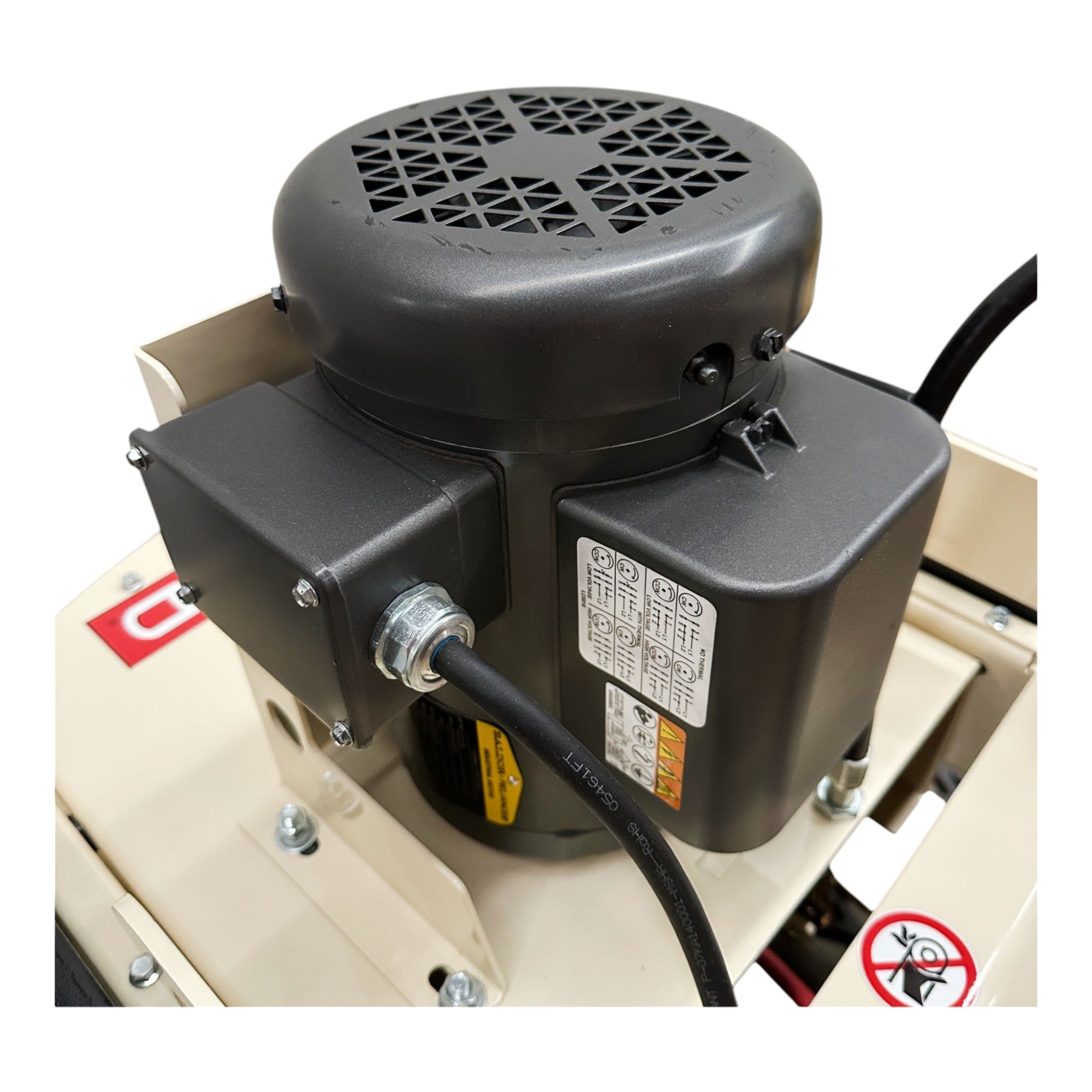

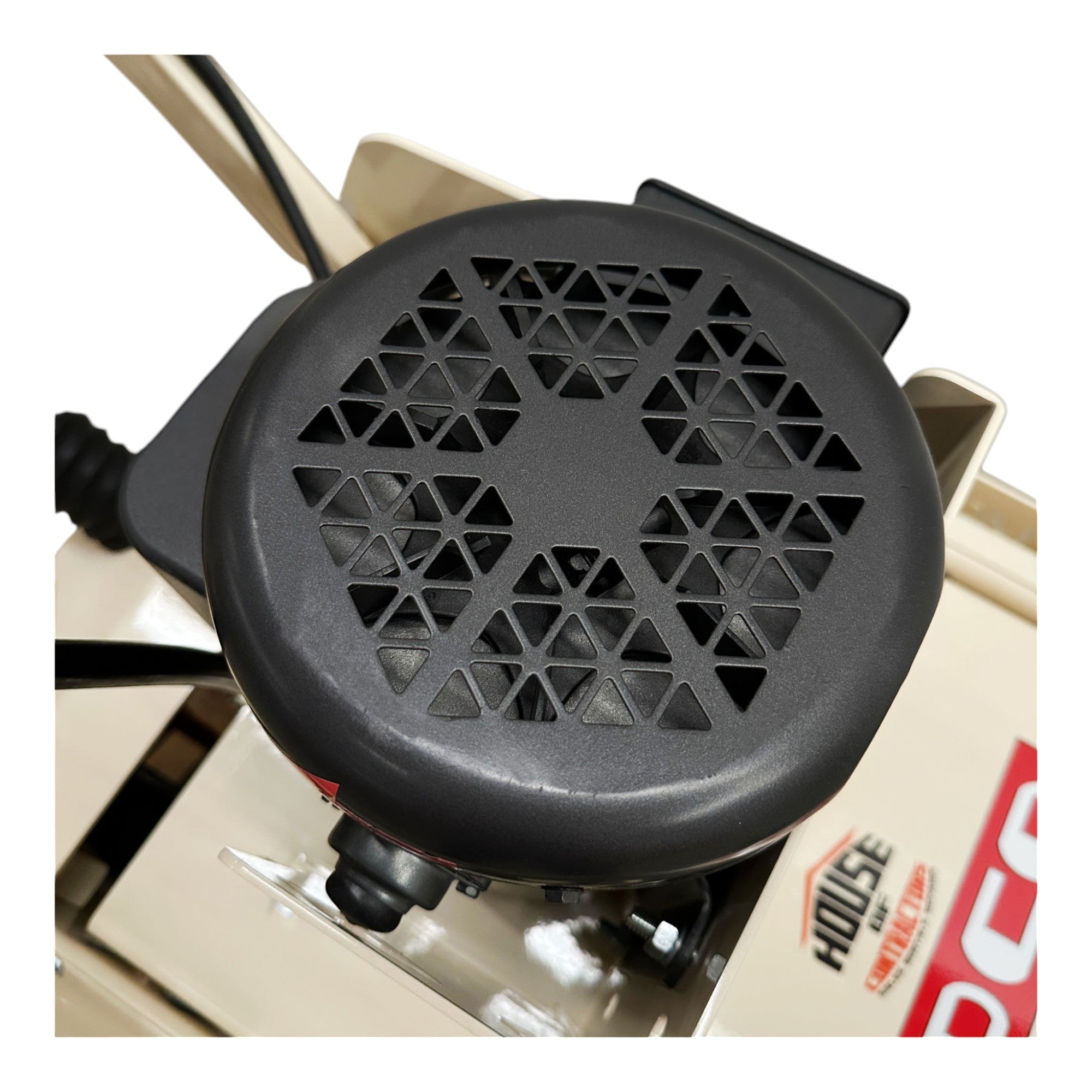

• POWERFUL 1.5 OR 3 HP ELECTRIC MOTOR: Provides consistent power and performance with an energy-efficient design.
• 21.5" WORKING WIDTH FOR MAXIMUM COVERAGE: Covers a larger surface area for increased productivity and faster job completion.
• GRIND WEDGE-LESS WITH MAGNA-TRAP TOOLING: Eliminates the need for traditional wedges, making tooling changes quick and easy.
• GRIND LEVEL WITH EDCO'S EXCLUSIVE LEVELING SYSTEM: Ensures even surface contact for a smoother and more uniform finish.
• COUNTER-ROTATING DISCS FOR SUPERIOR CONTROL: Minimizes operator fatigue and improves maneuverability for precise grinding.
• INCLUDES 2 MAGNETIC MULTI-TOOLING DISCS: Enhances versatility by accommodating various grinding and polishing attachments.
• 6 GRINDING TOOLS REQUIRED PER LOADING: Ensures efficient and even grinding across the entire working width.

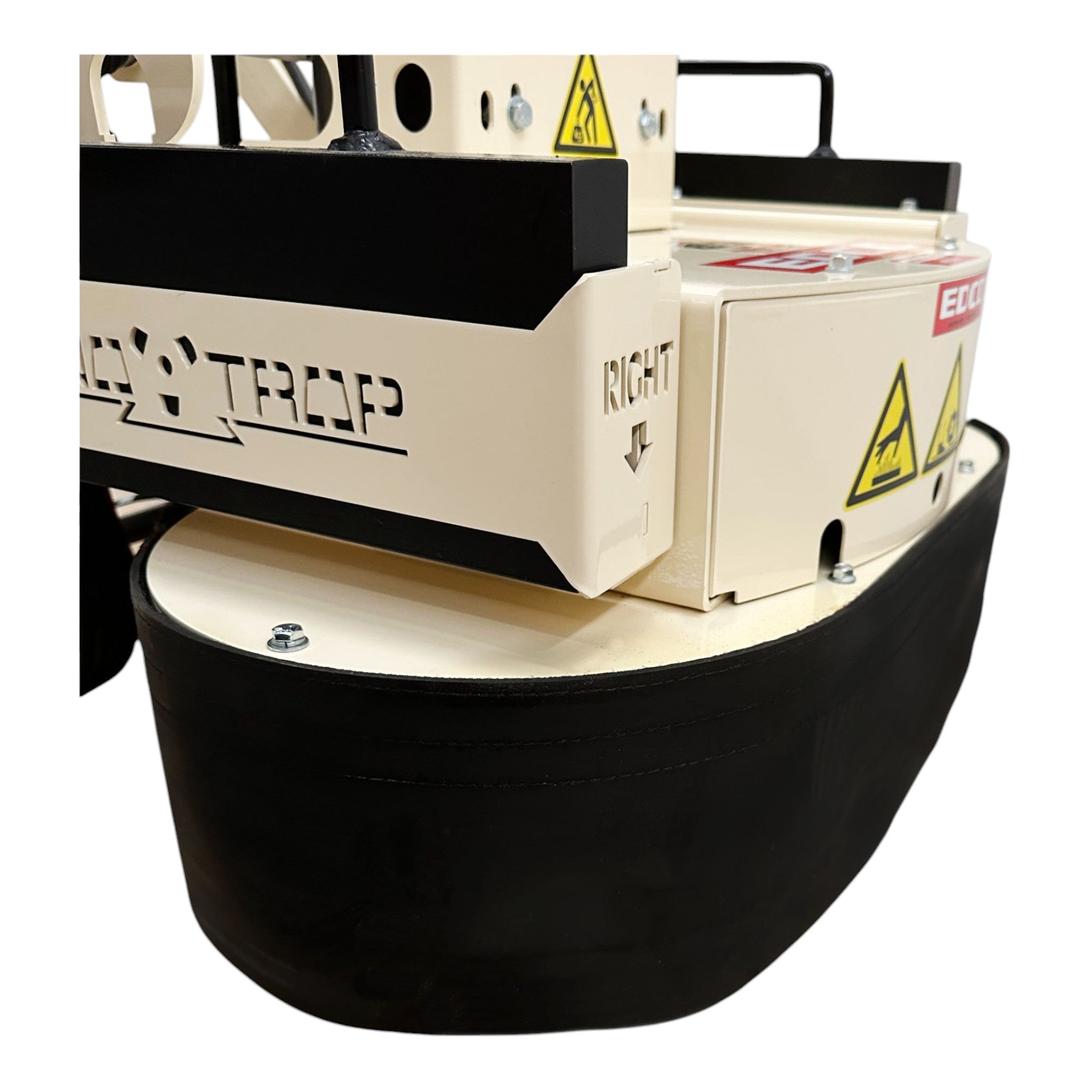

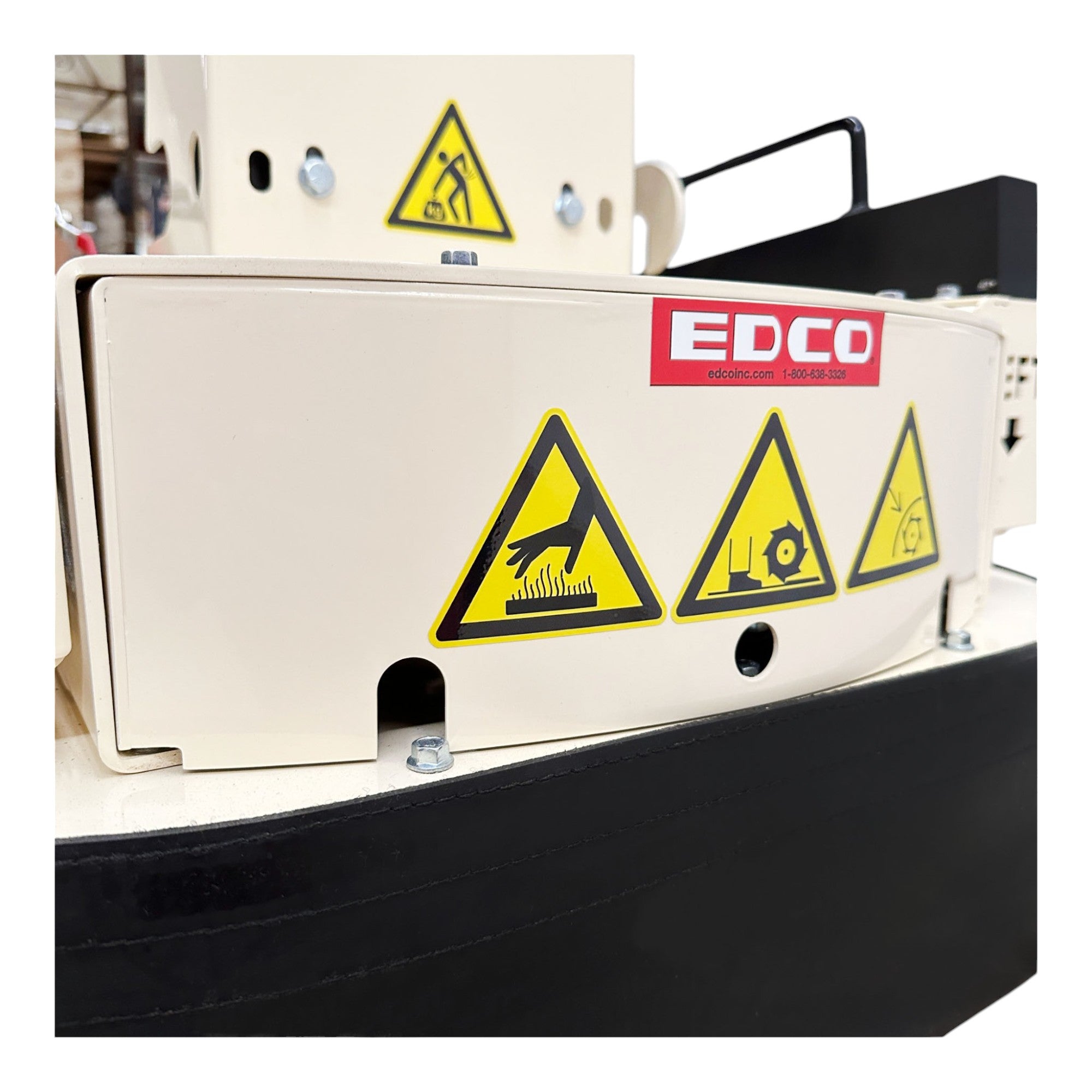

• ADJUSTABLE DUST SKIRT FOR CLEANER OPERATION: Reduces airborne dust, improving visibility and maintaining a cleaner work area.

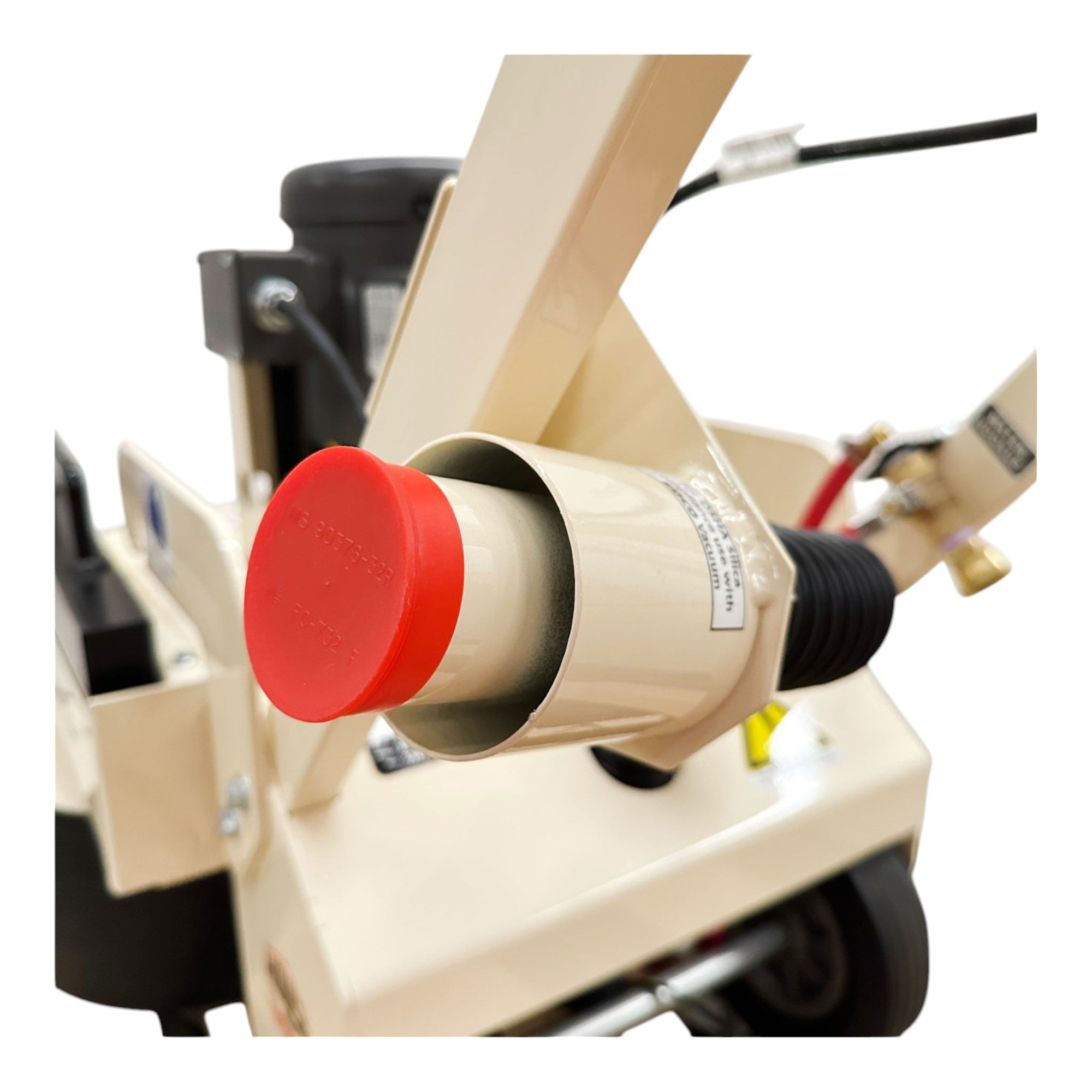

• VACUUM PORT FOR DUST MANAGEMENT: Connects to an industrial vacuum system for superior dust control.

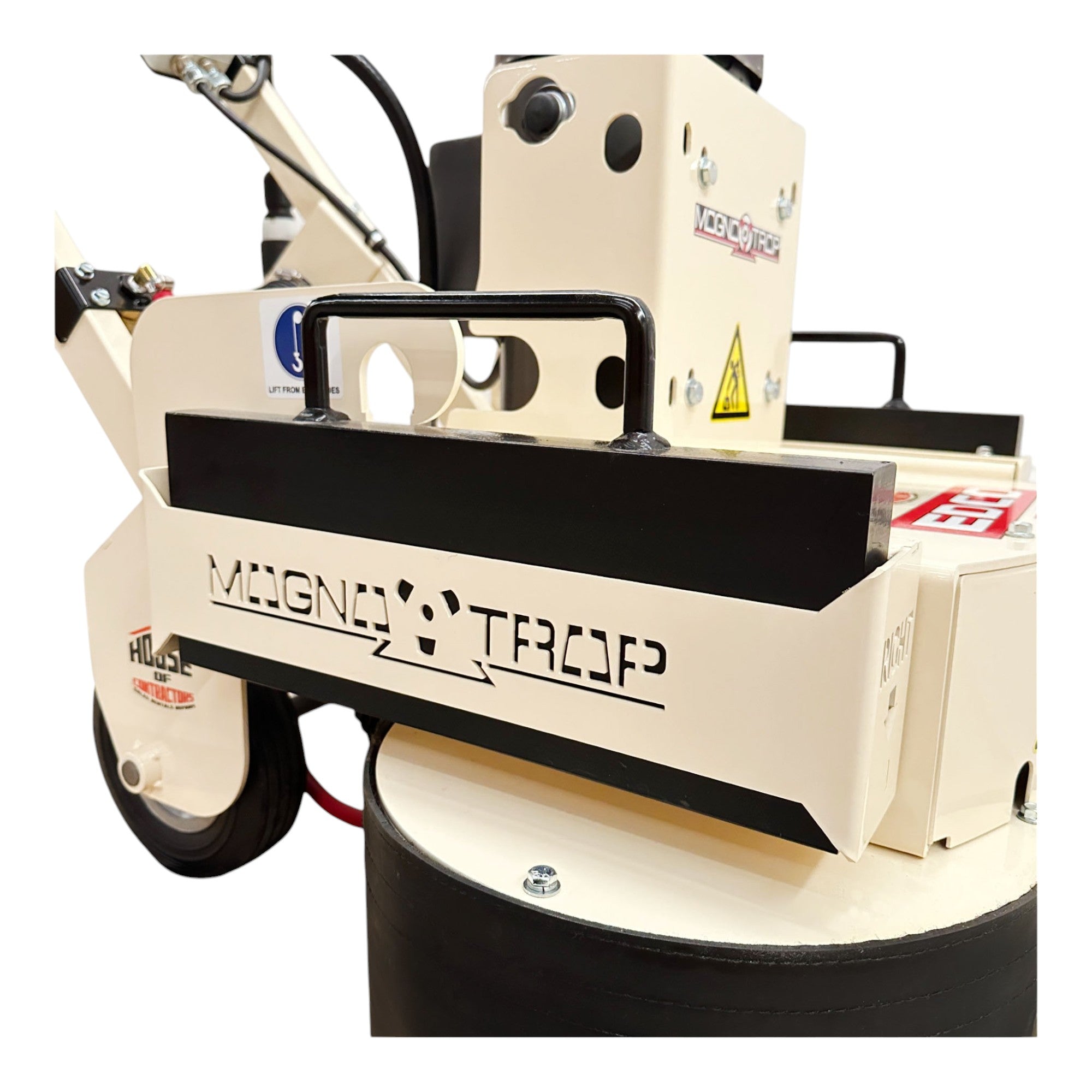

• LASER-CUT WEIGHT TRAY FOR ADDED STABILITY: Provides balance and weight distribution for more effective grinding.

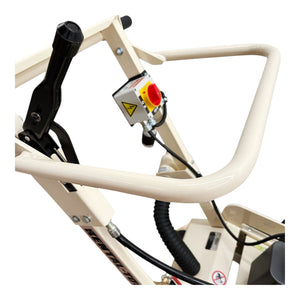

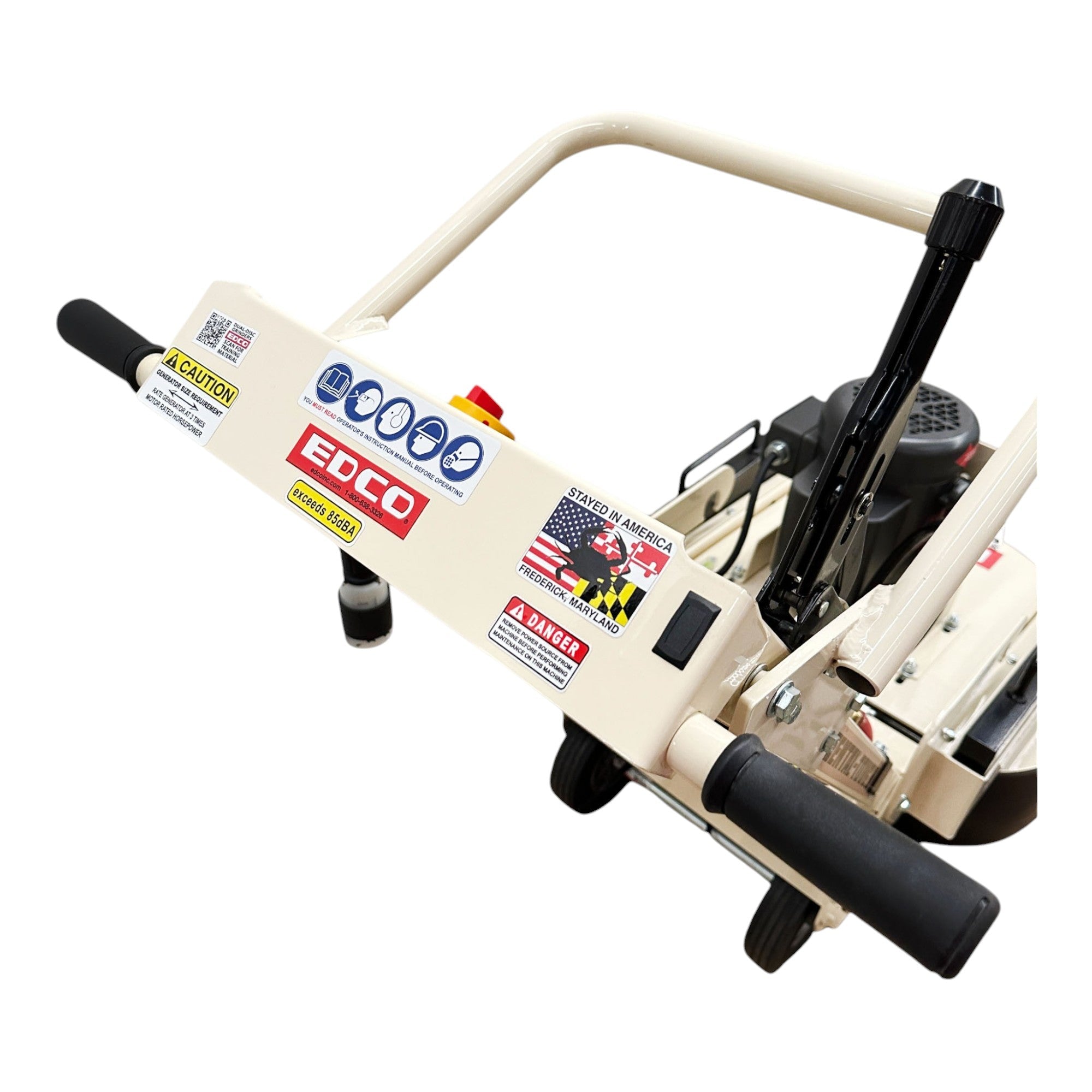

• HANDLE WITH EXTENSION FOR CUSTOMIZED OPERATION: Allows users to adjust handle height for comfort and control.

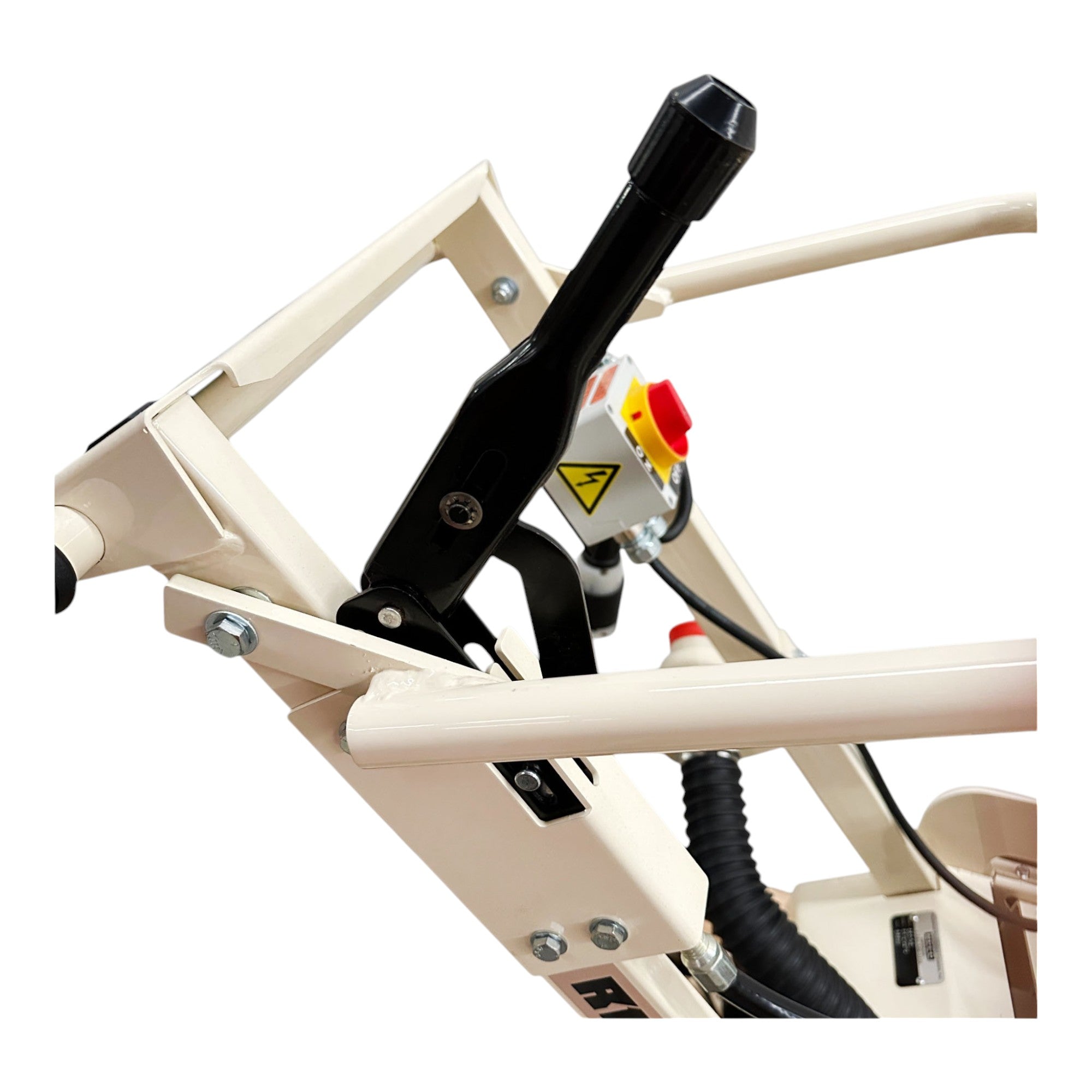

• LEVELING LOCK FOR PRECISION ADJUSTMENTS: Helps maintain even grinding depth across surfaces.
• EASY-ACCESS BEARING GREASE POINT: Simplifies maintenance, extending the life of critical components.

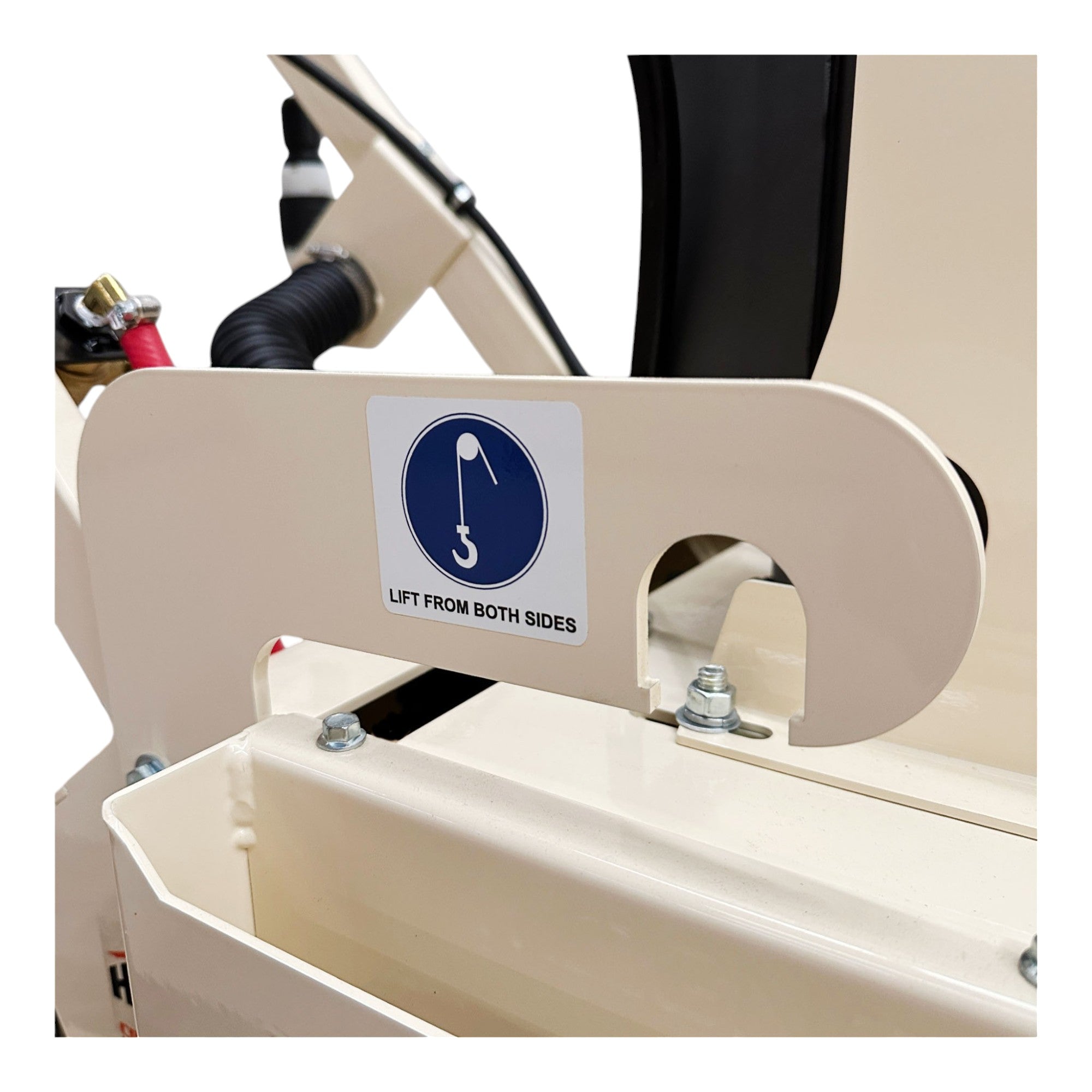

• CONVENIENT LIFTING HOOK: Makes transportation and positioning easier on job sites.

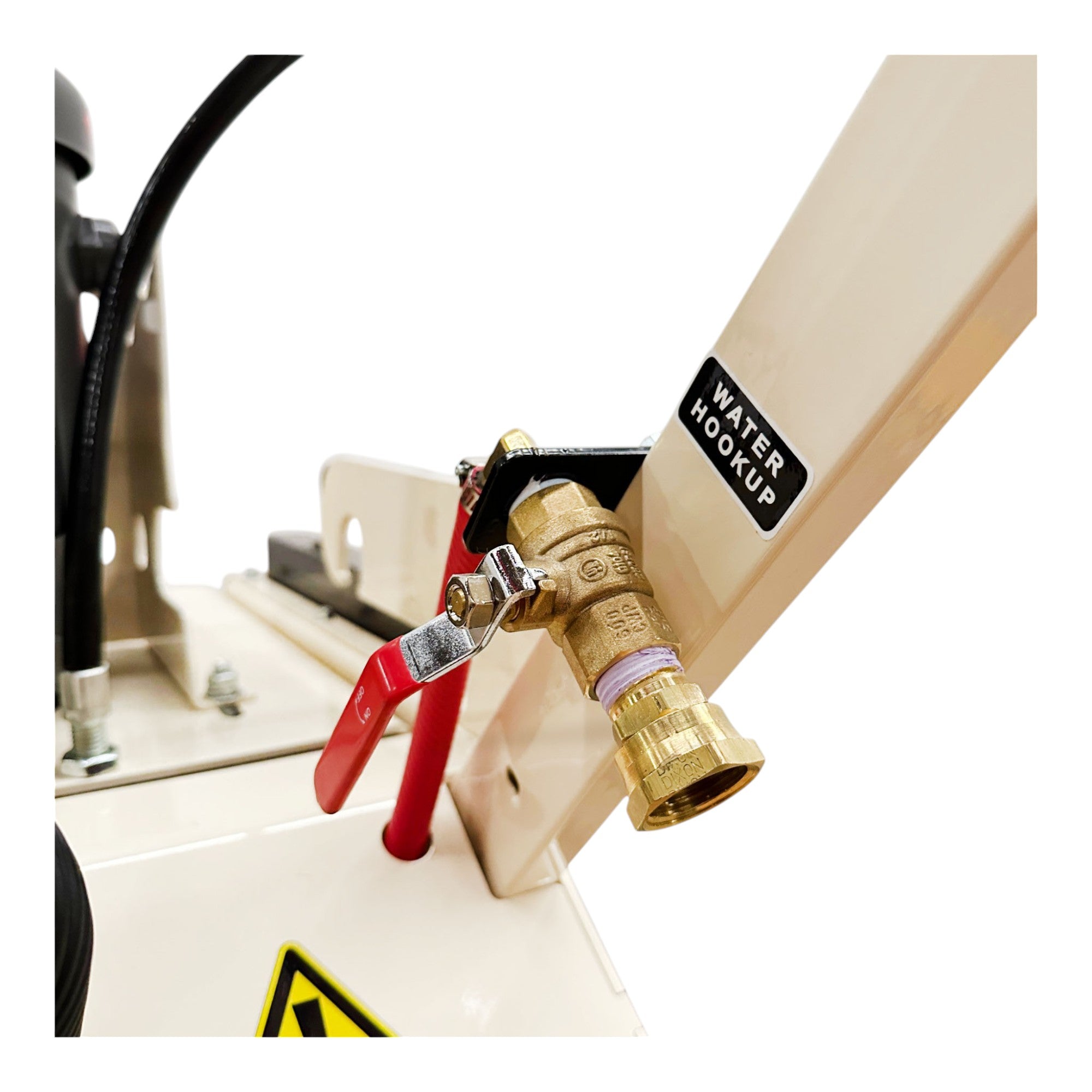

• WATER HOOKUP FOR DUST SUPPRESSION: Reduces dust for a cleaner and safer work environment.

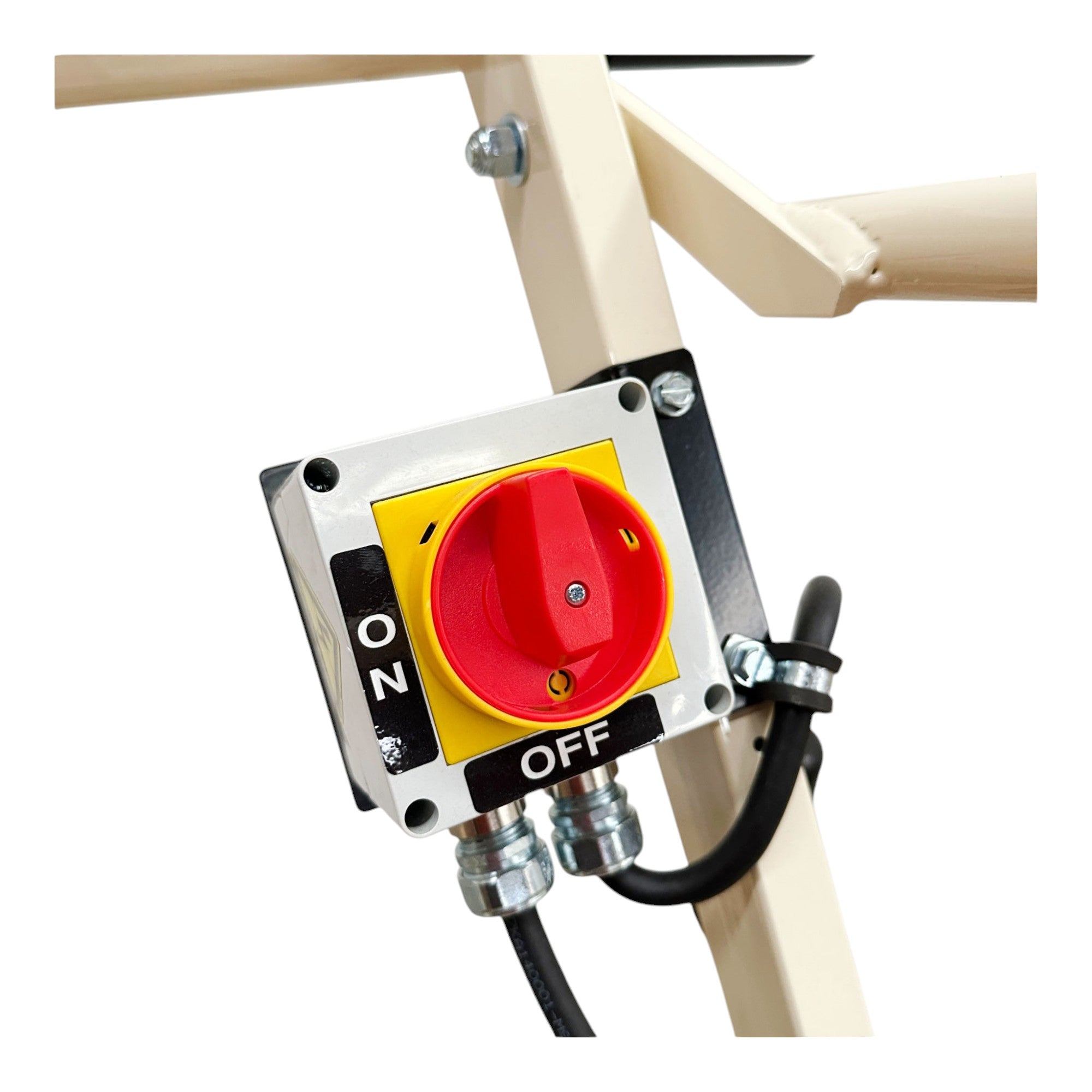

• ON/OFF SWITCH FOR QUICK OPERATION: Provides instant control over machine operation for convenience and safety.

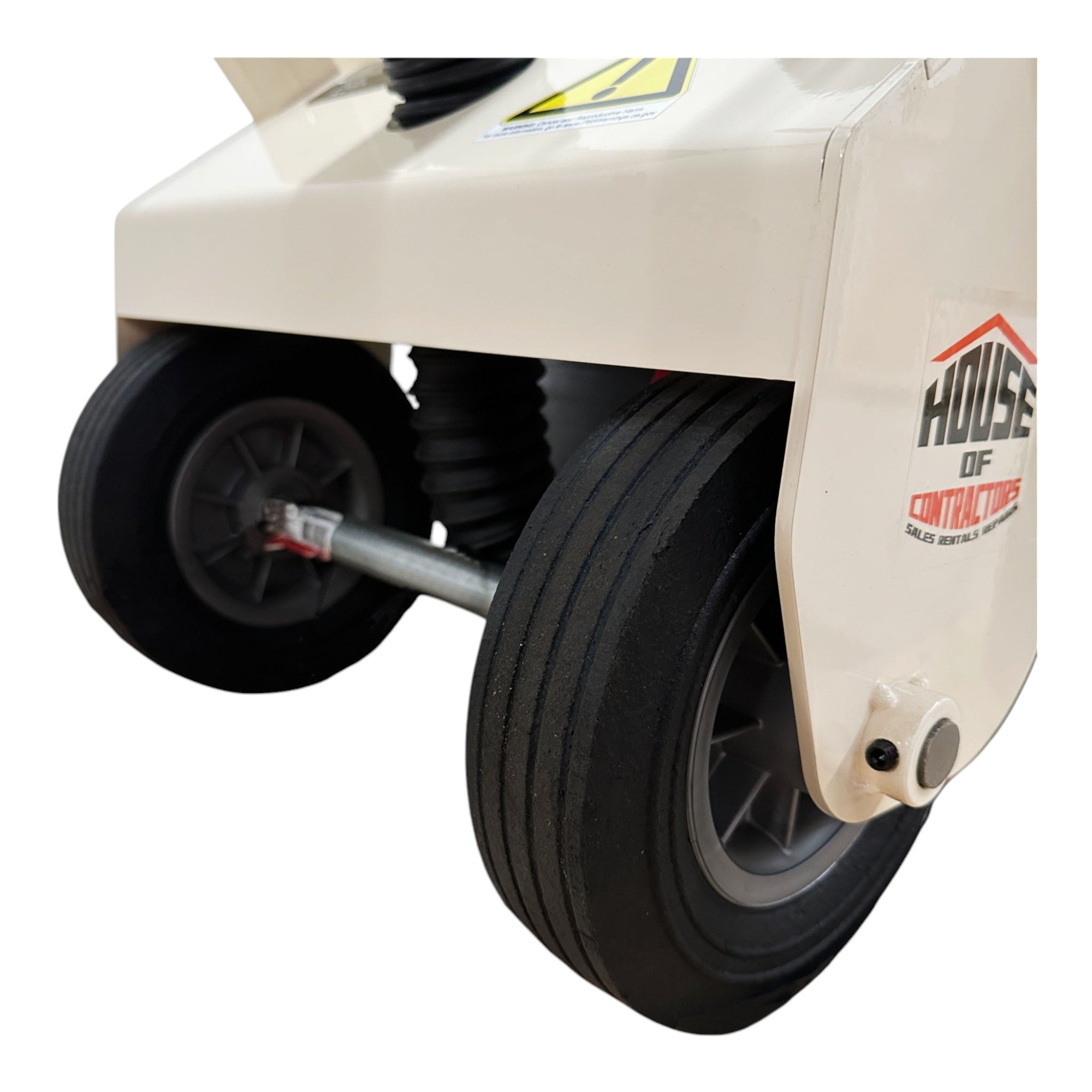

• DURABLE WHEELS FOR EASY MOBILITY: Ensures smooth movement across job sites, making transport effortless.

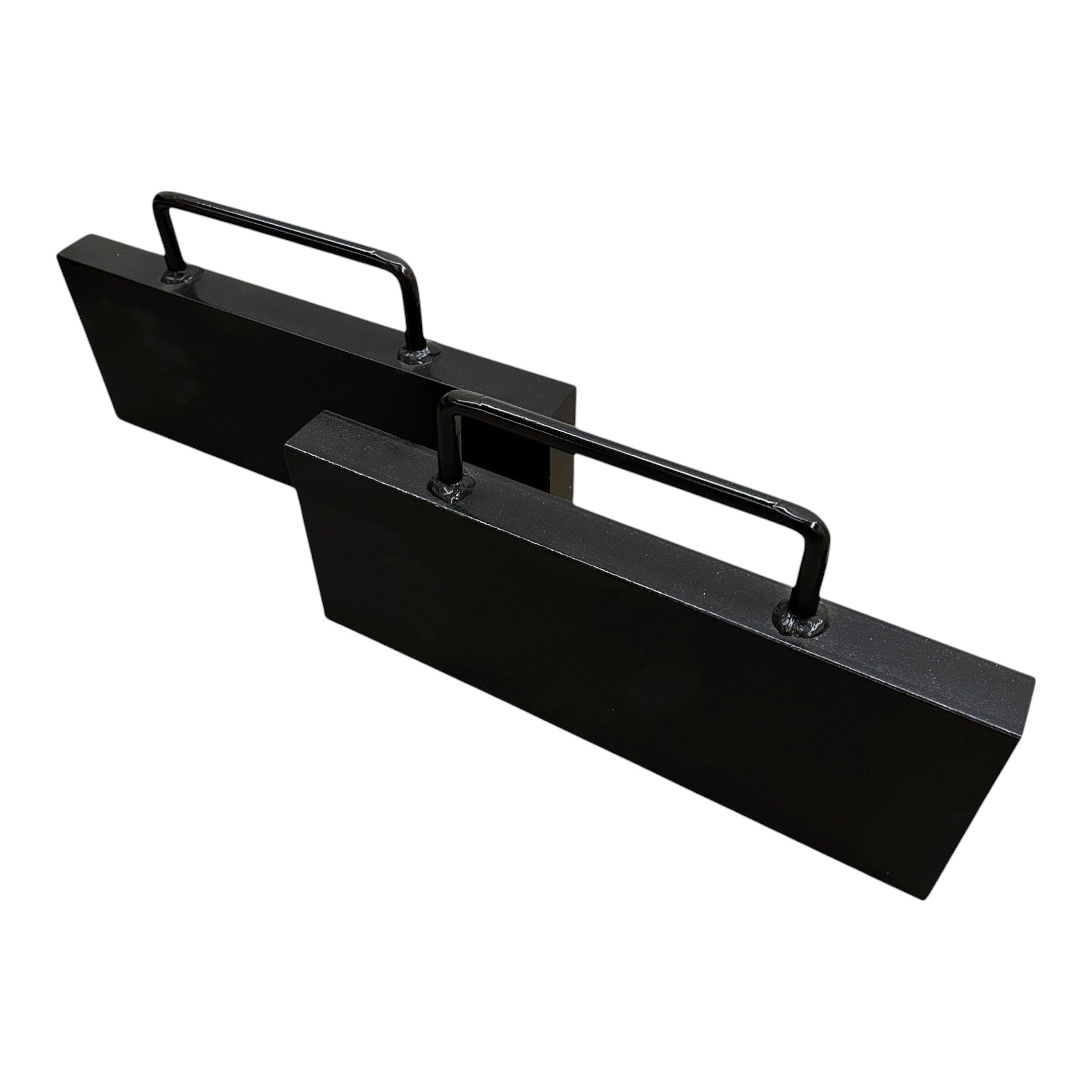

• HEAVY-DUTY WEIGHT SYSTEM: Enhances stability and performance, improving grinding efficiency.

IDEAL FOR

• Production grinding and floor cleaning in large and small areas: airports, parking decks, sports arenas, manufacturing plants.
• Light cleaning or grinding of concrete surfaces
• Removing mastics, thin-set, epoxies and urethanes
• Leveling high spots or surface imperfections
• Lightly texturing slippery concrete surfaces.

INCLUDES

• 2 - Multi-Tooling Discs, which accepts MAGNA-TRAP tools
• 2-3" multi Vacuum Port
• Water Port

AVAILABLE OPTIONS

• ED59200 - 2EC-NG - 1.5HP/115/230V Magna-Trap Grinder

• ED59600 - 2EC-NG-3HP - 3HP/230V Magna-Trap Grinder

Specs

2EC-NG

• Power: Electric
• Horse Power: 1.5 HP
• RPMs: 231
• Phase: Single Phase
• Length: 46"
• Width: 27"
• Height: 39"
• Weight: 260 lbs
• Belts: Std "V" Belt

2EC-NG-3HP

• Power: Electric
• Horse Power: 3 HP
• RPMs: 231
• Phase: Single Phase
• Length: 46"
• Width: 27"
• Height: 39"
• Weight: 260 lbs
