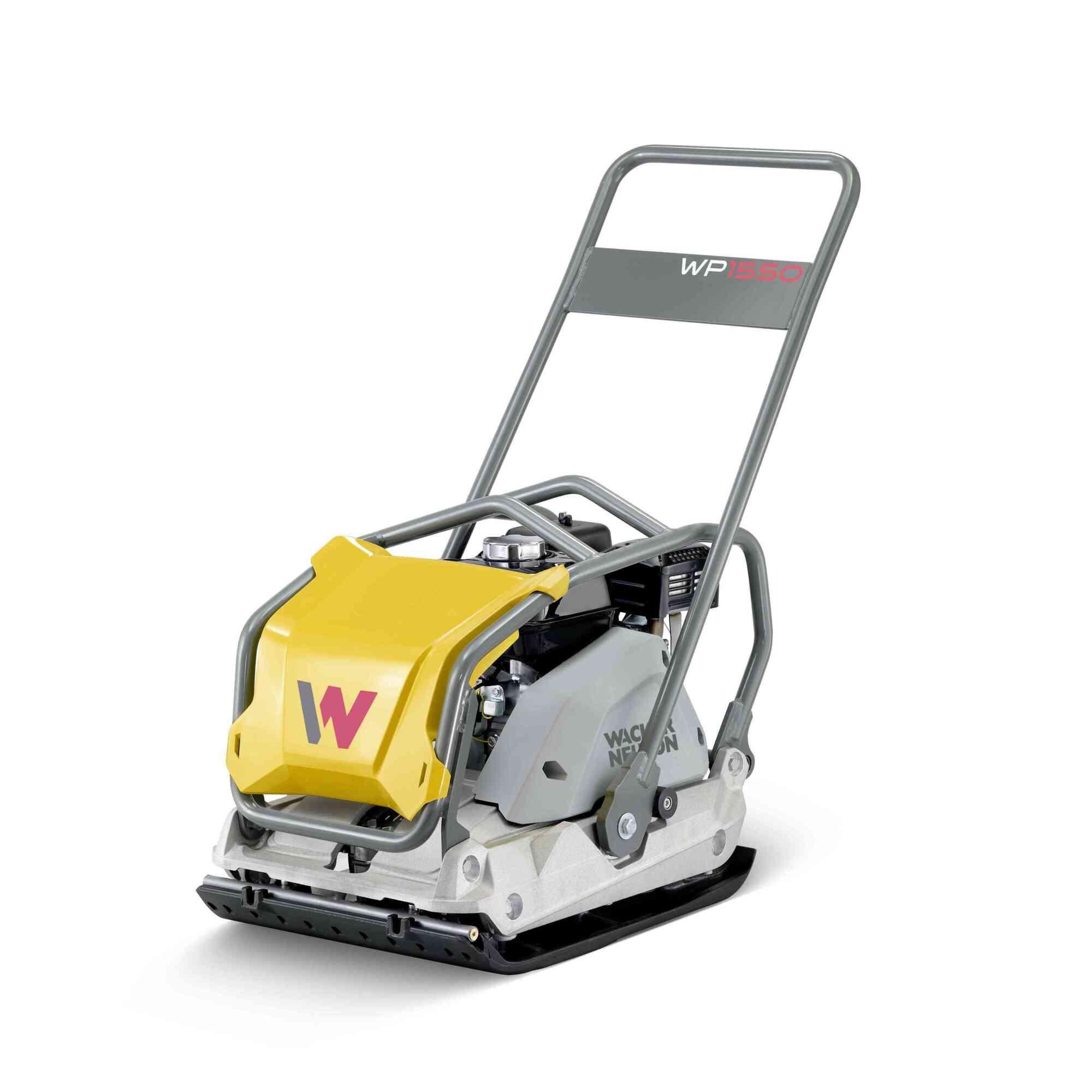

Wacker Neuson: WP1550AW 23" x 19.5" Vibratory Asphalt Plate Single Directional
WP 1550AW for Soil & Asphalt
5100062424 (NEWEST Model)
- Wacker Neuson engine.
- Asphalt plate Water tank included.
- Wheel kit sold separately.
- Premium plates features a tough, wear-resistant, ductile iron base plate offering high strength and shock resistance.
- Patented computer designed base plate has a tapered bottom and edges for high speed and excellent maneuverability.
- Designed for the compaction of granular and mixed materials with some cohesive content in confined areas such as parking lots, highway, and bridge construction next to structures, curbs, and abutments.
Older Model Numbers for this unit: 5100016241
- Water tank for asphalt included
- Premium plates feature a belt-driven exciter for increased durability
- The patented computer-designed base plate has a tapered bottom and edges for high speed and excellent maneuverability
- Designed for the compaction of granular and mixed materials with some cohesive content in confined areas such as parking lots, highway and bridge construction next to structures, curbs, and abutments
- Lightweight, high-strength aluminum components, including the engine console and belt guard, have been combined for reduced weight and easy machine handling
- Straight, center-mounted guide handle offers superior maneuverability and can be lowered within inches of the surface to operate the plate under obstacles and form work
- High inertia clutch with adjustable shims ensures smoother operation, longer belt life, and simplified belt adjustment
- Many lifting points and front lift cages offer easier loading and unloading for operator convenience
- Wheel kit sold separately
Wacker WP1550AW Specifications | |
Length x width x height (handle in working position) | 34.5 x 19.5 x 38 in |
Lowest working height | 20 in |
Size of base plate (L x W) | 23 x 19.5 in |
Operating weight | 194 lbs | 88 kg |
Water tank capacity | 11 US qt |
Compacted area | 9,750 ft 2/h |
Forward speed | up to 100 ft/min |
Gradeability | 30 % |
Vibration frequency | 100 Hz |
Max. centrifugal force | 3,375 lbs |
Engine Type | Air-cooled, 4 cycle single cylinder |
Displacement | 9.9 in3 |
Max. power output (@3900 rpm) | 5.5 hp |
Rated power output (@3600 rpm) | 5.0 hp |
Fuel tank capacity | 3.9 US qt |
Run Time | 2.1 hr |
Water Tank | 2.75 US gal |
WP1550AW Single Directional – Wacker Neuson Compactor for Professional Soil and Asphalt Compaction
Compaction is one of the most important steps in construction, paving, and landscaping projects. Without properly compacted soil, gravel, or asphalt, structures can shift, pavements can crack, and long-term durability is compromised. For contractors who demand a balance of power, maneuverability, and reliability, the WP1550AW Single Directional – Wacker Neuson Compactor is an industry-leading solution.
Known for its dependability, high compaction force, and operator-friendly design, the WP1550AW is perfect for sidewalks, driveways, pathways, asphalt repairs, and base preparation for pavers.
What Is the WP1550AW Single Directional Compactor?
The WP1550AW is a single directional vibratory plate compactor designed by Wacker Neuson, a global leader in light and compact construction equipment. Unlike reversible plates that move forward and backward, the WP1550AW is engineered for forward-only movement, making it lighter, more portable, and easier to handle on small to medium projects.
The model name itself reflects its capabilities:
-
WP – Wacker Plate series.
-
1550 – Indicates a 15 kN compaction force with a 50 cm (~20 in) base plate width.
-
AW – Denotes a water tank attachment, making it suitable for asphalt compaction.
This combination makes the WP1550AW one of the most versatile and widely used compactors in its class.
Key Features of the WP1550AW – Wacker Neuson Compactor
The WP1550AW Single Directional Compactor is packed with features that maximize efficiency and durability on the job site:
1. High Compaction Force
-
Provides 15 kN (~3,370 lbs) of centrifugal force.
-
Delivers consistent compaction on granular soils, gravel, sand, and asphalt.
2. 20-Inch Base Plate
-
50 cm (~20 in) plate width covers a large surface area.
-
Increases productivity by reducing the number of passes needed.
3. Water Tank Attachment
-
Integrated water tank with sprinkler system prevents asphalt from sticking to the plate.
-
Ensures smooth, professional results on hot mix asphalt.
4. Operator Comfort
-
Ergonomic, low-vibration handle reduces operator fatigue.
-
Handle folds for easy storage and transport.
5. Durable Construction
-
Made with a high-strength, wear-resistant steel base plate.
-
Designed to withstand rugged job site conditions.
6. Reliable Honda Power
-
Typically powered by the Honda GX160 gasoline engine.
-
Known worldwide for fuel efficiency, easy starting, and long service life.
7. Lightweight and Portable
-
Weighs approximately 200 lbs (90 kg).
-
Compact size makes it easy to transport between job sites.
Technical Specifications of the WP1550AW
Here are the official specifications of the WP1550AW Single Directional Wacker Neuson Compactor:
-
Model: WP1550AW
-
Type: Single directional vibratory plate compactor
-
Engine: Honda GX160 gasoline engine (approx. 4.8 HP)
-
Centrifugal Force: 15 kN (~3,370 lbs)
-
Base Plate Width: 19.7 in. (50 cm)
-
Travel Speed: ~82 ft/min (25 m/min)
-
Operating Weight: ~200 lbs (90 kg)
-
Fuel Tank Capacity: 0.95 gallons (3.6 liters)
-
Water Tank Capacity: ~11 liters
-
Applications: Soil compaction, asphalt repair, pavers, landscaping, driveways, sidewalks
Benefits of the WP1550AW
The WP1550AW Wacker Neuson Compactor offers a range of advantages for professionals:
1. Versatility in Applications
Works equally well on soil, gravel, sand, asphalt, and paver bases.
2. Asphalt-Ready
The built-in water tank and sprinkler system make it perfect for hot mix asphalt applications.
3. Operator-Friendly
Low-vibration handle and compact design make it easy to operate even during extended use.
4. Productivity and Efficiency
With its 20-inch wide plate, the WP1550AW covers more ground with fewer passes.
5. Durability
Built with a steel base plate and robust Honda GX160 engine, it is designed for long-term reliability.
6. Lightweight Portability
At only ~200 lbs, the compactor is easy to load, unload, and maneuver around job sites.
Applications of the WP1550AW
The Wacker Neuson WP1550AW Compactor is widely used across construction, landscaping, and municipal projects:
-
Sidewalks and Pathways – Preparing sub-bases for concrete or asphalt.
-
Driveways and Patios – Compacting gravel, sand, and soil for long-lasting durability.
-
Paver Installation – Seating interlocking pavers and compacting bedding sand.
-
Asphalt Repairs – Ideal for compacting hot or cold patch asphalt with the water tank feature.
-
Landscaping – Prepares soil and gravel for decorative projects.
-
Utility Work – Backfilling trenches for water, gas, or electrical lines.
WP1550AW vs. Other Wacker Neuson Compactors
Here’s how the WP1550AW compares with other popular Wacker Neuson plate compactors:
Feature | VP2050A (Single) | WP1550AW (Single + Water Tank) | BPU2540A (Reversible) |
---|---|---|---|
Centrifugal Force | 20 kN (~4,500 lbs) | 15 kN (~3,370 lbs) | 25 kN (~5,620 lbs) |
Plate Width | 19.7 in. (50 cm) | 19.7 in. (50 cm) | 16 in. (40 cm) |
Operating Weight | ~220 lbs | ~200 lbs | ~300 lbs |
Direction | Single | Single | Reversible |
Water Tank | Optional | Standard | Optional |
Best Use | Medium soil jobs | Asphalt + soil compaction | Medium-to-heavy jobs |
The WP1550AW is the best choice for contractors who need a lightweight, forward-only compactor that’s asphalt-ready.
Maintenance Tips for the WP1550AW
To extend the life of your WP1550AW Wacker Neuson Compactor, follow these best practices:
-
Check Engine Oil Daily – Maintain correct levels in the Honda GX160.
-
Inspect the Air Filter – Clean or replace regularly to keep the engine running efficiently.
-
Flush the Water Tank – Prevent buildup in the sprinkler system by rinsing after use.
-
Clean the Base Plate – Remove dirt, asphalt, and debris to ensure smooth operation.
-
Inspect the Drive Belt – Replace if worn or stretched.
-
Check Fasteners and Vibration Isolators – Tighten bolts and monitor rubber mounts.
-
Proper Storage – Store in a dry place, sheltered from weather when not in use.
Why Professionals Choose the WP1550AW
Contractors, landscapers, and municipalities choose the WP1550AW Wacker Neuson Compactor because it:
-
Provides 15 kN compaction force in a compact machine.
-
Includes a water tank system for asphalt work.
-
Runs on the dependable Honda GX160 engine.
-
Balances portability and performance for small to medium projects.
-
Is cost-effective, durable, and easy to use.
For asphalt patching, paver installation, and soil compaction, the WP1550AW is one of the most trusted compactors available.
Conclusion
The WP1550AW Single Directional – Wacker Neuson Compactor is a versatile, durable, and efficient compaction solution. With its 15 kN compaction force, 20-inch plate width, Honda GX160 engine, and built-in water tank, it delivers reliable results for soil, asphalt, and paver compaction projects.
Whether you’re preparing a sidewalk, repairing asphalt, or installing pavers, the WP1550AW provides the performance, portability, and durability that professionals demand. For contractors looking for a cost-effective, professional-grade forward plate compactor, the Wacker Neuson WP1550AW is an investment that pays off on every job.
