Wacker Neuson APS1135We Quick 14 Kit (BOB14 x 2, BOC13 - 5100072095
Specs
Wacker Neuson APS1135We Quick 14 Kit (BOB14 x 2, BOC13) – 5100072095: Complete Battery-Powered Compaction Solution
In modern construction, landscaping, and municipal work, zero-emission powerful tools are no longer optional—they’re essential. The Wacker Neuson APS1135We Quick 14 Kit (BOB14 x 2, BOC13) – SKU 5100072095 is a turnkey solution combining high performance, sustainability, and operator convenience in one package. Whether you're preparing a sidewalk base, doing asphalt patching, or working in noise- and emission-sensitive areas, this kit delivers the features you need.
What Is the APS1135We Quick 14 Kit 5100072095?

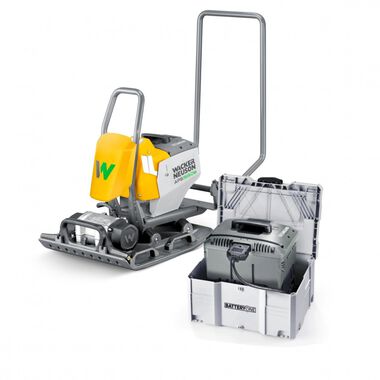

The APS1135We is part of Wacker Neuson’s APS battery-powered single-direction vibratory plates, powered by their Battery-One system. The “Quick 14 Kit” version includes two BOB14 lithium-ion batteries (high capacity) plus the BOC13 quick charger, giving you everything needed to maximize uptime and minimize downtime due to charging.
SKU 5100072095 refers precisely to the full kit: the APS1135We plate, dual BOB14 batteries, and BOC13 charger. It’s designed for contractors and professionals who want cordless power, flexibility, and no compromise on compaction performance.
Key Specifications & Technical Data
Here are the confirmed technical details (2021–2025 model data, and from vendors listing the kit) for APS1135We and specifically this Quick 14 Kit:
| Spec | Value |
|---|---|
| Centrifugal Force | ~11.0 kN (~2,473 lbf / 2,500-approx) |
| Working/Base Plate Width | 350 mm (≈14 in) |
| Vibrating Frequency | ~98 Hz |
| Operating Weight (tool only) | ~60 kg (~132 lb) |
| Power Source | Battery-One lithium-ion (BOB14 batteries) |
| Charger | BOC13 quick charger included in kit |
| Control / Start | Push-button start, maintenance-free electric motor; no belts, clutch, or V-belt maintenance required |
| Handle / HAV (Hand−Arm Vibration) | Low HAV (less than 5 m/s²), precise turning & control |
| Warranty | 2-Years / 2,000-Hours machine warranty (as listed) |
What’s in the Quick 14 Kit? Full Component List
-
APS1135We plate (tool) – 14-inch (350 mm) base plate.
-

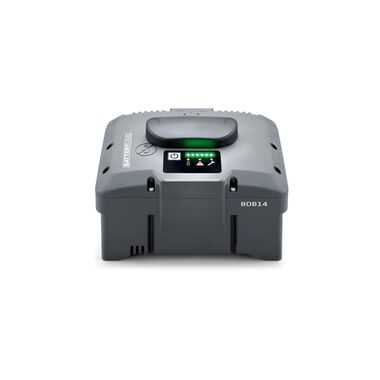

2 x BOB14 batteries – higher capacity, enabling longer operation between charges.
-

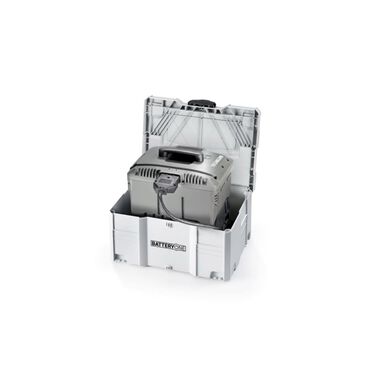

BOC13 quick charger – fast recharge to get back up and running.
This kit eliminates guesswork: you get the plate, the power, and the charging hardware, all designed to work together under Wacker Neuson’s Battery-One ecosystem.
Features & Advantages
Zero-Emission & Quiet Operation
Since there is no combustion engine, APS1135We operates without exhaust emissions, making it ideal for indoor, urban, residential, or restricted-access sites. It also delivers much lower noise vs gasoline/diesel plates.
Push-Button Start & Maintenance Free Drive
Electric motor, direct drive means no belts, clutch, or additional moving mechanical parts that need frequent maintenance. Less downtime and fewer parts to service.
Improved Control & Low HAV
Excellent turning ability with an ergonomic handle; hand-arm vibration is kept low (<5 m/s²), which improves operator comfort, reduces fatigue, and enhances precision.
Battery Flexibility & Uptime
With two high-capacity BOB14 batteries included, you can run longer periods. Swap batteries while one charges, ensuring continuous operation without waiting. The Battery-One system allows batteries to be used in multiple compatible machines, improving return on investment.
Compact Size & Clean Finish
The base plate is optimized for good finishing (especially around edges and curbs), with angular side edges to avoid damaging pavers. The kit is designed to produce clean compaction even in tight, constricted areas.
Use Cases & Ideal Applications
The Quick 14 Kit is particularly well suited for:
-
Paver base compaction (yards, patios, walkways)
-
Sidewalk repairs or installations where low noise / emissions are required
-
Asphalt patch work where diesel/gas fumes are restricted
-
Municipal or residential sites with tight emission standards
-
Indoor applications like warehouse floors or enclosed structures
-
Any project where uptime matters (due to the dual battery system)
Comparisons: How It Stacks Up vs Alternatives
| Comparison | Key Differences |
|---|---|
| APS1135We Quick 14 Kit vs APS1135e / APS1135We Tool-Only | The Quick 14 includes dual BOB14 batteries and a fast charger; the tool-only version requires operator to already have batteries/charger. |
| APS1135We vs Gasoline Plates (e.g., WPU or VP models) | Much quieter, zero emissions, lower maintenance; trade-off is battery charge management and sometimes lower continuous power vs large fuel engines, but for many tasks performance is more than sufficient. |
| APS1135We vs Smaller Electric/Battery Plates | The 14-inch size with 11 kN is strong in its class; smaller battery-plates may be more maneuverable but with less compaction force or shorter runtime. |
Maintenance & Best Practices
To get the best life and value from the APS1135We Quick 14 Kit:
-
Rotate the 2 BOB14 Batteries evenly to balance wear.
-
Use the BOC13 charger as provided; ensure correct charging environment (temperature) for battery health.
-
Keep base plate clean—remove asphalt, debris, or materials after each use to ensure smooth finish and prevent buildup.
-
Check bolts/handles/vibration mounts regularly; ensure everything tight and safe.
-
Store properly – battery and charger in a dry, moderate climate; avoid extremes of cold or heat.
-
Inspect for damage periodically, especially edges of plate and protective housing; address minor issues before they escalate.
Why This Kit Helps You Get It Done Better
-
Higher uptime: dual batteries and quick charger mean less idle waiting.
-
Lower operating cost: no fuel, lower maintenance compared to combustion tools.
-
Better safety & compliance: zero emissions, low noise = easier compliance with environmental and noise regulations.
-
Cleaner work results: cleaner finishing, less damage to paving surfaces and edges.
-
Future-proof ecosystem: Battery-One compatibility with other tools protects investment.
Known Specs Recap
-
Model: APS1135We (single direction, battery plate)
-
SKU / Part #: 5100072095
-
Centrifugal force: ~11 kN (2,473 lbf)
-
Plate width: 350 mm (14 in)
-
Vibrating frequency: ~98 Hz
-
Weight: ~60 kg (~132 lb) (tool only)
-
Batteries: 2 × BOB14 included
-
Charger: BOC13 quick charger included
-
Warranty: 24 months / 2,000 hours (machine warranty)
Conclusion
The Wacker Neuson APS1135We Quick 14 Kit (BOB14 x 2, BOC13) – Part Number 5100072095 is a high-value, all-in-one compaction solution for professionals demanding performance, sustainability, and durability. With its 11 kN compaction force, 14-inch plate, dual high-capacity batteries, quick charger, and low maintenance design, it bridges the gap between traditional gas-powered machines and modern, efficient battery-powered tools.
If you're in the market for a battery-powered plate compactor that delivers real power, real uptime, and a greener footprint, this kit is among the best investments out there.
