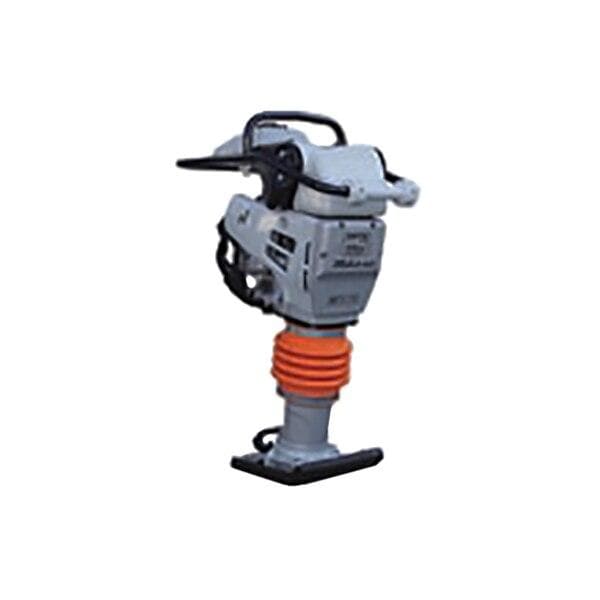

MTX70HDR Rammer for compacting dirt and gravel with up to 3,350 pounds of impact force
Multiquip's Mikasa MTX-Series rammers now utilize the all new Honda GXR120 engine. The GXR120 is a high output OHC engine, designed specifically for rammer applications. MTX70HDR is ideally suited for high altitude settings.
MTX-Series rammers are renowned for performance and ease of operation. The MTX-Series includes the features most
preferred by contractors such as:
- Cyclonic air cleaners that capture 98% of airborne dust particles
- Long-lasting laminated wood and steel shoe
- Low vibration handles for operator comfort
- Combination hour meter/tachometer
- Durable guards to protect the engine from damage
- Redesigned fuel tank to meet EPA standards for evaporative emissions
| Blows Per Min. | Up to 690 | |
| Impact Force | 3,350 lbf | 1520 kgf |
| Shoe Jump Height | 3.1 in | 79 mm |
| Shoe Dimensions (LxW) |
13.4 x 11.2 in 340 x 285 mm |
|
| Travel Speed Per Min. | 55.8 ft | 17 m |
| Fuel Tank Capacity | 2.7 qt | 2.5 L |
| Overall Length | 31.0 in | 788 mm |
| Overall Width | 13.8 in | 350 mm |
| Overall Height | 40.4 in | 1027 mm |
| Operating Weight | 165 lb | 75 kg |
| Engine Make/Model | Honda GXR120 | |
| Start Method | Recoil | |
| Engine Power | 3.6 HP | 2.7 kW |
| Engine RPM | 4100 | |
| Fuel Type | Gasoline | |
Notice: Features and equipment specifications are subject to change without notice.
