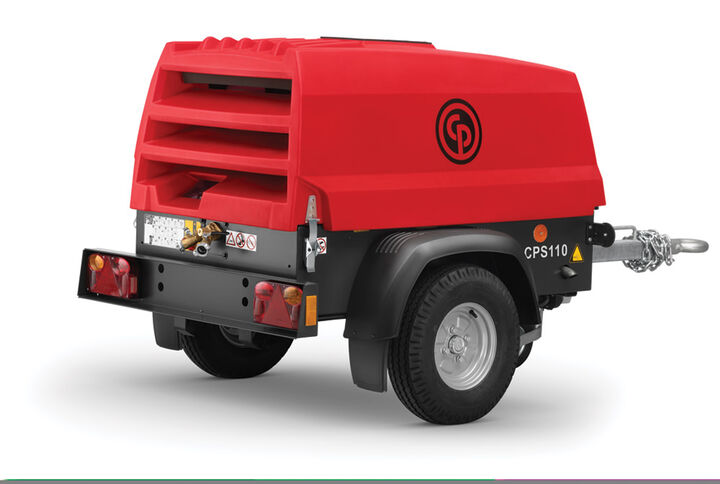

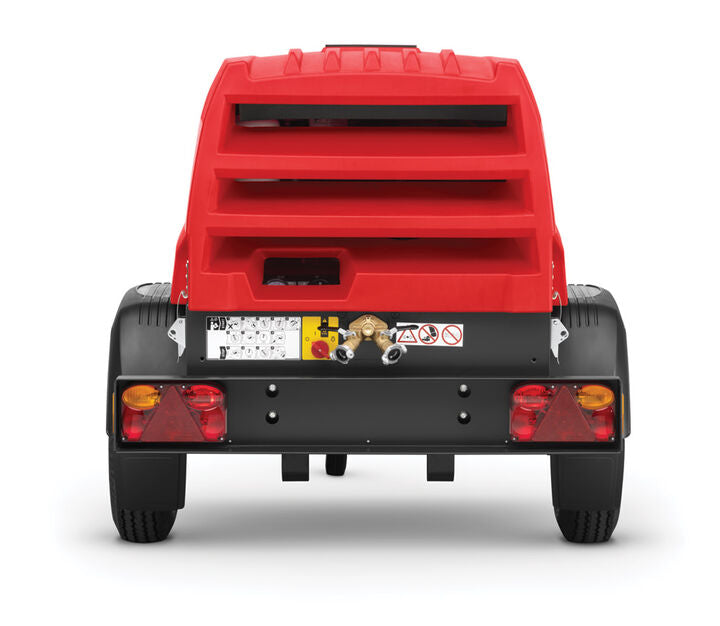

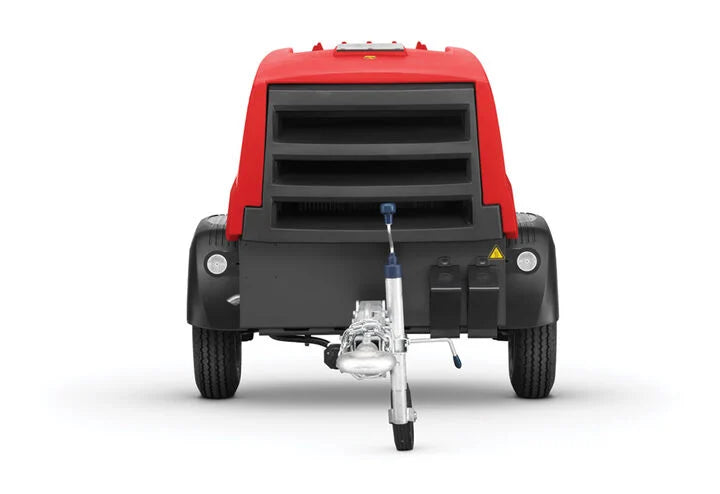

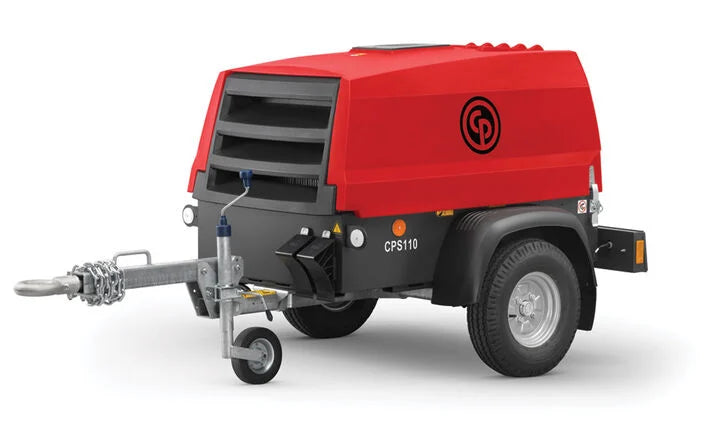

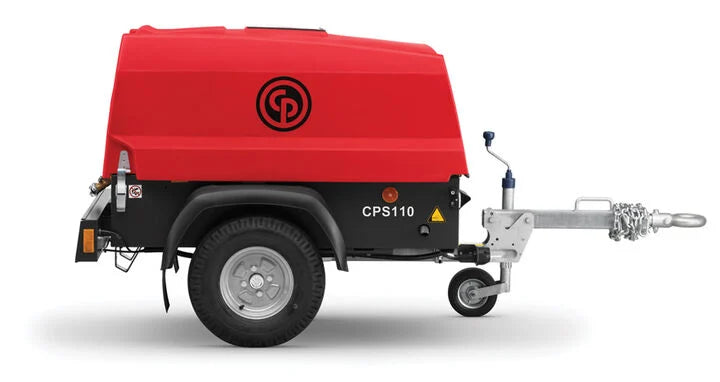

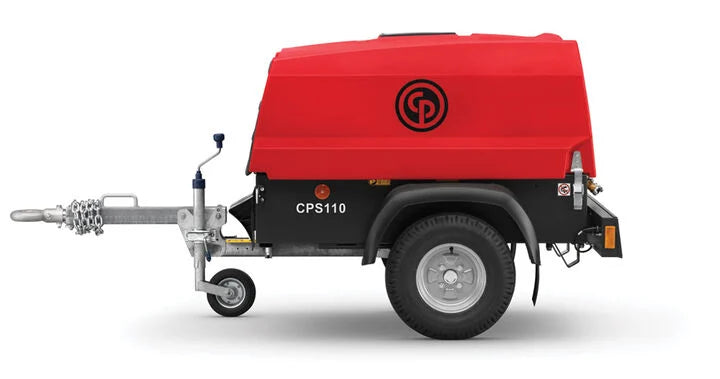

Chicago Pneumatic CPS110 110 CFM Portable Tow Behind Air Compressor with Kubota Engine
Features
110% Spill Free Containment, with remote drains. • Kubota D902 Tier 4 Final 25hp mechanical diesel engine (muffler only) with starter protection. • Thermostatic By Pass Valve, Anti-airlock system in fuel lines to guarantee starting. • Electrical shutoff switch. • 110V Block Heater • Polyethylene canopy built for heavy-duty applications. Base frame with 3 layer anti-corrosion paint. • Designed to reduce maintenance time with easy access filters and fluids. Pressure vessel comes with spin on filter. • Two 3/4” ball valves. • DOT towing package; Road lights (4 way flat plug), 3” pintle towing hitch, Torsion axle, VIN, Adjustable jack stand, No brakes.
Chicago Pneumatic CPS 110
Compressor
Part Number
8162061086
Free Air Delivery (FAD) @ Effective Working Pressure
95 cfm
Normal Effective Working Pressure
100 psig
Maximum Unloaded Pressure
115 psig
Minimum Working Pressure
58 psig
Air Compressor Outlets
2 × 3/4"
Max. Sound Pressure Level (LPA) at 7 m (23 ft)
71 dB(A)
Max. Ambient Temperature at Sea Level
122°F
Min. Starting Temperature (Cold Start Aid)
-14°F
Compressor Oil
1.98 gal
Fuel Tank Capacity
7.52 gal (28.5 L)
Fuel Consumption @ 100% Load
1.28 gal/hr
Fuel Autonomy at Full Load Standard
5.7 hr
Maximum Altitude
4,000 ft
Engine
Engine Model
Kubota D902 T4F
Number of Cylinders
3
Displacement
0.898 L
Power Output @ Normal Shaft Speed
25 hp
Emissions Level
N/A
Full Load RPM
3,600 rpm
Unload RPM
2,000 rpm
Trailer Undercarriage Dimensions
Length × Width × Height
79 × 48 × 51 in
Weight (Wet)
1,100 lbs (498 kg)
Box/Skid Unit Dimensions
Length × Width × Height
61 × 41 × 38 in
Weight (Wet)
970 lbs (440 kg)
Note: Sound pressure level measured according to ISO 1217, 2009 Annex D. Performance may vary depending on ambient conditions and temperature.
Consult Chicago Pneumatic for proper de-rating instructions for operation beyond ambient limitations. Design and specifications are subject to change without notice or obligation.
