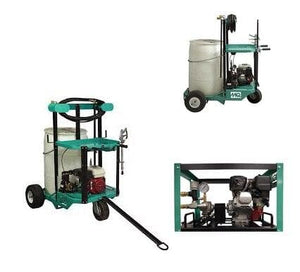

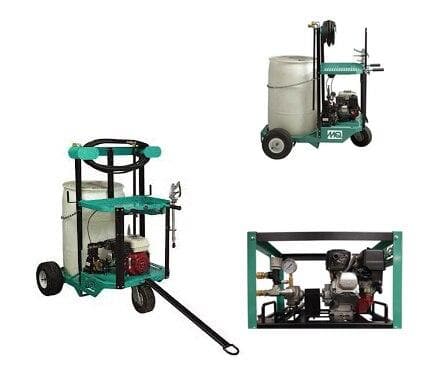

WSC55 Chemical Sprayer
Multiquip's New WSC55 Chemical Spraying System offers significant time and cost savings. A small on-board compressor allows the operator to clear and recycle the leftover product that would normally be discarded, greatly reducing maintenance and waste.
- Powerful 5.5 HP Honda GX160 gear reduction engine provides reliable operation
- Quick disconnect hose connections for simple operation
- Sloped chemical platform allows all liquid to be easily dispensed from any container. Holds one 55 gallon drum or up to four 5 gallon containers
- Tow handle allows unit to be moved on the jobsite by hand or forklift. Parking brake to secure unit on unstable or uneven ground
- Built in fork pockets
- Engine-driven compressor for recycling any leftover product remaining in the system back into the original container
- Convenient work tray holds tools and other on site needs
- Gripped control handles for operator comfort
- Smooth tires have no tread to reduce the risk of floor damage
- Single front tire for easy steering and control
- System comes complete with a wand and one 50 foot hose standard (Additional hose lengths sold separtately)
- Built in hose rack accommodates up to 250 feet of hose
| Engine | Honda GX160 | |
| Engine Output | 4.8 HP (3.6 kW) | |
| Operating Weight | 290 lb (131 kg) | |
| Fuel Capacity | 0.825 Gal | |
| GPM | 7 GPM @ 125 PSI | |
The WSC55 Chemical Sprayer - Full Set Up is a premier, all-inclusive mobile chemical spraying system designed by Multiquip to deliver unmatched performance, cost savings, and versatility for concrete contractors and finishing professionals. With a rugged cart, powerful Honda engine, onboard compressor, efficient pump, and adaptable hose/nozzle assembly, the WSC55 maximizes productivity and minimizes chemical waste—making it a top choice for serious crews tackling slab curing, sealing, evaporation control, and other high-demand jobsite spraying tasks.
Complete System Overview
The Multiquip WSC55 Chemical Sprayer - Full Set Up is engineered for jobsite efficiency from start to finish. Its robust platform holds either a 55-gallon drum or up to four 5-gallon buckets, letting crews choose the best product source for any task. Clever engineering features, like the sloped chemical platform, channel all liquid toward the suction pickup, virtually eliminating the typical 2–5 gallons lost as residue. This means less chemical waste, lower costs, and easier cleanup after every project.
The full setup comes equipped with:
-
Sturdy mobile cart with non-marring treadless wheels
-
Powerful 5.5 HP Honda GX160 engine
-
Sprayer pump (roller type) capable of delivering up to 18 GPM max
-
Integrated small compressor for line flushing and product recovery
-
Standard 50-ft hose, optional hose reel for up to 150 feet
-
Multiple nozzle choices with onboard storage
-
Quick connect fittings for rapid set up/break down
Key Features and Advantages
-
Onboard Compressor: Unique to the WSC55, the mini-compressor allows operators to clear and recycle leftover product from spray lines, leading to near-zero chemical waste and greatly simplified maintenance at the end of each job.
-
User-Friendly Control Station: Dual levers at the cart handle let users instantly engage either pump or compressor as needed, making operation and changeover fast and intuitive.
-
Flexible Container Handling: Accepts both large drums for commercial-grade jobs as well as multiple small containers for specialty or limited-use chemicals.
-
Non-Marring Wheels: Three smooth, treadless tires protect delicate slab surfaces and prevent concrete marking, outperforming competitive sprayers with utility or hard rubber wheels.
-
Quick Disconnect Hoses: Rapid swaps mean minimal downtime between chemical changes, maintenance, or reconfiguration during high-volume operations.
-
Onboard Tool Tray and Nozzle Storage: Keeps essential spray gear within reach, making multi-nozzle projects more efficient without having to leave the jobsite.
Technical Specifications
| Feature | Specification |
|---|---|
| Power | 5.5 HP Honda GX160 gear reduction engine |
| Pump Type | Roller pump |
| Compressor | Small onboard, for line flushing/product recovery |
| Max Flow | 18 GPM peak output |
| Hose Length | 50 ft standard (up to 150 ft optional hose reel) |
| Pressure | 125 PSI (@ 7 GPM typical operating) |
| Container | 55 gal drum or 4 x 5 gal buckets |
| Weight | Approx. 290 lbs (with engine, pump, compressor) |
| Wheels | 3 smooth, treadless, non-marring |
| Fuel Capacity | .825 gallons |
| Platform | Sloped, for complete drum/bucket drainage |
| Parking Brake | Included |
Field-Proven Performance
The WSC55 Chemical Sprayer’s combination of high-volume flow, powerful engine, and compressor-assisted flushing means even the largest slabs, tilt-ups, or floor pours can be covered rapidly and uniformly. Users report direct material savings in reduced chemical waste and lower “end-of-job leftovers,” leading to overall lower cost-per-job for even expensive curing or sealing agents.
Industry feedback also highlights exceptional durability, simplified jobsite mobility, and minimal required maintenance—thanks to trusted Honda engine technology, corrosion-resistant platform coatings, and rugged component design.
Applications
-
Concrete slab curing compounds (retardants, hardeners, dustproofers)
-
Surface sealers (water-based, solvent-based, acrylics)
-
Evaporation control agents (for slab pours in sunny conditions)
-
Floor and vertical wall coatings
-
Form release and specialty surface treatments
The flexible, modular sprayer platform also supports agricultural, industrial, and municipal chemical application for users requiring large-quantity but mobile delivery.
Modular Add-Ons and Upgrades
-
Universal quick-connect adapters for alternate nozzles or specialty chemicals
-
Replacement pump and compressor parts for long-term maintenance
-
Weather-resistant covers, spare nozzle racks, and bulk chemical drum locks
Operator Safety and Ergonomics
-
Low-handle tow bar: Ergonomic control for both pulling and positioning, reducing strain and making short-range transport easier
-
Stable parking brake: Prevents accidental rolling or tipping during drum changes or material refills
-
Intuitive controls: Dual lever system minimizes training requirements, supporting multi-crew operation or lean crews
Environmental & Economic Value
-
Near-zero chemical waste from drum or bucket, maximizing return on expensive agents
-
Compressor flush feature greatly reduces risk of nozzle or hose blockages for repeated use
-
Mobile platform minimizes time expended on chemical transport, bucket carrying, and cleaning
Comparison Table
| Feature | WSC55 Full Set Up | Typical Sprayer Cart |
|---|---|---|
| Engine | Honda GX160 (5.5 HP) | 3–5 HP (often cheaper) |
| Compressor | Onboard flush | Rarely included |
| Max Flow | 18 GPM | 7–15 GPM typical |
| Platform | Sloped for full drain | Flat, may waste chemical |
| Wheels | Non-marring | Utility/industrial tires |
| Hose Length | 50–150 ft (opt.) | 25–50 ft usually |
| Setup Time | <5 minutes | 10–30 minutes |
| Maintenance | Simple, accessible | Varies by model |
Why Choose the WSC55 Chemical Sprayer – Full Set Up?
Professionals select the Multiquip WSC55 Chemical Sprayer for its class-leading efficiency, cost savings, and reliability. From rapid slab curing to evaporation control on hot summer days, the WSC55 delivers superior results, faster application, and less wasted product than conventional sprayers. Its mobile, ergonomic, operator-focused design and industry-rated Honda engine guarantee dependable performance for years—making the WSC55 one of the most valuable investments a concrete finishing crew can make.
