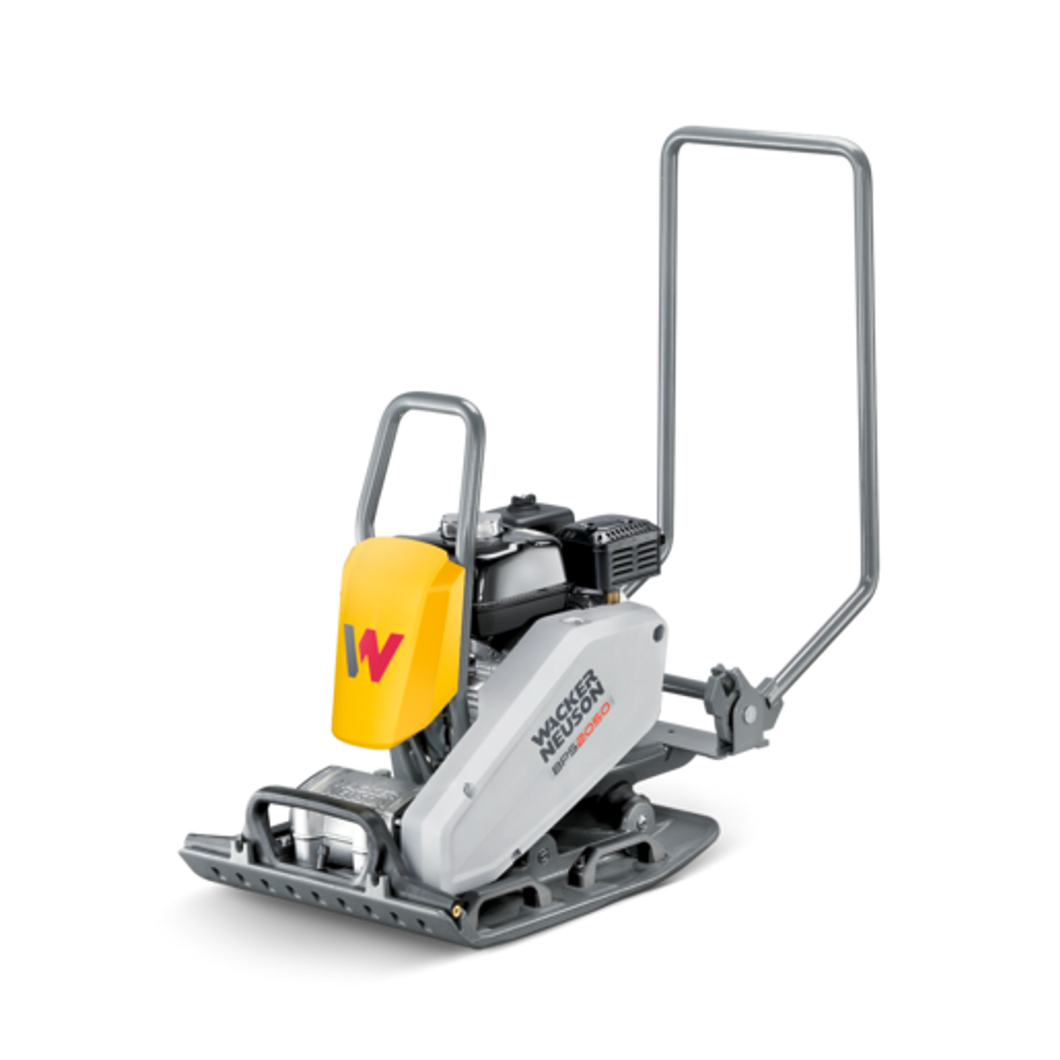

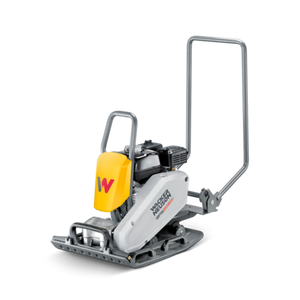

Wacker Neuson Vibroplate BPS2050A - 5100061217

The Wacker Neuson BPS2050A is a compact single direction vibratory plate, perfect for occasional asphalt and compaction work. It has an operating weight of 206.5 lbs, and a width of 19.7". Its powerful Honda engine delivers 4496 lbs of centrifugal force, while the chamfered edges minimize the formation of stress edges.

The V-belt drive with all-round protection provides a long operating duration, making this machine ideal for compacting asphalt. Shop now.

Features

• Easy to maneuver and provides excellent compaction.
• Angular side edges of the baseplate provides even, clean finish along curbs and obstructions.
• The responsive guide handle results in easy and comfortable control of the machine.
• Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions. .
• Easy to transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable.
• Maintenance-free: The BPS series is equipped with a heavy-duty fan belt and offers lifetime lubrication. As a result, it is practically maintenance free.
• Accessories are available: Wheel set and paving stone pad offer additional applications.



ENGINE	Imperial	Metric
Fuel management	Carburettor	Carburettor
Inclined position max.	20,0 °	20,0 °
Engine operating mode	four-stroke	four-stroke
Operating Engine speed	3.520 1/min	3.520 1/min
Fuel consumption	0,2 GPH US	0,80 L/Std
CO2 (NRSC)	757,00 g/KWh	757,00 g/KWh
Standard (Power max.)	SAE J1349	SAE J1349
Standard (Effective power)	ISO 3046 IFN	ISO 3046 IFN
Tank capacity	1,0 gal US	3,60 l
Nominal Engine speed	3.600 1/min, 3.600 1/min	3.600 1/min, 3.600 1/min
Electrode distance	0,028 - 0,032 "	0,70 - 0,80 mm
Oil filling max.	0,2 gal US	0,60 l
Effective power	4,2 hp, 4,8 hp	3,1 kW, 3,6 kW
Battery capacity (nom. value)	0 Ah	0 Ah
Air cleaner	dry air filter	dry air filter
Power rating max.	4,8 hp	3,6 kW
Cooling	air cooling	air cooling
Exhaust-gas limit	EPA4/08, EU Stage V	EPA4/08, EU Stage V
Oil specification	SAE 10W-30	SAE 10W-30
Starter battery Voltage	0 V	0 V
Engine speed (Power max.)	3.600 1/min	3.600 1/min
Starter type	Recoil starter	Recoil starter
Operating power	3,9 hp	2,9 kW
Oil filling min.	0,2 gal US	0,60 l
Engine type	Gasoline engine	Gasoline engine
Cylinder	1	1
Engine Manufacturer	Honda	Honda
Standard (Operating power)	ISO 3046 IFN	ISO 3046 IFN
Cylinder capacity	9,9 Inch3	163 cm3
Spark plug(s)	NGK BP-6 ES	NGK BP-6 ES
Kraftstofftyp	Gasoline	Gasoline
Oil volume incl. filter change	0,2 gal US	0,60 l



MECHANICAL - OUTPUT DETAILS	Imperial	Metric
Vibrations	5.880 1/min	5.880 1/min
Forward running	1,4 fps	25,00 m/min
Transmission	FKK-KR	FKK-KR
Gradeability	36,4 %	36,4 %
Centrifugal force	4.496 lbf	20,000 kN
Vibrations (Hz)	98 Hz	98 Hz
Area capacity	8.073,0 ft2/h	750 m2/h



MECHANICAL DETAILS	Imperial	Metric
Lenght Drawbar in op. pos.	38,2 "	970 mm
Operating weight	206,6 lb	93,7 kg
Ground clearance	26,1 "	663 mm
Height	26,1 "	663 mm
Width	19,7 "	500 mm



ENVIRONMENT DATA	Imperial	Metric
Operating temperature range	5 - 113 °F	-15 - 45 °C
Sound power LWA, guaranteed	108,0 dB(A)	108,0 dB(A)
Storage temperature range	5 - 104 °F	-15 - 40 °C
HAV summation (average value)	13,5 ft/s2	4,1 m/s2
Uncertainty in measurement HAV	1,6 ft/s2	0,5 m/s2
	"



Wacker Neuson Vibroplate BPS2050A - 5100061217

Compaction equipment plays a crucial role in construction, landscaping, and roadwork projects. Contractors need machines that provide powerful compaction, operator comfort, and long-term durability. The Wacker Neuson Vibroplate BPS2050A - 5100061217 delivers all of these benefits and more.

As part of Wacker Neuson’s highly respected BPS series, the BPS2050A is a forward-travel vibratory plate compactor designed for a wide range of soil and asphalt applications. Its balanced design, powerful performance, and ease of operation make it a trusted choice for contractors worldwide.

In this guide, we’ll cover everything you need to know about the Wacker Neuson BPS2050A, including features, specifications, benefits, applications, comparisons, and maintenance tips.

---

What Is the Wacker Neuson Vibroplate BPS2050A?

The BPS2050A is a gasoline-powered vibratory plate compactor engineered for forward travel. It is ideal for compacting granular soils, mixed soils, and asphalt surfaces.

The model number 5100061217 refers to this specific configuration of the compactor, which features a 20-inch (500 mm) base plate width, making it versatile for both narrow and medium-sized compaction jobs.

Its lightweight yet durable design allows for easy handling, transport, and operation, while still delivering professional-grade compaction power.

---

Key Features of the BPS2050A

1. Powerful Compaction Performance

• Provides high centrifugal force for effective compaction.

• Suitable for granular soils, sand, gravel, and asphalt.

• Reduces the number of passes needed, saving time and fuel.

2. 20-Inch Base Plate

• The 500 mm wide base plate ensures uniform compaction over larger areas.

• Ideal for sidewalks, driveways, and road patching.

3. Durable Construction

• Built with heavy-duty steel and reinforced components.

• Withstands rugged jobsite conditions.

4. Operator Comfort

• Ergonomic handle design reduces vibration exposure.

• Lightweight design makes it easy to maneuver.

• Forward-travel system ensures smooth operation.

5. Gasoline Engine

• Reliable, fuel-efficient engine provides strong performance.

• Easy to start and maintain.

6. Low Maintenance Requirements

• Simplified design reduces downtime.

• Easily accessible service points for daily checks.

---

Technical Specifications of the BPS2050A - 5100061217

• Model: BPS2050A

• Part Number: 5100061217

• Machine Type: Forward-travel vibratory plate compactor

• Operating Weight: ~240 lbs (110 kg)

• Base Plate Width: 20 in (500 mm)

• Centrifugal Force: ~4,500 lbs (20 kN)

• Frequency: ~90 Hz

• Engine Type: Air-cooled gasoline engine

• Fuel Capacity: ~3 liters (varies by configuration)

• Travel Speed: Up to 82 ft/min (25 m/min)

• Applications: Granular soils, sand, gravel, mixed soils, asphalt

(Specifications may vary slightly depending on configuration and region.)

---

Benefits of the Wacker Neuson BPS2050A

1. Reliable Compaction Power

Delivers consistent and deep compaction, ensuring stable bases for construction and paving.

2. Versatility Across Projects

From soil compaction to asphalt finishing, the BPS2050A adapts to multiple applications, making it a cost-effective choice for contractors.

3. Ease of Operation

Its forward-travel system and ergonomic design make it simple to use, even for less experienced operators.

4. Durability and Longevity

Heavy-duty materials ensure the machine can withstand years of demanding use.

5. Fuel Efficiency

Powered by a reliable gasoline engine, it offers long runtime with lower fuel consumption.

---

Applications of the Vibroplate BPS2050A

The Wacker Neuson Vibroplate BPS2050A - 5100061217 is suitable for:

• Road Construction: Compacting base and sub-base layers before paving.

• Asphalt Repair: Sealing and compacting asphalt patches and driveways.

• Landscaping Projects: Compacting soil, gravel, and sand for patios, walkways, and retaining walls.

• Utility and Pipeline Work: Backfilling trenches around pipes and cables.

• Municipal Projects: Compacting sidewalks, bike paths, and small road repairs.

---

Comparison With Other Wacker Neuson Plates

• BPS2050A vs. BPS1340A:

  • The BPS2050A offers a wider base plate (20 in vs. 13 in) and more compaction force, making it better for medium projects.

• BPS2050A vs. APS1340e (Battery Model):

  • The BPS2050A runs on gasoline, offering longer run times without charging, while the APS1340e is emission-free but limited by battery runtime.

• BPS2050A vs. Reversible Plates (APU3050e):

  • The BPS2050A is lighter and easier to maneuver but only compacts forward, while reversible plates handle heavier-duty applications.

---

Maintenance Tips for the BPS2050A

Keeping your compactor in top condition ensures reliable performance:

1. Daily Checks

   • Inspect oil and fuel levels.

   • Check for leaks or wear on the base plate.

   • Ensure the handle and controls work smoothly.

2. Weekly Maintenance

   • Clean the air filter.

   • Inspect the spark plug.

   • Tighten vibration mounts and bolts.

3. Scheduled Servicing

   • Change engine oil according to Wacker Neuson’s service intervals.

   • Replace worn parts promptly.

4. Storage

   • Store in a clean, dry area.

   • Drain fuel if not used for long periods.

---

Why Contractors Choose the BPS2050A

Contractors prefer the Wacker Neuson BPS2050A - 5100061217 because it balances compaction performance, durability, and ease of use. It’s versatile enough for multiple applications while remaining light and maneuverable for smaller jobs.

The 20-inch plate width also makes it efficient for medium-sized areas, reducing the number of passes required and saving valuable time on the jobsite.

Conclusion

The Wacker Neuson Vibroplate BPS2050A - 5100061217 is a powerful, versatile, and durable forward-travel plate compactor designed for both soil and asphalt applications. With its 20-inch base plate, strong centrifugal force, ergonomic design, and reliable gasoline engine, it provides contractors with professional-grade compaction results.

Whether you’re working on road repairs, landscaping projects, or utility trench backfills, the BPS2050A offers the perfect balance of performance, efficiency, and durability.

For contractors who want a cost-effective and long-lasting solution, the Wacker Neuson BPS2050A is an investment that pays off in productivity and jobsite results.
