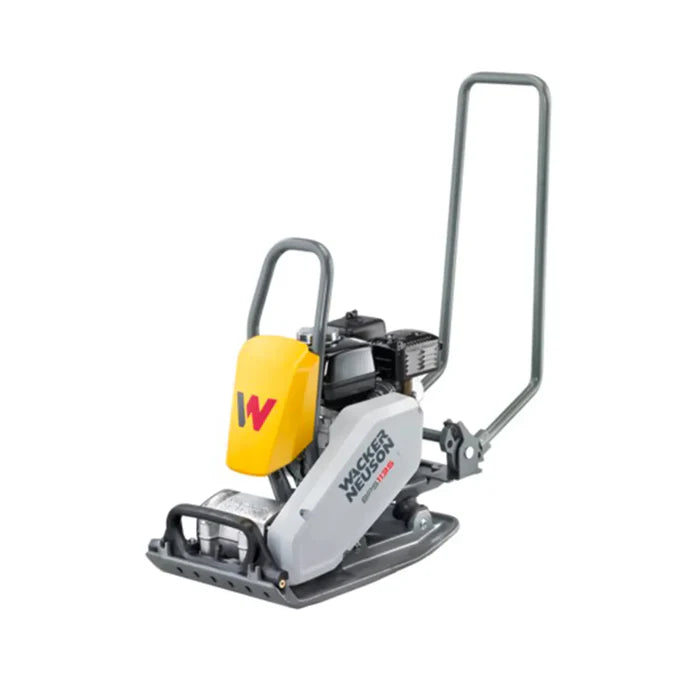

Wacker Neuson Vibroplate BPS1340Aw - 5100059659
Features
- Single-direction vibratory plate with water tank for soil and asphalt compaction
- 15.7-inch plate width
- Easy to maneuver and provides excellent compaction results
- Angular side edges of the base plate give an even, clean finish along curbs and obstructions
- The responsive guide handle results in easy and comfortable control of the machine
- Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions
- A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable
- Large water tank and efficient sprinkling system
- The BPS series is equipped with a highly sturdy fan belt and has bearings with lifetime lubrication. As a result, it is practically maintenance-free
- Wheelset and paving pad offer additional applications (sold separately)
| Wacker BPS1340AW Plate Compactor Specifications | |
| Base Plate Width | 15.7 in |
| Operating weight | 165.3 lbs | 75 kg |
| Operating Height | 26.1 in |
| Water tank capacity | 11 US qt |
| Compacted area | 6.716,7 ft2/h |
| Engine speed | up to 95 ft/min |
| Max. centrifugal force | 2,923 lbs |
| Engine Type | Honda GX160 Air-cooled, 4 cycle single cylinder |
| Displacement | 9.9 in3 |
| Fuel tank capacity | 3.9 US qt |
| Run Time | 4.75 hr |
Wacker Neuson Vibroplate BPS1340AW - 5100059659: Single-Direction Gas Plate with Water Tank for Pro Compaction
If you’re looking for a plate compactor that delivers high compaction force, excellent finishing around edges, and water suppression to handle asphalt, the Wacker Neuson Vibroplate BPS1340AW (Part Number 5100059659) is a strong option. With a diesel-free gasoline engine, a water tank, and features built for durability and control, it’s ideal for contractors, rental companies, and landscapers who need reliable performance.
In this piece, we’ll cover everything you need to rank high in SEO and understand this machine: its full spec sheet, features, what makes it special, how it stacks up against alternatives, maintenance tips, and buying advice.
What Is the BPS1340AW – 5100059659?
The BPS1340AW is part of Wacker Neuson’s BPS “single-direction plate” line, with “AW” denoting with water tank. It’s gasoline-powered (Honda engine), designed to compact soil and asphalt, especially where finish matters (curbs, obstructions, paving edges). If you need compaction in tight areas, or want smooth results without switching to electric models, this model fits in between lighter units and the largest plates.
Key Technical Specifications
Here are the most up-to-date, verified specs for the Wacker Neuson BPS1340AW (5100059659):
| Specification | Metric / Imperial Value |
|---|---|
| Operating / Machine Weight | ~ 75 kg (~ 165.3 lb) |
| Base Plate Width | ~ 400 mm (~ 15.7 in) |
| Base Plate Length | ~ 599 mm (~ 23.6 in) |
| Operating Height | ~ 663 mm (~ 26.1 in) |
| Centrifugal Force / Compaction Force | ~ 2,923 lbf (~ 13 kN) |
| Water Tank Capacity | ~ 11 US qt (~ 10.4 L) |
| Fuel Tank Capacity | ~ 3.9 US qt (~ 3.7 L) |
| Forward Speed / “Engine Speed” (Travel Speed) | Up to ~ 95 ft/min |
| Gradeability (Max Slope) | ~ 36.4 % |
| Vibration Frequency | ~ 5,880 vpm (~ 98 Hz) |
| Engine Type | Honda GX160 gasoline engine (4-stroke, single cylinder, air-cooled) |
| Displacement | ~ 9.9 in³ (~ 163 cm³) |
| Hand-Arm Vibration (HAV) | < 5 m/s² |
Standout Features of the BPS1340AW
Beyond the specs, this machine includes design features that elevate its usability, finish quality, and durability:
-
Water Tank & Sprinkler System
The built-in water tank (11 US qt) with a sprinkling system helps prevent asphalt from sticking to the base plate, cools the surface, reduces dust, and contributes to smoother finishes, especially in paving or asphalt work. -
Angular Side Edges and Rounded Rear Design
The base plate has angled edges at the front and rounded rear edges to minimize tracking or damage when turning, and to produce clean edges along curbs and obstructions. -
Low Hand-Arm Vibration (HAV)
Less than 5 m/s², making it more comfortable and safer for operators during long shifts. -
Ease of Transport & Handling
Ergonomic guide handle, carrying handles, large lifting eye help with moving/loading. Wheelset options and paving pads available as accessories. -
Durable Components & Maintenance-Friendly Design
Lifetime lubrication on bearings, sturdy fan belt, durable plate material, air-cooled Honda engine; all reduce frequent maintenance.
Benefits & What You Get Out of It
Here are the key benefits when using the BPS1340AW on job-sites:
-
Improved Surface Finish: With water suppression and smart plate design, it excels at clean edges, reducing rework near curbs or transitions.
-
Strong Compaction Power: ~13 kN & large plate surface gives enough power for mixed base materials, asphalt patching, soil compaction.
-
Easy Operation: Low vibration, responsive handle, decent forward speed—helps reduce fatigue and increase productivity.
-
Versatility: Works for both asphalt and soil/gravel applications. The “with water tank” design extends usability on hot asphalt and helps in dust suppression.
-
Reliable Engine, Parts Access: Honda GX160 is a proven engine; parts are widely available.
-
Good Value vs Size: Offers strong force (close to larger plates) while still being manageable in size and weight (≈ 165 lbs) for transport and use around tighter areas.
Use Cases & Ideal Applications
Here are situations where the BPS1340AW shines:
-
Asphalt patch repair, especially along edges or around forms where water and clean edges matter.
-
Sidewalks, driveways, patios, walkways—places where surface finish and curb detail make a difference.
-
Utility work, trenches, forms near structures, where you need compaction but also control in maneuvering.
-
Rental yards needing a gasoline plate option with water suppression for customers doing asphalt jobs.
-
Construction or paving work in hotter climates, where dust and asphalt sticking can be issues.
Comparison: BPS1340AW vs Alternatives
Here’s how this model stacks up against similar machines and alternatives:
| Competitor / Alternative | Pros Compared to BPS1340AW | Cons / Trade-Offs |
|---|---|---|
| Smaller Gas Plates (e.g. BPS1135AW) | Lower cost, lighter for transport, easier in very tight spaces | Less compaction force, less coverage per pass; may need more passes on heavy/asphalt work |
| Larger Plates (e.g. BPS1550A/BPS1550AW) | Higher force, larger coverage per pass | Heavier, less maneuverable, more challenging in tight or edge work; higher cost |
| Battery / Electric Plates | Zero emissions, less maintenance on fuel parts, quieter operation | Battery expense, power sometimes less consistent under heavy load, runtime limits; water suppression may be optional or absent |
| Reversible Plates | Ability to travel backward without lifting, useful in trenches | More complex mechanics, heavier, more expensive; maintenance may be higher |
Important Buying & Operational Tips
For buyers or users considering or using the BPS1340AW, here are best practices:
-
Fuel & Oil Maintenance: Use quality gasoline, change engine oil per Honda’s schedule, keep air filter clean.
-
Use the Water Tank: Regularly fill and use sprinkler especially when compacting asphalt or cold mix—prevents drag and stick to the base plate.
-
Plate Clean-Up After Use: Remove any build-up on plate—sticks, asphalt, etc.—for best finish, less wear.
-
Inspect & Maintain Belts / Bearings: Even though bearings are lifetime lubricated, other moving parts still need observation; ensure the fan belt is tight and in good condition.
-
Observe Gradeability & Speed Limits: Avoid pushing the machine too fast or using steep slopes beyond spec (36.4 %)—this keeps engine, clutch, and plate life longer.
-
Transport Considerations: At ~165-170 lbs, need proper handling or equipment; consider mounting or lifting points.
-
Storage & Winterization: Drain fuel or use fuel stabilizer, protect from moisture if idle; flush water tank if using water to avoid freeze damage.
Summary / Conclusion
The Wacker Neuson Vibroplate BPS1340AW - 5100059659 is a high-value, gasoline single-direction vibratory plate compactor with water tank built in. It offers strong compaction force (~13 kN / 2,923 lb), a base plate suitable for clean edging (15.7 in), and features aimed at reducing operator fatigue and improving finish quality.
If your job demands include asphalt work, paving, trimming near curbs, or asphalt patch repairs where finish, water suppression, and durability matter, this model is an excellent choice.
For contractors or rental outfits looking for a gasoline plate with water capability that delivers both strength and finesse, BPS1340AW delivers a strong performance/value mix.
