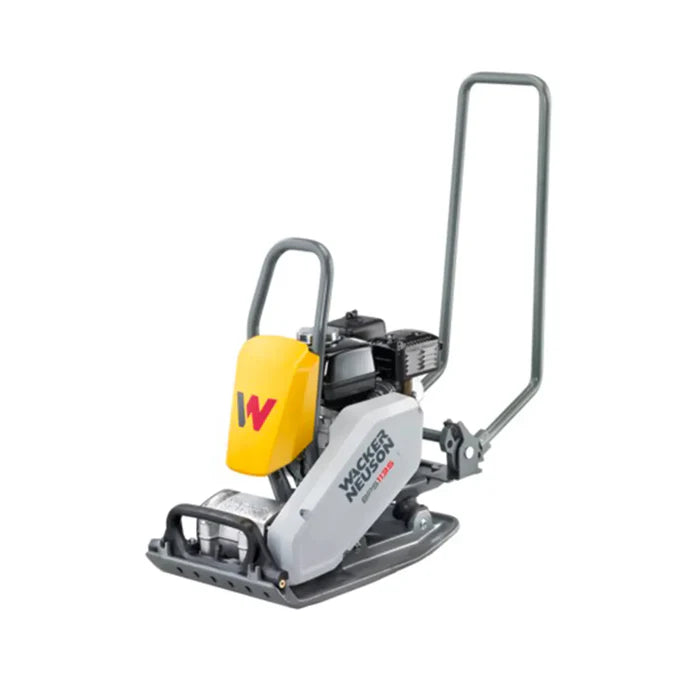

Wacker Neuson Vibroplate BPS1340A - 5100059906
Features
- Tough, wear-resistant baseplate offers high strength and shock resistance
- The baseplate has a tapered bottom and edges for high speed and excellent maneuverability
- Designed for the compaction of granular and mixed materials with some cohesive content in confined areas such as parking lots, highway and bridge construction, next to structures, curbs, and abutments
| Wacker BPS1340A Compactor Plate Specifications | |
| Base Plate Size (L x W) | 23 x 19.5 in |
| Operating weight | 156 lbs | 71 kg |
| Operating Height | 26.1 in |
| Compacted area | 7,492 ft 2/hr |
| Forward speed | up to 95 ft/min |
| Max. centrifugal force | 2,923 lbs |
| Engine Type | Air-cooled, 4 cycle single cylinder |
| Displacement | 9.9 in3 |
| Fuel tank capacity | 3.9 US qt |
| Run Time |
4.75 hr |
Wacker Neuson Vibroplate BPS1340A – 5100059906: High-Performance Single-Direction Gasoline Plate Compactor
When you need strong compaction force, durability, and excellent finishing—especially in asphalt or mixed soil jobs—the Wacker Neuson BPS1340A (Part Number 5100059906) delivers. This single-direction vibratory plate combines a powerful gasoline engine, solid build quality, and operator comfort features to make it a reliable choice on job sites that require performance without compromise.
Technical Specifications – BPS1340A (5100059906)
Here are the detailed, verified specs for the BPS1340A:
| Spec | Value |
|---|---|
| Operating Weight | ~ 156.5 lb (≈ 71 kg) |
| Base Plate Size (Length × Width) | ~ 23.6 in × 15.7 in (≈ 599 mm × 400 mm) |
| Operating Height | ~ 26.1 in (≈ 663 mm) |
| Centrifugal / Compaction Force | ~ 2,923 lb‐force (~ 13 kN) |
| Max Forward Speed | Up to ~ 95 ft/min |
| Gradeability (Max Slope) | ~ 36.4 % |
| Engine | Gasoline, Air‐cooled, 4-cycle, single-cylinder; displacement ~ 118 cm³ (≈ 9.9 in³); nominal power ~ 3.5 hp / ~ 2.6 kW at 3,600 rpm |
| Fuel Tank Capacity | ~ 0.66 US gallon (~ 2.5 L) |
| Base Plate Thickness | ~ 8 mm (0.3 in) |
| Hand-Arm Vibration (HAV) | < 5 m/s² |
| Compacted Area Capacity | ~ 6,716.7 ft²/h (≈ 624 m²/h) |
Key Features & Highlights
The BPS1340A includes many features that contribute to its strong performance and usability:
-
Durable and wear-resistant base plate: Built to resist shock, wear, and heavy use.
-
Tapered bottom and edges on base plate: Improves turning, reduces tracking and scarring on fresh asphalt.
-
Low hand-arm vibration: Helps reduce operator fatigue, increases comfort during extended operation.
-
Guiding / control handle with ergonomic design for easier steering and maneuverability.
-
Maintenance-friendly build: Sturdy V-belt drive, bearings with long-life lubrication, quality materials.
-
Solid engine choice: Reliable Honda GX120 or similar, with sufficient displacement and power for many compacting tasks.
Benefits of Using the BPS1340A
What users get out of choosing the BPS1340A includes:
-
Efficient Coverage – With its ~15.7-inch base plate and 13 kN force, the BPS1340A compacts larger areas relatively quickly without sacrificing finish.
-
Strong Asphalt & Soil Performance – Suitable both for soil base compaction and asphalt patch/repair work; handles mixed materials well.
-
Operator Comfort & Lower Fatigue – Low vibration, ergonomic handles, good balance help reduce strain and potential injury.
-
Durability for Job Site Use – Built to survive rough conditions: thick plate, solid engine, sturdy frame, minimal weak points.
-
Reliable Gasoline Operation – Fuel system is simple; engine parts are common and easier to maintain than highly technical electric systems (for many users).
-
Good Maneuverability & Finish – Tapered plate edges and smooth turning allow clean edges near curbs, forms, and tight spaces.
Applications & Ideal Use Cases
This plate is well-suited for:
-
Paving and patching asphalt, particularly in driveways, patches, parking lots.
-
Sub-base or base compaction for sidewalks, curbs, landscaping.
-
Utility or trench backfill compaction in areas where reversing or backing up is minimal.
-
Site prep in mixed soil materials (gravel, sand, asphalt fines).
-
Projects that require mobility and transportability, where weight and size are manageable.
-
Contractors who prefer gasoline power for remote locations or convenience of refueling.
Comparison: BPS1340A vs Other Plate Compactors
Here’s how BPS1340A compares to some alternatives:
| Model / Type | Pros vs BPS1340A | Trade-Offs / Limitations |
|---|---|---|
| Smaller single-direction plates (e.g., ~11-kN, 350 mm width) | Easier in tight or constrained spaces; lighter to carry/transport; possibly less fuel consumption | Lower force, more passes needed; slower coverage |
| Larger plates or reversible plates | Greater force, larger base for faster work on large areas; reversible capability for backing/trench work | Heavier, less maneuverable; potentially more expensive; fuel use increases; handling more difficult in tight spaces |
| Battery / Electric Plates | No exhaust, often quieter, less fuel maintenance; attractive for indoor or emission-sensitive zones | Battery capacity limits; up-front battery/charger cost; may lack the power or weight for heavy compaction in all soils; potentially more downtime during charging |
Best Practices & Maintenance Tips
To get lasting value and keep performance high:
-
Use clean fuel; maintain engine oil, air filter, spark plug per manufacturer recommendations.
-
Inspect and maintain the V-belt drive regularly; ensure belt tension and alignment are correct.
-
Clean base plate after use—remove asphalt or sticky materials to prevent buildup and maintain smooth finish.
-
Make sure vibration mounts, handles, and frame bolts stay tight—loose components can lead to excessive vibration and wear.
-
Store machine protected from weather; when idle, cover and clean thoroughly.
-
Use correct slope & operating conditions (don’t push beyond gradeability) to preserve engine and plate integrity.
Conclusion
The Wacker Neuson Vibroplate BPS1340A – 5100059906 is a strong single-direction gasoline plate compactor that hits a sweet spot between power, size, and performance. With ~13 kN compaction force, ~400 mm plate width, solid build, and operator-friendly features, it's built for contractors who need reliable compaction in soil and asphalt, good finish, and manageable portability.
If you want a machine that balances force, finishing, and usability, without moving to much larger or heavier equipment (or dealing with battery limitations), the BPS1340A is an excellent choice.
