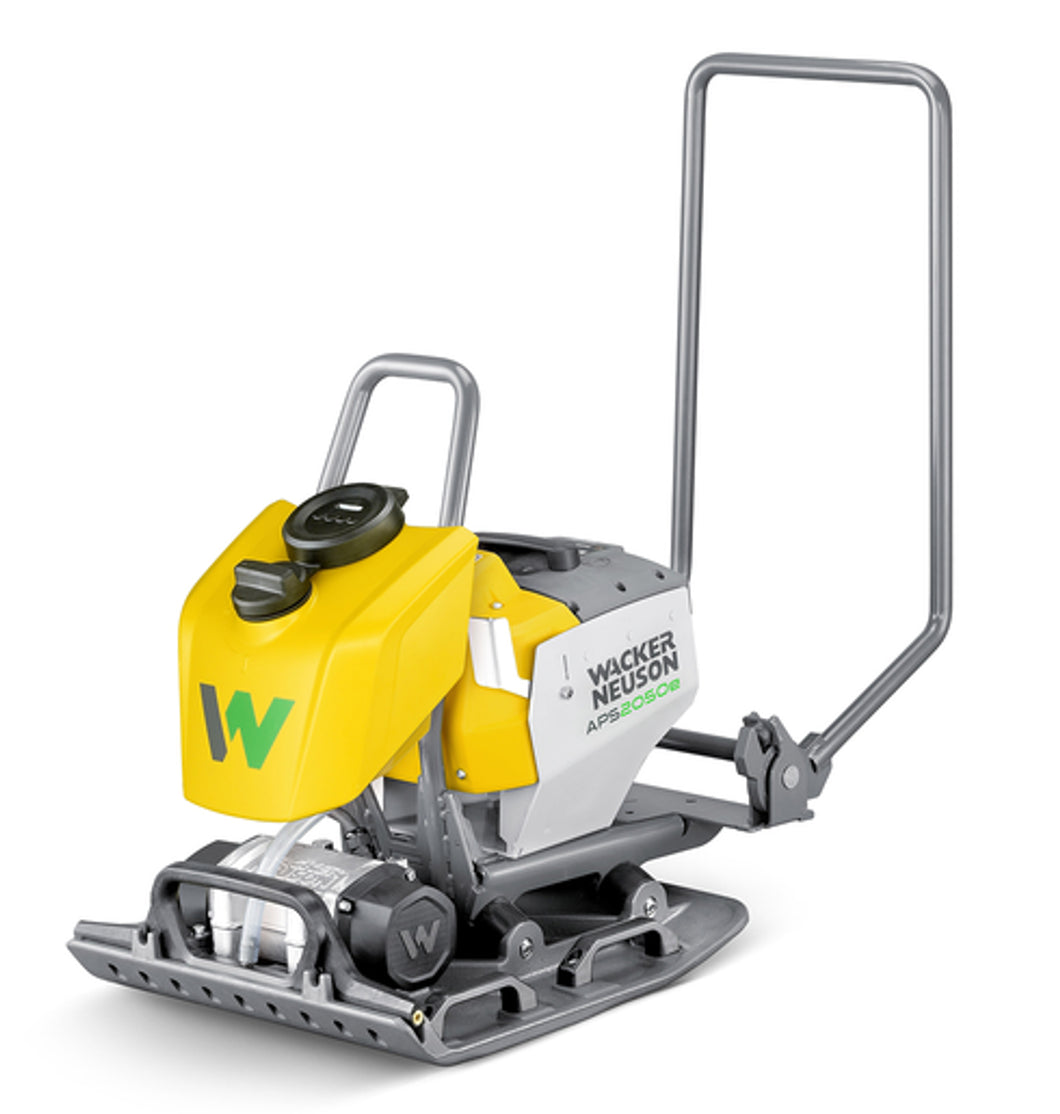

Wacker Neuson Vibroplate APS2050we - 5100061222
Wacker Neuson APS2050we - Battery-Powered Vibratory Single-Direction Plate w/19.7" width & 4496 lb CF (TOOL ONLY, NO BATTERY)
The Wacker Neuson APS2050we Battery-powered Plate is a high-performance tool for completing tasks quickly and efficiently. This plate compactor packs all the power you need with a push of a button, and its maintenance free electric motor ensures that it will operate according to your needs without ever short falling in performance.
Easily remove the battery to replace or service it and get back to work quickly, optimizing your work results. With low hand-arm vibration and constant power output, this compact able plate is powerful enough for even the toughest job sites while providing comfort and ease of use to the user. Get yours today.
Single direction, emission-free vibratory plate with water tank for soil and asphalt compaction. With battery-operated electric motor
- Easy to maneuver and provides excellent compaction results.
- Angular side edges of the base plate provides even, clean finish along curbs and obstructions.
- The responsive guide handle results in easy and comfortable control of the machine
- Low hand-arm vibration of less than 5 m/s², which enables long, comfortable working conditions.
- Easy to transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable.
- Large water tank and efficient sprinkling system
- Maintenance-free due to the direct drive with no v-belt and lifetime lubricated bearings.
- Battery system: The battery is easy to remove without tools and can also be used for all other battery devices by Wacker Neuson.
- Accessories are available: Wheel set and paving pad offer additional applications.
A battery is required to operate this vibratory plate. The battery and battery charger are sold separately.
- 5100025709: BP1000 Battery
- 5100048620: BP1400 Battery
- 5100028231: C48/13 Fast Battery Charger
- 5100061939: C48/7 Standard Battery Charger
- 5100051761: Integrated Battery Charger in a Transport Box
- 5100051760: Transport Box for BP1000 Battery
|
MECHANICAL - OUTPUT DETAILS |
Imperial |
Metric |
|
Vibrations |
5.880 1/min |
5.880 1/min |
|
Gradeability |
46,6 % |
46,6 % |
|
Centrifugal force |
4.496 lbf |
20,000 kN |
|
Vibrations (Hz) |
98,0 Hz |
98,0 Hz |
|
Area capacity |
8.073,0 ft2/h |
750 m2/h |
|
ELECTRICAL - OUTPUT DETAILS |
Imperial |
Metric |
|
|
|
Nominal current |
21,50 A |
21,50 A |
|
|
|
Nominal voltage |
51 V |
51,0 V, 51,0 V, 51,0 V |
51 V |
51,0 V, 51,0 V, 51,0 V |
|
Kind of current (Output) |
DC, DC, DC, DC |
DC, DC, DC, DC |
||
|
Nominal power [P] |
1,20 kW |
1,20 kW |
||
|
ELECTRICAL SYSTEM |
Imperial |
Metric |
|
Range AP2560e |
5.683 ft2, null, 3.305 ft2 |
528 m2, null, 307 m2 |
|
Integrated transformer |
yes |
yes |
|
Charge level indicator |
yes, yes, yes |
yes, yes, yes |
|
Recommended Battery Typ |
BP 500, BP 1000, BP 1400 |
BP 500, BP 1000, BP 1400 |
|
Battery identifier |
14INR19/66-8, 14INR19/65-8, 14INR19/65-8 |
14INR19/66-8, 14INR19/65-8, 14INR19/65-8 |
|
Battery runtime |
30 min, 60 min, 90 min |
30 min, 60 min, 90 min |
|
Range AP1850e |
6.781 ft2, 9.494 ft2, 3.391 ft2 |
630 m2, 882 m2, 315 m2 |
|
Range AP1840e |
3.251 ft2, 6.566 ft2, 9.192 ft2 |
302 m2, 610 m2, 854 m2 |
|
Range AS30e |
902,2 Foot, 2.526,2 Foot, 1.624,0 Foot |
275 m, 770 m, 495 m |
|
Range AS50e |
1.154,9 Foot, null, 866,1 Foot |
352 m, null, 264 m |
|
Installed energy |
1.425,0 Wh, 504,0 Wh, 1.008,0 Wh |
1.425,0 Wh, 504,0 Wh, 1.008,0 Wh |
|
Range AS60e |
1.023,6 Foot, null, 853,0 Foot |
312 m, null, 260 m |
|
Installed capacity |
10 Ah, 28 Ah, 20 Ah |
10 Ah, 28 Ah, 20 Ah |
|
Range ACBe |
5,6 h, 2,0 h, 4,0 h |
5,6 h, 2,0 h, 4,0 h |
|
Type of battery |
Li-Ion, Li-Ion, Li-Ion |
Li-Ion, Li-Ion, Li-Ion |
|
Breaker Switch On/Off |
Yes, Yes, Yes, Yes |
Yes, Yes, Yes, Yes |
<td width="240
|
ENVIRONMENT DATA |
Imperial |
Metric |
|
Operating temperature range |
14 - 122 °F, 14 - 122 °F, 14 - 122 °F, 32 - 104 °F |
-10 - 50 °C, -10 - 50 °C, -10 - 50 °C, 0 - 40 °C |
|
Sound power LWA, guaranteed |
105,0 dB(A) |
105,0 dB(A) |
|
Storage temperature range |
-22 - 122 °F, -22 - 122 °F, -22 - 122 °F, -22 - 122 °F |
-30 - 50 °C, -30 - 50 °C, -30 - 50 °C, -30 - 50 °C |
|
HAV summation (average value) |
8,2 ft/s2 |
2,5 m/s2 |
|
Uncertainty in measurement HAV |
1,6 ft/s2 |
0,5 m/s2 |
|
HAV summation (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound level LpA |
89,0 dB(A) |
89,0 dB(A) |
|
Degree of protection |
IP2X, IP2X, IP2X |
IP2X, IP2X, IP2X |
|
Sound power LWA (Standard) |
EN 500-4 |
EN 500-4 |
|
Sound power LWA, measured |
104,0 dB(A) |
104,0 dB(A) |
