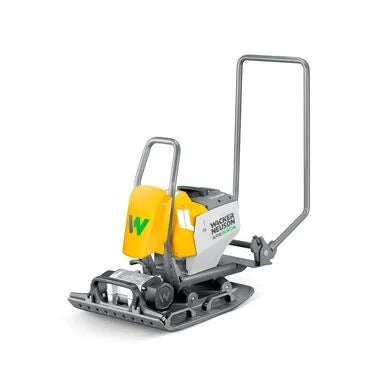

Wacker Neuson Vibroplate APS1550e - 5100061219
Specs
Wacker Neuson Vibroplate APS1550e – 5100061219: Battery-Powered Power Meets Clean, Efficient Compaction
As jobsite demands grow for lower emissions, quieter operation, and reduced maintenance, electric compaction tools are becoming increasingly essential. The Wacker Neuson APS1550e (Part Number 5100061219) delivers on all fronts. It is a battery-powered, single-direction vibratory plate from Wacker Neuson’s APS (electric) line designed to combine high performance with environmentally friendly operation. Perfect for contractors, landscapers, municipalities, and rental fleets wanting modern, clean, and powerful compaction.
What Is the APS1550e?
The APS1550e is a single-direction vibratory plate compactor in Wacker Neuson’s zero-emission electric APS range. It is sold “tool-only” (battery and charger not included by default) under SKU 5100061219. It runs on Wacker Neuson’s BatteryOne compatible batteries (BOB14, BOB10, BOB5), featuring a push-button start, removable battery, and direct-drive electric motor with minimal maintenance compared to traditional engines.
Key Specifications & Technical Data
Here are the core specs for the APS1550e:
| Feature | Value |
|---|---|
| Centrifugal Force | Approx. 15 kN (~3,372 lbf) |
| Working/Base Plate Width | 500 mm (~19.7-20 in) |
| Weight (Bare / Tool-Only) | ~ 169 lbs (≈77 kg) |
| Dimensions (L × W × H) | Length ~24 in (base plate length 23.6 in / 599 mm), Width ~19.7 in, Height ~26.1 in |
| Frequency / Vibrations | 5,880 vibrations/min (~98 Hz) |
| Gradeability (Max Slope) | 46.6% |
| Area Capacity | ~ 8,073 ft²/h (~750 m²/h) depending on battery used |
| Nominal Voltage & Power | 51 V, ~1.20 kW output |
| HAV (Hand-Arm Vibration) | < 5 m/s² |
| Warranty | ~ 2 years / 2,000-hour machine warranty (tool-only) |
Features & Design Highlights
The APS1550e includes many built-in design advantages:
-
Push-button start, eliminating the need for pull cords or fuel-engine starting issues.
-
Maintenance-free electric motor: direct drive, no belts, no combustion engine parts like fuel filters, mufflers, carburetors. That reduces downtime and costs.
-
Removable battery: battery swaps are tool-free so you can easily replace or recharge on site. Multiple battery types supported (BOB14, BOB10, BOB5) depending on needed runtime.
-
Optimized base plate geometry: angular front edges and rounded rear help produce clean finishes, especially at curbs or when turning on fresh asphalt, reducing scarring or damage.
-
Precise handling & operator comfort: guide handle has responsive steering; low HAV (<5 m/s²) helps reduce fatigue during continuous work.
-
BatteryOne Ecosystem compatibility: battery system is shared across multiple tools, reducing investment if you already have compatible batteries.
Benefits of Using the APS1550e
Why contractors and fleet managers prefer the APS1550e:
-
Zero Emissions & Clean Operation – No fuel, no exhaust fumes; suitable for indoor jobs, emission-restricted work zones.
-
Lower Operating & Maintenance Costs – Fewer moving mechanical parts and no combustion engine maintenance means less servicing.
-
Long Runtime Options – Depending on battery choice, you can get decent uptime; battery swap systems help maintain productivity.
-
Comfort for Operators – Lower vibration, no pulling cords, more ergonomic handles make the job easier.
-
Professional Finish – Clean cuts, edges, minimal damage thanks to plate geometry and control. Great for paving, asphalt, base layers.
-
Versatility & Use in Sensitive Areas – Urban, residential, indoor, or noise-sensitive sites where traditional gas/diesel tools are difficult to use.
Applications & Use Cases
The APS1550e is well suited to:
-
Compaction of soils and base layers for paving, driveways, parking lots.
-
Vibrating paving stones or setting beds.
-
Asphalt patch work (with optional water tank to suppress dust and aid compaction).
-
Utility trench backfills and repair work.
-
Jobs in manufactured environments or interior jobs where fume control is essential.
-
Rental fleets that serve customers in both urban and remote locations, leveraging battery interchangeability.
APS1550e vs Other Vibratory Plates (Electric & Traditional)
Here’s how APS1550e holds up when compared to other options:
| Comparison | APS1550e | Smaller APS Models (e.g. APS1135e) | Larger Plates & Gas/Diesel Models |
|---|---|---|---|
| Force / Coverage | 15 kN, 500 mm width → good coverage per pass | Lower force, narrower plate; better in tight spaces | Higher force, wider plates but heavier & noisier |
| Emissions & Noise | Electric, zero exhaust, quieter | Also electric, similar advantages | Traditional models generate noise/fumes |
| Maintenance | Low: electric direct drive, no belts, few consumables | Even lower in small models but less power | Higher due to fuel systems, belts, filters |
| Operating Cost | Less over time (no fuel) but battery cost upfront | Similar pattern | Fuel + maintenance add up |
| Maneuverability | Moderate: more weight than small electric plates but still easier without fuel engine concerns | Easier in tight spots | Hard to maneuver, especially inside or in constrained spaces |
Technical Details & Spec Recap
-
Part Number / SKU: 5100061219 (tool-only)
-
Nominal Voltage / Power: 51 V, 1.20 kW motor output
-
Centrifugal Force: 15 kN (~3,372 lbf)
-
Plate Width: 500 mm (~19.7 in)
-
Overall Weight (Tool-Only): ~169 lbs (~77 kg) without battery/charger
-
Dimensions: ~24 in length, ~19.7 in width, ~26.1 in height
-
Vibration Frequency: ~5,880 vibrations per minute (≈98 Hz)
-
Gradeability: 46.6% slope capability
-
Area Capacity: ~8,073 ft²/h (~750 m²/h) depending on battery used
Maintenance Tips
To ensure long life and top performance:
-
Use only compatible batteries and chargers as specified by Wacker Neuson.
-
Keep battery contacts clean, and avoid exposing battery to extreme temperatures beyond rated range (often 0-40 °C for tools)
-
Clean base plate regularly — asphalt or debris buildup reduces compaction quality.
-
Check all bolts, handle joints, vibration mounts. Even though fewer mechanical parts, structural integrity matters.
-
Store the machine and batteries in dry, sheltered conditions when not in use.
-
Follow the gradeability limits and avoid overloading or forcing the machine beyond its capability.
Conclusion
The Wacker Neuson APS1550e – 5100061219 is a high-performance, battery-powered vibratory plate that combines the demands of modern construction: clean operation, low maintenance, strong compaction force, and professional finish. It gives you 15 kN force, a 500 mm base plate, and excellent handling with low operator fatigue. For anyone needing reliable compaction in emission-sensitive areas, asphalt work, paving, or indoor/outdoor mixed job sites, the APS1550e is a compelling choice.
