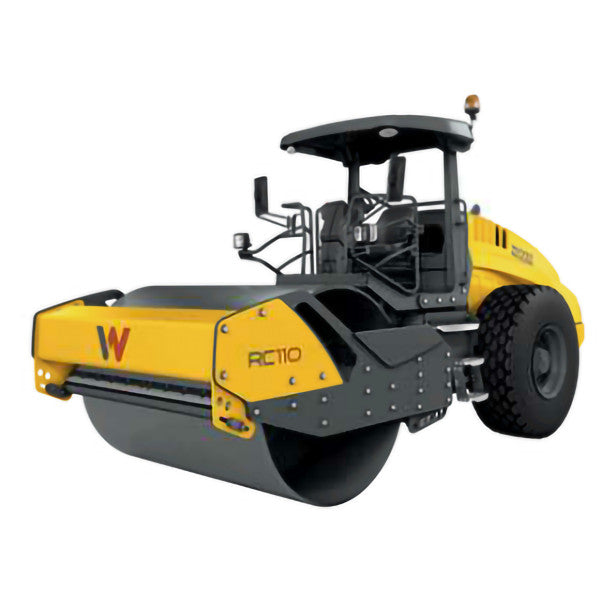

Wacker Neuson Compactor RC110 ROPS - 5100067704
-
OPERATING FLUIDS Metric Imperial
Fuel Tank capacity 280,0 l 74,0 gal US
Tank capacity AdBlue®/DEF 32,0 l 67,6 pt US
ENGINE Metric Imperial
Battery capacity (nom. value) 154 Ah 154 Ah
Speed max. 2.100 1/min 2.100 1/min
Engine Manufacturer Deere Deere
Cylinder capacity 4.500 cm3 274,6 Inch3
Standard (Effective power) ISO 14396 ISO 14396
Nominal Engine speed 2.000 1/min 2.000 1/min
Starter battery Voltage 12 V 12 V
Effective power 85,0 kW 114,0 hp
Engine Designation JDPS 4045EWS JDPS 4045EWS
MECHANICAL - OUTPUT DETAILS Metric Imperial
Vibration frequency II (front) 36 Hz 36 Hz
Compaction force II(front) 218 kN 49.008 lbf
Amplitude Level I (front) 1,95 mm 0,0768 "
Centrifugal force II (front) 155 kN 34.845 lbf
Gradeability 52,0 % 52,0 %
Compaction force I (front) 313 kN 70.365 lbf
Static linear load (front) 29,93 kg/mm 1.681,46 lb/in
French classific., catalog/class 40,5/VM3 40,5/VM3
Linear load w. vibr.II (front) 1.040,00 kg/mm 58.426,97 lb/in
Amplitude Level II (front) 0,85 mm 0,0335 "
Centrifugal force I (front) 250 kN 56.202 lbf
Compaction force II(rear) 55 kN 12.364 lbf
Gradeability max. (without vib 58,0 % 58,0 %
Linear load w. vibr. I (front) 1.490,00 kg/mm 83.707,87 lb/in
Vibration frequency I (front) 30 Hz 30 Hz
Compaction force I (rear) 55 kN 12.364 lbf
Travel speed 0,0 - 11,8 km/h 0,0 - 7,3 m/H
ENVIRONMENT DATA Metric Imperial
Exhaust aftertreatment DOC-DPF-SCR DOC-DPF-SCR
CO (NRTC) 0,0621 g/KWh 0,0621 g/KWh
CO2 (NRTC) 819,2 g/KWh 819,2 g/KWh
Exhaust-gas limit EU Stage V, US TIER 4 EU Stage V, US TIER 4
Sound power LWA, guaranteed 106,0 dB(A) 106,0 dB(A)
PM (NRTC) 0,0016 g/KWh 0,0016 g/KWh
Particle filter yes yes
Catalyst yes yes
Vibration, Whole Body <= 0,5 m/s 21,6 ft/s2
MECHANICAL DETAILS Metric Imperial
Empty weight with ROPS 11.445 kg 25.231,9 lb
Curb clearance (left) 477 mm 18,8 "
Curb clearance right 77 mm 3,0 "
Curb clearance (right) 477 mm 18,8 "
Wheelbase 3.266 mm 128,6 "
Drum diameter (front) 1.504 mm 59,2 "
Total height with ROPS 3.054 mm 120,2 "
Dry Weight 11.695,0 kg 25.783,1 lb
Slope angle (front) 34 ° 34 °
he drum begins very high up allowing for compaction to take place right to the edge of higher walls. This allows for a wider range of applications and greater efficiency. - The three-point articulated pendulum joint results in an even distribution of the weight on the front and rear drums/tires. This allows an even, high-quality compaction result.
- The even distribution of the weight on the front and rear drums/tires offers a high level of tipping safety as well as stability on turns. This increases safety.
- The even weight distribution reduces tire wear, saving spare parts costs.
- The hydraulic traction control (Automatic Slip Control) ensures that the wheels do not spin. This means the roller achieves excellent gradeability and high mobility, even on rough terrain.
- The hydraulic traction control increases operator safety, as the roller does not slip as quickly on slopes.
- The ROPS bar folds down to allow for compact transport and storage dimensions. This saves time and expense.
- By folding down the ROPS bar, the spectrum of applications expands, because the roller can also pass under low clearances. This makes it possible for use in the inner courtyards of buildings, etc.
Wacker Neuson Compactor RC110 ROPS - 5100067704
In the world of heavy compaction equipment, Wacker Neuson is a name synonymous with durability, innovation, and performance. One of the standout models in their lineup is the Wacker Neuson Compactor RC110 ROPS - 5100067704, a robust soil compactor designed for medium to large-scale earthworks projects. With its reliable diesel engine, operator-focused safety features, and advanced compaction technology, this model delivers the strength and efficiency contractors demand.
This guide explores everything you need to know about the RC110 ROPS soil compactor, including technical specifications, benefits, features, applications, and maintenance tips. Whether you’re a contractor, fleet manager, or project supervisor, this resource will give you detailed insights into why the RC110 ROPS is a top-tier investment in soil compaction.
What Is the Wacker Neuson Compactor RC110 ROPS - 5100067704?
The Wacker Neuson RC110 ROPS is a single-drum soil compactor engineered to handle a wide range of compaction tasks on roads, embankments, commercial sites, and large construction projects. The designation ROPS refers to its Roll-Over Protective Structure, which ensures operator safety in case of rollovers, meeting stringent safety standards for modern jobsites.
This model is built for powerful compaction performance and is optimized for cohesive and mixed soils, making it ideal for infrastructure and earthworks applications.
Key Features of the RC110 ROPS
1. Powerful Diesel Engine
The RC110 is powered by a high-performance diesel engine that meets emissions regulations while delivering fuel efficiency and reliable torque for heavy-duty compaction tasks.
2. ROPS Safety System
The built-in Roll-Over Protective Structure (ROPS) provides operators with peace of mind, ensuring compliance with jobsite safety standards.
3. High Compaction Force
The single drum vibratory system offers high amplitude and frequency settings, enabling the machine to compact cohesive, semi-cohesive, and granular soils with ease.
4. Ergonomic Operator Station
Operators benefit from an intuitive control panel, adjustable seating, and vibration-dampened design that reduces fatigue during long work shifts.
5. Durable Build
Heavy-duty components and a reinforced drum design extend the machine’s service life and minimize maintenance downtime.
6. Ease of Maintenance
The compactor provides easy access to service points and diagnostics, reducing maintenance time and costs.
Technical Specifications of the RC110 ROPS - 5100067704
-
Model: RC110 ROPS
-
Part Number: 5100067704
-
Machine Type: Single-drum soil compactor
-
Operating Weight: Approx. 25,000 lbs (varies by configuration)
-
Engine: Diesel, EPA Tier 4 compliant
-
Drum Width: ~84 inches (2,130 mm)
-
Frequency: 28–35 Hz depending on vibration settings
-
Amplitude: Low and high settings available
-
Centrifugal Force: Approx. 55,000–60,000 lbs (depending on configuration)
-
Travel Speed: Up to 7.5 mph (12 km/h)
-
Safety Feature: Integrated ROPS for operator protection
(Specifications may vary slightly depending on regional configurations and attachments.)
Benefits of the Wacker Neuson RC110 ROPS
1. Exceptional Compaction Performance
With its heavy drum weight and strong centrifugal force, the RC110 delivers deep soil penetration and uniform compaction, reducing the number of passes required.
2. Operator Safety First
The integrated ROPS structure ensures compliance with safety standards and provides rollover protection. Combined with ergonomic seating and reduced vibration exposure, the RC110 prioritizes operator well-being.
3. Fuel Efficiency and Reliability
Wacker Neuson’s engineering ensures that the RC110 delivers maximum performance while keeping fuel consumption low, making it cost-efficient to operate on long projects.
4. Durable and Long-Lasting
Built to withstand rugged jobsite conditions, the RC110 offers durability that translates into reduced downtime and long-term cost savings.
5. Versatility Across Soil Types
The adjustable vibration settings make this compactor effective on clay, gravel, sand, and mixed soils, increasing its range of applications.
Applications of the RC110 ROPS Compactor
The Wacker Neuson RC110 ROPS - 5100067704 is widely used in construction, infrastructure, and civil engineering projects. Common applications include:
-
Road Construction: Stabilizing soil layers before paving.
-
Commercial and Industrial Foundations: Creating stable ground for large structures.
-
Embankments and Dams: Compacting large soil fills to ensure long-term stability.
-
Utility Installation: Compacting soil after trench backfilling.
-
Airport and Highway Projects: Preparing sub-base and base layers for heavy traffic.
Comparison with Other Soil Compactors
When compared to smaller compactors in the Wacker Neuson lineup, the RC110 ROPS offers:
-
Greater drum width for faster coverage.
-
Higher centrifugal force for deeper compaction.
-
ROPS protection, a critical safety feature not always standard on smaller units.
Compared to competitors, the RC110 balances performance, durability, and fuel efficiency, making it a cost-effective choice for contractors who prioritize both productivity and safety.
Maintenance and Care Tips
To maximize performance and longevity of the RC110 ROPS compactor, contractors should follow a proactive maintenance routine:
-
Daily Inspections:
-
Check fluid levels (oil, hydraulic, coolant).
-
Inspect drum for wear or damage.
-
-
Weekly Service:
-
Clean air filters and cooling systems.
-
Lubricate moving parts.
-
-
Scheduled Maintenance:
-
Follow Wacker Neuson’s official service intervals for engine and hydraulic systems.
-
Conduct diagnostic checks using built-in systems.
-
-
Storage:
-
Store in a sheltered area when not in use.
-
Protect electronics and sensors from prolonged moisture exposure.
-
Why Contractors Choose the RC110 ROPS
The Wacker Neuson Compactor RC110 ROPS - 5100067704 is trusted by contractors because it delivers the perfect balance of power, safety, and cost efficiency. With its ROPS safety system, fuel-efficient diesel engine, and advanced compaction technology, it meets the high standards required in modern construction projects.
For contractors handling large infrastructure projects, the RC110 ensures faster project completion, better soil stability, and long-term reliability.
Conclusion
The Wacker Neuson Compactor RC110 ROPS - 5100067704 is more than just a soil compactor — it’s a complete solution for modern earthworks and infrastructure projects. With its high compaction force, ROPS safety system, ergonomic design, and durable build, it offers contractors a machine that is both powerful and reliable.
For road construction, foundation preparation, embankments, or utility installations, the RC110 ROPS ensures that your projects are completed with maximum efficiency, safety, and quality.
If you’re looking for a soil compactor that combines strength, safety, and long-term value, the Wacker Neuson RC110 ROPS - 5100067704 stands out as a smart investment.
